6-47 — MUD GUARD AND INSULATOR (#76347) — 150 parça

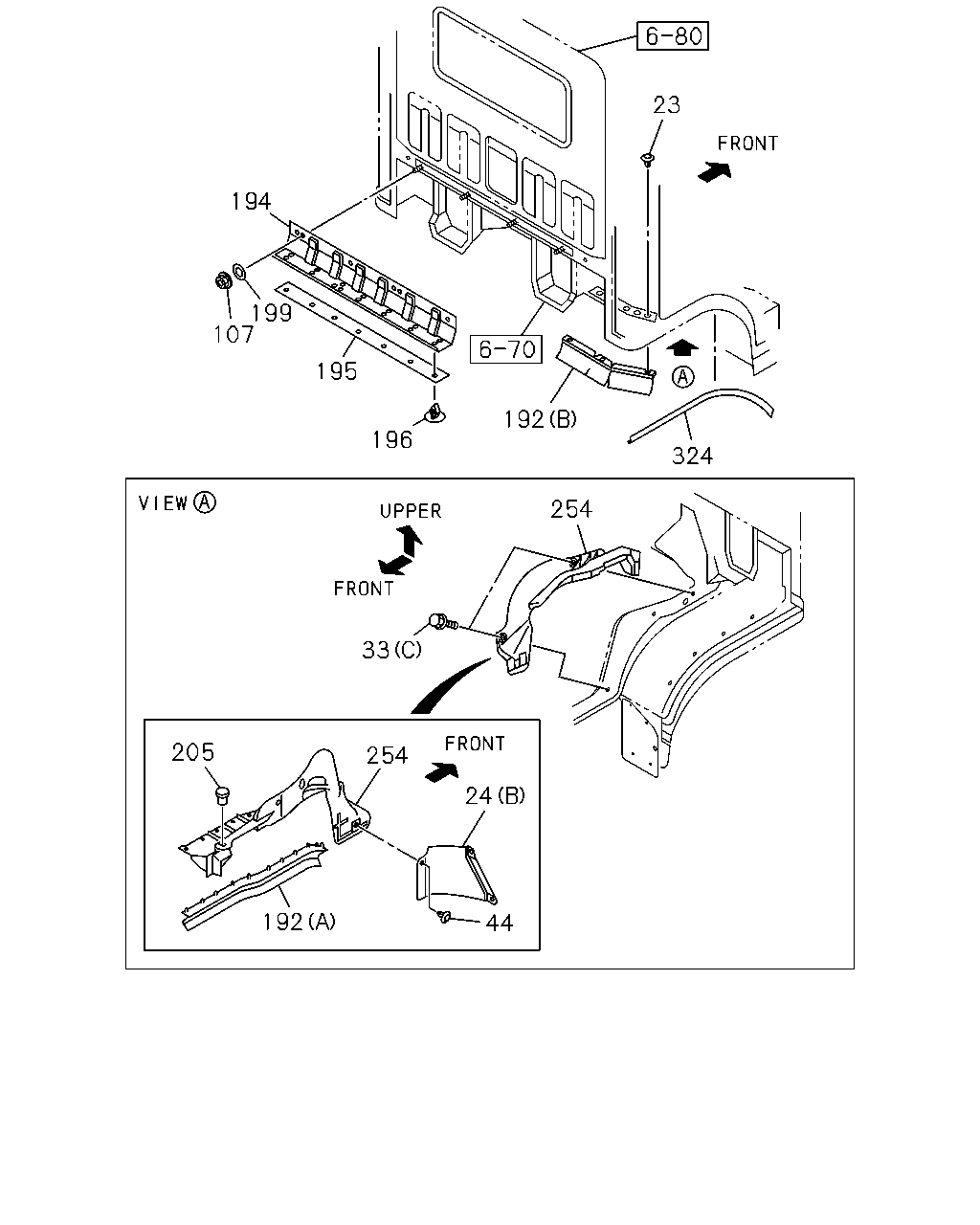

23 194 199 107 195 192 196 324 254 33 205 254 24 192 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	0905-0906	●	●
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	0907-	●	●	●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	0905-0906	●	●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	0907-	●	●	●
24	08.155 PLATE; MUD COVER (B)	8-98037-561-0	02	1	0905-0906	●	●
24	08.155 PLATE; MUD COVER (B)	8-98037-561-0	02	1	0907-0910	●	●	●
24	08.155 PLATE; MUD COVER (B)	8-98154-258-0	02	1	0911-	●	●	●
33	08.155 BOLT; MUD COVER 00.386 (A) M6X20 FLANGE	0-28050-620-0	08	1	0905-0906	●	●
33	08.155 BOLT; MUD COVER 00.386 (A) M6X20 FLANGE	0-28050-620-0	08	1	0907-1209	●	●	●
33	08.155 BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1210-	●	●	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0905-0906	●	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0907-	●	●	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	0905-0906	●	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	0907-	●	●	●
44	08.154 CLIP; ANCHOR 08.155 OD=16 L=11	1-76378-155-0	06	1	0905-0906	●	●
44	08.154 CLIP; ANCHOR 08.155 OD=16 L=11	1-76378-155-0	06	1	0907-	●	●	●
107	08.214 NUT; HEAT PROTECTOR 03.417 M6 FLANGE	8-94279-514-0	04	1	0905-		●
192	08.153 SEAL; MUD COVER (A)	8-98022-755-1	01	1	0905-0906	●	●
192	08.153 SEAL; MUD COVER (A)	8-98022-755-1	01	1	0907-	●	●	●
192	08.153 SEAL; MUD COVER (A)	8-98022-756-1	01	1	0905-0906	●	●
192	08.153 SEAL; MUD COVER (A)	8-98022-756-1	01	1	0907-	●	●	●
192	08.153 SEAL; MUD COVER (B)	8-98022-782-3	02	1	0905-0906	●	●
192	08.153 SEAL; MUD COVER (B)	8-98022-782-3	02	1	0907-	●	●	●
194	03.602 BRACKET; HEAT PROTECTOR	8-98065-107-0	01	1	0905-		●
195	03.602 PROTECTOR; HEAT	8-94272-528-1	01	1	0905-		●
196	03.602 CLIP; HEAT PROTECTOR	8-94244-922-0	07	1	0905-		●
199	03.602 WASHER; PL,HEAT PROTECTOR	8-94292-135-0	04	1	0905-		●
205	08.155 FASTENER; MUD COVER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	0905-0906	●	●
205	08.155 FASTENER; MUD COVER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	0907-	●	●	●
254	08.153 COVER; MUD,VALANCE	8-98022-750-3	01	1	0905-0906	●	●
254	08.153 COVER; MUD,VALANCE	8-98022-750-3	01	1	0907-	●	●	●
254	08.153 COVER; MUD,VALANCE	8-98022-751-3	01	1	0905-0906	●	●
254	08.153 COVER; MUD,VALANCE	8-98022-751-3	01	1	0907-	●	●	●
324	08.155 PROTECTOR; FRT FENDER	8-98022-786-2	02	1	0905-0906	●	●
324	08.155 PROTECTOR; FRT FENDER	8-98022-786-2	02	1	0907-	●	●	●

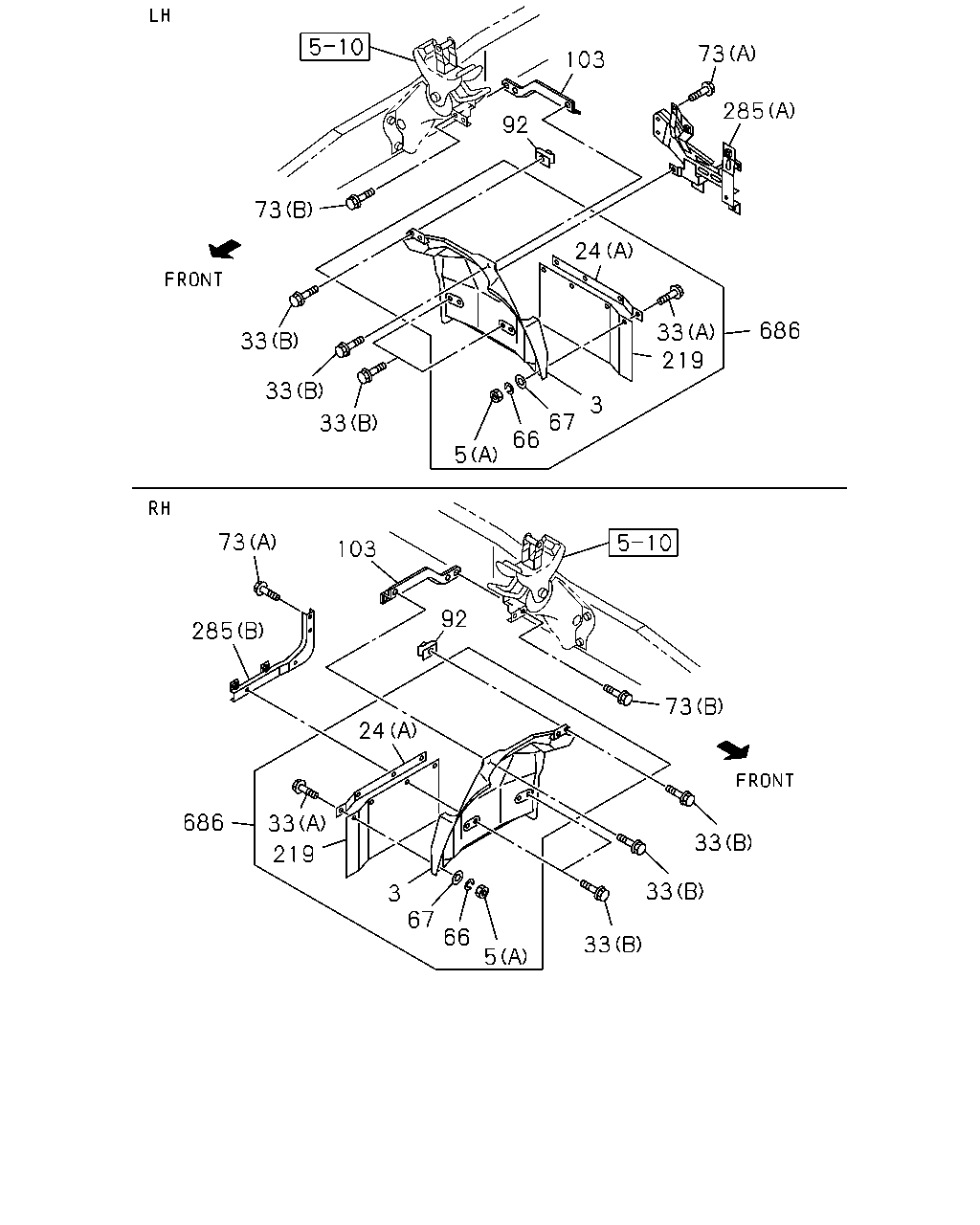

73 103 285 92 73 24 686 33 219 33 33 3 67 33 66 5 73 103 92 285 73 24 686 33 33 219 33 3 67 66 33 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	08.153 GUARD; MUD,RR	8-98004-029-5	01	1	0905-0906	●	●
3	08.153 GUARD; MUD,RR	8-98004-029-5	01	1	0907-	●	●	●
3	08.153 GUARD; MUD,RR	8-98004-030-4	01	1	0905-0906	●	●
3	08.153 GUARD; MUD,RR	8-98004-030-4	01	1	0907-	●	●	●
5	08.155 NUT; FLAP RUBBER 03.330 (A) M6	0-91110-506-0	08	1	0905-0906	●	●
5	08.155 NUT; FLAP RUBBER 03.330 (A) M6	0-91110-506-0	08	1	0907-1209	●	●	●
5	08.155 NUT; FLAP RUBBER (A) M6	8-98227-380-0	08	1	1210-	●	●	●
5	08.155 NUT; FLAP RUBBER 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	0905-		●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	0905-0906	●	●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	0907-	●	●	●
24	08.155 PLATE; MUD COVER (B)	8-98037-561-0	02	1	0905-0906	●	●
24	08.155 PLATE; MUD COVER (B)	8-98037-561-0	02	1	0907-0910	●	●	●
24	08.155 PLATE; MUD COVER (B)	8-98154-258-0	02	1	0911-	●	●	●
33	08.155 BOLT; MUD COVER 00.386 (A) M6X20 FLANGE	0-28050-620-0	08	1	0905-0906	●	●
33	08.155 BOLT; MUD COVER 00.386 (A) M6X20 FLANGE	0-28050-620-0	08	1	0907-1209	●	●	●
33	08.155 BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1210-	●	●	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0905-0906	●	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0907-	●	●	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	0905-0906	●	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	0907-	●	●	●
66	08.155 WASHER; LK ID=6.1	0-91510-606-0	08	1	0905-0906	●	●
66	08.155 WASHER; LK ID=6.1	0-91510-606-0	08	1	0907-1209	●	●	●
67	08.155 WASHER; PL 00.413 ID=6.4	0-91610-606-0	08	1	0905-0906	●	●
67	08.155 WASHER; PL 00.413 ID=6.4	0-91610-606-0	08	1	0907-1209	●	●	●
73	08.155 BOLT; MUD COVER BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	0905-0906	●	●
73	08.155 BOLT; MUD COVER BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	0907-	●	●	●
73	08.155 BOLT; MUD COVER BRKT 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	0905-0906	●	●
73	08.155 BOLT; MUD COVER BRKT 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	0907-	●	●	●
92	08.155 NUT; MUD COVER M8 SPIRE NUT	8-98039-860-2	02	1	0905-0906	●	●
92	08.155 NUT; MUD COVER M8 SPIRE NUT	8-98039-860-2	02	1	0907-	●	●	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155	8-98001-315-2	01	1	0905-0906	●	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155	8-98001-315-2	01	1	0907-	●	●	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155	8-98001-319-2	01	1	0905-0906	●	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155	8-98001-319-2	01	1	0907-	●	●	●
219	08.155 FLAP; MUD GUARD G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)	8-98004-032-1	02	1	0907-	●
219	08.155 FLAP; MUD GUARD G.V.W. 6.0-6.5TON(RPV)	8-98004-032-1	02	1	0907-		●
219	08.155 FLAP; MUD GUARD	8-98004-032-1	02	1	0907-			●
219	08.155 FLAP; MUD GUARD	8-98004-033-1	02	1	0905-0906	●	●
219	08.155 FLAP; MUD GUARD G.V.W. 7.5-8.0TON(RPY)	8-98004-033-1	02	1	0907-	●	●
285	08.155 BRACKET; MUD COVER (B)	8-98001-314-2	01	1	0905-0906	●	●
285	08.155 BRACKET; MUD COVER (B)	8-98001-314-2	01	1	0907-	●	●	●
285	08.155 BRACKET; MUD COVER (A)	8-98001-320-3	01	1	0905-0906	●	●
285	08.155 BRACKET; MUD COVER (A)	8-98001-320-3	01	1	0907-	●	●	●
686	08.155 FLAP ASM; MUD G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)	8-97387-746-7	01	1	0907-	●
686	08.155 FLAP ASM; MUD G.V.W. 6.0-6.5TON(RPV)	8-97387-746-7	01	1	0907-		●
686	08.155 FLAP ASM; MUD	8-97387-746-7	01	1	0907-			●
686	08.155 FLAP ASM; MUD G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)	8-97387-747-6	01	1	0907-	●
686	08.155 FLAP ASM; MUD G.V.W. 6.0-6.5TON(RPV)	8-97387-747-6	01	1	0907-		●
686	08.155 FLAP ASM; MUD	8-97387-747-6	01	1	0907-			●
686	08.155 FLAP ASM; MUD	8-97387-750-6	01	1	0905-0906	●	●
686	08.155 FLAP ASM; MUD G.V.W. 7.5-8.0TON(RPY)	8-97387-750-7	01	1	0907-	●	●
686	08.155 FLAP ASM; MUD	8-97387-751-5	01	1	0905-0906	●	●
686	08.155 FLAP ASM; MUD G.V.W. 7.5-8.0TON(RPY)	8-97387-751-6	01	1	0907-	●	●

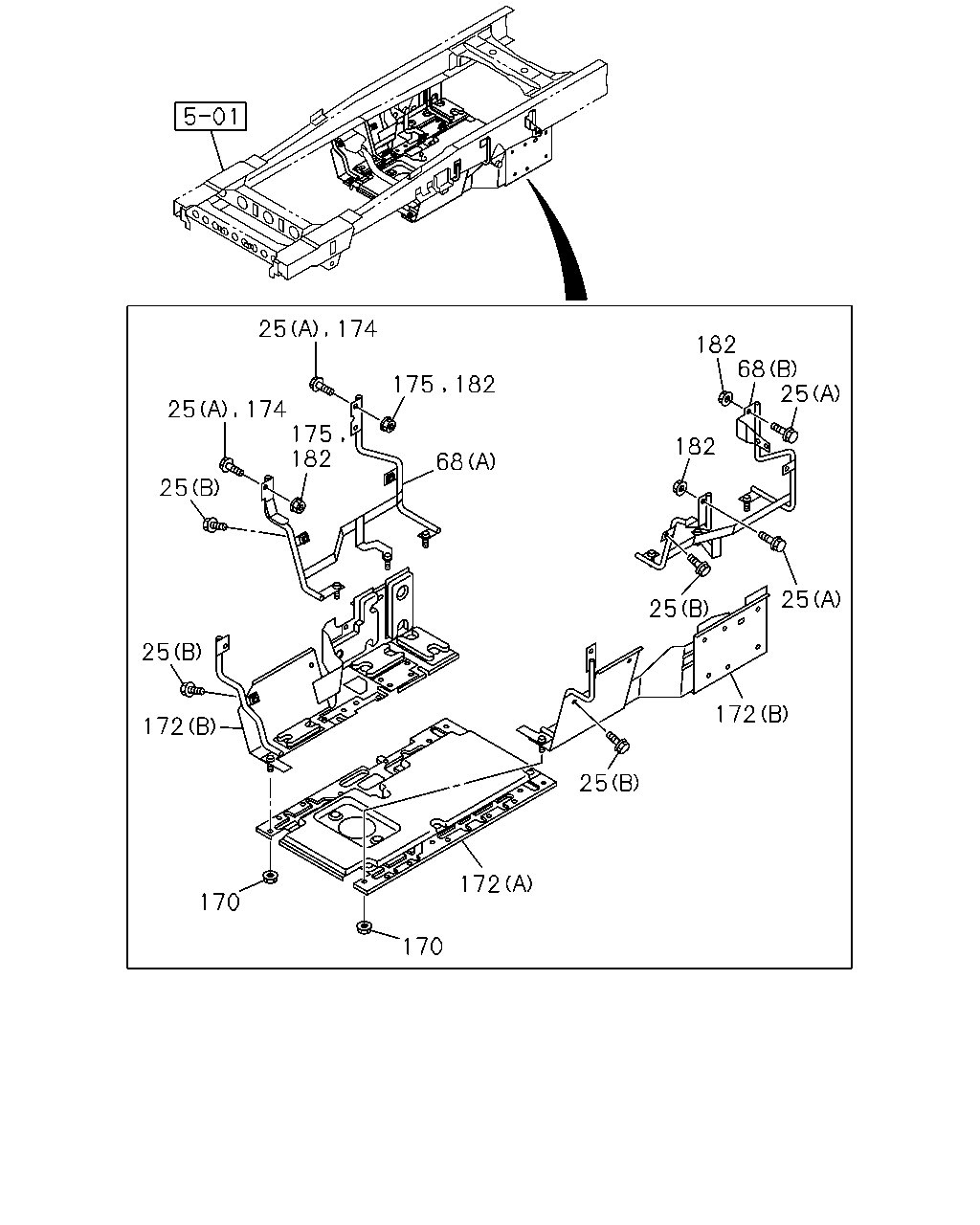

170 172 170 172 25 25 25 25 174 175 182 174 175 182 68 182 68 25 182 25 25 172 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	08.155 BOLT; PLATE TO MUD COVER 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 (A) M10X30 FLANGE	0-28651-030-0	06	1	0905-0906	●	●
25	08.155 BOLT; PLATE TO MUD COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 (A) M10X30 FLANGE	0-28651-030-0	06	1	0907-1312	●	●
25	08.155 BOLT; PLATE TO MUD COVER 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	0905-0906	●	●
25	08.155 BOLT; PLATE TO MUD COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	0907-1406	●	●
25	08.155 BOLT; PLATE TO MUD COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1407-	●	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98150-453-0	01	1	0912-1406	●	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98150-453-0	01	1	1407-	●	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98080-386-2	01	1	0905-0906	●	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98080-386-2	01	1	0907-1406	●	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98080-386-2	01	1	1407-	●	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98080-387-2	01	1	0905-0906	●	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98080-387-2	01	1	0907-0911	●	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0), TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98080-387-2	01	1	0912-1112	●	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0), TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98201-755-0	01	1	1201-1406	●	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98201-755-0	01	1	1407-	●	●
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.840 M8 W/DISHED WASHER	8-97329-625-0	08	1	0905-0906	●	●
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.840 M8 W/DISHED WASHER	8-97329-625-0	08	1	0907-1406	●	●
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.840 M8 W/DISHED WASHER	8-97329-625-0	08	1	1407-	●	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98024-942-1	01	1	0905-0906	●	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98024-942-1	01	1	0907-1406	●	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98024-942-1	01	1	1407-	●	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98079-016-3	01	1	0905-0906	●	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98079-016-3	01	1	0907-1312	●	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98225-680-0	01	1	1401-1406	●	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98225-680-0	01	1	1407-	●	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98079-017-3	01	1	0905-0906	●	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98079-017-4	01	1	0907-1406	●	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98079-017-4	01	1	1407-	●	●
174	08.155 BOLT; STAY FIX 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 M10X30 FLANGE	0-28651-030-0	06	1	1401-1406	●	●
174	08.155 BOLT; STAY FIX 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.029 M10X30 FLANGE	0-28651-030-0	06	1	1407-	●	●
175	08.155 NUT; STAY FIX 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	04	1	1401-1406	●	●
175	08.155 NUT; STAY FIX 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	04	1	1407-	●	●
182	08.155 NUT; COVER 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	04	1	0905-0906	●	●
182	08.155 NUT; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	04	1	0907-1312	●	●

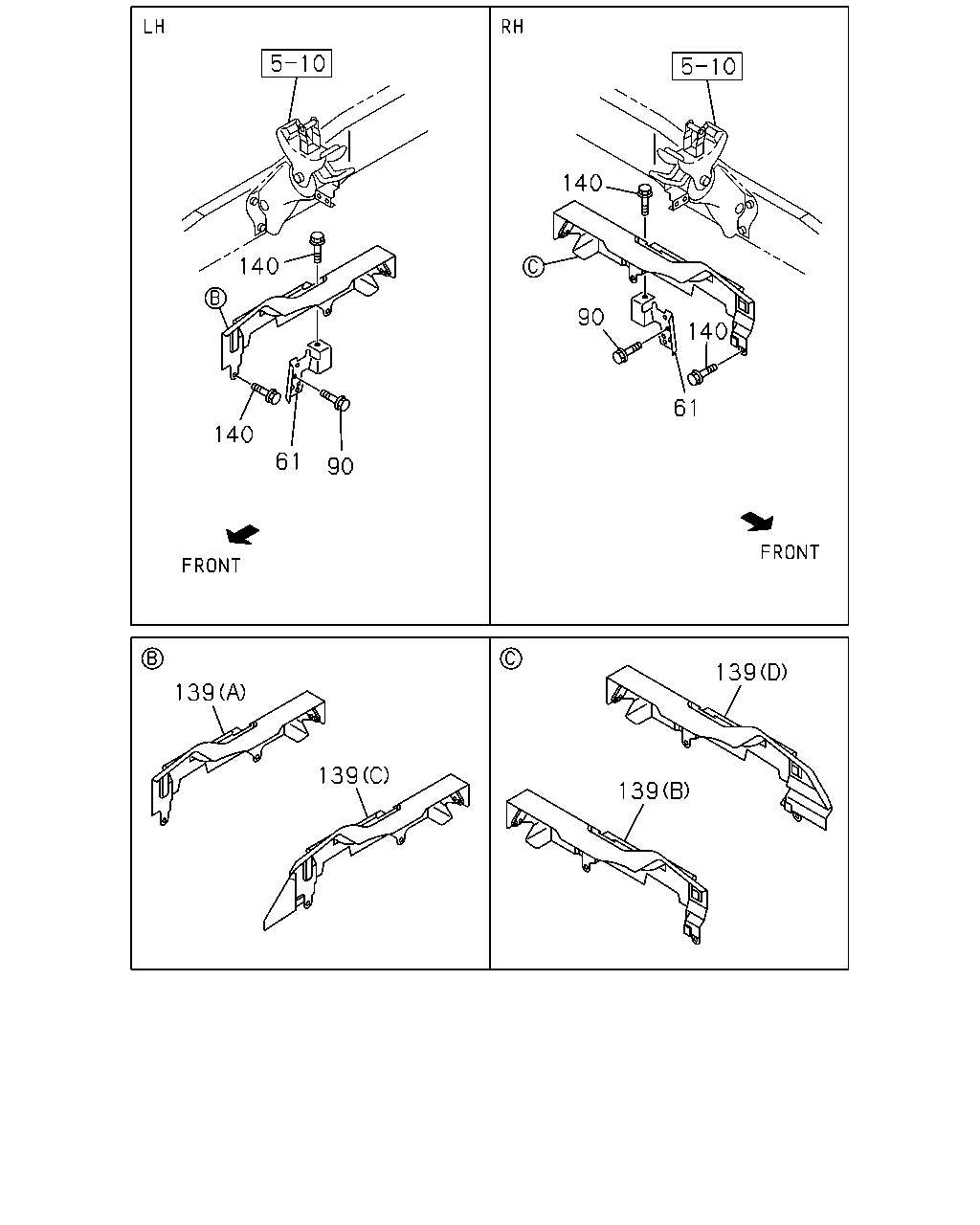

140 140 90 140 61 140 61 90 139 139 139 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
61	08.155 BRACKET; COVER	8-98040-465-1	01	1	0905-0906	●	●
61	08.155 BRACKET; COVER	8-98040-465-1	01	1	0907-1204	●	●	●
61	08.155 BRACKET; COVER	8-98040-465-1	01	1	1205-	●	●	●
61	08.155 BRACKET; COVER	8-98040-466-1	01	1	0905-0906	●	●
61	08.155 BRACKET; COVER	8-98040-466-1	01	1	0907-1204	●	●	●
61	08.155 BRACKET; COVER	8-98040-466-1	01	1	1205-	●	●	●
90	08.153 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0905-0906	●	●
90	08.153 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0907-1204	●	●	●
90	08.153 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1205-	●	●	●
139	08.153 PANEL; SIDE (A)	8-98115-458-0	01	1	0905-0906	●	●
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (A)	8-98115-458-0	01	1	0907-1507	●	●
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (A)	8-98115-458-0	01	1	1508-	●	●
139	08.153 PANEL; SIDE (B)	8-98043-920-2	01	1	0905-0906	●	●
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (B)	8-98043-920-2	01	1	0907-1507	●	●
139	08.153 PANEL; SIDE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-98043-920-2	01	1	1508-	●	●
139	08.153 PANEL; SIDE EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97387-728-7	01	1	0907-	●	●
139	08.153 PANEL; SIDE (C)	8-97387-728-7	01	1	0907-			●
139	08.153 PANEL; SIDE EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97387-727-4	01	1	0907-	●	●
139	08.153 PANEL; SIDE (D)	8-97387-727-4	01	1	0907-			●
140	08.155 BOLT; SIDE PANEL M8X35 W/LK&PL WASHER	1-09030-094-0	06	1	0905-0906	●	●
140	08.155 BOLT; SIDE PANEL M8X35 W/LK&PL WASHER	1-09030-094-0	06	1	0907-1204	●	●	●
140	08.155 BOLT; SIDE PANEL M8X35 W/LK&PL WASHER	1-09030-094-0	06	1	1205-	●	●	●

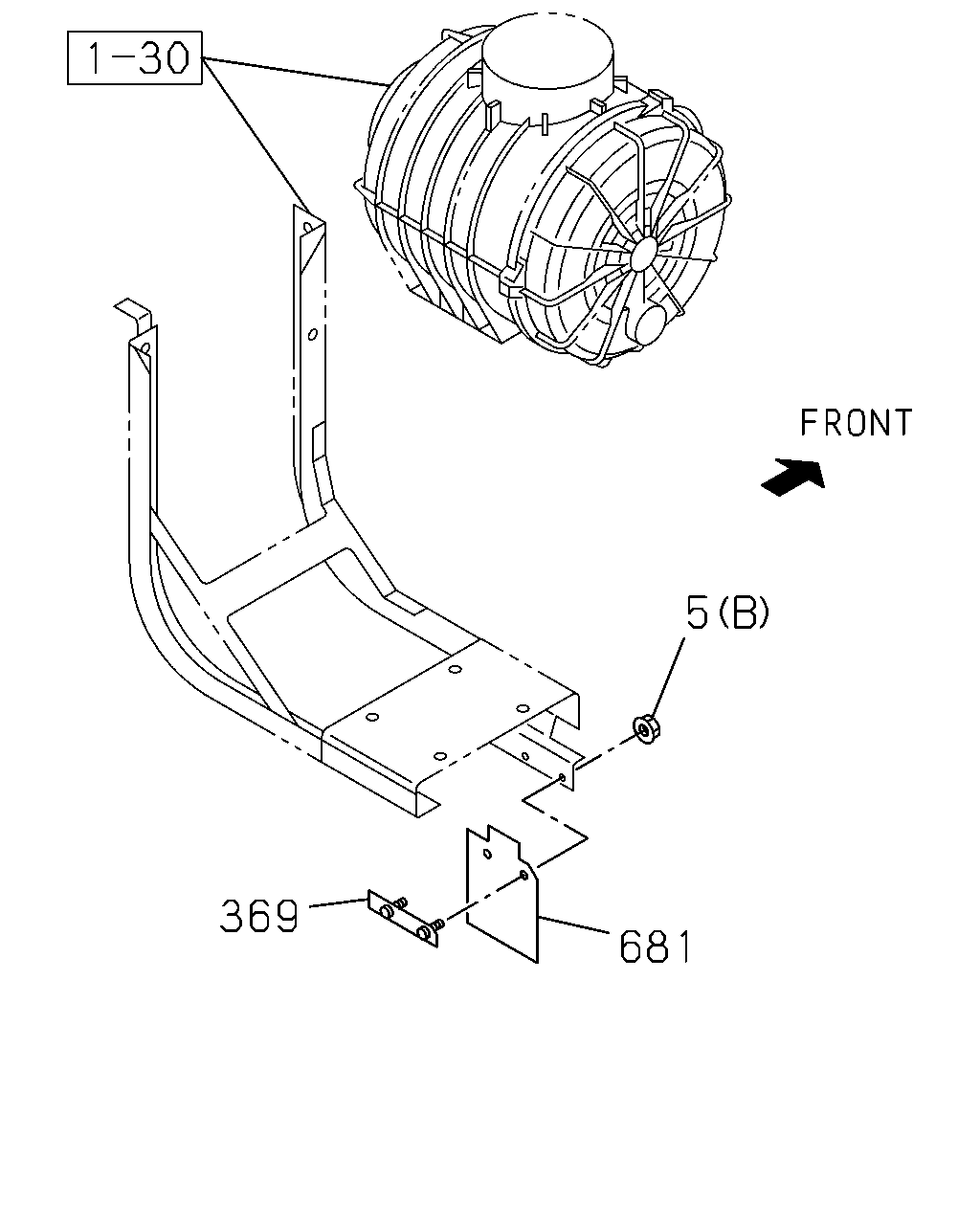

5 369 681

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	08.155 NUT; FLAP RUBBER 03.330 (A) M6	0-91110-506-0	08	1	0905-0906	●	●
5	08.155 NUT; FLAP RUBBER 03.330 (A) M6	0-91110-506-0	08	1	0907-1209	●	●	●
5	08.155 NUT; FLAP RUBBER (A) M6	8-98227-380-0	08	1	1210-	●	●	●
5	08.155 NUT; FLAP RUBBER 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	0905-		●
369	08.155 PLATE	8-98061-674-0	01	1	0905-		●
681	03.402 FLAP; AIR CLEANER	8-98061-671-0	01	1	0905-		●
