◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51240 - NNR/NPR EU-RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#76346) — 53 parça

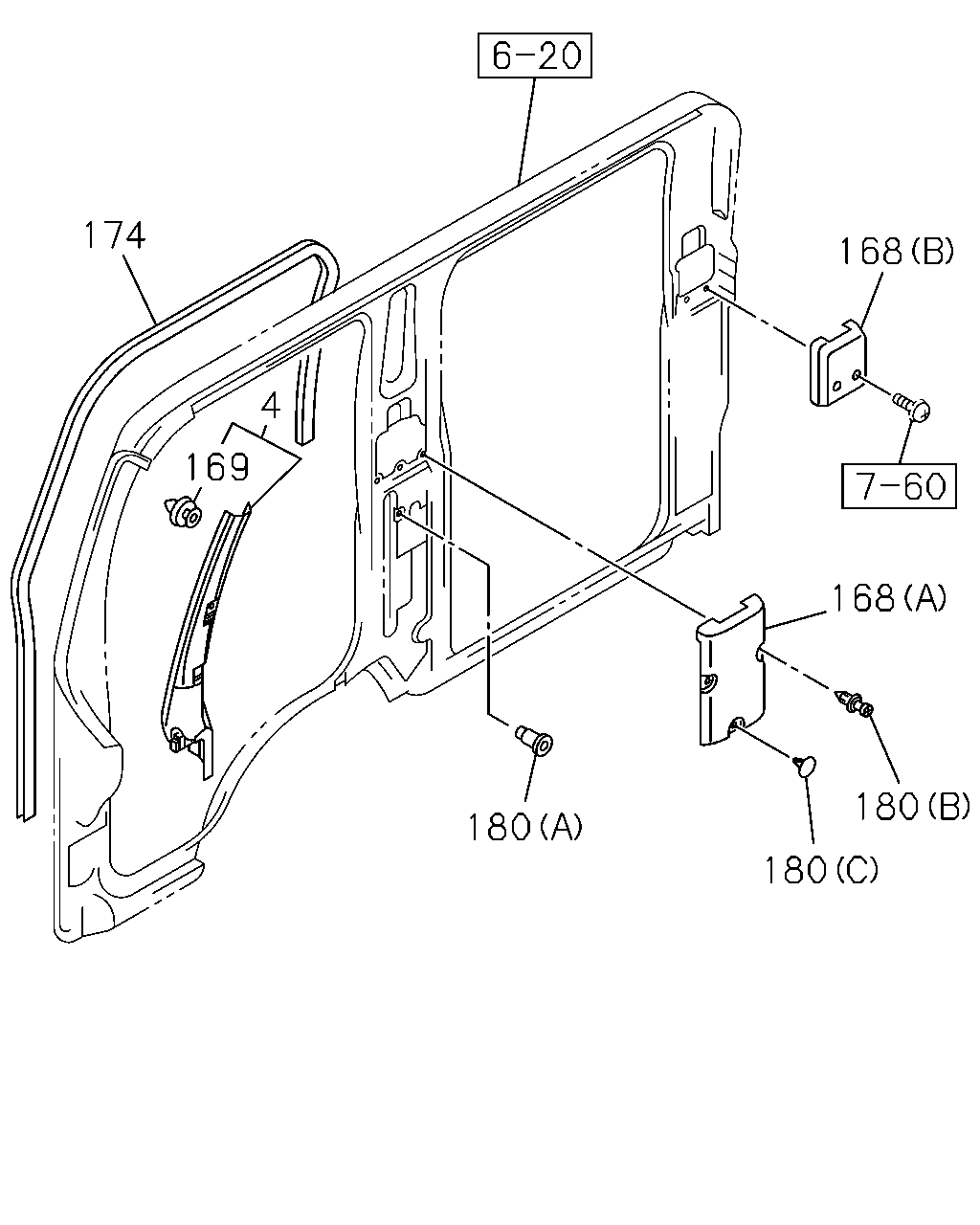

çizim 131589
174 168 4 169 168 180 180 180
BalonParca AdiParca NoAdetTipApplied Date A B C
4 16.165 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-254-2 01 1 0905-0906 ● ●
4 16.165 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-254-2 01 1 0907- ● ● ●
4 16.165 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-255-2 01 1 0905-0906 ● ●
4 16.165 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-255-2 01 1 0907- ● ● ●
168 16.578 COVER; SEAT BELT RETRACTOR
(A) GRAY 		8-97405-191-2 02 1 0905- ●
168 16.578 COVER; SEAT BELT RETRACTOR
(B) GRAY 		8-97405-192-3 02 1 0905- ●
169 16.578 CLIP; TRIM COVER,FRT PILLAR
16.165 OD=7.9 BLACK 		8-94279-974-1 04 1 0905-0906 ● ●
169 16.578 CLIP; TRIM COVER,FRT PILLAR
16.165 OD=7.9 BLACK 		8-94279-974-1 04 1 0907- ● ● ●
174 16.507 FINISHER; BODY SIDE
DARK GRAY 		8-97405-283-3 01 1 0905-0906 ●
174 16.507 FINISHER; BODY SIDE
DARK GRAY 		8-97405-283-3 01 1 0907-0912 ● ●
174 16.507 FINISHER; BODY SIDE
L=2609 		8-98154-665-0 01 1 1001- ● ●
174 16.507 FINISHER; BODY SIDE
DARK GRAY 		8-97405-288-3 01 1 0905-0906 ●
174 16.507 FINISHER; BODY SIDE
DARK GRAY 		8-97405-288-3 01 1 0907-0912 ● ●
174 16.507 FINISHER; BODY SIDE
L=2609 		8-98154-666-0 01 1 1001- ● ●
174 16.507 FINISHER; BODY SIDE
DARK GRAY 		8-97407-356-2 01 1 0905-0912 ●
174 16.507 FINISHER; BODY SIDE 8-98154-667-0 01 1 1001- ●
174 16.507 FINISHER; BODY SIDE
DARK GRAY 		8-97407-357-2 01 1 0905-0912 ●
174 16.507 FINISHER; BODY SIDE 8-98154-668-0 01 1 1001- ●
180 16.578 FASTENER; COVER
16.125 (A) 		8-97319-495-0 02 1 0905- ●
180 16.578 FASTENER; COVER
(B) GRAY 		8-97405-246-0 04 1 0905- ●
180 16.578 FASTENER; COVER
(C) GRAY 		8-97405-247-0 02 1 0905- ●

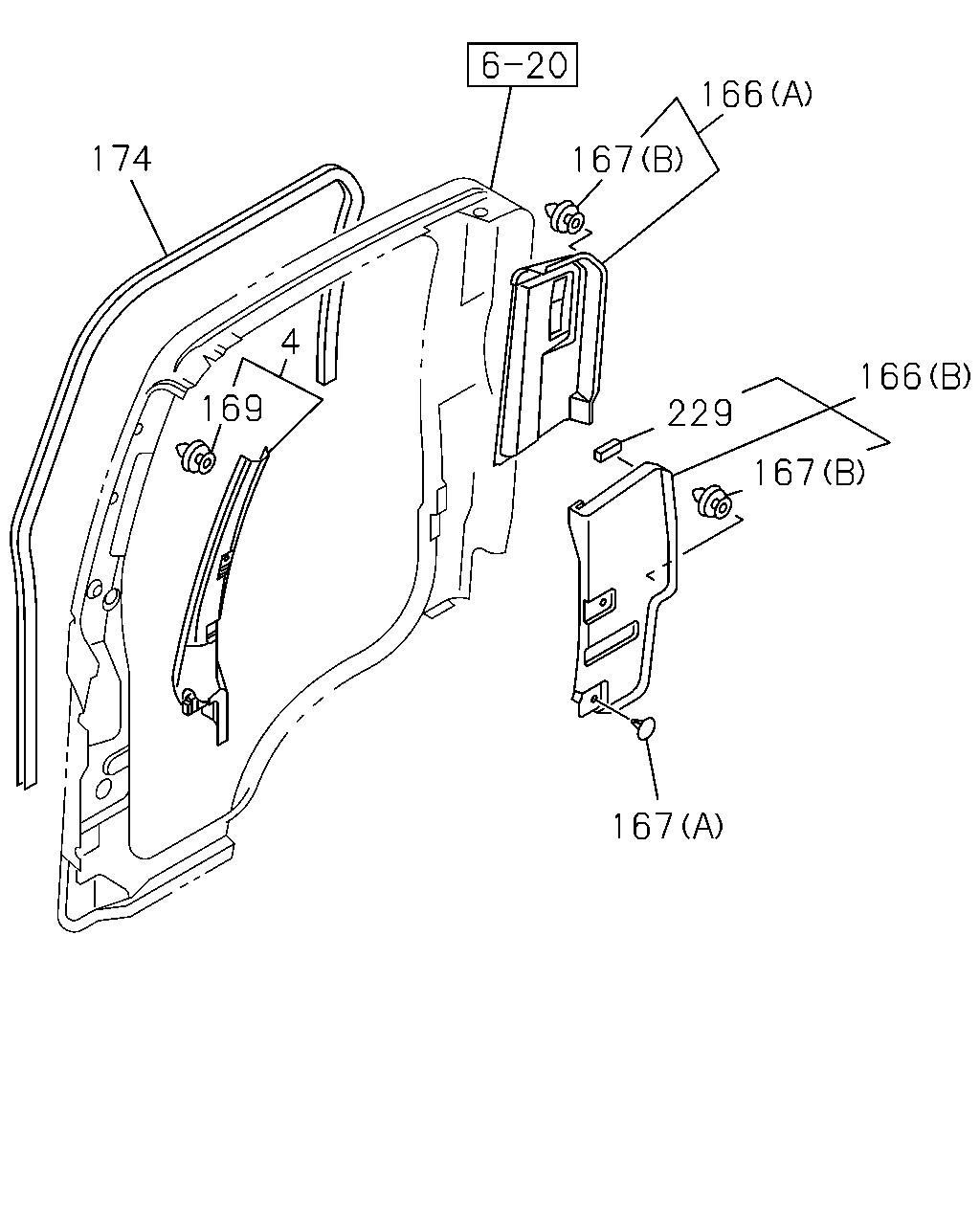

çizim 186460
166 174 167 4 166 169 229 167 167
BalonParca AdiParca NoAdetTipApplied Date A B C
4 16.165 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-254-2 01 1 0905-0906 ● ●
4 16.165 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-254-2 01 1 0907- ● ● ●
4 16.165 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-255-2 01 1 0905-0906 ● ●
4 16.165 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-255-2 01 1 0907- ● ● ●
166 16.578 TRIM; RR PILLAR
INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97406-796-1 01 1 0905-0906 ●
166 16.578 TRIM; RR PILLAR
INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97406-796-1 01 1 0907- ● ●
166 16.578 TRIM; RR PILLAR
INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97407-900-0 01 1 0905-0906 ●
166 16.578 TRIM; RR PILLAR
INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97407-900-0 01 1 0907- ● ●
166 16.578 TRIM; RR PILLAR
(B) GRAY 		8-97405-297-2 01 1 0905-0906 ●
166 16.578 TRIM; RR PILLAR
(B) GRAY 		8-97405-297-2 01 1 0907- ● ●
166 16.578 TRIM; RR PILLAR
(B) GRAY 		8-97412-727-0 01 1 0905-0906 ●
166 16.578 TRIM; RR PILLAR
(B) GRAY 		8-97412-727-0 01 1 0907- ● ●
167 16.578 CLIP; TRIM,RR PILLAR
INTERIOR TRIM-FULL TRIMMING<WM3> (B) 		8-98059-610-0 04 1 0905-0906 ●
167 16.578 CLIP; TRIM,RR PILLAR
INTERIOR TRIM-FULL TRIMMING<WM3> (B) 		8-98059-610-0 04 1 0907- ● ●
167 16.578 CLIP; TRIM,RR PILLAR
(A) GRAY 		8-97406-421-0 04 1 0905-0906 ●
167 16.578 CLIP; TRIM,RR PILLAR
(A) GRAY 		8-97406-421-0 04 1 0907- ● ●
167 16.578 CLIP; TRIM,RR PILLAR
(B) 		8-98059-610-0 06 1 0905-0906 ●
167 16.578 CLIP; TRIM,RR PILLAR
(B) 		8-98059-610-0 06 1 0907- ● ●
169 16.578 CLIP; TRIM COVER,FRT PILLAR
16.165 OD=7.9 BLACK 		8-94279-974-1 04 1 0905-0906 ● ●
169 16.578 CLIP; TRIM COVER,FRT PILLAR
16.165 OD=7.9 BLACK 		8-94279-974-1 04 1 0907- ● ● ●
174 16.507 FINISHER; BODY SIDE
DARK GRAY 		8-97405-283-3 01 1 0905-0906 ●
174 16.507 FINISHER; BODY SIDE
DARK GRAY 		8-97405-283-3 01 1 0907-0912 ● ●
174 16.507 FINISHER; BODY SIDE
L=2609 		8-98154-665-0 01 1 1001- ● ●
174 16.507 FINISHER; BODY SIDE
DARK GRAY 		8-97405-288-3 01 1 0905-0906 ●
174 16.507 FINISHER; BODY SIDE
DARK GRAY 		8-97405-288-3 01 1 0907-0912 ● ●
174 16.507 FINISHER; BODY SIDE
L=2609 		8-98154-666-0 01 1 1001- ● ●
174 16.507 FINISHER; BODY SIDE
DARK GRAY 		8-97407-356-2 01 1 0905-0912 ●
174 16.507 FINISHER; BODY SIDE 8-98154-667-0 01 1 1001- ●
174 16.507 FINISHER; BODY SIDE
DARK GRAY 		8-97407-357-2 01 1 0905-0912 ●
174 16.507 FINISHER; BODY SIDE 8-98154-668-0 01 1 1001- ●
229 16.585 SEAL 8-98081-818-0 01 1 0905-0906 ●
229 16.585 SEAL 8-98081-818-0 01 1 0907- ● ●
