Isuzu WW
▶
TRUCKS
▶
NPR
▶
51186 - NPR BUS(LHD)EURO1
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-50 - FRONT SEAT
▶
7-50 — FRONT SEAT
(#76335) — 43 parça
◀

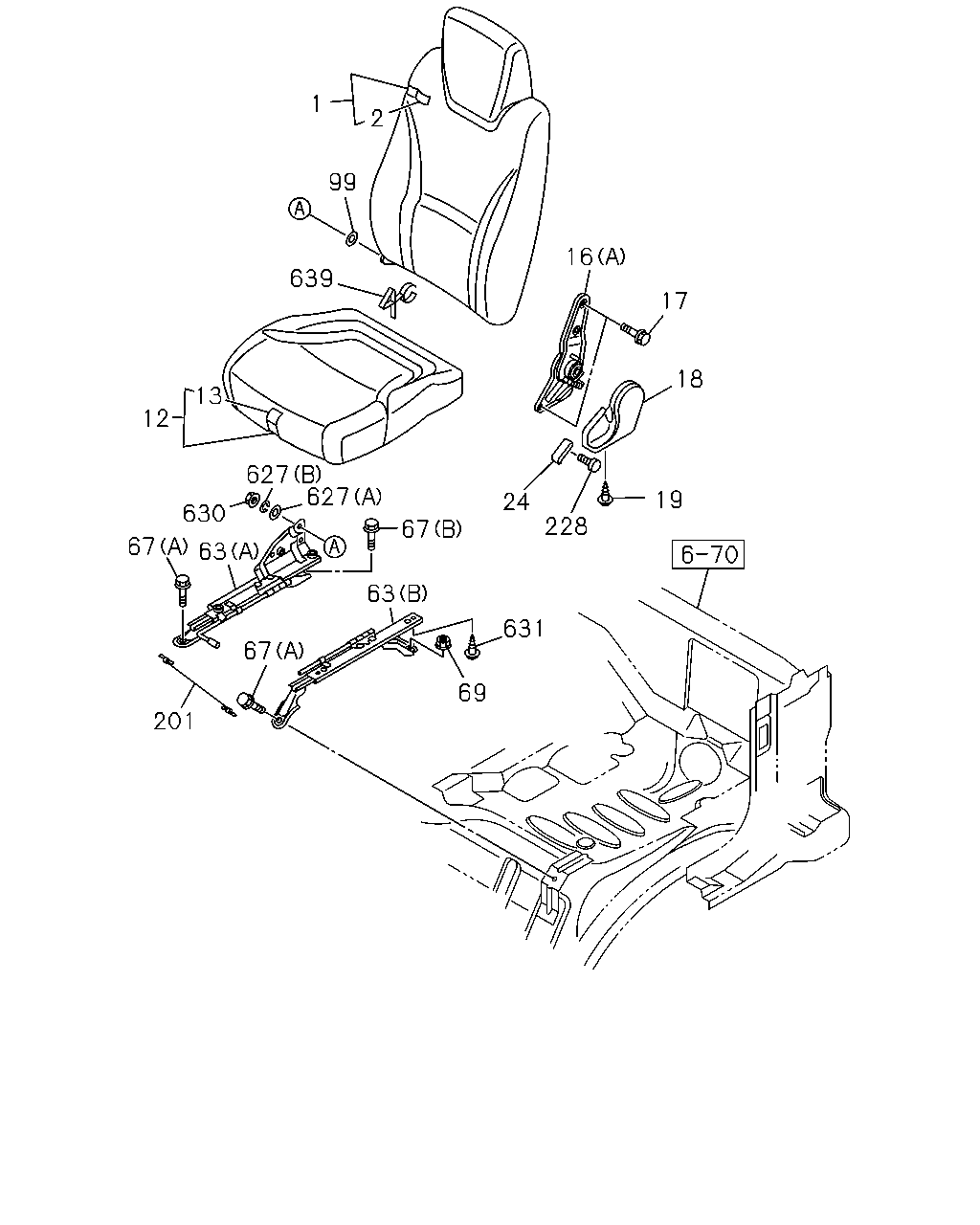

[750A] DRIVER SEAT (25 parça)

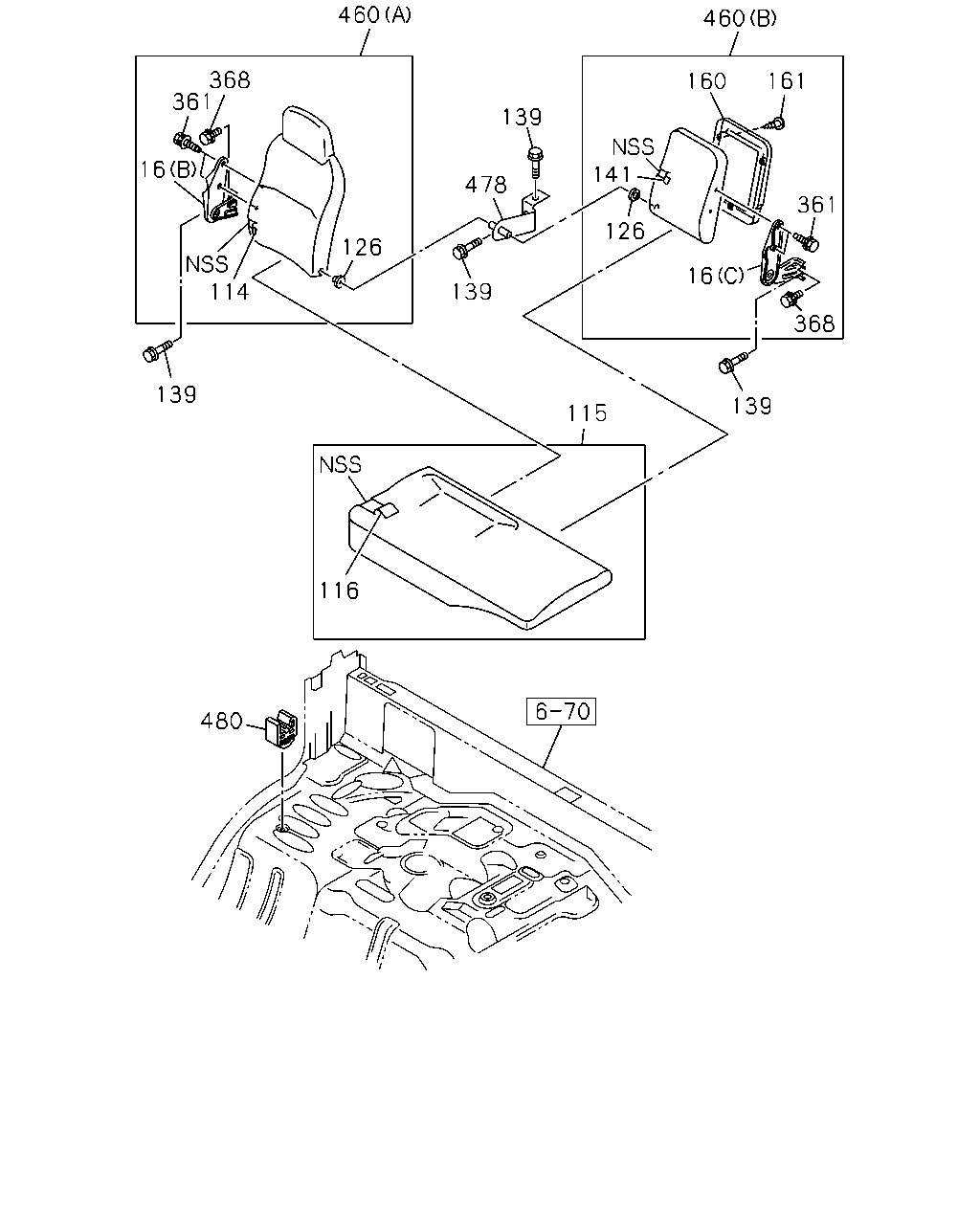

[750A] PASSENGER SEAT (18 parça)
▶
1
2
99
16
639
17
18
13
12
627
627
19
24
630
228
67
67
63
63
631
67
69
201
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.720 BACK ASM; SEAT
DARK GRAY
8-97414-155-5
01
1
0810-
2
16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY
8-97414-152-2
01
1
0810-
12
16.670 CUSHION; SEAT,FRT
DARK GRAY
8-97414-710-0
01
1
0810-
13
16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY
8-97414-711-0
01
1
0810-
16
16.682 ADJUSTER ASM; RECLINING
(C) BLACK W/KNOB
8-97859-273-3
01
1
0810-0810
16
16.682 ADJUSTER ASM; RECLINING
(B) BLACK W/KNOB
8-97859-274-3
01
1
0810-0810
16
16.682 ADJUSTER ASM; RECLINING
(A)
8-98005-418-1
01
1
0810-
17
16.682 BOLT; RECLINING
M10X20
8-98062-661-0
04
1
0810-
18
16.682 COVER; RECLINING
GRAY
8-97409-361-0
01
1
0810-
19
16.686 SCREW; COVER
M5
8-98062-663-0
01
1
0810-
24
16.682 KNOB; RECLINING,FRT,SEAT
GRAY
8-97409-362-0
01
1
0810-
63
16.682 ADJUSTER; SEAT SLIDE
(A) INNER
8-98002-907-2
01
1
0810-
63
16.682 ADJUSTER; SEAT SLIDE
(B) OUTER
8-98002-908-1
01
1
0810-
67
16.682 BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE
8-98055-941-0
02
1
0810-
67
16.682 BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE
8-98055-942-0
01
1
0810-
69
16.682 NUT; FRT SEAT
M10 FLANGE
8-98055-961-0
01
1
0810-
99
16.716 BUSHING; SEAT BACK
8-98112-751-0
01
1
0810-
201
16.682 CABLE; ADJ
8-98003-086-1
01
1
0810-
228
16.714 SCREW; KNOB
M4
8-98062-662-0
01
1
0810-
627
16.682 WASHER; FRT SEAT
(A)
8-98063-223-0
01
1
0810-
627
16.682 WASHER; FRT SEAT
(B)
8-98063-224-0
01
1
0810-
630
16.682 NUT; CAP
M8
8-98063-225-0
01
1
0810-
631
16.682 BOLT; ADJ,SEAT
M8X25 W/LK WASHER
8-98062-658-0
02
1
0810-
631
16.682 BOLT; ADJ,SEAT
M8X32 W/LK WASHER
8-98062-659-0
02
1
0810-
639
16.679 CLIP; SEAT
8-98097-693-0
01
1
0810-
460
460
368
361
161
160
139
141
16
478
361
126
126
114
16
13
368
139
139
115
116
480
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY
8-97414-711-0
01
1
0810-
16
16.682 ADJUSTER ASM; RECLINING
(C) BLACK W/KNOB
8-97859-273-3
01
1
0810-0810
16
16.682 ADJUSTER ASM; RECLINING
(B) BLACK W/KNOB
8-97859-274-3
01
1
0810-0810
16
16.682 ADJUSTER ASM; RECLINING
(A)
8-98005-418-1
01
1
0810-
114
16.724 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY
8-97414-169-1
01
1
0810-0810
115
16.720 CUSHION ASM; PASSENGER SEAT
DARK GRAY
8-97411-537-3
01
1
0810-0810
116
16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
DARK GRAY
8-97414-168-2
01
1
0810-0810
126
16.686 BUSHING; HINGE,RECLINING
8-98069-558-0
02
1
0810-0810
139
16.679 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER
8-98031-841-0
04
1
0810-0810
141
16.724 COVER; TRIM,BENCH SEAT,BACK
DARK GRAY
8-97414-171-1
01
1
0810-0810
160
16.650 CONSOLE; UPR,BACK CENTER
GRAY
8-97405-361-1
01
1
0810-0810
161
16.650 SCREW; CONSOLE
M4X12
8-94279-351-0
03
1
0810-0810
361
16.682 BOLT; ADJ,RECLINING
M8X18
8-94279-109-1
04
1
0810-0810
368
16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER
8-94279-217-0
02
1
0810-0810
460
16.670 BACK ASM; PASSENGER SEAT
(A) DARK GRAY
8-97411-538-4
01
1
0810-0810
460
16.670 BACK ASM; PASSENGER SEAT
(B) DARK GRAY
8-97411-539-2
01
1
0810-0810
478
16.716 BRACKET ASM; HINGE,PASSENGER SEA
8-98002-092-0
01
1
0810-0810
480
16.716 CLIP; CUSHION
8-94279-977-0
05
1
0810-0810
