◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51186 - NPR BUS(LHD)EURO1 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#76331) — 36 parça
çizim 59137
1 20 20
BalonParca AdiParca NoAdetTipApplied Date
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. ISUZU BRAND<7WL> 		8-98115-300-0 01 1 0810-0912
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. ISUZU BRAND<7WL> 		8-98146-009-0 01 1 1001-1203
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. ISUZU BRAND<7WL> 		8-98201-230-0 01 1 1204-
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05>,ISUZU BRAND<7WL> 		8-98031-807-1 01 1 0810-1203
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05>,ISUZU BRAND<7WL> 		8-98201-158-0 01 1 1204-
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> 		8-98088-954-0 01 1 0810-0810
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> 		8-98088-954-0 01 1 0810-0912
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> 		8-98145-979-0 01 1 1001-1203
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> 		8-98201-216-0 01 1 1204-
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-98056-003-0 01 1 0810-0810
1 02.188 CYLINDER SET; CAR LOCK
ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05> 		8-98056-003-0 01 1 0810-1203
1 02.188 CYLINDER SET; CAR LOCK
ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05> 		8-98201-161-0 01 1 1204-
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0810-
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0810-

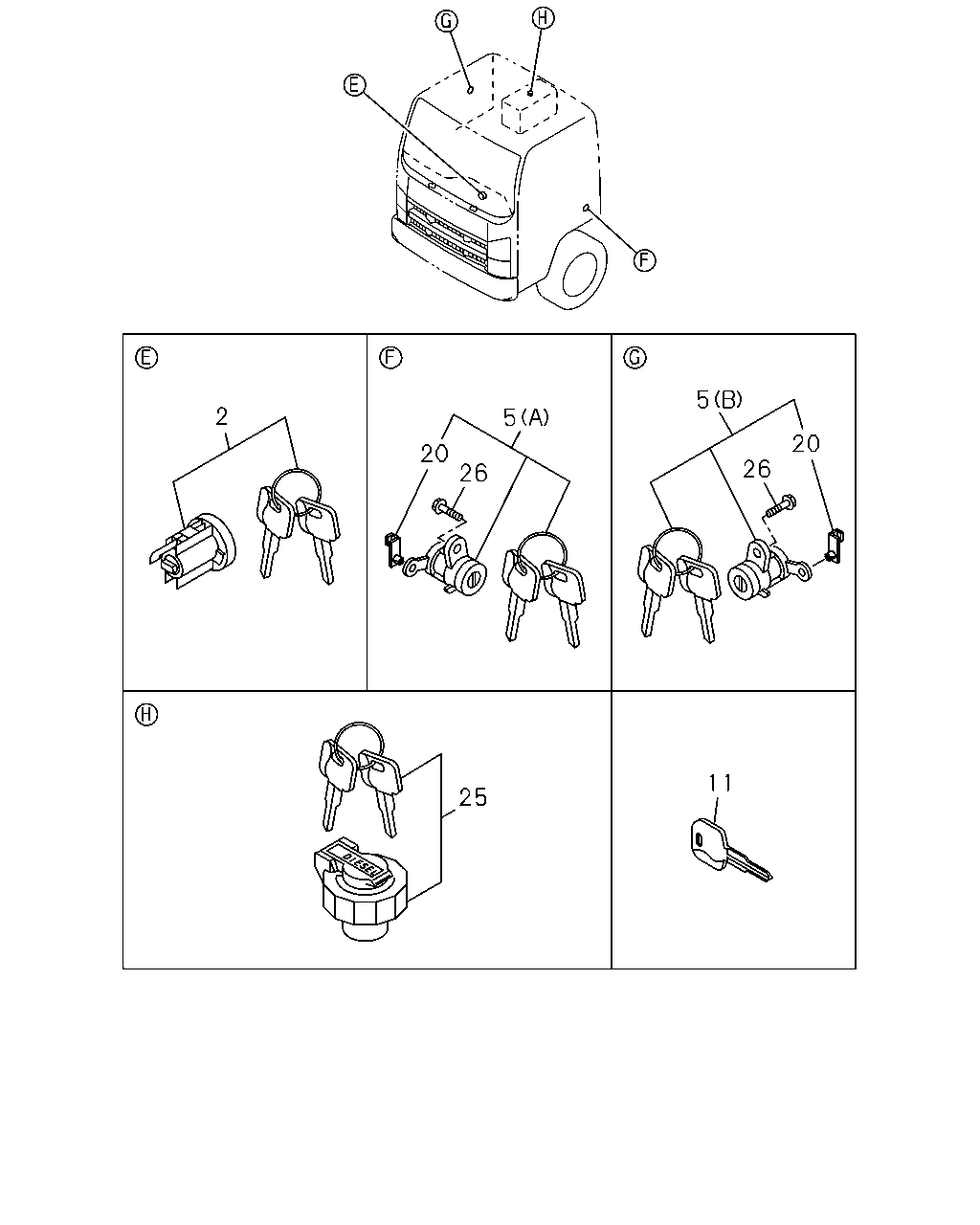

çizim 59152
5 2 5 20 20 26 26 11 25
BalonParca AdiParca NoAdetTipApplied Date
2 02.188 BARREL ASM; W/KEY,STRG LOCK
EXC. ISUZU BRAND<7WL> 		8-98055-160-0 01 1 0810-1203
2 02.188 BARREL ASM; W/KEY,STRG LOCK
EXC. ISUZU BRAND<7WL> 		8-98201-352-0 01 1 1204-
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-98055-148-0 01 1 0810-0810
2 02.188 BARREL ASM; W/KEY,STRG LOCK
ISUZU BRAND<7WL> 		8-98055-148-0 01 1 0810-1203
2 02.188 BARREL ASM; W/KEY,STRG LOCK
ISUZU BRAND<7WL> 		8-98201-342-0 01 1 1204-
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. ISUZU BRAND<7WL> (B) 		8-98055-161-0 01 1 0810-
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. ISUZU BRAND<7WL> (A) 		8-98055-162-0 01 1 0810-
5 16.328 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 0810-0810
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> (B) 		8-98055-149-0 01 1 0810-
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 0810-0810
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> (A) 		8-98055-150-0 01 1 0810-
11 02.187 KEY; BLANK
EXC. ISUZU BRAND<7WL> 		8-98055-171-0 AR 1 0810-
11 02.187 KEY; BLANK 8-98055-170-0 AR 1 0810-0810
11 02.187 KEY; BLANK
ISUZU BRAND<7WL> 		8-98055-170-0 AR 1 0810-
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0810-
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0810-
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> EXC. ISUZU BRAND<7WL> 		8-98088-980-0 01 1 0810-0912
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> EXC. ISUZU BRAND<7WL> 		8-98146-014-0 01 1 1001-
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> 		8-98088-982-0 01 1 0810-0810
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> 		8-98088-982-0 01 1 0810-0912
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> 		8-98146-010-0 01 1 1001-
26 16.328 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 0810-0810
