◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51186 - NPR BUS(LHD)EURO1 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶

7-10 — CAUTION PLATE AND LABEL (#76330) — 8 parça

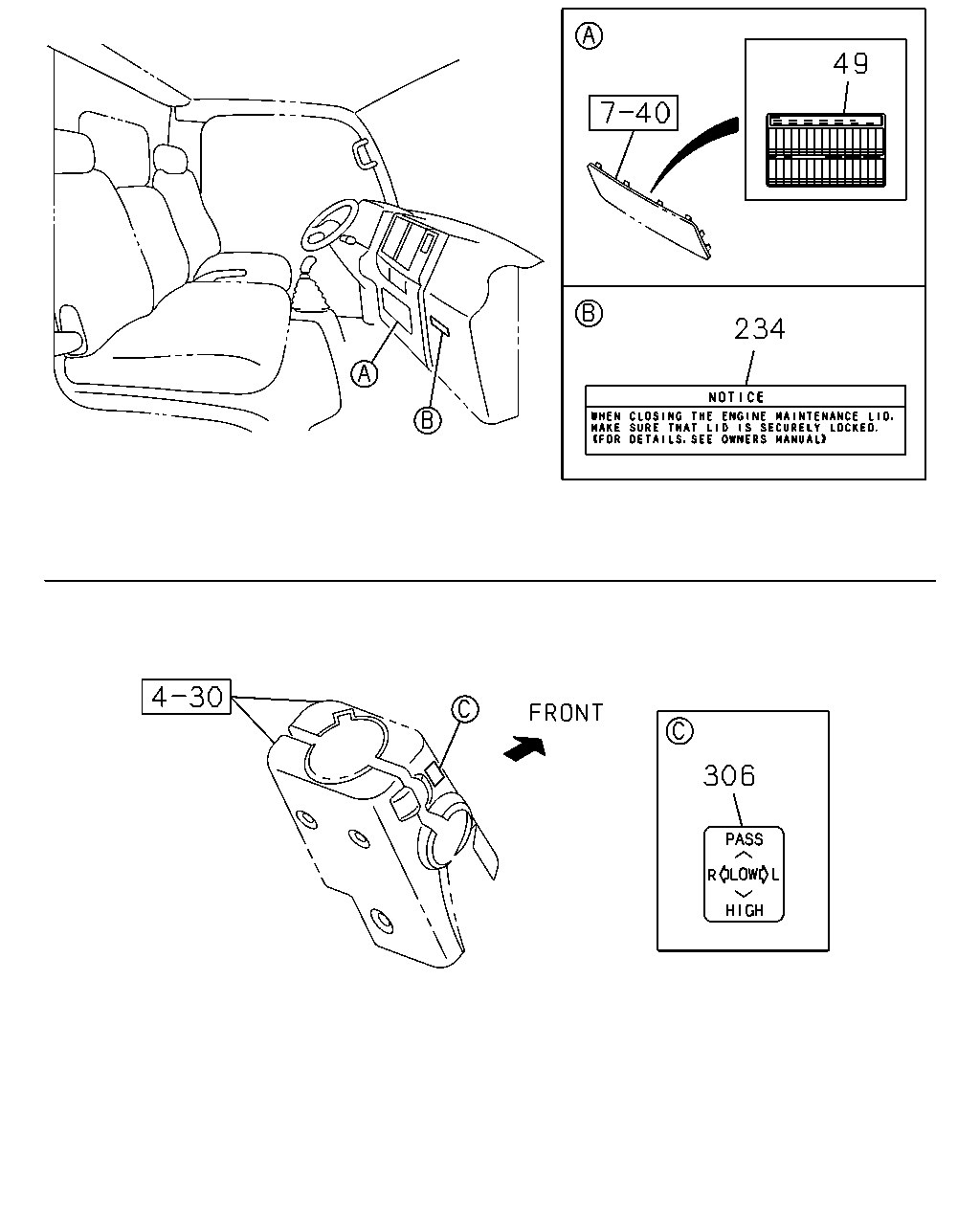

çizim 59140

49 234 306

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	49	08.808 PLATE; CAUTION,FUSE BOX	8-98090-175-0	01	1	0810-
	234	08.808 PLATE; CAUTION,ENG COVER CAUTION SPANISH<YN1>	8-98071-067-0	01	1	0810-
	234	08.808 PLATE; CAUTION,ENG COVER EXC. CAUTION SPANISH<YN1>	8-97994-545-0	01	1	0810-
	306	08.808 LABEL; BEAM & PASS	8-98070-239-0	01	1	0810-

çizim 101345

5 5 4 4

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	4	00.004 LABEL; ENG MAINTENANCE CAUTION SPANISH<YN1> (B)	8-97189-402-1	01	1	0810-
	4	00.004 LABEL; ENG MAINTENANCE EXC. CAUTION SPANISH<YN1> (A)	8-97189-401-1	01	1	0810-
	5	05.880 LABEL; TIRE AIR PRESSURE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) CAUTION SPANISH<YN1> (A)	8-97188-835-0	01	1	0810-0810
	5	05.880 LABEL; TIRE AIR PRESSURE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) EXC. CAUTION SPANISH<YN1> (B)	8-97188-834-0	01	1	0810-0810

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
