6-76 — FLOOR EQUIPMENT AND SEALING (#76325) — 25 parça

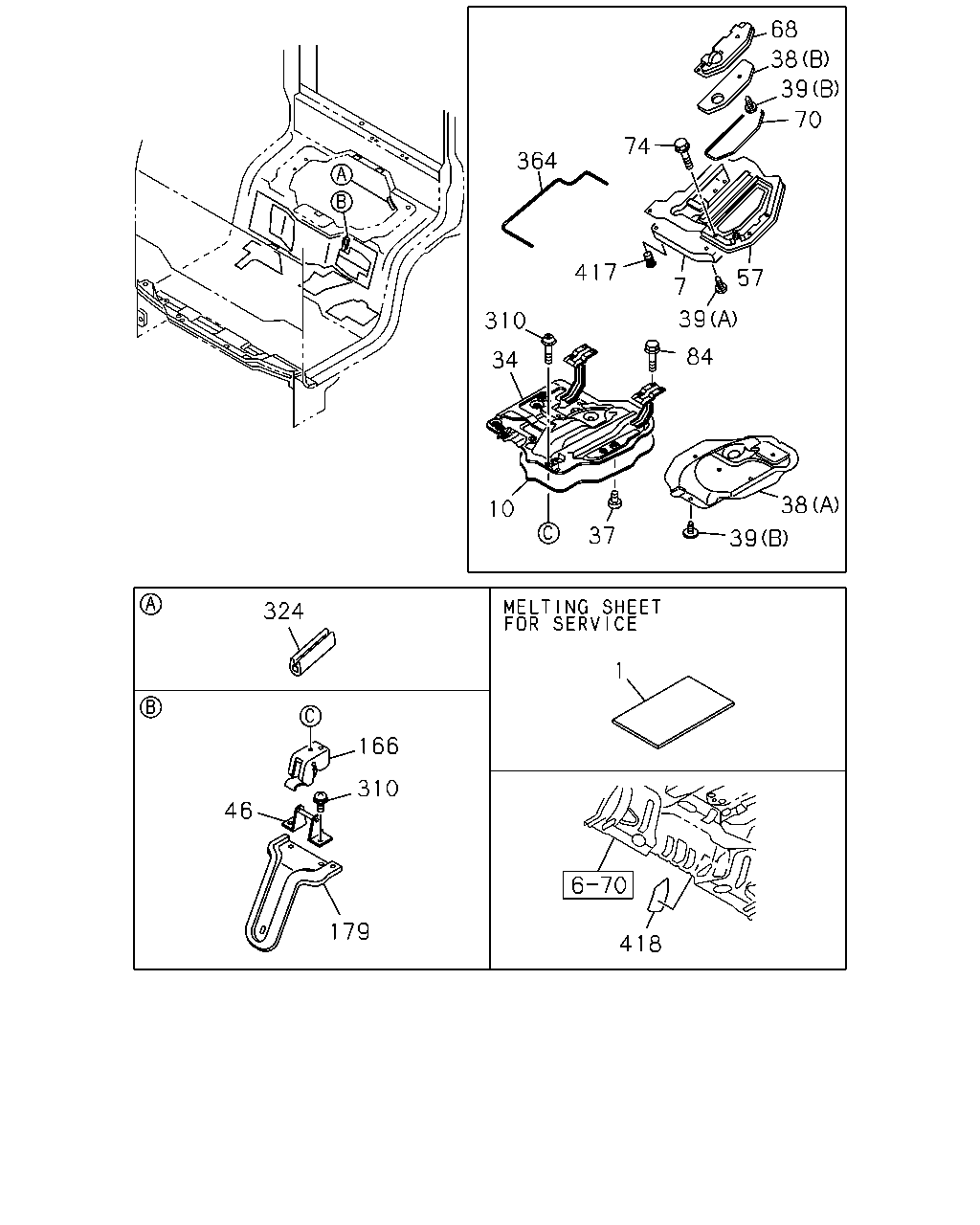

çizim 59121
68 38 39 70 74 364 417 57 7 39 310 84 34 38 10 37 39 324 1 166 310 46 179 418
BalonParca AdiParca NoAdetTipApplied Date
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 0810-
7 16.545 INSULATOR; SUPPORT COVER 8-97586-179-2 01 1 0810-0810
10 16.549 SEAL; ENG COVER 8-98029-377-0 01 1 0810-0810
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97589-391-2 01 1 0810-
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0810-0810
38 16.549 INSULATOR; ENG COVER
(B) 		8-97586-169-1 01 1 0810-0810
38 16.549 INSULATOR; ENG COVER
(A) 		8-97586-187-2 01 1 0810-0810
39 16.549 CLIP; INSULATOR,COVER
(B) OD=30 		8-94279-952-0 07 1 0810-0810
39 16.549 CLIP; INSULATOR,COVER
08.021 (A) ID=6.2 L=11.4 		8-97808-623-0 05 1 0810-0810
46 16.549 HOOK ASM; ENG COVER 8-98040-145-0 02 1 0810-
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97589-396-4 01 1 0810-
68 16.549 COVER ASM; SUB,ENG COVER 8-98040-141-0 01 1 0810-
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR 8-97853-050-1 01 1 0810-
74 16.549 BOLT; SUPPORT COVER TO FLOOR
01.531 M8X20 FLANGE 		0-28650-820-0 10 1 0810-
84 16.549 BOLT; ENG COVER HINGE
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0810-
166 16.549 LOCK; ENG COVER 8-98040-152-0 02 1 0810-
179 16.549 REINFORCEMENT; COVER 8-98048-301-1 01 1 0810-
310 16.549 SCREW; ENG COVER HOOK
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811-
310 16.549 SCREW; ENG COVER HOOK
16.570 M6X16 		0-38050-616-0 09 1 0810-0810
310 16.549 SCREW; ENG COVER HOOK
16.570 M6X16 		0-38050-616-0 05 1 0811-
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 02 1 0810-0810
364 16.545 FINISHER; ENG COVER SIDE
L=1100 		8-97892-744-0 01 1 0810-0810
417 16.549 NUT; POP
09.786 M6 POP NUT 		8-98013-752-0 01 1 0810-
418 16.549 SEAL; PROTECTOR 8-98090-191-0 01 1 0810-0910
418 16.549 SEAL; PROTECTOR 8-98090-192-0 01 1 0810-0910
