◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51186 - NPR BUS(LHD)EURO1 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#76318) — 9 parça

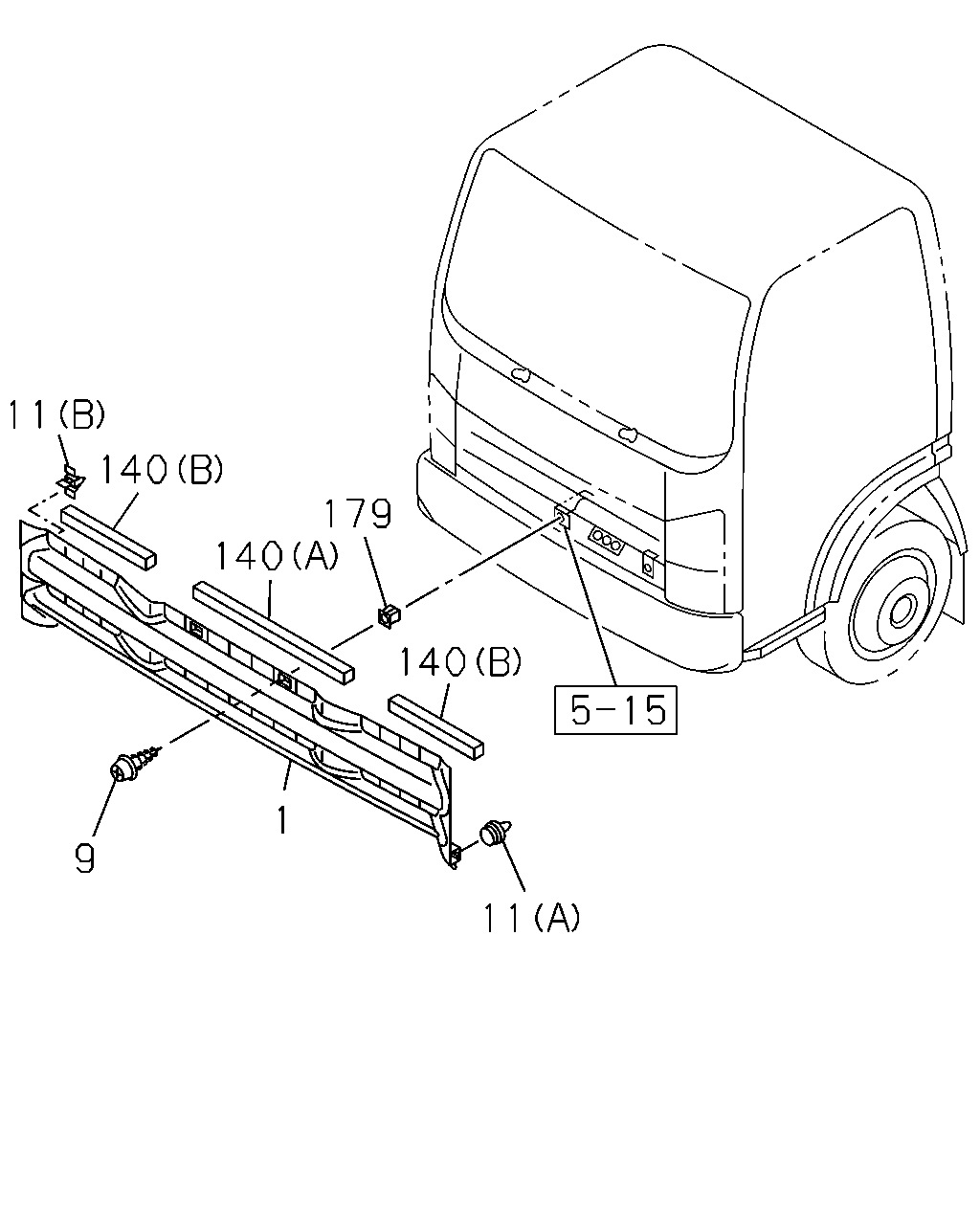

çizim 101305
11 140 179 140 140 1 9 11
BalonParca AdiParca NoAdetTipApplied Date
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> 		8-98025-468-4 01 1 0810-0810
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97407-294-4 01 1 0810-0810
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97407-292-4 01 1 0810-0810
9 01.269 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74165-516-0 01 1 0810-0810
11 01.269 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 0810-0810
11 01.269 CLIP; RAD GRILLE
(B) 		8-98025-698-0 05 1 0810-0810
140 01.266 SEAL; RAD GRILLE
(A) 		8-98054-280-0 01 1 0810-0810
140 01.266 SEAL; RAD GRILLE
(B) 		8-98054-281-0 02 1 0810-0810
179 01.269 RETAINER; GRILLE,RAD
02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 0810-0810
