5-01 — FRAME AND OTHER PARTS (#76312) — 130 parça

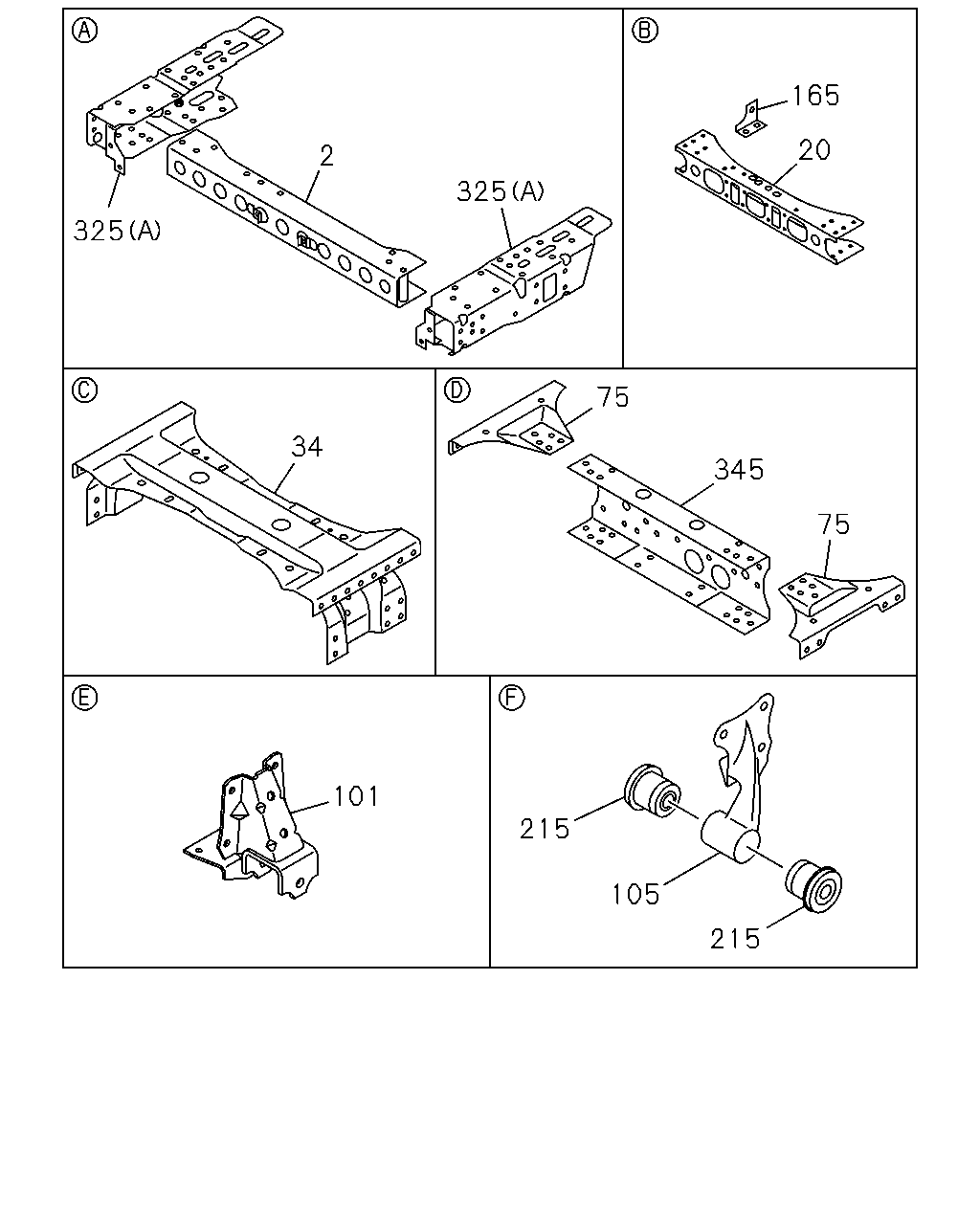

165 20 2 325 325 75 34 345 75 101 215 105 215

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.010 MEMBER; CROSS,1ST	8-97387-866-4	01	1	0810-0905
2	07.010 MEMBER; CROSS,1ST WHEEL BASE 3800MM(38W)	8-97387-866-5	01	1	0906-
20	07.012 MEMBER; CROSS,2ND	8-98014-074-4	01	1	0810-0905
20	07.012 MEMBER; CROSS,2ND WHEEL BASE 3800MM(38W)	8-98014-074-7	01	1	0906-
34	07.012 MEMBER; CROSS,3RD	8-98074-639-3	01	1	0810-0905
34	07.012 MEMBER; CROSS,3RD WHEEL BASE 3800MM(38W)	8-98074-639-4	01	1	0906-
75	07.039 GUSSET; 5TH C/MBR RH-UPPER,LH-LOWER	8-98000-583-0	02	1	0810-0905
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 3800MM(38W) RH-UPPER,LH-LOWER	8-98000-583-0	02	1	0906-
75	07.039 GUSSET; 5TH C/MBR RH-LOWER,LH-UPPER	8-98000-584-0	02	1	0810-0905
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 3800MM(38W) RH-LOWER,LH-UPPER	8-98000-584-0	02	1	0906-
101	07.112 BRACKET; RR SPR,FRT	8-97042-245-1	02	1	0810-0905
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 3800MM(38W)	8-97042-245-1	02	1	0906-
105	07.112 BRACKET; RR SPR,RR	8-98032-488-0	01	1	0810-0905
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 3800MM(38W)	8-98032-488-0	01	1	0906-
105	07.112 BRACKET; RR SPR,RR	8-98032-489-0	01	1	0810-0905
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 3800MM(38W)	8-98032-489-0	01	1	0906-
165	01.270 BRACKET; RAD STAY	8-98000-886-0	01	1	0810-0905
165	01.270 BRACKET; RAD STAY WHEEL BASE 3800MM(38W)	8-98000-886-0	01	1	0906-
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	0810-0905
215	07.524 BUSHING; BRKT,RR SPRING WHEEL BASE 3800MM(38W)	8-97184-699-1	04	1	0906-
325	07.039 EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-891-1	01	1	0906-
325	07.039 EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-892-1	01	1	0906-
325	07.039 EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-891-0	01	1	0810-0810
325	07.039 EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-892-0	01	1	0810-0810
325	07.039 EXTENSION; FRAME (A)	8-98073-346-0	01	1	0810-0905
325	07.039 EXTENSION; FRAME WHEEL BASE 3800MM(38W) (A)	8-98073-346-0	01	1	0906-
325	07.039 EXTENSION; FRAME (A)	8-98073-347-1	01	1	0810-0905
325	07.039 EXTENSION; FRAME WHEEL BASE 3800MM(38W) (A)	8-98073-347-1	01	1	0906-
345	07.012 MEMBER; CROSS,5TH	8-97175-993-3	01	1	0810-0905
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 3800MM(38W)	8-97175-993-3	01	1	0906-

51 42 24 103 63 140 31 39 31 141 141 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	07.105 BRACKET; FRT SPR,FRT	8-98015-274-0	02	1	0810-0905
24	07.105 BRACKET; FRT SPR,FRT WHEEL BASE 3800MM(38W)	8-98015-274-0	02	1	0906-
31	07.428 BUSHING; FRT SPR,RR 07.524	8-97184-699-1	04	1	0810-0905
31	07.428 BUSHING; FRT SPR,RR WHEEL BASE 3800MM(38W) 07.524	8-97184-699-1	04	1	0906-
39	07.112 BRACKET; FRT SPR,RR	8-98014-125-0	02	1	0810-0905
39	07.112 BRACKET; FRT SPR,RR WHEEL BASE 3800MM(38W)	8-98014-125-0	02	1	0906-
42	07.011 MEMBER; CROSS,ENG MTG	8-98032-389-0	01	1	0810-0905
42	07.011 MEMBER; CROSS,ENG MTG WHEEL BASE 3800MM(38W)	8-98032-389-0	01	1	0906-
51	07.011 BRACKET; ENG SUPPORT,OUTER	8-98034-961-0	02	1	0810-0905
51	07.011 BRACKET; ENG SUPPORT,OUTER WHEEL BASE 3800MM(38W)	8-98034-961-0	02	1	0906-
63	01.270 BRACKET; RAD MTG	8-97115-668-0	01	1	0810-0905
63	01.270 BRACKET; RAD MTG WHEEL BASE 3800MM(38W)	8-97115-668-0	01	1	0906-
103	07.420 STOPPER; SUB SPR 07.524	8-97079-659-1	02	1	0810-0905
103	07.420 STOPPER; SUB SPR WHEEL BASE 3800MM(38W) 07.524	8-97079-659-1	02	1	0906-
140	07.112 BRACKET; S/ABS,RR 07.395 (B)	8-97302-511-0	02	1	0810-0905
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 3800MM(38W) 07.395 (B)	8-97302-511-0	02	1	0906-
140	07.112 BRACKET; S/ABS,RR (A)	8-97080-884-0	02	1	0810-0905
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 3800MM(38W) (A)	8-97080-884-1	02	1	0906-
141	07.112 STIFFENER	8-98064-354-0	01	1	0810-0905
141	07.112 STIFFENER WHEEL BASE 3800MM(38W)	8-98064-354-2	01	1	0906-
141	07.112 STIFFENER	8-98064-355-0	01	1	0810-0905
141	07.112 STIFFENER WHEEL BASE 3800MM(38W)	8-98064-355-2	01	1	0906-

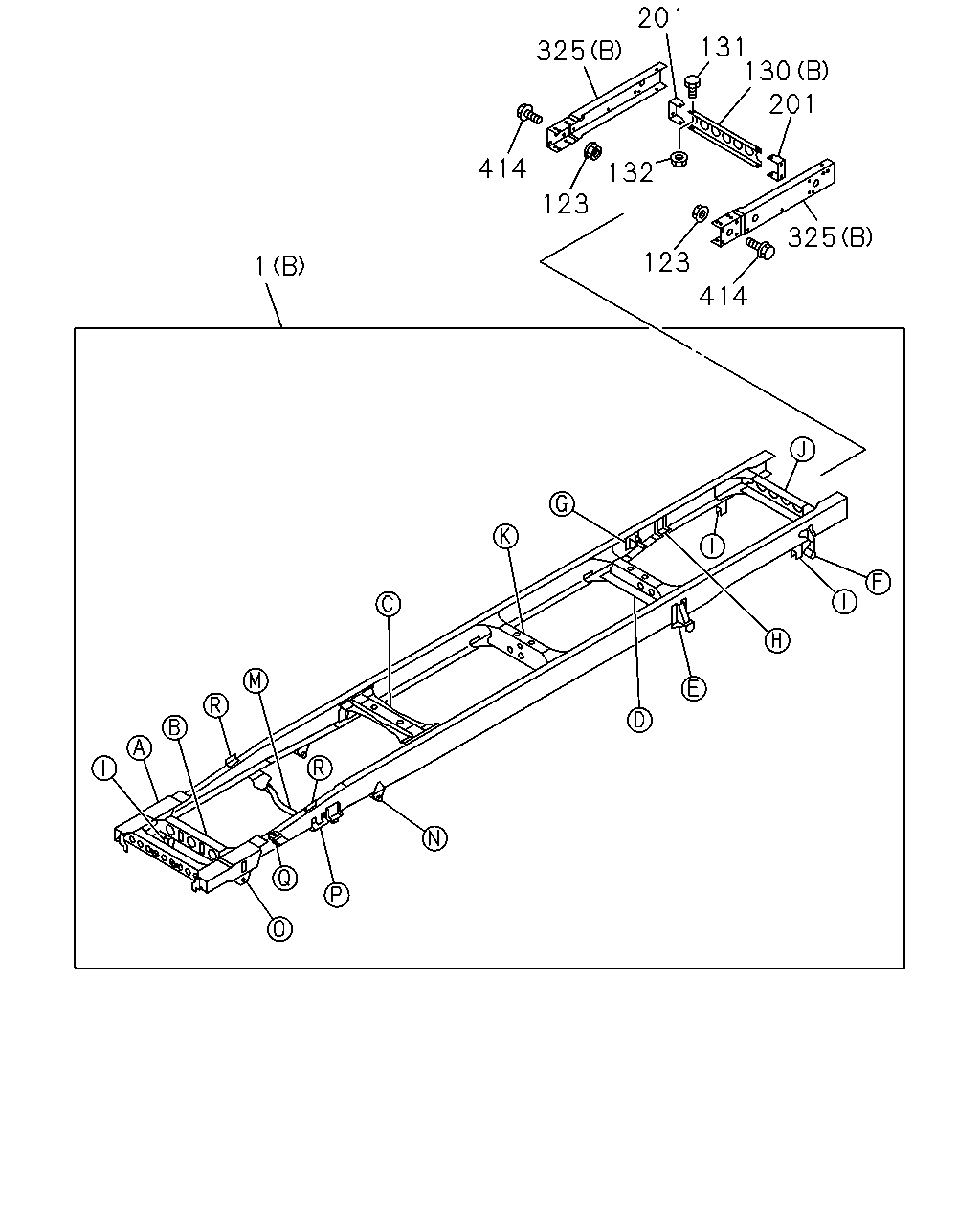

201 131 130 201 325 132 414 123 325 123 1 414

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.003 FRAME ASM WHEEL BASE 3800MM(38W) (A)	8-98106-326-0	01	1	0810-0810
1	07.003 FRAME ASM (A)	8-98106-326-0	01	1	0811-0905
1	07.003 FRAME ASM WHEEL BASE 3800MM(38W) (A)	8-98106-326-1	01	1	0906-
1	07.003 FRAME ASM WHEEL BASE 4100MM(41W) (B)	8-98106-328-0	01	1	0810-0810
123	07.039 NUT WHEEL BASE 4100MM(41W) 07.395 M12	8-97360-126-0	16	1	0906-
123	07.039 NUT WHEEL BASE 4100MM(41W) 07.395 M12	8-97360-126-0	16	1	0810-0810
130	07.014 MEMBER; CROSS,END WHEEL BASE 4100MM(41W) (B)	8-97205-394-0	01	1	0906-
130	07.014 MEMBER; CROSS,END WHEEL BASE 3800MM(38W) (A)	8-97080-872-0	01	1	0810-0810
130	07.014 MEMBER; CROSS,END (A)	8-97080-872-0	01	1	0811-0905
130	07.014 MEMBER; CROSS,END WHEEL BASE 3800MM(38W) (A)	8-97080-872-0	01	1	0906-
130	07.014 MEMBER; CROSS,END WHEEL BASE 4100MM(41W) (B)	8-97205-394-0	01	1	0810-0810
131	07.014 BOLT; END C/MBR WHEEL BASE 4100MM(41W) 07.833 M10X25 FLANGE	0-28661-025-0	08	1	0906-
131	07.014 BOLT; END C/MBR WHEEL BASE 4100MM(41W) 07.833 M10X25 FLANGE	0-28661-025-0	08	1	0810-0810
132	07.014 NUT; END C/MBR WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	08	1	0906-
132	07.014 NUT; END C/MBR WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	08	1	0810-0810
201	07.039 GUSSET; C/MBR	8-97096-871-0	02	1	0810-
325	07.039 EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-891-1	01	1	0906-
325	07.039 EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-892-1	01	1	0906-
325	07.039 EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-891-0	01	1	0810-0810
325	07.039 EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-892-0	01	1	0810-0810
325	07.039 EXTENSION; FRAME (A)	8-98073-346-0	01	1	0810-0905
325	07.039 EXTENSION; FRAME WHEEL BASE 3800MM(38W) (A)	8-98073-346-0	01	1	0906-
325	07.039 EXTENSION; FRAME (A)	8-98073-347-1	01	1	0810-0905
325	07.039 EXTENSION; FRAME WHEEL BASE 3800MM(38W) (A)	8-98073-347-1	01	1	0906-
414	07.011 BOLT WHEEL BASE 4100MM(41W) 06.509 M12X30 FLANGE	0-28661-230-0	12	1	0906-
414	07.011 BOLT WHEEL BASE 4100MM(41W) M12X40 FLANGE	0-28661-240-0	04	1	0906-
414	07.011 BOLT WHEEL BASE 4100MM(41W) 06.509 M12X30 FLANGE	0-28661-230-0	12	1	0810-0810
414	07.011 BOLT WHEEL BASE 4100MM(41W) M12X40 FLANGE	0-28661-240-0	04	1	0810-0810

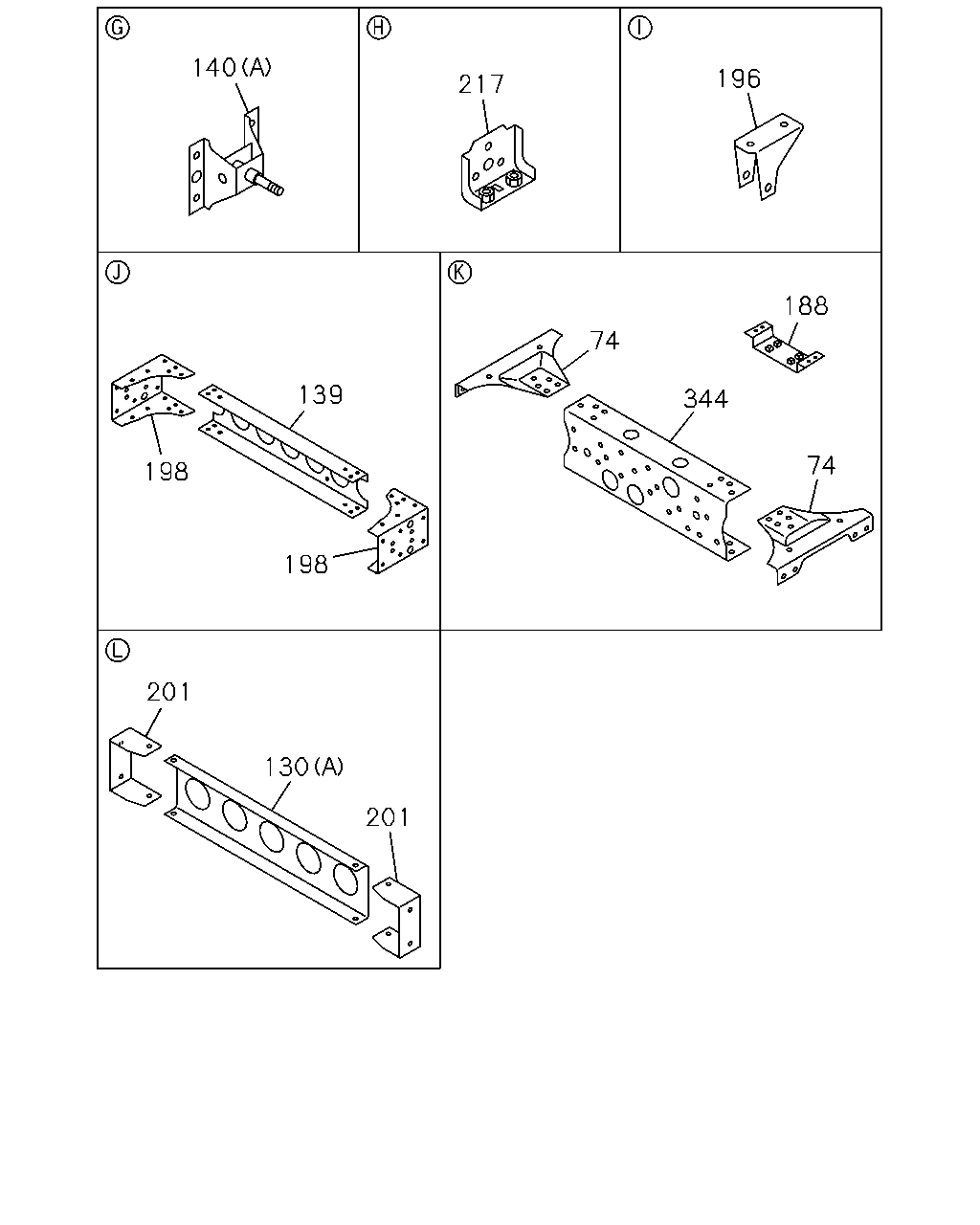

140 217 196 198 139 198 74 344 188 74 201 130 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
74	07.039 GUSSET; 4TH C/MBR RH-LOWER,LH-UPPER	8-98000-583-0	02	1	0810-0905
74	07.039 GUSSET; 4TH C/MBR WHEEL BASE 3800MM(38W) RH-LOWER,LH-UPPER	8-98000-583-0	02	1	0906-
74	07.039 GUSSET; 4TH C/MBR RH-UPPER,LH-LOWER	8-98000-584-0	02	1	0810-0905
74	07.039 GUSSET; 4TH C/MBR WHEEL BASE 3800MM(38W) RH-UPPER,LH-LOWER	8-98000-584-0	02	1	0906-
130	07.014 MEMBER; CROSS,END WHEEL BASE 4100MM(41W) (B)	8-97205-394-0	01	1	0906-
130	07.014 MEMBER; CROSS,END WHEEL BASE 3800MM(38W) (A)	8-97080-872-0	01	1	0810-0810
130	07.014 MEMBER; CROSS,END (A)	8-97080-872-0	01	1	0811-0905
130	07.014 MEMBER; CROSS,END WHEEL BASE 3800MM(38W) (A)	8-97080-872-0	01	1	0906-
130	07.014 MEMBER; CROSS,END WHEEL BASE 4100MM(41W) (B)	8-97205-394-0	01	1	0810-0810
139	07.012 MEMBER; CROSS,6TH	8-97107-384-0	01	1	0810-0905
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 3800MM(38W)	8-97107-384-0	01	1	0906-
140	07.112 BRACKET; S/ABS,RR 07.395 (B)	8-97302-511-0	02	1	0810-0905
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 3800MM(38W) 07.395 (B)	8-97302-511-0	02	1	0906-
140	07.112 BRACKET; S/ABS,RR (A)	8-97080-884-0	02	1	0810-0905
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 3800MM(38W) (A)	8-97080-884-1	02	1	0906-
188	07.039 BRACKET; SUPPORT,CTR BRG WHEEL BASE 3800MM(38W)	8-98227-662-0	01	1	1212-
196	07.242 BRACKET; STAB TO FRAME	8-98033-523-0	04	1	0810-0905
196	07.242 BRACKET; STAB TO FRAME WHEEL BASE 3800MM(38W)	8-98033-523-0	04	1	0906-
198	07.039 GUSSET; 6TH C/MBR	8-98014-079-1	02	1	0810-0905
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 3800MM(38W)	8-98014-079-1	02	1	0906-
201	07.039 GUSSET; C/MBR	8-97096-871-0	02	1	0810-
217	07.535 BRACKET; HELPER RUBBER,RR SPRING	8-97202-417-0	02	1	0810-0905
217	07.535 BRACKET; HELPER RUBBER,RR SPRING WHEEL BASE 3800MM(38W)	8-97202-417-0	02	1	0906-
344	07.012 MEMBER; CROSS,4TH	8-97175-993-3	01	1	0810-0905
344	07.012 MEMBER; CROSS,4TH WHEEL BASE 3800MM(38W)	8-97175-993-3	01	1	0906-

376 376 376 376 376 376 376 376 376 376 376 221 176 176 296 222 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
67	07.011 NUT; C/MBR 04.085 M10 FLANGE	0-91180-210-0	18	1	0810-0905
67	07.011 NUT; C/MBR WHEEL BASE 3800MM(38W) 04.085 M10 FLANGE	0-91180-210-0	18	1	0906-
176	04.085 BOLT; C/MBR,ENG MTG 03.890 (B) M10X30 FLANGE	0-28051-030-0	04	1	0810-0905
176	04.085 BOLT; C/MBR,ENG MTG WHEEL BASE 3800MM(38W) 03.890 (B) M10X30 FLANGE	0-28051-030-0	04	1	0906-
176	04.085 BOLT; C/MBR,ENG MTG 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	0810-0905
176	04.085 BOLT; C/MBR,ENG MTG WHEEL BASE 3800MM(38W) 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	0906-
221	01.270 BOLT; RAD MTG BRKT,FRAME WHEEL BASE 4100MM(41W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0810-0810
222	07.039 NUT; RAD MTG BRKT,FRAME WHEEL BASE 4100MM(41W) 01.540 M8 FLANGE	0-91180-208-0	02	1	0810-0810
296	07.039 BOLT; 3RD C/MBR 00.029 M10X30 FLANGE	0-28651-030-0	16	1	0810-0905
296	07.039 BOLT; 3RD C/MBR WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE	0-28651-030-0	16	1	0906-
376	07.039 RIVET; FRAME 07.011 (A) D8X24 TAPER END	9-06750-824-0	AR	1	0810-
376	07.039 RIVET; FRAME (B) D10X24 TAPER END	9-06751-024-0	AR	1	0810-
376	07.039 RIVET; FRAME (C) D10X26 TAPER END	9-06751-026-0	AR	1	0810-
376	07.039 RIVET; FRAME (D) D10X28 TAPER END	9-06751-028-0	AR	1	0810-
376	07.039 RIVET; FRAME (E) D10X32 TAPER END	9-06751-032-0	AR	1	0810-
376	07.039 RIVET; FRAME (F) D10X36 TAPER END	9-06751-036-0	AR	1	0810-
376	07.039 RIVET; FRAME (G) D11X26 TAPER END	9-06751-126-0	AR	1	0810-
376	07.039 RIVET; FRAME (H) D11X30 TAPER END	9-06751-130-0	AR	1	0810-
376	07.039 RIVET; FRAME 07.105 (I) D12X30 TAPER END	9-06751-230-0	AR	1	0810-
376	07.039 RIVET; FRAME 07.428 (J) D12X36 TAPER END	9-06751-236-0	AR	1	0810-
376	07.039 RIVET; FRAME 07.112 (K) D12X40 TAPER END	9-06751-240-0	AR	1	0810-

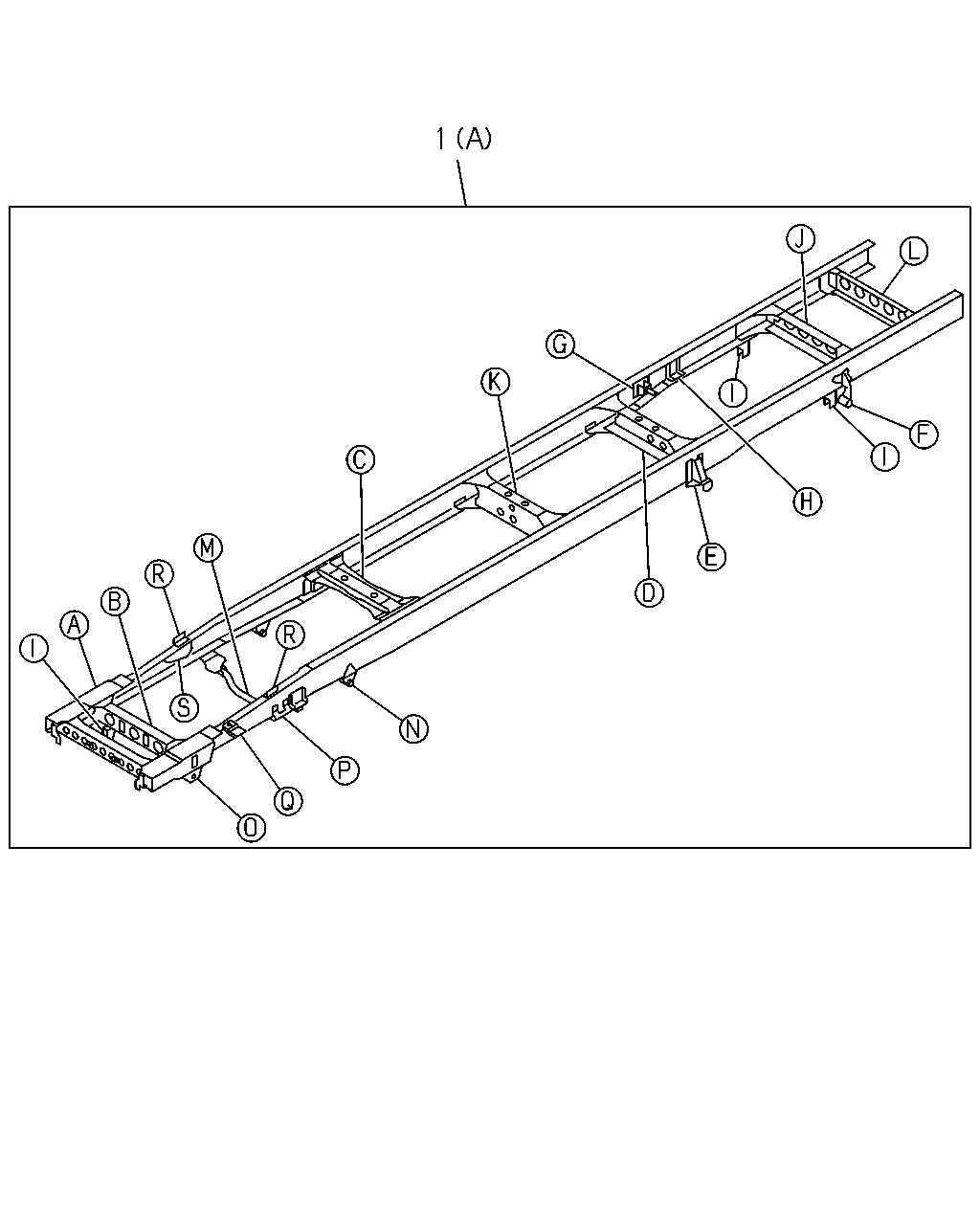

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.003 FRAME ASM WHEEL BASE 3800MM(38W) (A)	8-98106-326-0	01	1	0810-0810
1	07.003 FRAME ASM (A)	8-98106-326-0	01	1	0811-0905
1	07.003 FRAME ASM WHEEL BASE 3800MM(38W) (A)	8-98106-326-1	01	1	0906-
1	07.003 FRAME ASM WHEEL BASE 4100MM(41W) (B)	8-98106-328-0	01	1	0810-0810
