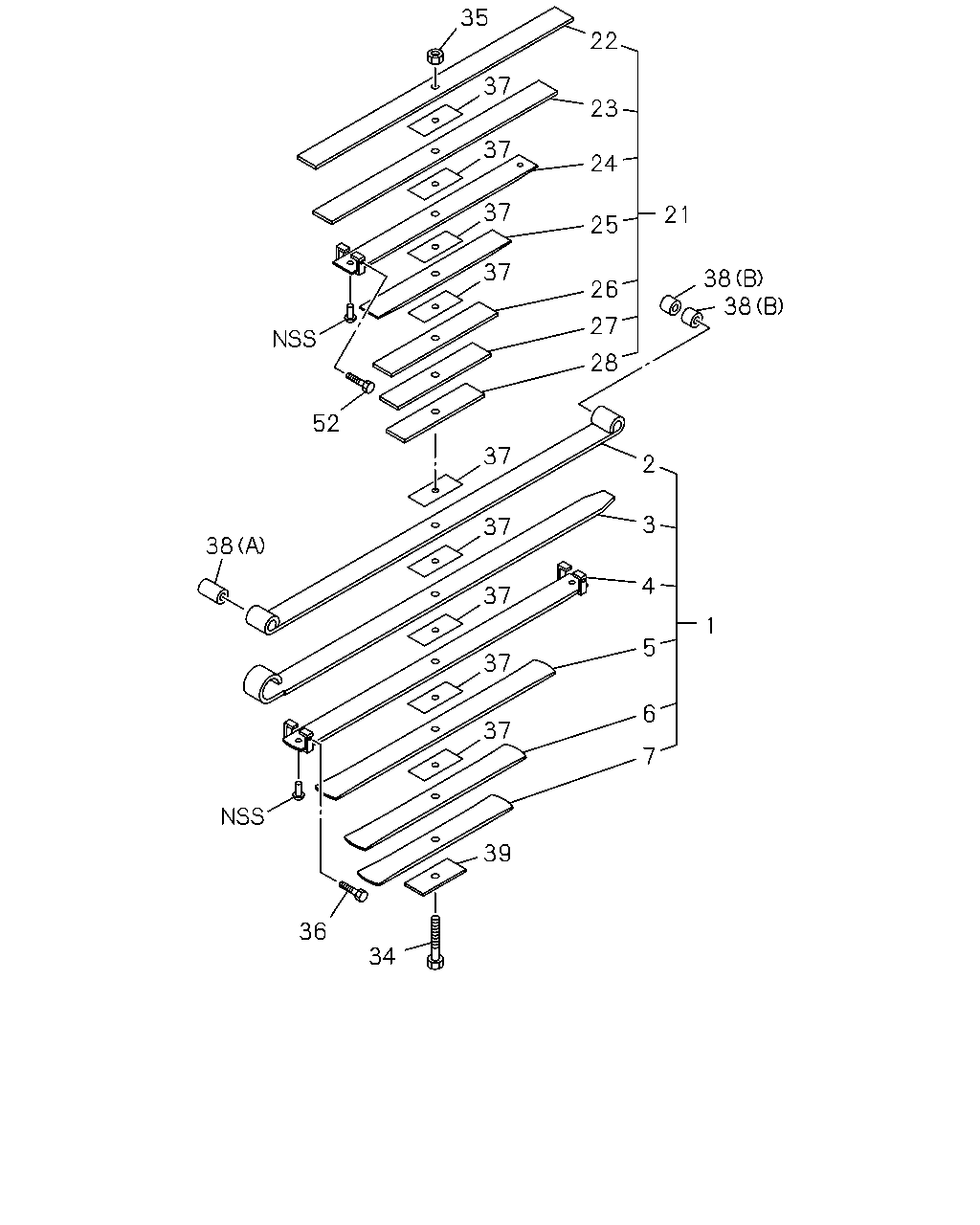

4-65C — REAR LEAF SPRING (#76310) — 24 parça

35 22 37 23 37 24 37 21 25 37 38 38 26 27 28 52 37 2 3 37 38 4 37 1 5 37 6 37 7 39 36 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-98079-902-0, 98079902	8-98094-383-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-98079-902-0, 98079902	8-98094-384-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-98079-902-0, 98079902	8-98094-385-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-98079-902-0, 98079902	8-98094-386-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-98079-902-0, 98079902	8-98094-387-0	01	1	-
6	07.505 SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 8-98079-902-0, 98079902	8-98094-388-0	01	1	-
7	07.505 SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 8-98079-902-0, 98079902	8-98094-389-0	01	1	-
21	07.503 SPRING ASM; LEAF,RR SUB ASM PART: A = 8-98079-902-0, 98079902	8-98094-390-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-98079-902-0, 98079902	8-98094-391-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-98079-902-0, 98079902	8-98094-392-0	01	1	-
24	07.505 SPRING; LEAF,NO 3,RR SUB ASM PART: A = 8-98079-902-0, 98079902	8-98094-393-0	01	1	-
25	07.505 SPRING; LEAF,NO 4,RR SUB ASM PART: A = 8-98079-902-0, 98079902	8-98094-394-0	01	1	-
26	07.505 SPRING; LEAF,NO 5,RR SUB ASM PART: A = 8-98079-902-0, 98079902	8-98094-395-0	01	1	-
27	07.505 SPRING; LEAF,NO 6,RR SUB ASM PART: A = 8-98079-902-0, 98079902	8-98094-396-0	01	1	-
28	07.505 SPRING; LEAF,NO 7,RR SUB ASM PART: A = 8-98079-902-0, 98079902	8-98094-397-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=165 ASM PART: A = 8-98079-902-0, 98079902	8-98040-310-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-98079-902-0, 98079902	9-99110-512-0	01	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR M8X90.5 ASM PART: A = 8-98079-902-0, 98079902	8-98040-333-0	02	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 8-98079-902-0, 98079902	8-97084-102-0	09	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), BEST VALUE PARTS ASM PART: A = 8-98079-902-0, 98079902	5-87610-163-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.524, (B) ASM PART: A = 8-98079-902-0, 98079902	8-94118-588-1	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), OD=42 L=81 ASM PART: A = 8-98079-902-0, 98079902	8-97074-826-0	01	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN 07.513, T=8 ASM PART: A = 8-98079-902-0, 98079902	8-98040-779-0	01	1	-
52	07.506 BOLT; CLIP,LEAF SPR,RR SUB M8X90.5 ASM PART: A = 8-98079-902-0, 98079902	8-98040-333-0	01	1	-
