◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51186 - NPR BUS(LHD)EURO1 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65B - REAR LEAF SPRING ▶
4-65B — REAR LEAF SPRING (#76309) — 29 parça

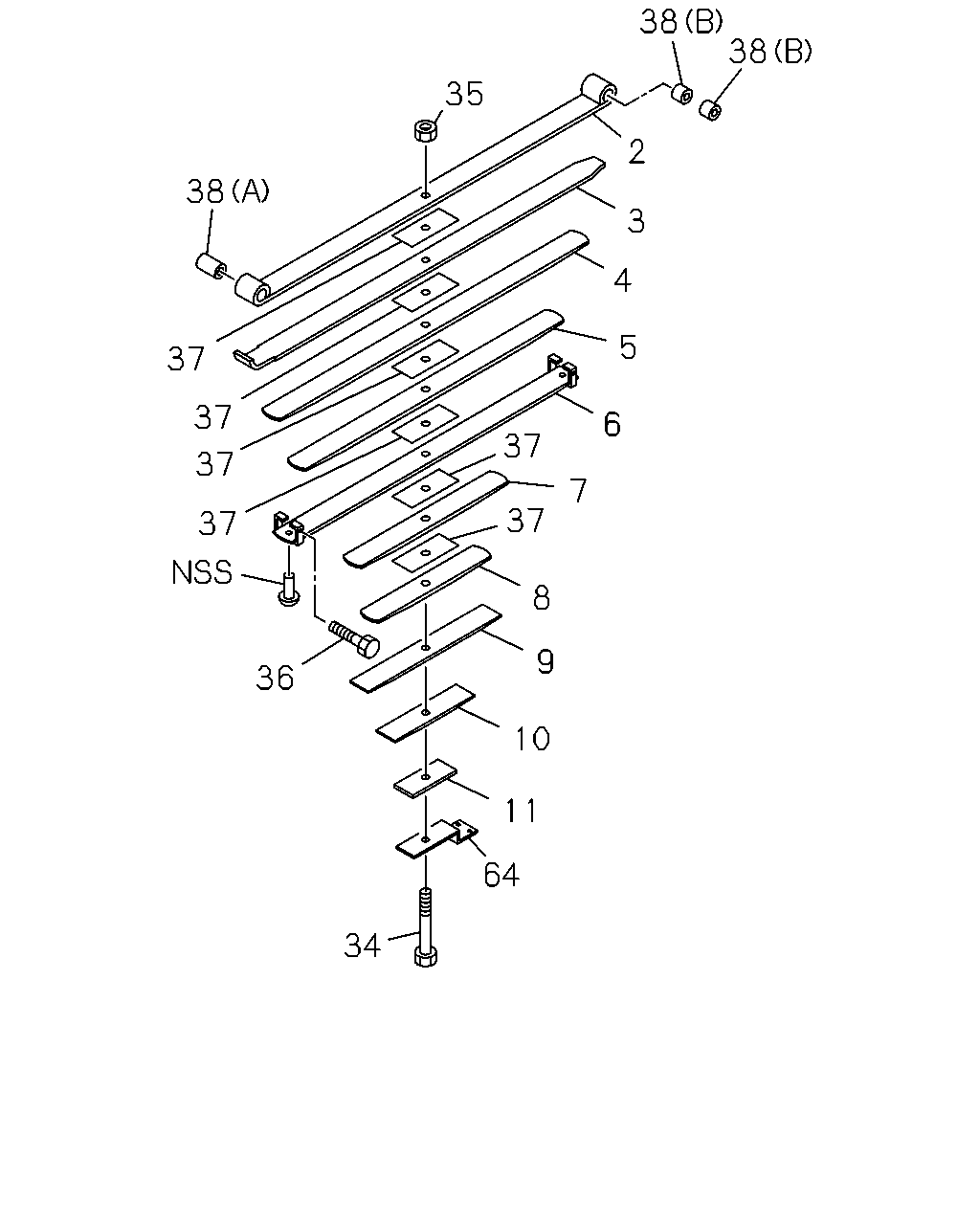

çizim 59489
38 38 35 2 38 3 4 5 37 37 6 37 37 7 37 37 8 9 36 10 11 64 34
BalonParca AdiParca NoAdetTipApplied Date
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98025-058-0, 98025058 		8-98094-332-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: B = 8-98025-060-0, 98025060 		8-98094-342-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98025-058-0, 98025058 		8-98094-333-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: B = 8-98025-060-0, 98025060 		8-98094-343-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-98025-058-0, 98025058 		8-98094-334-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: B = 8-98025-060-0, 98025060 		8-98094-344-0 01 1 -
5 07.505 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-98025-058-0, 98025058 		8-98094-335-0 01 1 -
5 07.505 SPRING; LEAF,NO 4,RR MAIN
ASM PART: B = 8-98025-060-0, 98025060 		8-98094-345-0 01 1 -
6 07.505 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 8-98025-058-0, 98025058 		8-98094-336-0 01 1 -
6 07.505 SPRING; LEAF,NO 5,RR MAIN
ASM PART: B = 8-98025-060-0, 98025060 		8-98094-346-0 01 1 -
7 07.505 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 8-98025-058-0, 98025058 		8-98094-337-0 01 1 -
7 07.505 SPRING; LEAF,NO 6,RR MAIN
ASM PART: B = 8-98025-060-0, 98025060 		8-98094-347-0 01 1 -
8 07.505 SPRING; LEAF,NO 7,RR MAIN
ASM PART: A = 8-98025-058-0, 98025058 		8-98094-338-0 01 1 -
8 07.505 SPRING; LEAF,NO 7,RR MAIN
ASM PART: B = 8-98025-060-0, 98025060 		8-98094-348-0 01 1 -
9 07.505 SPRING; LEAF,NO 8,RR MAIN
ASM PART: A = 8-98025-058-0, 98025058 		8-98094-339-0 01 1 -
9 07.505 SPRING; LEAF,NO 8,RR MAIN
ASM PART: B = 8-98025-060-0, 98025060 		8-98094-349-0 01 1 -
10 07.505 SPRING; LEAF,NO 9,RR MAIN
ASM PART: A = 8-98025-058-0, 98025058 		8-98094-340-0 01 1 -
10 07.505 SPRING; LEAF,NO 9,RR MAIN
ASM PART: B = 8-98025-060-0, 98025060 		8-98094-350-0 01 1 -
11 07.505 SPRING; LEAF,NO 10,RR MAIN
ASM PART: A = 8-98025-058-0, 98025058 		8-98094-341-0 01 1 -
11 07.505 SPRING; LEAF,NO 10,RR MAIN
ASM PART: B = 8-98025-060-0, 98025060 		8-98094-351-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=125 ASM PART: A = 8-98025-058-0, 98025058 		8-98037-584-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=140 ASM PART: B = 8-98025-060-0, 98025060 		8-98041-356-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-98025-058-0, 98025058, B = 8-98025-060-0, 98025060 		9-99110-512-0 01 1 -
36 07.506 BOLT; CLIP,LEAF SPR,RR
M8X89 ASM PART: A = 8-98025-058-0, 98025058, B = 8-98025-060-0, 98025060 		8-98040-332-0 02 1 -
37 07.518 SPACER; CENTER,LEAF SPR,RR
T=1 ASM PART: B = 8-98025-060-0, 98025060 		8-97084-102-0 06 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), BEST VALUE PARTS ASM PART: A = 8-98025-058-0, 98025058, B = 8-98025-060-0, 98025060 		5-87610-163-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.524, (B) ASM PART: A = 8-98025-058-0, 98025058, B = 8-98025-060-0, 98025060 		8-94118-588-1 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), OD=42 L=81 ASM PART: A = 8-98025-058-0, 98025058, B = 8-98025-060-0, 98025060 		8-97074-826-0 01 1 -
64 07.513 SUPPORT; RR SPR
ASM PART: B = 8-98025-060-0, 98025060 		8-97225-579-1 01 1 -
