◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10632 - FVM-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#763) — 81 parça

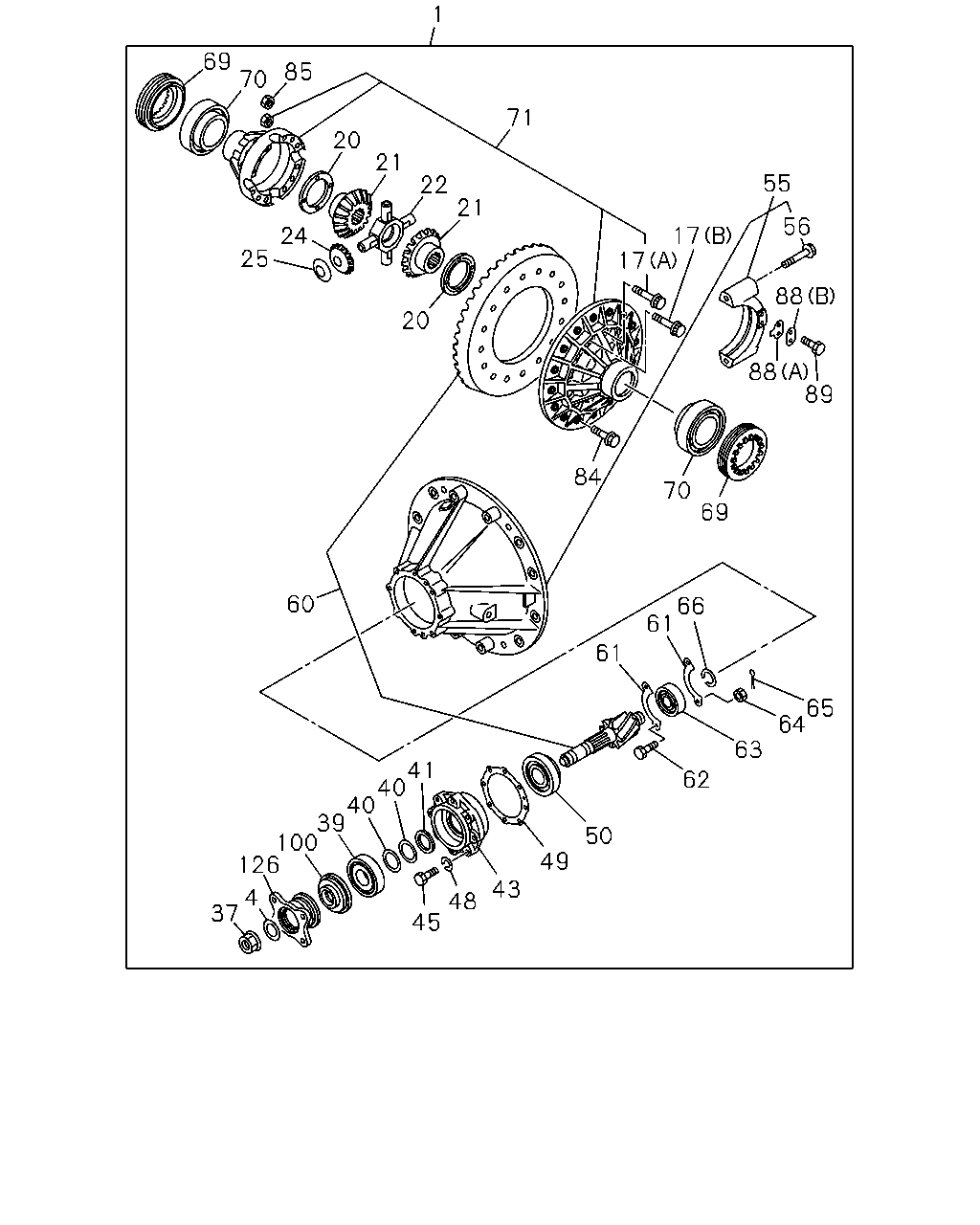

çizim 28962
1 69 70 85 71 20 21 55 22 21 56 17 24 25 17 88 20 88 89 84 70 69 60 66 61 61 65 64 63 41 40 40 39 100 126 62 50 49 43 4 37 48 45
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRIVE ASM; FINAL,RR
39/8 		1-41001-385-0 01 1 9204- ●
1 DRIVE ASM; FINAL,RR
41/9 		1-41001-386-0 01 1 9407- ●
1 DRIVE ASM; FINAL,RR
39/9 		1-41001-387-0 01 1 9209- ●
1 DRIVE ASM; FINAL,RR
39/7 		1-41001-383-0 01 1 9505- ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 9204- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X125 		1-09070-007-0 04 1 9204- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 9204- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 9204- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 9204- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 9204- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 9204- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 9204- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 9204- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 9204- ● ● ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-086-0 02 1 9204- ● ● ● ●
22 PIN; CROSS,DIFF PINION
OD=35 		1-41521-037-0 01 1 9204- ● ● ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-025-0 04 1 9204- ● ● ● ●
25 WASHER; THRUST,PINION
T=1.6 		1-41552-017-0 04 1 9204- ● ● ● ●
37 NUT; DRIVING PINION
M46 FLANGE 		1-09449-071-0 01 1 9204- ● ● ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-075-0 01 1 9204- ● ● ● ●
39 BEARING; FINAL PINION
KOYO 		1-09812-076-0 01 1 9204- ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9204- ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9204- ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9204- ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9204- ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9204- ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9204- ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9204- ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9204- ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9204- ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9204- ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9204- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 9204- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 9204- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 9204- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 9204- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 9204- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 9204- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 9204- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 9204- ● ● ● ●
43 CAGE; FINAL PINION
T=81 		1-41151-030-0 01 1 9204- ● ● ● ●
45 BOLT; FINAL PINION CAGE
M16X55 		0-16806-655-0 08 1 9204- ● ● ● ●
48 WASHER; LK,FINAL PINION
ID=16.2 		9-09150-516-0 08 1 9204- ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-024-0 AR 1 9204- ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 		1-41154-025-0 AR 1 9204- ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-057-0 AR 1 9204- ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-058-0 AR 1 9204-9208 ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-058-0 AR 1 9209-9504 ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-058-0 AR 1 9505- ● ● ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-073-0 01 1 9204- ● ● ● ●
50 BEARING; FINAL PINION
KOYO 		1-09812-074-0 01 1 9204- ● ● ● ●
55 CARRIER; DIFF 1-41110-071-1 01 1 9204- ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 9204- ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
39/8 		1-41210-411-1 01 1 9204-9310 ●
60 GEAR SET; FINAL DRIVE,RR
39/8 		1-41210-467-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
41/9 		1-41210-468-0 01 1 9407- ●
60 GEAR SET; FINAL DRIVE,RR
39/9 		1-41210-413-1 01 1 9209-9310 ●
60 GEAR SET; FINAL DRIVE,RR
39/9 		1-41210-469-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
39/7 		1-41210-465-0 01 1 9505- ●
61 RETAINER; PILOT BRG,PINION 1-41227-003-0 02 1 9204-9204 ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 9205- ● ● ● ●
62 BOLT; RET
M8X38 W/PIN HOLE 		1-09042-036-0 02 1 9204-9204 ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 9205- ● ● ● ●
63 BEARING; PINION PILOT
KOYO 		1-09810-182-0 01 1 9204- ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 9204- ● ● ● ●
64 NUT; RET
M8 		9-09117-408-0 02 1 9204- ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9204- ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 01 1 9204- ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-002-0 01 1 9204- ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-001-0 01 1 9204- ● ● ● ●
70 BEARING; DIFF CAGE
NSK ID=92 OD=152 T=39.7 		1-09812-156-0 02 1 9204- ● ● ● ●
70 BEARING; DIFF CAGE
KOYO ID=92 OD=152 T=39.7 		1-09812-158-0 02 1 9204- ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 9204- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 9209- ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 9204- ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 12 1 9204- ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 9204- ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9204- ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9204- ● ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 9204- ● ● ● ●
126 COUPLING; DRIVING PINION 1-37245-143-2 01 1 9204- ● ● ● ●
