3-58 — FIXING PARTS; OIL PIPING (#76289) — 21 parça

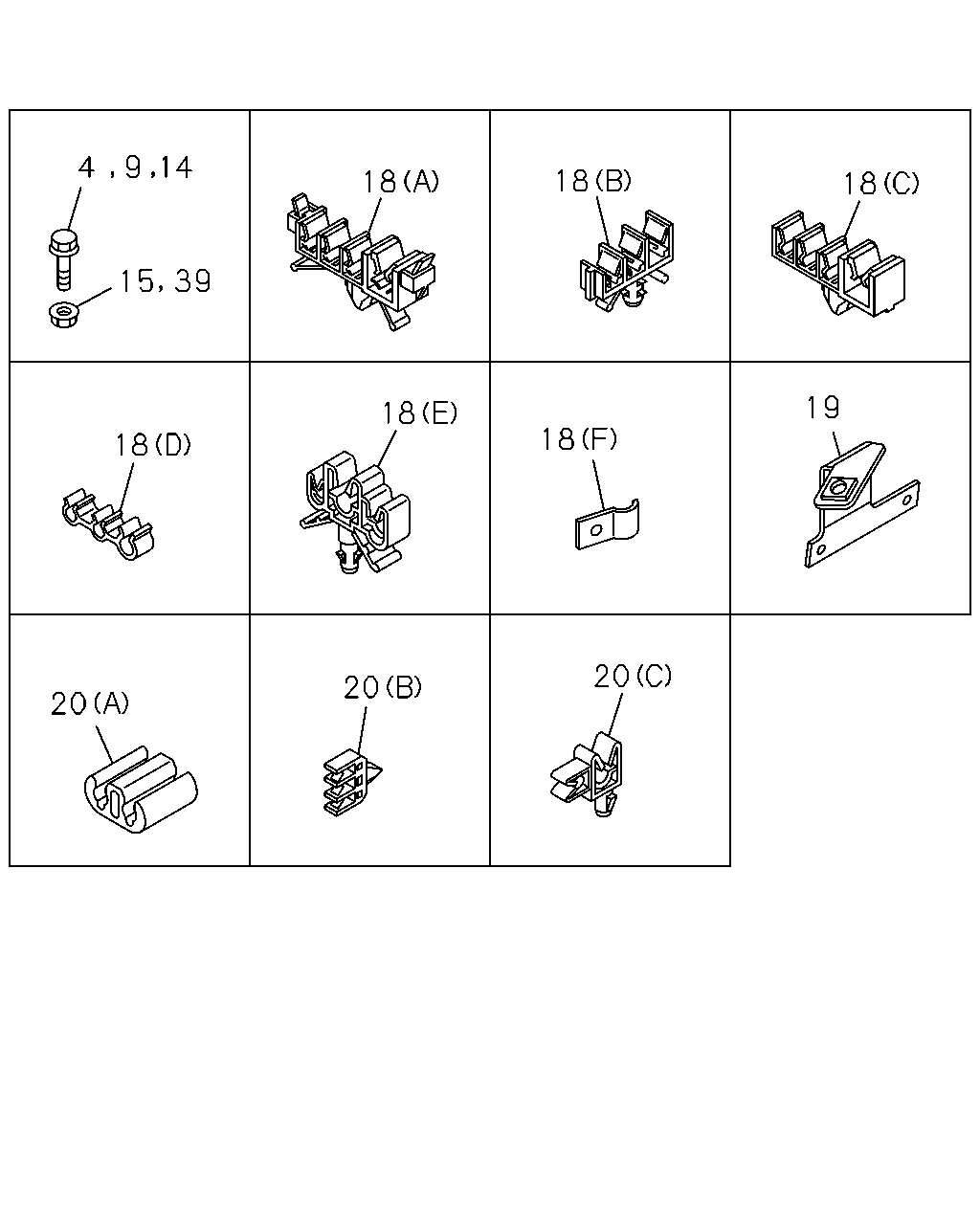

çizim 59391
4 18 18 18 19 18 18 18 20 20 20 9 14 15 39
BalonParca AdiParca NoAdetTipApplied Date
4 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0810-
9 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0810-
14 04.686 BOLT; CLIP,OIL PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0810-
15 04.686 NUT; CLIP,OIL PIPE
01.062 M8 FLANGE 		0-91180-108-0 02 1 0810-
18 04.686 CLIP; BRK PIPE
WHEEL BASE 4100MM(41W) (A) ID=10 & 4.76X3 		8-97326-158-1 06 1 0906-
18 04.686 CLIP; BRK PIPE
(C) ID=10 & 4.76X3 		8-97168-819-0 01 1 0810-
18 04.686 CLIP; BRK PIPE
(C) ID=10 & 4.76X3 		8-97168-819-0 02 1 0810-
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3800MM(38W) (A) ID=10 & 4.76X3 		8-97326-158-1 05 1 0810-0810
18 04.686 CLIP; BRK PIPE
(A) ID=10 & 4.76X3 		8-97326-158-1 05 1 0811-0905
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3800MM(38W) (A) ID=10 & 4.76X3 		8-97326-158-1 05 1 0906-
18 04.686 CLIP; BRK PIPE
WHEEL BASE 4100MM(41W) (A) ID=10 & 4.76X3 		8-97326-158-1 06 1 0810-0810
18 04.686 CLIP; BRK PIPE
(F) B=18 L=20 		1-09700-372-0 02 1 0810-
18 04.686 CLIP; BRK PIPE
(D) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0810-
18 04.686 CLIP; BRK PIPE
03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 0810-
18 04.686 CLIP; BRK PIPE
(E) ID=12 & 6.35 & 4.76 		8-97202-954-1 03 1 0810-
18 04.686 CLIP; BRK PIPE
(A) ID=10 & 4.76X3 		8-97326-158-1 07 1 0810-
19 04.686 BRACKET; OIL PIPE 8-97389-845-2 01 1 0810-
20 04.686 CLIP; BRK PIPE
(B) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 0810-
20 04.686 CLIP; BRK PIPE
03.162 (A) ID=6.35 & 6.35 		8-94474-113-0 01 1 0810-
20 04.686 CLIP; BRK PIPE
03.162 (C) ID=12 & 6.35 		8-97215-437-0 01 1 0810-
39 04.686 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 01 1 0810-
