Isuzu WW
▶
TRUCKS
▶
NPR
▶
51186 - NPR BUS(LHD)EURO1
▶
3 - Brakes, Brake System
▶
3-30 - BRAKE MASTER CYLINDER
▶
3-30 — BRAKE MASTER CYLINDER
(#76284) — 14 parça
◀

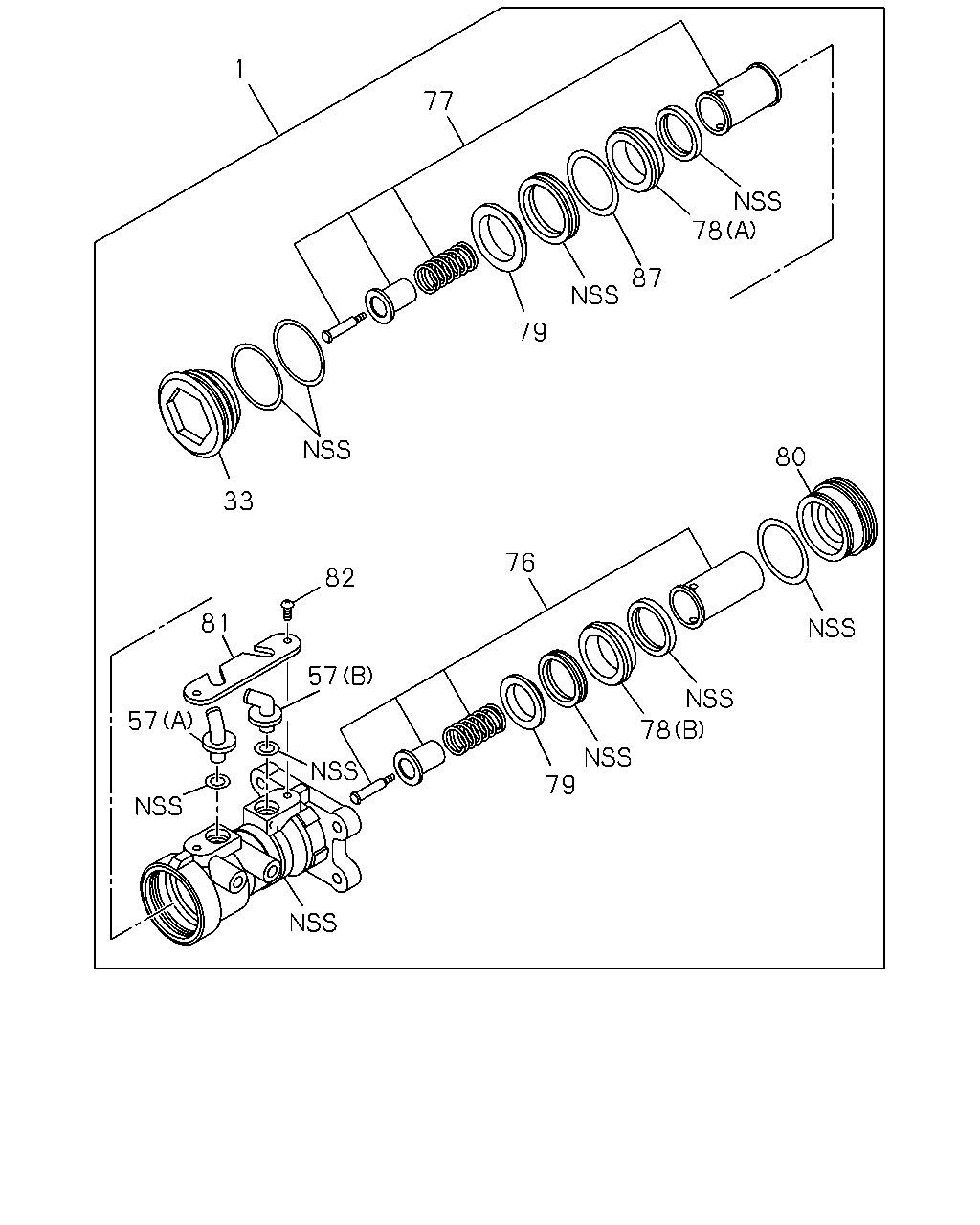

[330A] COMPONENT (13 parça)

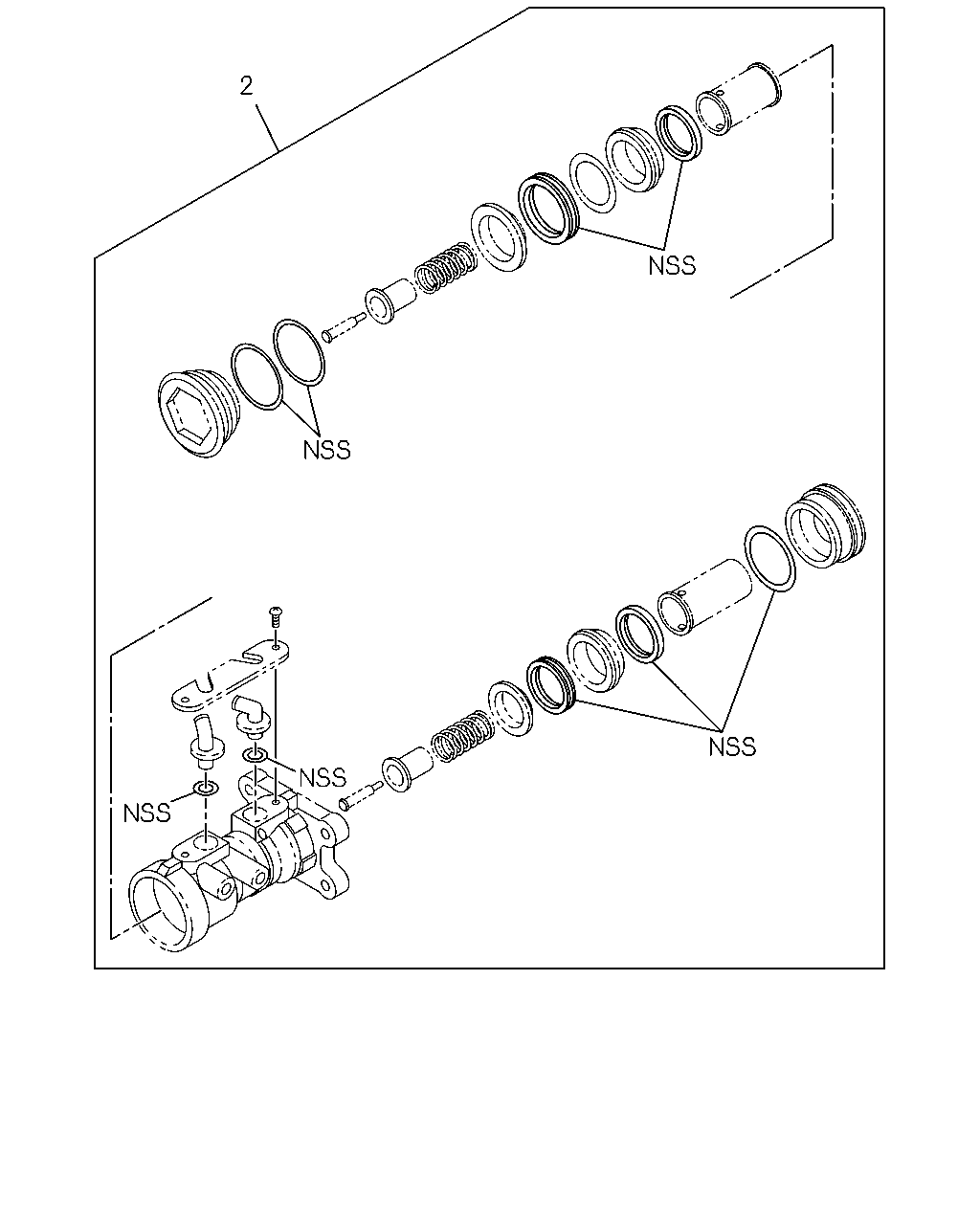

[330A] REPAIR KIT (1 parça)
▶
1
77
78
87
79
80
33
76
82
81
57
78
79
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.650 CYLINDER ASM; BRK MASTER
8-98032-602-0
01
1
0810-
33
04.661 PLUG; END,M/CYL
8-97186-697-0
01
1
0810-
57
04.651 NIPPLE; BRK M/CYL
(A)
8-97130-441-0
01
1
0810-
57
04.651 NIPPLE; BRK M/CYL
(B)
8-97130-442-0
01
1
0810-
76
04.653 PISTON ASM; PRIMARY
8-97224-643-0
01
1
0810-
77
04.653 PISTON ASM; SECONDARY
8-97224-642-0
01
1
0810-
78
04.651 BUSHING; MASTER CYL
(A)
8-97130-455-0
01
1
0810-
78
04.651 BUSHING; MASTER CYL
(B)
8-97217-312-0
01
1
0810-
79
04.651 SUPPORTER; CUP
8-97130-463-0
02
1
0810-
80
04.651 COVER; MASTER CYL
8-97130-449-0
01
1
0810-
81
04.651 HOLDER; NIPPLE
8-97315-168-0
01
1
0810-
82
04.651 SCREW; HOLDER
8-97130-446-0
02
1
0810-
87
04.662 SPACER; CUP
8-97130-459-0
01
1
0810-
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
04.649 REPAIR KIT; BRK,M/CYL
8-97130-471-0
01
1
0810-
