3-05 — REAR WHEEL BRAKE (#76279) — 65 parça

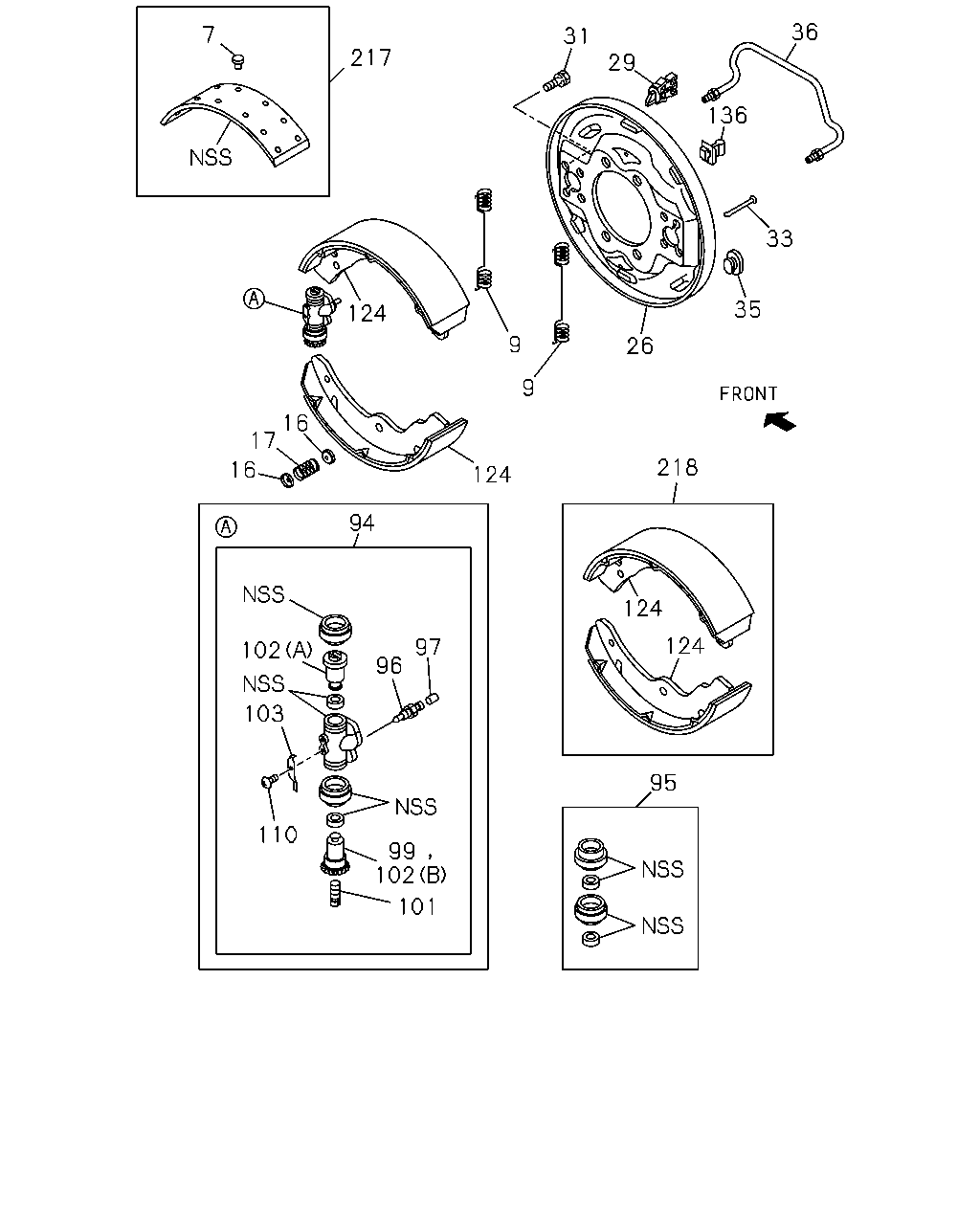

çizim 59387
36 7 31 217 29 136 33 35 124 9 26 9 16 17 218 16 124 94 124 124 97 102 96 103 95 110 99 102 101
BalonParca AdiParca NoAdetTipApplied Date
7 05.019 RIVET; LINING,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		1-09732-029-0 48 1 0810-0810
7 05.019 RIVET; LINING,RR BRK 1-09732-029-0 48 1 0811-
7 05.019 RIVET; LINING,RR BRK
G.V.W. 7.5-8.0TON(RPY) 		1-09732-029-0 64 1 0810-0810
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 7.0-7.5TON(RPX) 		8-97022-087-0 04 1 0810-0810
9 05.026 SPRING; RETURN,BRK SHOE 8-97022-087-0 04 1 0811-
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 7.5-8.0TON(RPY) 		8-97122-869-0 04 1 0810-0810
16 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 0810-
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		5-09580-101-1 04 1 0810-
26 05.001 PLATE; BACK,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97223-573-0 01 1 0810-0810
26 05.001 PLATE; BACK,RR BRK 8-97223-573-0 01 1 0811-
26 05.001 PLATE; BACK,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97223-574-0 01 1 0810-0810
26 05.001 PLATE; BACK,RR BRK 8-97223-574-0 01 1 0811-
26 05.001 PLATE; BACK,RR BRK
G.V.W. 7.5-8.0TON(RPY) 		8-97134-731-0 01 1 0810-0810
26 05.001 PLATE; BACK,RR BRK
G.V.W. 7.5-8.0TON(RPY) 		8-97134-732-0 01 1 0810-0810
29 04.685 CLIP; PIPE,BRK 8-97022-086-0 02 1 0810-
31 04.665 BOLT; RR WHEEL CYL 8-97081-305-0 16 1 0810-
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 7.0-7.5TON(RPX) 		8-97022-089-0 04 1 0810-0810
33 05.043 PIN; SHOE HOLD DOWN 8-97022-089-0 04 1 0811-
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 7.5-8.0TON(RPY) 		8-97122-870-0 04 1 0810-0810
35 05.002 GROMMET; CHECK HOLE 8-97017-507-0 02 1 0810-
36 04.685 PIPE; OIL,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97192-215-0 02 1 0810-0810
36 04.685 PIPE; OIL,RR BRK 8-97192-215-0 02 1 0811-
36 04.685 PIPE; OIL,RR BRK
G.V.W. 7.5-8.0TON(RPY) 		8-97079-847-0 02 1 0810-0810
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX) FRONT 		8-97139-822-0 01 1 0810-0810
94 04.665 CYLINDER; WHEEL,RR BRK
FRONT 		8-97139-822-0 01 1 0811-
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX) REAR 		8-97139-824-0 01 1 0810-0810
94 04.665 CYLINDER; WHEEL,RR BRK
REAR 		8-97139-824-0 01 1 0811-
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97139-825-0 02 1 0810-0810
94 04.665 CYLINDER; WHEEL,RR BRK 8-97139-825-0 02 1 0811-
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) FRONT 		8-97332-222-0 01 1 0810-0810
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) REAR 		8-97332-223-0 01 1 0810-0810
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) 		8-97332-224-0 02 1 0810-0810
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) 		5-87832-051-0 02 1 0810-0810
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 		5-87831-598-0 02 1 0810-0810
95 04.665 CUP SET; RR WHEEL CYL 5-87831-598-0 02 1 0811-
96 04.666 SCREW; BLEEDER,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		8-98050-476-0 01 1 0810-0810
96 04.666 SCREW; BLEEDER,RR BRK 8-98050-476-0 01 1 0811-
96 04.666 SCREW; BLEEDER,RR BRK
G.V.W. 7.5-8.0TON(RPY) 		8-98050-477-0 01 1 0810-0810
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 01 1 0810-
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 		8-94414-700-1 04 1 0810-0810
99 04.668 PISTON; RR WHEEL CYL 8-94414-700-1 04 1 0811-
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) 		8-97332-229-0 03 1 0810-0810
101 04.666 SCREW; ADJ,RR WHEEL CYL 8-94414-702-0 04 1 0810-
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) (A) D=30.16 		8-94414-701-1 04 1 0810-0810
102 04.668 PISTON; REAR WHEEL CYL
(A) D=30.16 		8-94414-701-1 04 1 0811-0811
102 04.668 PISTON; REAR WHEEL CYL
(A) 		8-97078-045-0 04 1 0811-
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) (A) 		8-97332-043-0 04 1 0810-0810
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) (B) 		8-97332-229-0 01 1 0810-0810
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ
G.V.W. 7.0-7.5TON(RPX) 		8-94128-486-0 04 1 0810-0810
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ 8-94128-486-0 04 1 0811-
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ
G.V.W. 7.5-8.0TON(RPY) 		8-97122-877-0 04 1 0810-0810
110 05.107 SCREW; LOCK SPRING,RR WHEEL CYL 8-94128-727-0 04 1 0810-
124 05.017 SHOE ASM; BRK,RR
G.V.W. 7.0-7.5TON(RPX) 		8-97201-061-0 04 1 0810-0810
124 05.017 SHOE ASM; BRK,RR 8-97201-061-0 04 1 0811-
124 05.017 SHOE ASM; BRK,RR
G.V.W. 7.5-8.0TON(RPY) 		8-97188-455-0 04 1 0810-0810
136 05.002 GROMMET 8-97044-742-1 04 1 0810-
217 05.018 LINING KIT; RR BRK
G.V.W. 7.0-7.5TON(RPX) 		5-87831-774-0 01 1 0810-0810
217 05.018 LINING KIT; RR BRK 5-87831-774-0 01 1 0811-
217 05.018 LINING KIT; RR BRK
G.V.W. 7.5-8.0TON(RPY) 		5-87831-692-0 01 1 0810-0810
217 05.018 LINING KIT; RR BRK
G.V.W. 7.5-8.0TON(RPY) BEST VALUE PARTS 		5-87610-119-0 01 1 0810-0810
217 05.018 LINING KIT; RR BRK
G.V.W. 7.0-7.5TON(RPX) BEST VALUE PARTS 		5-87610-120-0 01 1 0810-0810
217 05.018 LINING KIT; RR BRK
BEST VALUE PARTS 		5-87610-120-0 01 1 0811-
218 05.017 SHOE KIT; BRK,RR
G.V.W. 7.0-7.5TON(RPX) 		5-87831-775-0 01 1 0810-0810
218 05.017 SHOE KIT; BRK,RR 5-87831-775-0 01 1 0811-
218 05.017 SHOE KIT; BRK,RR
G.V.W. 7.5-8.0TON(RPY) 		5-87831-693-0 01 1 0810-0810
