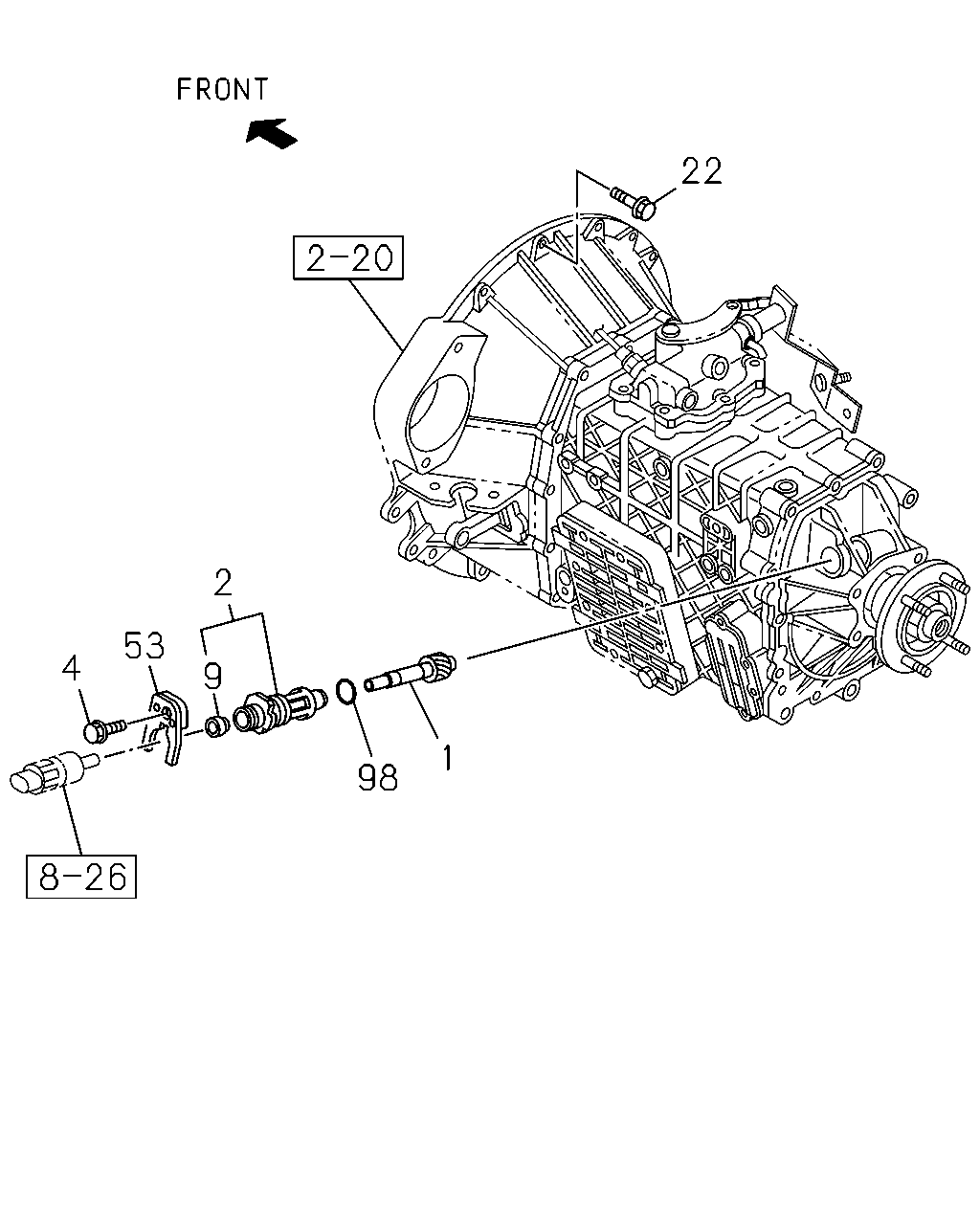

2-25 — SPEEDOMETER DRIVEN GEAR (#76273) — 30 parça

22 2 53 4 9 1 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/7(R42) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) Z=16	8-97253-558-1	01	1	0810-0810
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 39/7(GV1) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL /NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6W HL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) Z=14	8-97253-561-1	01	1	0810-0810
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/7(R41) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) Z=14	8-97253-561-1	01	1	0810-0810
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 39/7(GV1) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6 -WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-1276-WHL/NUT(83V) Z=14	8-97253-561-1	01	1	0810-0810
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/7(R41) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/ NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6- WHL/NUT(83V) Z=14	8-97253-561-1	01	1	0810-0810
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/ NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6- WHL/NUT(83V) Z=14	8-97253-561-1	01	1	0811-
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/7(R41) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/N UT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) Z=15	8-97253-560-1	01	1	0810-0810
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/7(R42) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) ,FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N UT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-1 27 6-WHL/NUT DYNAMIC(97V) Z=15	8-97253-560-1	01	1	0810-0810
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/7(R41) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) Z=15	8-97253-560-1	01	1	0810-0810
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/7(R42) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/ NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6- WHL/NUT(83V) Z=15	8-97253-560-1	01	1	0810-0810
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/7(R42) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/ NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6- WHL/NUT(83V) Z=15	8-97253-560-1	01	1	0811-
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 43/7(R42) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) MARK "10,11,16,17"	8-97253-124-0	01	1	0810-0810
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 43/7(R42) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) ,FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N UT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-1 27 6-WHL/NUT DYNAMIC(97V) MARK "12,13,14,15"	8-97253-125-0	01	1	0810-0810
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL /NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6W HL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) MARK "12,13,14,15"	8-97253-125-0	01	1	0810-0810
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 43/7(R42) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/ NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6- WHL/NUT(83V) MARK "12,13,14,15"	8-97253-125-0	01	1	0810-0810
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6 -WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-1276-WHL/NUT(83V) MARK "12,13,14,15"	8-97253-125-0	01	1	0810-0810
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/ NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6- WHL/NUT(83V) MARK "12,13,14,15"	8-97253-125-0	01	1	0811-
4	04.338 BOLT; RET,DRIVEN GEAR 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0810-
9	04.338 SEAL; OIL,DRIVEN GEAR FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL /NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6W HL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) NOK	8-97131-328-1	01	1	0810-0810
9	04.338 SEAL; OIL,DRIVEN GEAR FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6 -WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-1276-WHL/NUT(83V) NOK	8-97131-328-1	01	1	0810-0810
9	04.338 SEAL; OIL,DRIVEN GEAR FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/ NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6- WHL/NUT(83V) NOK	8-97131-328-1	01	1	0811-
22	00.685 BOLT; TRANS CASE TO ENG 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0810-
22	00.685 BOLT; TRANS CASE TO ENG 00.683 M10X55 FLANGE	8-97365-449-0	02	1	0810-
22	00.685 BOLT; TRANS CASE TO ENG 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0810-1506
22	00.685 BOLT; TRANS CASE TO ENG 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0810-1506
22	00.685 BOLT; TRANS CASE TO ENG 09.171 M10X30 FLANGE	0-28151-030-0	04	1	1507-
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-98046-217-0	01	1	0810-
98	04.338 SEAL; OIL,BUSH FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL /NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6W HL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) 04.439	9-09561-324-0	01	1	0810-0810
98	04.338 SEAL; OIL,BUSH FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6 -WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-1276-WHL/NUT(83V) 04.439	9-09561-324-0	01	1	0810-0810
98	04.338 SEAL; OIL,BUSH FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/ NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6- WHL/NUT(83V) 04.439	9-09561-324-0	01	1	0811-
