Isuzu WW
▶
TRUCKS
▶
NPR
▶
51186 - NPR BUS(LHD)EURO1
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-50 - EXHAUST PIPE AND SILENCER
▶

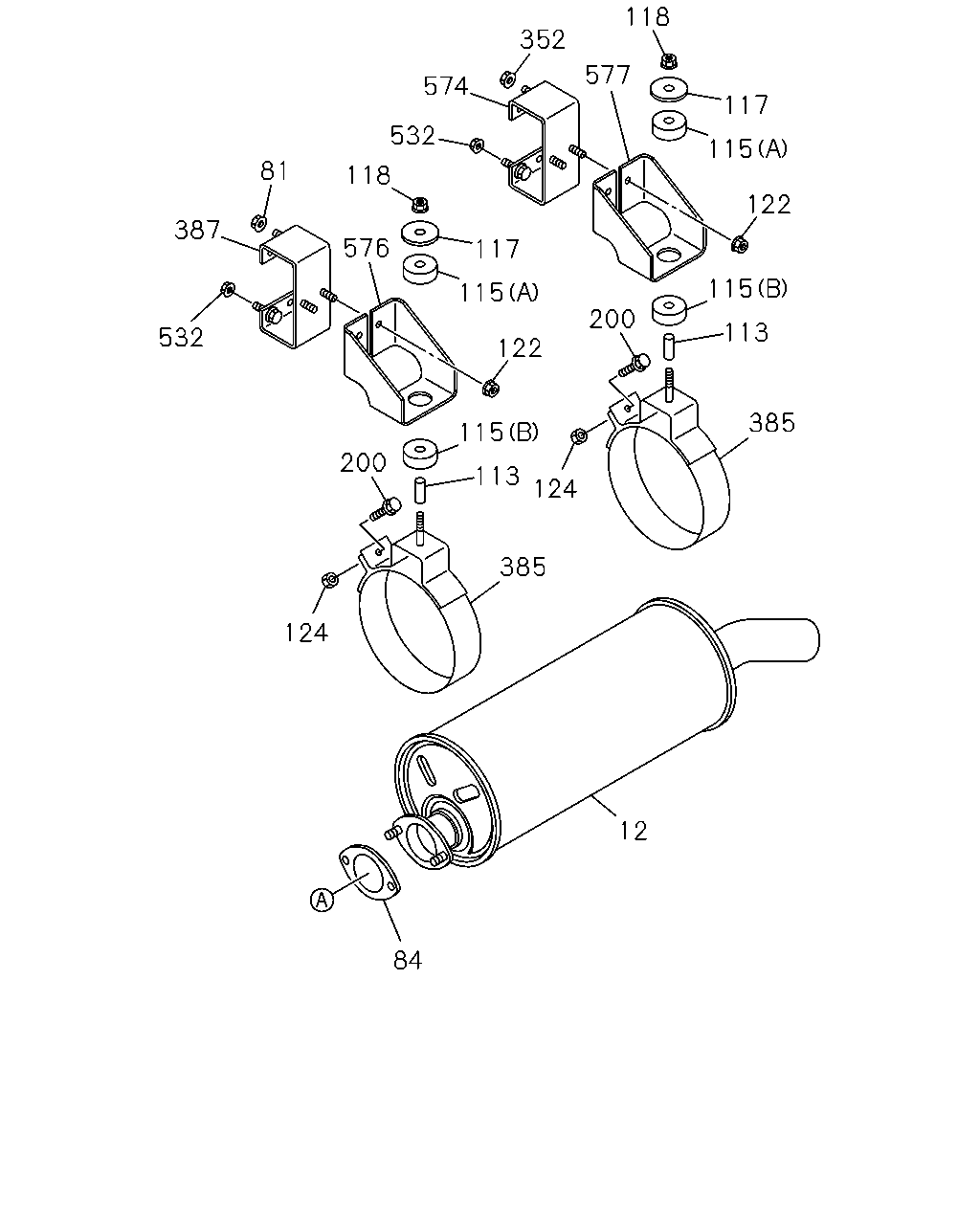

1-50 — EXHAUST PIPE AND SILENCER
(#76262) — 28 parça
◀
[150A] SILENCER (19 parça)
[150A] FRONT PIPE (9 parça)
▶
118
352
574
577
117
122
115
115
385
113
200
117
532
118
81
387
532
576
115
122
115
200
124
113
385
124
12
84
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
03.701 SILENCER ASM; EXH
8-98108-930-1
01
1
0810-
81
03.704 NUT; BRKT
03.162 M10 FLANGE
0-91180-110-0
02
1
0810-
84
03.611 GASKET; EXH PIPE
03.704 ID=64.7
8-94328-352-0
01
1
0810-
113
03.704 COLLAR; DIST,MTG BRKT
03.706 L=37.5
9-22151-217-0
02
1
0810-
115
03.704 RUBBER; MTG,SILENCER
(B)
8-97379-882-0
02
1
0810-
115
03.704 RUBBER; MTG,SILENCER
(A)
8-97379-927-0
02
1
0810-
117
03.704 WASHER; PL,SILENCER MTG BRKT
OD=55
9-09852-169-0
02
1
0810-
118
03.704 NUT; SILENCER MTG BRKT
07.874 M10 FLANGE
5-09440-006-0
02
1
0810-
122
03.275 NUT; HANGER BRKT
03.162 M10 FLANGE
0-91180-110-0
02
1
0810-
124
03.704 NUT; SUPPORT RUBBER
02.334 M8
0-91110-508-0
02
1
0810-
200
03.704 BOLT; SUPPORT RUBBER
01.252 M8X45 W/LK WASHER
0-50040-845-0
02
1
0810-0909
200
03.704 BOLT; SUPPORT RUBBER
M8X45 W/LK WASHER
0-50540-845-0
02
1
0910-
352
03.613 NUT; BRKT
03.162 M10 FLANGE
0-91180-110-0
02
1
0810-
385
03.704 BRACKET; SILENCER MTG
03.706
8-97076-020-0
02
1
0810-
387
03.704 SPACER; BRKT
03.706
8-98044-774-0
01
1
0810-
532
03.704 NUT
03.162 M10 FLANGE
0-91180-110-0
02
1
0810-
574
03.706 SPACER; DPD
8-98044-774-0
01
1
0810-
576
03.706 BRACKET; DPD FRT TO FRAME
8-98074-124-1
01
1
0810-
577
03.706 BRACKET; DPD RR TO FRAME
8-98074-124-1
01
1
0810-
25
2
329
1
36
44
43
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.609 PIPE; EXH
8-98108-160-0
01
1
0810-1404
1
03.609 PIPE; EXH
8-98215-932-0
01
1
1405-
2
03.611 GASKET; PIPE TO MANIF
8-97381-455-0
01
1
0810-
8
03.704 BRACKET; EXH PIPE
03.613
8-98020-555-0
01
1
0810-
25
03.609 PIPE; EXH,BRK VLV TO SILENCER
8-98108-164-1
01
1
0810-
36
03.613 NUT; EXH PIPE
M10 FLANGE
8-97096-192-1
03
1
0810-
43
03.611 CLAMP; EXH PIPE
8-97351-200-1
01
1
0810-
44
03.613 BOLT; BRKT
00.029 M10X30 FLANGE
0-28651-030-0
02
1
0810-
329
03.613 NUT; EXH PIPE TO PIPE
03.162 M10 FLANGE
0-91180-110-0
02
1
0810-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
