Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#76260) — 398 parça

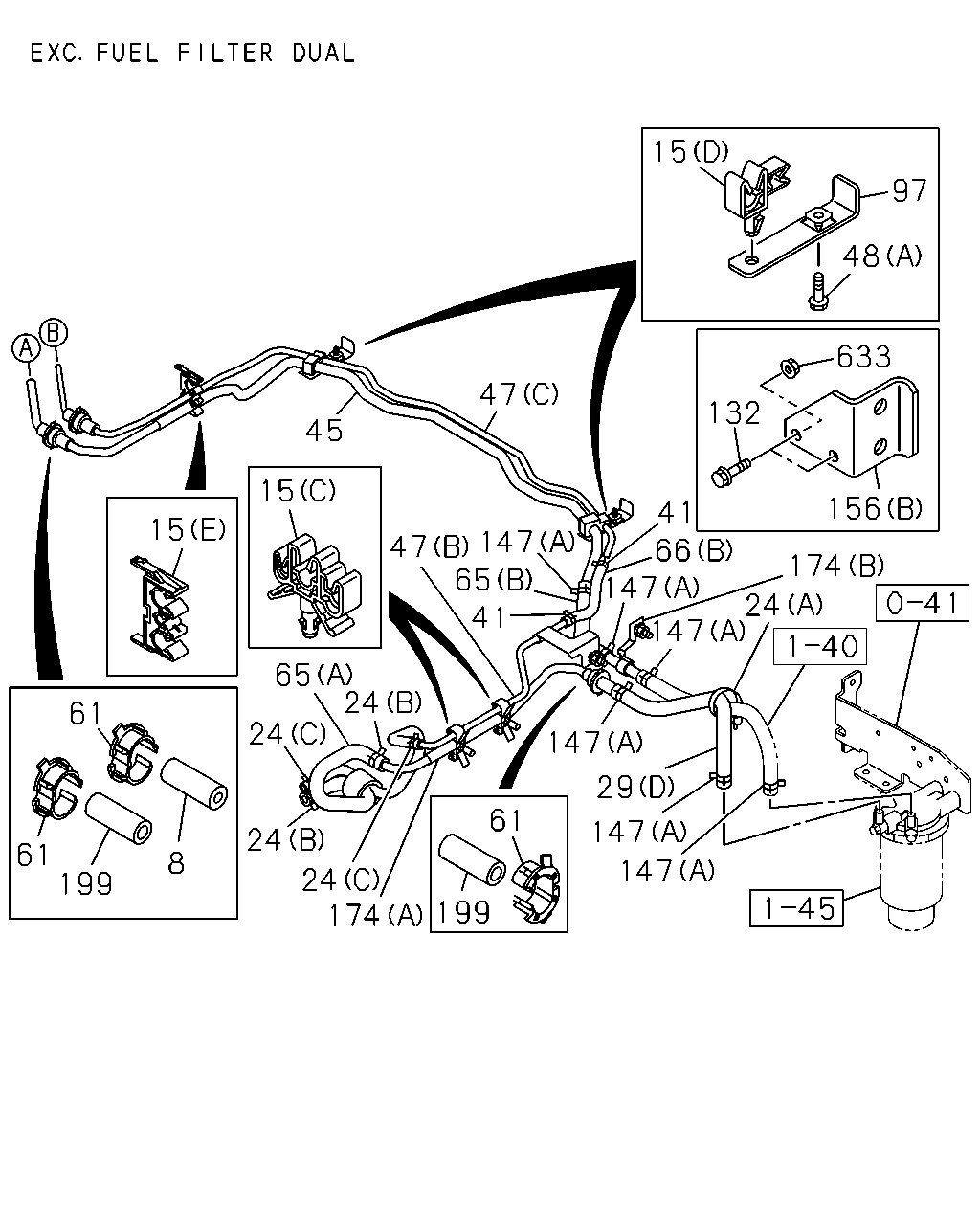

29 147 311 147 24 24 64 15 64 15 156 24 48 147 24 62 66 62 147 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	03.162 CLIP; FUEL PIPE EGYPT EQUIPMENT(B09) 02.559 (A) ID=28 L=60	1-09700-585-1	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE 04.686 (C) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0810-
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE EXC. EGYPT EQUIPMENT(B09) 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE EXC. EGYPT EQUIPMENT(B09) 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE EXC. EGYPT EQUIPMENT(B09) 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0811-1010
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0811-1010
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0811-1010
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1011-
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1011-
15	03.162 CLIP; FUEL PIPE EXC. EGYPT EQUIPMENT(B09) (D) ID=12 & 6.35	8-97215-437-0	02	1	0810-0810
15	03.162 CLIP; FUEL PIPE (D) ID=12 & 6.35	8-97215-437-0	02	1	0811-
15	03.162 CLIP; FUEL PIPE EXC. EGYPT EQUIPMENT(B09) 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0811-
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	0810-
24	03.162 CLIP; FUEL HOSE 02.559 (D) L=170.3	1-09987-182-0	01	1	0810-
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	03	1	0810-0810
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0810-
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	04	1	0810-0911
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	04	1	0912-
24	03.162 CLIP; FUEL HOSE 01.219 (C) ID=12	8-94238-610-0	02	1	0810-0911
24	03.162 CLIP; FUEL HOSE 01.240 (C) ID=12	8-98150-358-0	02	1	0912-
29	03.163 HOSE; FUEL FUEL FILTER DUAL(S6B) (C)	8-98130-342-0	01	1	0810-
29	03.163 HOSE; FUEL EGYPT EQUIPMENT(B09) (A)	8-98107-075-0	01	1	0810-0810
29	03.163 HOSE; FUEL EXC. EGYPT EQUIPMENT(B09) (B)	8-98067-563-4	01	1	0810-0810
29	03.163 HOSE; FUEL (B)	8-98067-563-4	01	1	0811-
29	03.163 HOSE; FUEL EXC. FUEL FILTER DUAL(S6B) 03.003 (D) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	0810-
48	03.162 BOLT; BRKT EXC. EGYPT EQUIPMENT(B09) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0810-0810
48	03.162 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0811-
48	03.162 BOLT; BRKT EXC. EGYPT EQUIPMENT(B09) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0810-0810
48	03.162 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0811-
62	03.162 BOLT; CLIP FIX EXC. EGYPT EQUIPMENT(B09) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0810-0810
62	03.162 BOLT; CLIP FIX 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0811-1010
62	03.162 BOLT; CLIP FIX 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0810-
64	03.162 NUT; CLIP EXC. EGYPT EQUIPMENT(B09) 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-0810
64	03.162 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0811-1010
64	03.162 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	0810-
66	03.163 HOSE; FUEL,RETURN PIPE EGYPT EQUIPMENT(B09) (A)	8-98094-133-0	01	1	0810-0810
66	03.163 HOSE; FUEL,RETURN PIPE EXC. EGYPT EQUIPMENT(B09) (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0810-0810
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0811-
66	03.163 HOSE; FUEL,RETURN PIPE EXC. EGYPT EQUIPMENT(B09) (A)	8-98067-566-2	01	1	0810-0810
66	03.163 HOSE; FUEL,RETURN PIPE (A)	8-98067-566-2	01	1	0811-
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. EGYPT EQUIPMENT(B09) 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. EGYPT EQUIPMENT(B09) 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. EGYPT EQUIPMENT(B09) 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0811-0911
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0811-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0811-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0811-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0811-0911
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	01	1	0810-0911
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=13	8-98150-357-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (C) ID=12	8-94238-610-0	01	1	0810-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (C) ID=12	8-98150-358-0	01	1	0912-
156	03.162 BRACKET; FUEL HOSE (B)	8-98164-028-1	01	1	1002-1007
156	03.162 BRACKET; FUEL HOSE EXC. EGYPT EQUIPMENT(B09) (A)	8-98041-250-2	01	1	0810-0810
156	03.162 BRACKET; FUEL HOSE (A)	8-98041-250-2	01	1	0811-
311	03.163 JOINT; HOSE EXC. EGYPT EQUIPMENT(B09)	8-97353-668-0	01	1	0810-0810
311	03.163 JOINT; HOSE	8-97353-668-0	01	1	0811-

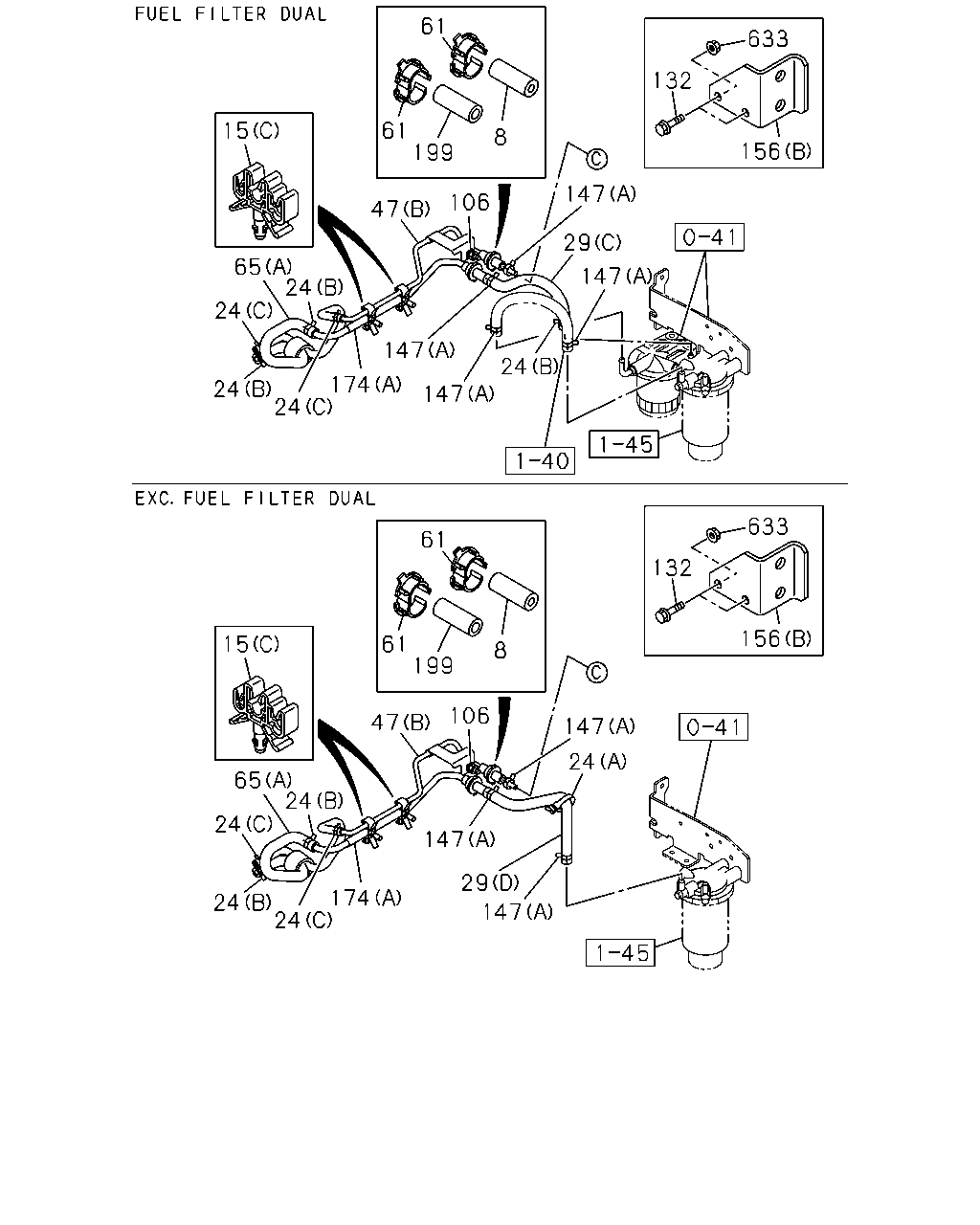

147 66 24 124 47 124 62 64 24 147 24 15 15 29 147 64 62 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	03.162 CLIP; FUEL PIPE EGYPT EQUIPMENT(B09) 02.559 (A) ID=28 L=60	1-09700-585-1	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE 04.686 (C) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0810-
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE EXC. EGYPT EQUIPMENT(B09) 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE EXC. EGYPT EQUIPMENT(B09) 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE EXC. EGYPT EQUIPMENT(B09) 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0811-1010
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0811-1010
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0811-1010
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1011-
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1011-
15	03.162 CLIP; FUEL PIPE EXC. EGYPT EQUIPMENT(B09) (D) ID=12 & 6.35	8-97215-437-0	02	1	0810-0810
15	03.162 CLIP; FUEL PIPE (D) ID=12 & 6.35	8-97215-437-0	02	1	0811-
15	03.162 CLIP; FUEL PIPE EXC. EGYPT EQUIPMENT(B09) 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0811-
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	0810-
24	03.162 CLIP; FUEL HOSE 02.559 (D) L=170.3	1-09987-182-0	01	1	0810-
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	03	1	0810-0810
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0810-
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	04	1	0810-0911
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	04	1	0912-
24	03.162 CLIP; FUEL HOSE 01.219 (C) ID=12	8-94238-610-0	02	1	0810-0911
24	03.162 CLIP; FUEL HOSE 01.240 (C) ID=12	8-98150-358-0	02	1	0912-
29	03.163 HOSE; FUEL FUEL FILTER DUAL(S6B) (C)	8-98130-342-0	01	1	0810-
29	03.163 HOSE; FUEL EGYPT EQUIPMENT(B09) (A)	8-98107-075-0	01	1	0810-0810
29	03.163 HOSE; FUEL EXC. EGYPT EQUIPMENT(B09) (B)	8-98067-563-4	01	1	0810-0810
29	03.163 HOSE; FUEL (B)	8-98067-563-4	01	1	0811-
29	03.163 HOSE; FUEL EXC. FUEL FILTER DUAL(S6B) 03.003 (D) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	0810-
47	03.163 PIPE; FUEL,RETURN EGYPT EQUIPMENT(B09) (B)	8-98094-092-0	01	1	0810-0810
47	03.163 PIPE; FUEL,RETURN (A) L=70	8-98036-483-0	01	1	0810-
47	03.163 PIPE; FUEL,RETURN EXC. EGYPT EQUIPMENT(B09) (B)	8-98041-618-1	01	1	0810-0810
47	03.163 PIPE; FUEL,RETURN (B)	8-98041-618-1	01	1	0811-
47	03.163 PIPE; FUEL,RETURN EXC. EGYPT EQUIPMENT(B09) (C)	8-98113-911-1	01	1	0810-0810
47	03.163 PIPE; FUEL,RETURN (C)	8-98113-911-1	01	1	0811-1010
47	03.163 PIPE; FUEL,RETURN (C)	8-98136-892-0	01	1	1011-
62	03.162 BOLT; CLIP FIX EXC. EGYPT EQUIPMENT(B09) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0810-0810
62	03.162 BOLT; CLIP FIX 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0811-1010
62	03.162 BOLT; CLIP FIX 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0810-
64	03.162 NUT; CLIP EXC. EGYPT EQUIPMENT(B09) 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-0810
64	03.162 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0811-1010
64	03.162 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	0810-
66	03.163 HOSE; FUEL,RETURN PIPE EGYPT EQUIPMENT(B09) (A)	8-98094-133-0	01	1	0810-0810
66	03.163 HOSE; FUEL,RETURN PIPE EXC. EGYPT EQUIPMENT(B09) (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0810-0810
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0811-
66	03.163 HOSE; FUEL,RETURN PIPE EXC. EGYPT EQUIPMENT(B09) (A)	8-98067-566-2	01	1	0810-0810
66	03.163 HOSE; FUEL,RETURN PIPE (A)	8-98067-566-2	01	1	0811-
124	03.162 CLIP; HOSE 01.219 (A) ID=13	8-94238-571-0	01	1	0810-0911
124	03.162 CLIP; HOSE (A) ID=13	8-98150-357-0	01	1	0912-
124	03.162 CLIP; HOSE (B) ID=12	8-97358-961-0	01	1	0810-1002
124	03.162 CLIP; HOSE 01.240 (B) ID=12	8-98150-358-0	01	1	1003-
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. EGYPT EQUIPMENT(B09) 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. EGYPT EQUIPMENT(B09) 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. EGYPT EQUIPMENT(B09) 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0811-0911
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0811-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0811-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0811-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0811-0911
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	01	1	0810-0911
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=13	8-98150-357-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (C) ID=12	8-94238-610-0	01	1	0810-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (C) ID=12	8-98150-358-0	01	1	0912-

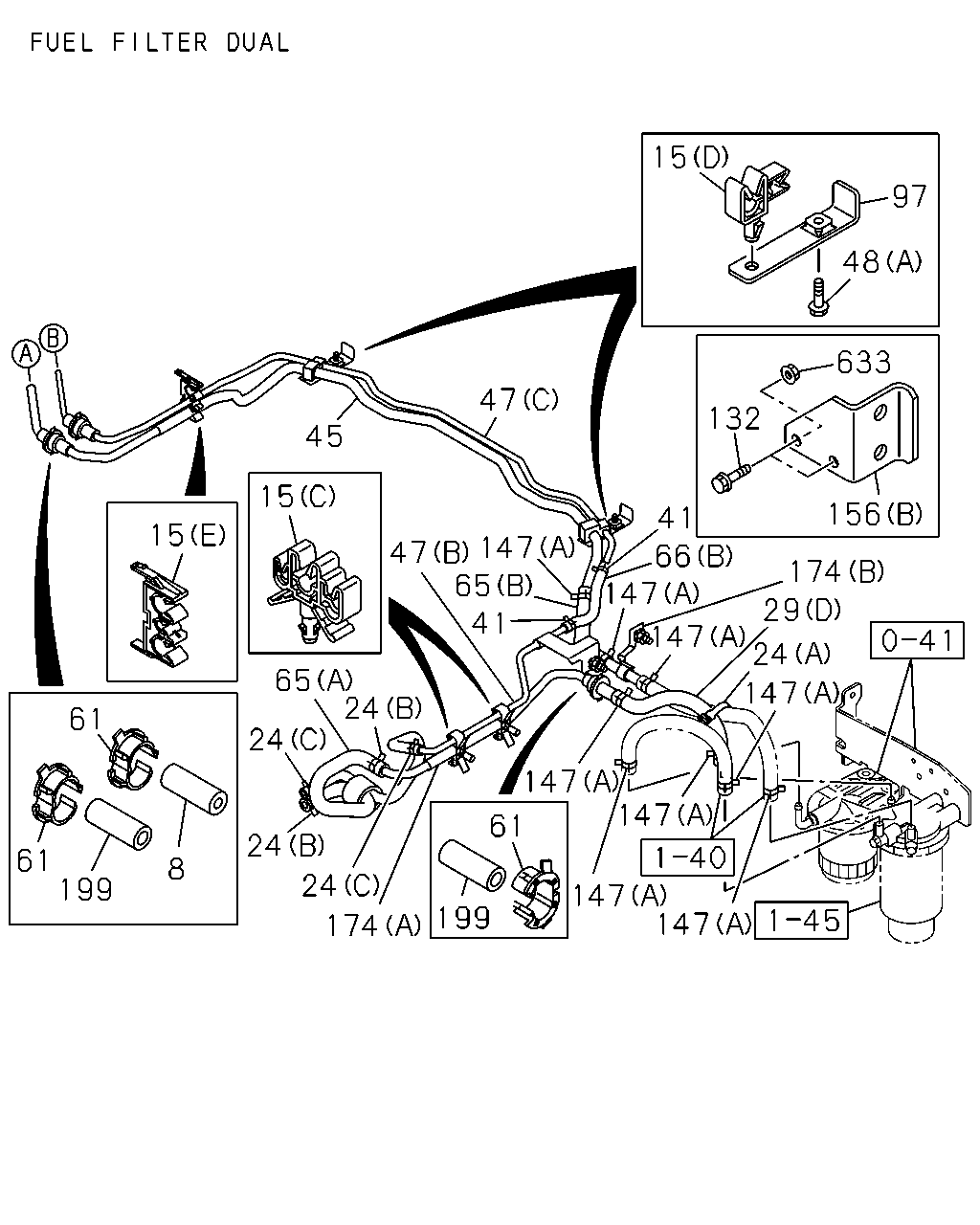

15 97 48 633 47 132 45 15 156 41 15 47 147 65 66 147 174 29 41 147 24 65 24 147 61 24 147 147 61 24 61 8 24 199 147 147 199 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	03.162 RUBBER; MTG OD=17 L=50	8-94157-054-1	01	1	0810-
15	03.162 CLIP; FUEL PIPE EGYPT EQUIPMENT(B09) 02.559 (A) ID=28 L=60	1-09700-585-1	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE 04.686 (C) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0810-
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE EXC. EGYPT EQUIPMENT(B09) 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE EXC. EGYPT EQUIPMENT(B09) 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE EXC. EGYPT EQUIPMENT(B09) 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0811-1010
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0811-1010
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0811-1010
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1011-
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1011-
15	03.162 CLIP; FUEL PIPE EXC. EGYPT EQUIPMENT(B09) (D) ID=12 & 6.35	8-97215-437-0	02	1	0810-0810
15	03.162 CLIP; FUEL PIPE (D) ID=12 & 6.35	8-97215-437-0	02	1	0811-
15	03.162 CLIP; FUEL PIPE EXC. EGYPT EQUIPMENT(B09) 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0811-
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	0810-
24	03.162 CLIP; FUEL HOSE 02.559 (D) L=170.3	1-09987-182-0	01	1	0810-
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	03	1	0810-0810
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0810-
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	04	1	0810-0911
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	04	1	0912-
24	03.162 CLIP; FUEL HOSE 01.219 (C) ID=12	8-94238-610-0	02	1	0810-0911
24	03.162 CLIP; FUEL HOSE 01.240 (C) ID=12	8-98150-358-0	02	1	0912-
29	03.163 HOSE; FUEL FUEL FILTER DUAL(S6B) (C)	8-98130-342-0	01	1	0810-
29	03.163 HOSE; FUEL EGYPT EQUIPMENT(B09) (A)	8-98107-075-0	01	1	0810-0810
29	03.163 HOSE; FUEL EXC. EGYPT EQUIPMENT(B09) (B)	8-98067-563-4	01	1	0810-0810
29	03.163 HOSE; FUEL (B)	8-98067-563-4	01	1	0811-
29	03.163 HOSE; FUEL EXC. FUEL FILTER DUAL(S6B) 03.003 (D) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	0810-
41	03.162 CLIP; FUEL PIPE,FUEL TANK EXC. EGYPT EQUIPMENT(B09) 01.219 ID=12	8-94238-610-0	02	1	0810-0810
41	03.162 CLIP; FUEL PIPE,FUEL TANK 01.219 ID=12	8-94238-610-0	02	1	0811-0911
41	03.162 CLIP; FUEL PIPE,FUEL TANK 01.240 ID=12	8-98150-358-0	02	1	0912-
45	03.163 PIPE; FUEL,DELIVERY EXC. EGYPT EQUIPMENT(B09)	8-98113-910-0	01	1	0810-0810
45	03.163 PIPE; FUEL,DELIVERY	8-98113-910-0	01	1	0811-1010
45	03.163 PIPE; FUEL,DELIVERY	8-98136-891-0	01	1	1011-
47	03.163 PIPE; FUEL,RETURN EGYPT EQUIPMENT(B09) (B)	8-98094-092-0	01	1	0810-0810
47	03.163 PIPE; FUEL,RETURN (A) L=70	8-98036-483-0	01	1	0810-
47	03.163 PIPE; FUEL,RETURN EXC. EGYPT EQUIPMENT(B09) (B)	8-98041-618-1	01	1	0810-0810
47	03.163 PIPE; FUEL,RETURN (B)	8-98041-618-1	01	1	0811-
47	03.163 PIPE; FUEL,RETURN EXC. EGYPT EQUIPMENT(B09) (C)	8-98113-911-1	01	1	0810-0810
47	03.163 PIPE; FUEL,RETURN (C)	8-98113-911-1	01	1	0811-1010
47	03.163 PIPE; FUEL,RETURN (C)	8-98136-892-0	01	1	1011-
48	03.162 BOLT; BRKT EXC. EGYPT EQUIPMENT(B09) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0810-0810
48	03.162 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0811-
48	03.162 BOLT; BRKT EXC. EGYPT EQUIPMENT(B09) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0810-0810
48	03.162 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0811-
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	0810-
61	03.162 GROMMET; PIPE TO FRAME EXC. EGYPT EQUIPMENT(B09) 02.343 ID=17	8-94128-319-2	01	1	0810-0810
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	01	1	0811-
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-98122-642-0	01	1	0810-
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. EGYPT EQUIPMENT(B09) 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0810-0810
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0811-
66	03.163 HOSE; FUEL,RETURN PIPE EGYPT EQUIPMENT(B09) (A)	8-98094-133-0	01	1	0810-0810
66	03.163 HOSE; FUEL,RETURN PIPE EXC. EGYPT EQUIPMENT(B09) (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0810-0810
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0811-
66	03.163 HOSE; FUEL,RETURN PIPE EXC. EGYPT EQUIPMENT(B09) (A)	8-98067-566-2	01	1	0810-0810
66	03.163 HOSE; FUEL,RETURN PIPE (A)	8-98067-566-2	01	1	0811-
97	03.162 BRACKET; CLIP EXC. EGYPT EQUIPMENT(B09)	8-98057-653-0	02	1	0810-0810
97	03.162 BRACKET; CLIP	8-98057-653-0	02	1	0811-
132	03.162 BOLT; FUEL HOSE 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1002-1002
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. EGYPT EQUIPMENT(B09) 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. EGYPT EQUIPMENT(B09) 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. EGYPT EQUIPMENT(B09) 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0811-0911
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0811-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0811-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0811-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0811-0911
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	01	1	0810-0911
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=13	8-98150-357-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (C) ID=12	8-94238-610-0	01	1	0810-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (C) ID=12	8-98150-358-0	01	1	0912-
156	03.162 BRACKET; FUEL HOSE (B)	8-98164-028-1	01	1	1002-1007
156	03.162 BRACKET; FUEL HOSE EXC. EGYPT EQUIPMENT(B09) (A)	8-98041-250-2	01	1	0810-0810
156	03.162 BRACKET; FUEL HOSE (A)	8-98041-250-2	01	1	0811-
174	03.163 PIPE; FUEL,FEED,FRT (A)	8-98033-844-1	01	1	0810-
174	03.163 PIPE; FUEL,FEED,FRT EXC. EGYPT EQUIPMENT(B09) (B)	8-98041-616-0	01	1	0810-0810
174	03.163 PIPE; FUEL,FEED,FRT (B)	8-98041-616-0	01	1	0811-
199	03.162 PROTECTOR; FUEL PIPE OD=15 L=50	8-97077-629-0	01	1	0810-0810
199	03.162 PROTECTOR; FUEL PIPE EXC. EGYPT EQUIPMENT(B09) OD=15 L=50	8-97077-629-0	01	1	0810-0810
199	03.162 PROTECTOR; FUEL PIPE OD=15 L=50	8-97077-629-0	01	1	0811-
199	03.162 PROTECTOR; FUEL PIPE OD=15 L=50	8-97077-629-0	01	1	0811-
633	03.162 NUT; FUEL HOSE 01.062 M8 FLANGE	0-91180-108-0	02	1	1002-1007

15 97 48 633 47 132 45 15 156 41 15 47 147 65 41 66 147 174 24 147 65 24 61 24 147 29 61 147 24 61 8 147 24 174 199 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	03.162 RUBBER; MTG OD=17 L=50	8-94157-054-1	01	1	0810-
15	03.162 CLIP; FUEL PIPE EGYPT EQUIPMENT(B09) 02.559 (A) ID=28 L=60	1-09700-585-1	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE 04.686 (C) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0810-
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE EXC. EGYPT EQUIPMENT(B09) 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE EXC. EGYPT EQUIPMENT(B09) 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE EXC. EGYPT EQUIPMENT(B09) 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0811-1010
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0811-1010
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0811-1010
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1011-
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1011-
15	03.162 CLIP; FUEL PIPE EXC. EGYPT EQUIPMENT(B09) (D) ID=12 & 6.35	8-97215-437-0	02	1	0810-0810
15	03.162 CLIP; FUEL PIPE (D) ID=12 & 6.35	8-97215-437-0	02	1	0811-
15	03.162 CLIP; FUEL PIPE EXC. EGYPT EQUIPMENT(B09) 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0811-
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	0810-
24	03.162 CLIP; FUEL HOSE 02.559 (D) L=170.3	1-09987-182-0	01	1	0810-
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	03	1	0810-0810
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0810-
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	04	1	0810-0911
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	04	1	0912-
24	03.162 CLIP; FUEL HOSE 01.219 (C) ID=12	8-94238-610-0	02	1	0810-0911
24	03.162 CLIP; FUEL HOSE 01.240 (C) ID=12	8-98150-358-0	02	1	0912-
29	03.163 HOSE; FUEL FUEL FILTER DUAL(S6B) (C)	8-98130-342-0	01	1	0810-
29	03.163 HOSE; FUEL EGYPT EQUIPMENT(B09) (A)	8-98107-075-0	01	1	0810-0810
29	03.163 HOSE; FUEL EXC. EGYPT EQUIPMENT(B09) (B)	8-98067-563-4	01	1	0810-0810
29	03.163 HOSE; FUEL (B)	8-98067-563-4	01	1	0811-
29	03.163 HOSE; FUEL EXC. FUEL FILTER DUAL(S6B) 03.003 (D) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	0810-
41	03.162 CLIP; FUEL PIPE,FUEL TANK EXC. EGYPT EQUIPMENT(B09) 01.219 ID=12	8-94238-610-0	02	1	0810-0810
41	03.162 CLIP; FUEL PIPE,FUEL TANK 01.219 ID=12	8-94238-610-0	02	1	0811-0911
41	03.162 CLIP; FUEL PIPE,FUEL TANK 01.240 ID=12	8-98150-358-0	02	1	0912-
45	03.163 PIPE; FUEL,DELIVERY EXC. EGYPT EQUIPMENT(B09)	8-98113-910-0	01	1	0810-0810
45	03.163 PIPE; FUEL,DELIVERY	8-98113-910-0	01	1	0811-1010
45	03.163 PIPE; FUEL,DELIVERY	8-98136-891-0	01	1	1011-
47	03.163 PIPE; FUEL,RETURN EGYPT EQUIPMENT(B09) (B)	8-98094-092-0	01	1	0810-0810
47	03.163 PIPE; FUEL,RETURN (A) L=70	8-98036-483-0	01	1	0810-
47	03.163 PIPE; FUEL,RETURN EXC. EGYPT EQUIPMENT(B09) (B)	8-98041-618-1	01	1	0810-0810
47	03.163 PIPE; FUEL,RETURN (B)	8-98041-618-1	01	1	0811-
47	03.163 PIPE; FUEL,RETURN EXC. EGYPT EQUIPMENT(B09) (C)	8-98113-911-1	01	1	0810-0810
47	03.163 PIPE; FUEL,RETURN (C)	8-98113-911-1	01	1	0811-1010
47	03.163 PIPE; FUEL,RETURN (C)	8-98136-892-0	01	1	1011-
48	03.162 BOLT; BRKT EXC. EGYPT EQUIPMENT(B09) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0810-0810
48	03.162 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0811-
48	03.162 BOLT; BRKT EXC. EGYPT EQUIPMENT(B09) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0810-0810
48	03.162 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0811-
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	0810-
61	03.162 GROMMET; PIPE TO FRAME EXC. EGYPT EQUIPMENT(B09) 02.343 ID=17	8-94128-319-2	01	1	0810-0810
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	01	1	0811-
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-98122-642-0	01	1	0810-
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. EGYPT EQUIPMENT(B09) 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0810-0810
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0811-
66	03.163 HOSE; FUEL,RETURN PIPE EGYPT EQUIPMENT(B09) (A)	8-98094-133-0	01	1	0810-0810
66	03.163 HOSE; FUEL,RETURN PIPE EXC. EGYPT EQUIPMENT(B09) (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0810-0810
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0811-
66	03.163 HOSE; FUEL,RETURN PIPE EXC. EGYPT EQUIPMENT(B09) (A)	8-98067-566-2	01	1	0810-0810
66	03.163 HOSE; FUEL,RETURN PIPE (A)	8-98067-566-2	01	1	0811-
97	03.162 BRACKET; CLIP EXC. EGYPT EQUIPMENT(B09)	8-98057-653-0	02	1	0810-0810
97	03.162 BRACKET; CLIP	8-98057-653-0	02	1	0811-
132	03.162 BOLT; FUEL HOSE 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1002-1002
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. EGYPT EQUIPMENT(B09) 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. EGYPT EQUIPMENT(B09) 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. EGYPT EQUIPMENT(B09) 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0811-0911
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0811-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0811-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0811-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0811-0911
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	01	1	0810-0911
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=13	8-98150-357-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (C) ID=12	8-94238-610-0	01	1	0810-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (C) ID=12	8-98150-358-0	01	1	0912-
156	03.162 BRACKET; FUEL HOSE (B)	8-98164-028-1	01	1	1002-1007
156	03.162 BRACKET; FUEL HOSE EXC. EGYPT EQUIPMENT(B09) (A)	8-98041-250-2	01	1	0810-0810
156	03.162 BRACKET; FUEL HOSE (A)	8-98041-250-2	01	1	0811-
174	03.163 PIPE; FUEL,FEED,FRT (A)	8-98033-844-1	01	1	0810-
174	03.163 PIPE; FUEL,FEED,FRT EXC. EGYPT EQUIPMENT(B09) (B)	8-98041-616-0	01	1	0810-0810
174	03.163 PIPE; FUEL,FEED,FRT (B)	8-98041-616-0	01	1	0811-
199	03.162 PROTECTOR; FUEL PIPE OD=15 L=50	8-97077-629-0	01	1	0810-0810
199	03.162 PROTECTOR; FUEL PIPE EXC. EGYPT EQUIPMENT(B09) OD=15 L=50	8-97077-629-0	01	1	0810-0810
199	03.162 PROTECTOR; FUEL PIPE OD=15 L=50	8-97077-629-0	01	1	0811-
199	03.162 PROTECTOR; FUEL PIPE OD=15 L=50	8-97077-629-0	01	1	0811-
633	03.162 NUT; FUEL HOSE 01.062 M8 FLANGE	0-91180-108-0	02	1	1002-1007

61 633 132 15 61 8 156 199 147 106 47 29 65 24 147 24 147 24 174 24 24 147 633 61 132 156 15 61 8 199 106 47 147 24 65 24 24 147 29 174 24 24 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	03.162 RUBBER; MTG OD=17 L=50	8-94157-054-1	01	1	0810-
15	03.162 CLIP; FUEL PIPE EGYPT EQUIPMENT(B09) 02.559 (A) ID=28 L=60	1-09700-585-1	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE 04.686 (C) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0810-
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE EXC. EGYPT EQUIPMENT(B09) 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE EXC. EGYPT EQUIPMENT(B09) 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE EXC. EGYPT EQUIPMENT(B09) 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0811-1010
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0811-1010
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0811-1010
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1011-
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1011-
15	03.162 CLIP; FUEL PIPE EXC. EGYPT EQUIPMENT(B09) (D) ID=12 & 6.35	8-97215-437-0	02	1	0810-0810
15	03.162 CLIP; FUEL PIPE (D) ID=12 & 6.35	8-97215-437-0	02	1	0811-
15	03.162 CLIP; FUEL PIPE EXC. EGYPT EQUIPMENT(B09) 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0810-0810
15	03.162 CLIP; FUEL PIPE 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0811-
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	0810-
24	03.162 CLIP; FUEL HOSE 02.559 (D) L=170.3	1-09987-182-0	01	1	0810-
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	03	1	0810-0810
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0810-
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	04	1	0810-0911
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	04	1	0912-
24	03.162 CLIP; FUEL HOSE 01.219 (C) ID=12	8-94238-610-0	02	1	0810-0911
24	03.162 CLIP; FUEL HOSE 01.240 (C) ID=12	8-98150-358-0	02	1	0912-
29	03.163 HOSE; FUEL FUEL FILTER DUAL(S6B) (C)	8-98130-342-0	01	1	0810-
29	03.163 HOSE; FUEL EGYPT EQUIPMENT(B09) (A)	8-98107-075-0	01	1	0810-0810
29	03.163 HOSE; FUEL EXC. EGYPT EQUIPMENT(B09) (B)	8-98067-563-4	01	1	0810-0810
29	03.163 HOSE; FUEL (B)	8-98067-563-4	01	1	0811-
29	03.163 HOSE; FUEL EXC. FUEL FILTER DUAL(S6B) 03.003 (D) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	0810-
47	03.163 PIPE; FUEL,RETURN EGYPT EQUIPMENT(B09) (B)	8-98094-092-0	01	1	0810-0810
47	03.163 PIPE; FUEL,RETURN (A) L=70	8-98036-483-0	01	1	0810-
47	03.163 PIPE; FUEL,RETURN EXC. EGYPT EQUIPMENT(B09) (B)	8-98041-618-1	01	1	0810-0810
47	03.163 PIPE; FUEL,RETURN (B)	8-98041-618-1	01	1	0811-
47	03.163 PIPE; FUEL,RETURN EXC. EGYPT EQUIPMENT(B09) (C)	8-98113-911-1	01	1	0810-0810
47	03.163 PIPE; FUEL,RETURN (C)	8-98113-911-1	01	1	0811-1010
47	03.163 PIPE; FUEL,RETURN (C)	8-98136-892-0	01	1	1011-
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	0810-
61	03.162 GROMMET; PIPE TO FRAME EXC. EGYPT EQUIPMENT(B09) 02.343 ID=17	8-94128-319-2	01	1	0810-0810
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	01	1	0811-
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-98122-642-0	01	1	0810-
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. EGYPT EQUIPMENT(B09) 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0810-0810
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0811-
106	03.162 NUT; FUEL PIPE M10 FLANGE	0-91180-110-0	01	1	0810-0810
106	03.162 NUT; FUEL PIPE EXC. EGYPT EQUIPMENT(B09) M10 FLANGE	0-91180-110-0	01	1	0810-0810
106	03.162 NUT; FUEL PIPE M10 FLANGE	0-91180-110-0	01	1	0811-
106	03.162 NUT; FUEL PIPE M10 FLANGE	0-91180-110-0	01	1	0811-
132	03.162 BOLT; FUEL HOSE 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1002-1002
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. EGYPT EQUIPMENT(B09) 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. EGYPT EQUIPMENT(B09) 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. EGYPT EQUIPMENT(B09) 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0811-0911
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0811-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0811-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0811-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0811-0911
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	01	1	0810-0911
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=13	8-98150-357-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (C) ID=12	8-94238-610-0	01	1	0810-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (C) ID=12	8-98150-358-0	01	1	0912-
156	03.162 BRACKET; FUEL HOSE (B)	8-98164-028-1	01	1	1002-1007
156	03.162 BRACKET; FUEL HOSE EXC. EGYPT EQUIPMENT(B09) (A)	8-98041-250-2	01	1	0810-0810
156	03.162 BRACKET; FUEL HOSE (A)	8-98041-250-2	01	1	0811-
174	03.163 PIPE; FUEL,FEED,FRT (A)	8-98033-844-1	01	1	0810-
174	03.163 PIPE; FUEL,FEED,FRT EXC. EGYPT EQUIPMENT(B09) (B)	8-98041-616-0	01	1	0810-0810
174	03.163 PIPE; FUEL,FEED,FRT (B)	8-98041-616-0	01	1	0811-
199	03.162 PROTECTOR; FUEL PIPE OD=15 L=50	8-97077-629-0	01	1	0810-0810
199	03.162 PROTECTOR; FUEL PIPE EXC. EGYPT EQUIPMENT(B09) OD=15 L=50	8-97077-629-0	01	1	0810-0810
199	03.162 PROTECTOR; FUEL PIPE OD=15 L=50	8-97077-629-0	01	1	0811-
199	03.162 PROTECTOR; FUEL PIPE OD=15 L=50	8-97077-629-0	01	1	0811-
633	03.162 NUT; FUEL HOSE 01.062 M8 FLANGE	0-91180-108-0	02	1	1002-1007

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
