0-60 — ENGINE ELECTRICAL CONTROL PARTS (#7626) — 274 parça

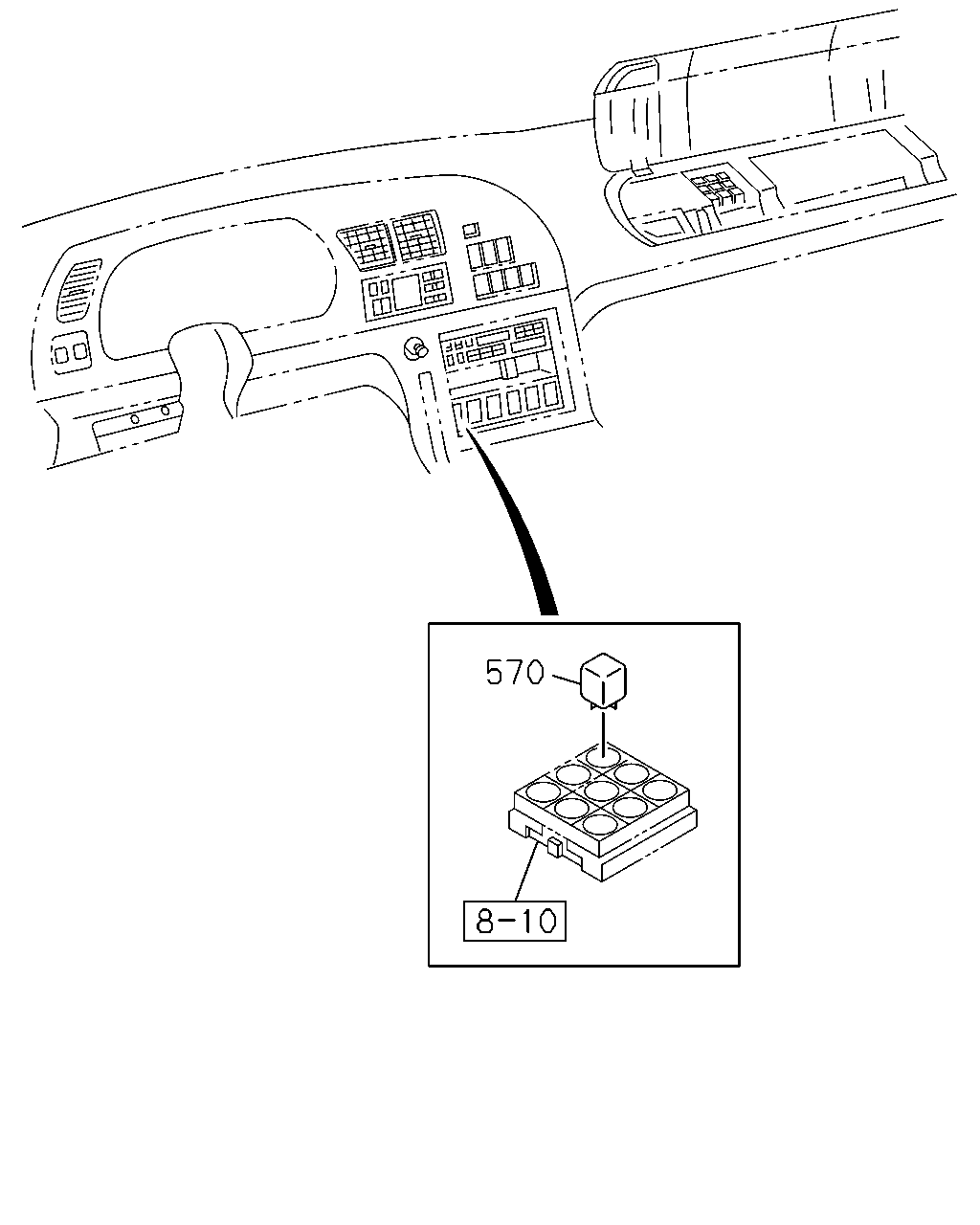

çizim 6741
570
BalonParca AdiParca NoAdetTipApplied Date A B C D
570 RELAY; EXH SHUTTER
24V 12.5A JIDECO 		8-97062-815-1 01 1 9902-9904 ●
570 RELAY; EXH SHUTTER
ANTILOCK BRAKE SYSTEM(BFA) 24V 12.5A JIDECO 		8-97062-815-1 01 1 9905-9909 ● ● ●
570 RELAY; EXH SHUTTER
24V 12.5A JIDECO 		8-97062-815-1 01 1 9905-9909 ● ●
570 RELAY; EXH SHUTTER
ANTILOCK BRAKE SYSTEM(BFA) 24V 12.5A JIDECO 		8-97062-815-1 01 1 9910-0003 ● ● ●
570 RELAY; EXH SHUTTER
24V 12.5A JIDECO 		8-97062-815-1 01 1 9910-0003 ● ● ●
570 RELAY; EXH SHUTTER
24V 12.5A JIDECO 		8-97062-815-1 01 1 0004- ● ● ● ●
570 RELAY; EXH SHUTTER
ANTILOCK BRAKE SYSTEM(BFA) 24V 12.5A JIDECO 		8-97062-815-1 01 1 0004- ● ● ●
çizim 8080
490 489 488 418 428
BalonParca AdiParca NoAdetTipApplied Date A B C D
418 BOLT; CLIP
M10X16 FLANGE 		0-28181-016-0 01 1 9902-9904 ●
418 BOLT; CLIP
M10X16 FLANGE 		0-28181-016-0 01 1 9905-9909 ● ●
418 BOLT; CLIP
M10X16 FLANGE 		0-28181-016-0 01 1 9910-0003 ● ● ●
418 BOLT; CLIP
M10X16 FLANGE 		0-28181-016-0 01 1 0004- ● ● ● ●
428 CLIP; HARNESS
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 9902-9904 ●
428 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) ID=20 H=23 L=27 		1-09700-861-0 01 1 9905-9909 ● ●
428 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) ID=20 H=23 L=27 		1-09700-861-0 01 1 9910-0003 ● ● ●
428 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) ID=20 H=23 L=27 		1-09700-861-0 01 1 0004- ● ● ●
428 CLIP; HARNESS
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 0004- ●
428 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9902-9904 ●
428 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9905-9909 ● ●
428 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9910-0003 ● ● ●
428 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 0004- ● ● ● ●
428 CLIP; HARNESS
(C) L=140 		5-09707-031-1 05 1 9902-9904 ●
428 CLIP; HARNESS
(C) L=140 		5-09707-031-1 05 1 9905-9909 ● ●
428 CLIP; HARNESS
(C) L=140 		5-09707-031-1 05 1 9910-0003 ● ● ●
428 CLIP; HARNESS
(C) L=140 		5-09707-031-1 05 1 0004- ● ● ● ●
428 CLIP; HARNESS
(D) L=36 		8-94224-891-1 01 1 9902-9904 ●
428 CLIP; HARNESS
(D) L=36 		8-94224-891-1 01 1 9905-9909 ● ●
428 CLIP; HARNESS
(D) L=36 		8-94224-891-1 01 1 9910-0003 ● ● ●
428 CLIP; HARNESS
(D) L=36 		8-94224-891-1 01 1 0004- ● ● ● ●
428 CLIP; HARNESS
(F) ID=20 L=50 		9-09917-430-0 02 1 9902-9903 ●
428 CLIP; HARNESS
(E) ID=11 L=28 		9-09917-544-0 01 1 9902-9904 ●
428 CLIP; HARNESS
(E) ID=11 L=28 		9-09917-544-0 01 1 9905-9909 ● ●
428 CLIP; HARNESS
(E) ID=11 L=28 		9-09917-544-0 01 1 9910-0003 ● ● ●
428 CLIP; HARNESS
(E) ID=11 L=28 		9-09917-544-0 01 1 0004- ● ● ● ●
428 CLIP; HARNESS
(B) ID=20 L=50 		9-09917-430-0 01 1 9908-9909 ● ●
428 CLIP; HARNESS
(B) ID=20 L=50 		9-09917-430-0 01 1 9910- ● ● ●
428 CLIP; HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9902-9904 ● ● ●
428 CLIP; HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9905-9909 ● ● ●
428 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9905-9909 ● ●
428 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9910-0003 ● ● ●
428 CLIP; HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9910-0003 ● ● ●
428 CLIP; HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0004- ● ● ● ●
428 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0004- ● ● ●
428 CLIP; HARNESS
(B) ID=26 L=26 		1-09701-236-0 01 1 9902-0003 ● ● ●
428 CLIP; HARNESS
(B) ID=26 L=26 		1-09701-236-0 01 1 0004- ● ● ● ●
428 CLIP; HARNESS
(B) ID=32 L=35 		1-09701-244-0 01 1 9902-0003 ● ● ●
428 CLIP; HARNESS
(B) ID=32 L=35 		1-09701-244-0 01 1 0004- ● ● ● ●
488 STOPPER; ENG
EXC. ELECTRONIC GOV RED3(KG5) 		1-82840-161-0 01 1 9902- ●
489 BOLT; ENG STOPPER
EXC. ELECTRONIC GOV RED3(KG5) M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9902- ● ● ●
490 NUT; ENG STOP
EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE 		0-91150-108-0 02 1 9902- ● ● ●

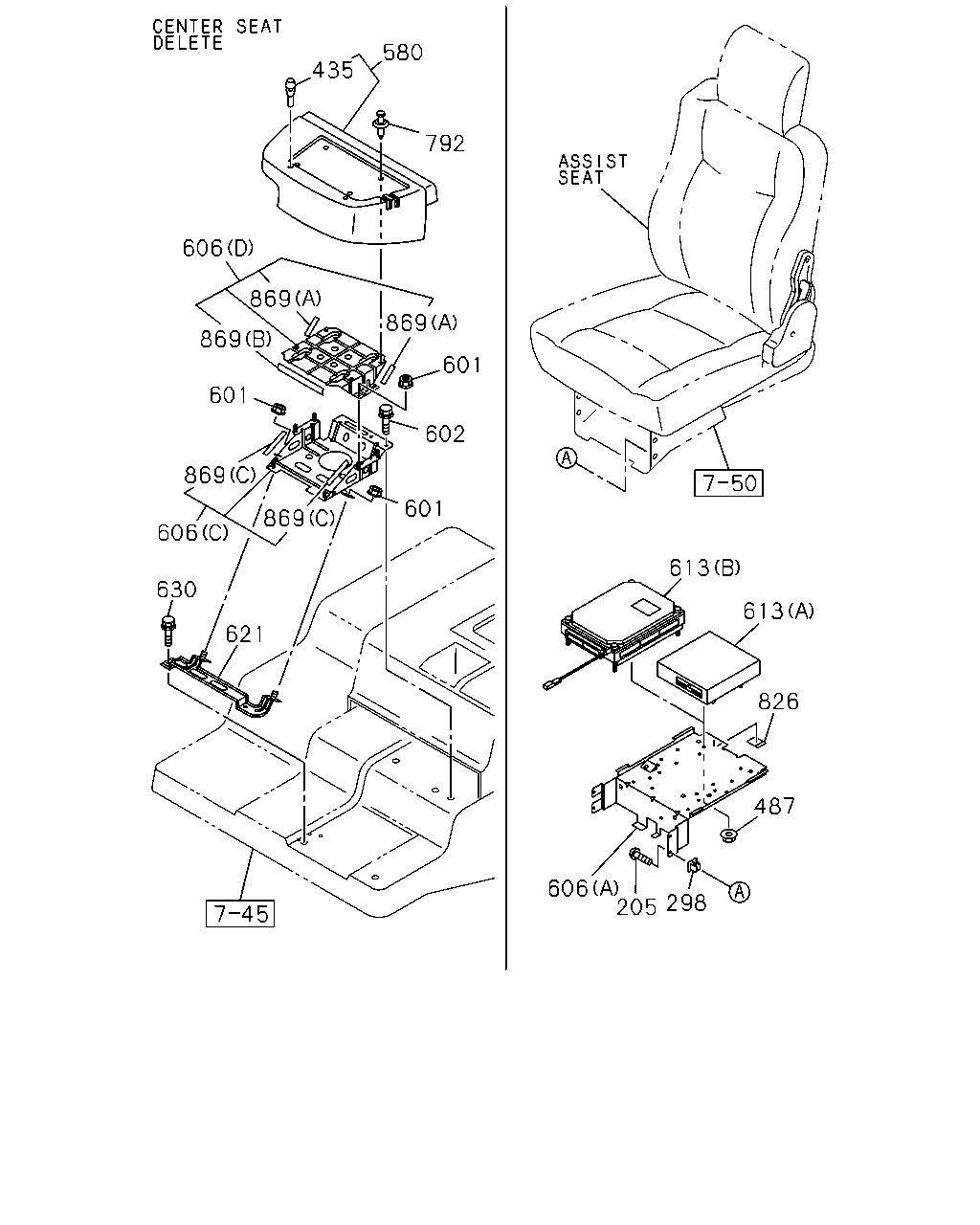

çizim 43612
580 435 792 606 869 869 869 601 601 602 869 869 601 606 613 630 613 621 826 487 606 298 205
BalonParca AdiParca NoAdetTipApplied Date A B C D
205 SCREW; BRKT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 9902-9904 ●
205 SCREW; BRKT
ELECTRONIC GOV RED3(KG5) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 9902-9904 ● ●
205 SCREW; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 9905-0003 ● ● ●
205 SCREW; BRKT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 9905-0003 ●
205 SCREW; BRKT
ELECTRONIC GOV RED3(KG5) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 9905-0003 ● ●
205 SCREW; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0004- ● ● ●
205 SCREW; BRKT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0004- ● ●
205 SCREW; BRKT
ELECTRONIC GOV RED3(KG5) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0004- ● ●
298 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 9902-9904 ●
298 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 9905-0003 ● ●
298 GROMMET; SCREW
ANTILOCK BRAKE SYSTEM(BFA) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0004- ● ● ●
298 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0004- ● ●
298 GROMMET; SCREW
ELECTRONIC GOV RED3(KG5) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0004- ● ●
435 RUBBER; CUSHION
CENTER SEAT DELETE(SP9) 		1-72537-138-0 02 1 0004- ●
487 NUT
M6 FLANGE 		0-91150-106-0 04 1 9902-0003 ●
487 NUT
ELECTRONIC GOV RED3(KG5) M6 FLANGE 		0-91150-106-0 04 1 9902-0003 ● ●
487 NUT
M6 FLANGE 		0-91150-106-0 04 1 0004- ● ●
487 NUT
ELECTRONIC GOV RED3(KG5) M6 FLANGE 		0-91150-106-0 04 1 0004- ● ●
580 COVER; CONT UNIT
CENTER SEAT DELETE(SP9) 		1-72537-102-3 01 1 0004- ●
601 NUT; UNIT
ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE 		0-91150-106-0 04 1 9905- ● ● ●
601 NUT; UNIT
CENTER SEAT DELETE(SP9) M6 FLANGE 		0-91150-106-0 06 1 0004- ●
602 BOLT; BRKT
CENTER SEAT DELETE(SP9) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0004- ●
606 BRACKET; CONT UNIT
(A) 		1-75558-534-7 01 1 9902-9904 ●
606 BRACKET; CONT UNIT
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-75558-534-7 01 1 9905-0003 ●
606 BRACKET; CONT UNIT
ELECTRONIC GOV RED3(KG5) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-75558-534-7 01 1 9905-0003 ● ●
606 BRACKET; CONT UNIT
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-75558-534-9 01 1 0004- ●
606 BRACKET; CONT UNIT
ELECTRONIC GOV RED3(KG5) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-75558-534-9 01 1 0004- ● ●
606 BRACKET; CONT UNIT
(A) 		1-75558-534-9 01 1 0004- ●
606 BRACKET; CONT UNIT
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-75558-568-4 01 1 9905- ● ● ●
606 BRACKET; CONT UNIT
ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-75558-570-0 01 1 9905- ● ● ●
606 BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (C) 		1-72537-195-2 01 1 0004- ●
606 BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (D) 		1-72537-205-2 01 1 0004- ●
613 CONTROL UNIT; ENG
ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR<Q3T> (A) 		1-80110-480-0 01 1 9902- ●
613 CONTROL UNIT; ENG
RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (B) 		1-80110-440-0 01 1 9902- ●
613 CONTROL UNIT; ENG
ELECTRONIC GOV RED3(KG5) (A) 		1-80110-437-0 01 1 9905- ●
613 CONTROL UNIT; ENG
ELECTRONIC GOV RED3(KG5) ENG LOW TORQUE<Q3R> INJ PUMP Q SET STD(T1B) (A) 		1-80110-622-0 01 1 9910- ●
613 CONTROL UNIT; ENG
ENG LOW TORQUE<Q3R> (A) 		1-80110-723-0 01 1 0004- ●
613 CONTROL UNIT; ENG
EXC. ENG LOW TORQUE<Q3R> (A) 		1-80110-438-0 01 1 0004- ●
621 SUPPORT; CONT UNIT
CENTER SEAT DELETE(SP9) 		1-72537-097-1 01 1 0004- ●
630 SCREW; UNIT
CENTER SEAT DELETE(SP9) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0004- ●
792 FASTENER
CENTER SEAT DELETE(SP9) 		1-09987-245-1 04 1 0004- ●
826 SEAL; NOISE INSULATION
30X30 		8-97866-626-0 03 1 9902-9904 ●
826 SEAL; NOISE INSULATION
ANTILOCK BRAKE SYSTEM(BFA) 30X30 		8-97866-626-0 03 1 9905-0003 ● ● ●
826 SEAL; NOISE INSULATION
30X30 		8-97866-626-0 03 1 9905-0003 ●
826 SEAL; NOISE INSULATION
ELECTRONIC GOV RED3(KG5) 30X30 		8-97866-626-0 03 1 9905-0003 ● ●
826 SEAL; NOISE INSULATION
ANTILOCK BRAKE SYSTEM(BFA) 30X30 		8-97866-626-0 03 1 0004- ● ● ●
826 SEAL; NOISE INSULATION
30X30 		8-97866-626-0 03 1 0004- ● ●
826 SEAL; NOISE INSULATION
ELECTRONIC GOV RED3(KG5) 30X30 		8-97866-626-0 03 1 0004- ● ●
869 FINISHER; BRKT
CENTER SEAT DELETE(SP9) (B) L=200 SERVICED BY L=880 		1-73948-003-0 01 1 0004- ●
869 FINISHER; BRKT
CENTER SEAT DELETE(SP9) (C) L=100 SERVICED BY L=880 		1-73948-003-0 02 1 0004- ●
869 FINISHER; BRKT
CENTER SEAT DELETE(SP9) (A) L=65 SERVICED BY L=880 		1-73948-003-0 02 1 0004- ●

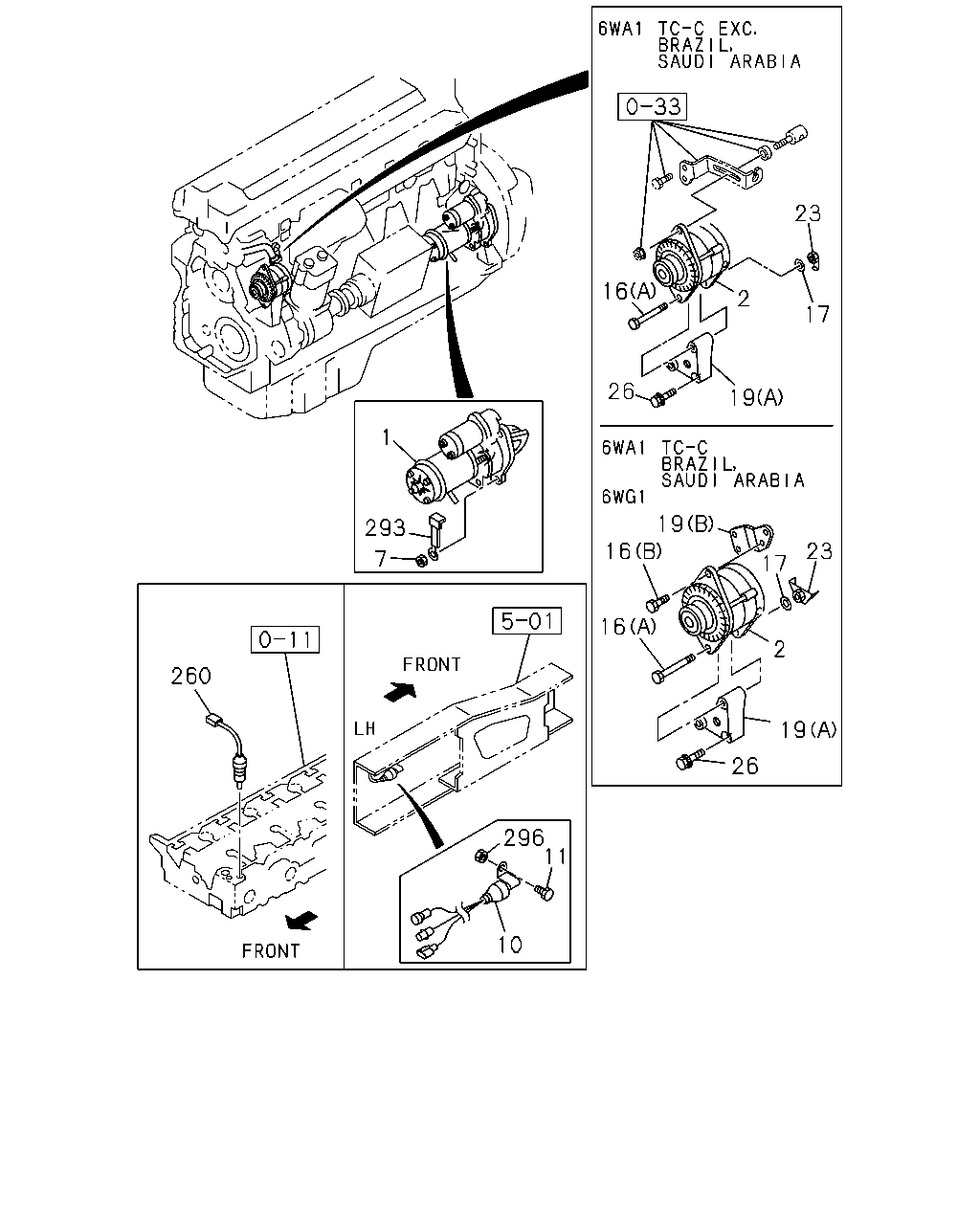

çizim 44401
23 16 2 17 26 19 1 19 16 293 17 23 7 16 2 260 19 26 296 11 10
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO 		1-81100-325-1 01 1 9902-9904 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO 		1-81100-325-1 01 1 9905-9909 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO 		1-81100-325-1 01 1 9910-0003 ● ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO 		1-81100-325-2 01 1 0004- ● ● ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI 		1-81100-341-0 01 1 9904-9904 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI 		1-81100-341-1 01 1 9905-9907 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A NIKKO 		1-81200-469-3 01 1 9902-9904 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A NIKKO 		1-81200-469-3 01 1 9905-9909 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A NIKKO 		1-81200-469-4 01 1 9910-0003 ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		1-81200-469-4 01 1 0004- ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 50A NIKKO 		1-81200-469-4 01 1 0004- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A MITSUBISHI 		1-81200-517-0 01 1 9904-9904 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A MITSUBISHI 		1-81200-517-0 01 1 9905-9907 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 60A NIKKO 		1-81200-437-4 01 1 0004- ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 9902-9904 ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 9905-9909 ● ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 9910-0003 ● ● ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 0004- ● ● ● ●
10 RELAY; STARTER
NIKKO 		1-81171-075-0 01 1 9902-0003 ● ● ●
10 RELAY; STARTER
NIKKO 		1-81171-075-1 01 1 0004- ● ● ● ●
10 RELAY; STARTER
HITACHI 		1-81171-087-0 01 1 9904-9907 ● ● ●
10 RELAY; STARTER
EXC. NIKKO<Y70> HITACHI 		1-81171-087-0 01 1 9908- ● ● ●
11 BOLT; RELAY STARTER
M8X30 FLANGE 		0-28680-830-0 02 1 9902-9907 ● ● ●
11 BOLT; RELAY STARTER
M8X25 FLANGE 		0-28680-825-0 02 1 9908-0003 ● ● ●
11 BOLT; RELAY STARTER
M8X25 FLANGE 		0-28680-825-0 02 1 0004- ● ● ● ●
16 BOLT; GEN
(A) M14X123 		9-09801-204-1 01 1 9902-9904 ●
16 BOLT; GEN
(A) M14X123 		9-09801-204-1 01 1 9905-9909 ● ●
16 BOLT; GEN
(A) M14X123 		9-09801-204-1 01 1 9910-0003 ● ● ●
16 BOLT; GEN
(A) M14X123 		9-09801-204-1 01 1 0004- ● ● ● ●
16 BOLT; GEN
BRAZIL EQUIPMENT(TKK),SAUDI ARABIA EQUIPMENT(WH1) (B) M12X40 FLANGE 		0-28081-240-0 01 1 9905-9909 ●
16 BOLT; GEN
(B) M12X40 FLANGE 		0-28081-240-0 01 1 9905-9909 ●
16 BOLT; GEN
BRAZIL EQUIPMENT(TKK),SAUDI ARABIA EQUIPMENT(WH1) (B) M12X40 FLANGE 		0-28081-240-0 01 1 9910-0003 ●
16 BOLT; GEN
(B) M12X40 FLANGE 		0-28081-240-0 01 1 9910-0003 ● ●
16 BOLT; GEN
BRAZIL EQUIPMENT(TKK),SAUDI ARABIA EQUIPMENT(WH1) (B) M12X40 FLANGE 		0-28081-240-0 01 1 0004- ●
16 BOLT; GEN
(B) M12X40 FLANGE 		0-28081-240-0 01 1 0004- ● ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9902-9904 ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9905-9909 ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9910-0003 ● ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 0004- ● ● ● ●
19 BRACKET; GEN
(A) 		1-19711-068-1 01 1 9902-9904 ●
19 BRACKET; GEN
(A) 		1-19711-068-1 01 1 9905-9909 ● ●
19 BRACKET; GEN
(A) 		1-19711-068-1 01 1 9910-0003 ● ● ●
19 BRACKET; GEN
(A) 		1-19711-068-1 01 1 0004- ● ● ● ●
19 BRACKET; GEN
BRAZIL EQUIPMENT(TKK),SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-19711-082-0 01 1 9905-9909 ●
19 BRACKET; GEN
(B) 		1-19711-082-0 01 1 9905-9909 ●
19 BRACKET; GEN
BRAZIL EQUIPMENT(TKK),SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-19711-082-0 01 1 9910-0003 ●
19 BRACKET; GEN
(B) 		1-19711-082-0 01 1 9910-0003 ● ●
19 BRACKET; GEN
BRAZIL EQUIPMENT(TKK),SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-19711-082-0 01 1 0004- ●
19 BRACKET; GEN
(B) 		1-19711-082-0 01 1 0004- ● ● ●
23 NUT; GEN
M14 W/BRKT 		1-19711-029-0 01 1 9902-9904 ●
23 NUT; GEN
M14 W/BRKT 		1-19711-029-0 01 1 9905-9909 ● ●
23 NUT; GEN
M14 W/BRKT 		1-19711-029-0 01 1 9910-0003 ● ● ●
23 NUT; GEN
M14 W/BRKT 		1-19711-029-0 01 1 0004- ● ● ● ●
26 BOLT; GEN BRKT
M10X60 FLANGE 		0-28181-060-0 02 1 9902-9904 ●
26 BOLT; GEN BRKT
M10X60 FLANGE 		0-28181-060-0 02 1 9905-9909 ● ●
26 BOLT; GEN BRKT
M10X60 FLANGE 		0-28181-060-0 02 1 9910-0003 ● ● ●
26 BOLT; GEN BRKT
M10X60 FLANGE 		0-28181-060-0 02 1 0004- ● ● ● ●
260 SENSOR; WATER TEMP 1-80210-004-0 01 1 9902-9904 ●
260 SENSOR; WATER TEMP 1-80210-004-0 01 1 9905-9909 ● ●
260 SENSOR; WATER TEMP 1-80210-004-0 01 1 9910-0003 ● ● ●
260 SENSOR; WATER TEMP 1-80210-004-0 01 1 0004- ● ● ● ●
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 9902-9904 ●
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 9905-9909 ● ●
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 9910-0003 ● ● ●
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 0004- ● ● ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 9902-0003 ● ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 0004- ● ● ● ●
çizim 44407
449 690 266 690 764 608 450 765 265 782 428 442 46 430 441 441 428 428 428 38 428 702 416
BalonParca AdiParca NoAdetTipApplied Date A B C D
38 RESISTOR; CONT,GLOW PLUG
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		1-81402-008-0 01 1 9902- ● ● ●
46 RELAY; GLOW PLUG
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		8-94258-014-0 01 1 9902- ● ● ●
265 BOLT; MAG VLV FIX
M6X50 FLANGE 		0-28080-650-0 01 1 9905-9909 ●
265 BOLT; MAG VLV FIX
M6X50 FLANGE 		0-28080-650-0 01 1 9910-0003 ● ●
265 BOLT; MAG VLV FIX
M6X50 FLANGE 		0-28080-650-0 01 1 0004- ● ● ●
266 WASHER; PL,MAG VLV FIX 1-82569-266-0 02 1 9905-9909 ●
266 WASHER; PL,MAG VLV FIX 1-82569-266-0 02 1 9910-0003 ● ●
266 WASHER; PL,MAG VLV FIX 1-82569-266-0 02 1 0004- ● ● ●
416 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 06 1 9902-9909 ●
416 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 06 1 9910-0003 ● ● ●
416 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 06 1 0004- ● ● ● ●
416 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 01 1 9905-9909 ●
416 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 01 1 9910-0003 ● ●
416 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 01 1 0004- ● ● ●
428 CLIP; HARNESS
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 9902-9904 ●
428 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) ID=20 H=23 L=27 		1-09700-861-0 01 1 9905-9909 ● ●
428 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) ID=20 H=23 L=27 		1-09700-861-0 01 1 9910-0003 ● ● ●
428 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) ID=20 H=23 L=27 		1-09700-861-0 01 1 0004- ● ● ●
428 CLIP; HARNESS
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 0004- ●
428 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9902-9904 ●
428 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9905-9909 ● ●
428 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9910-0003 ● ● ●
428 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 0004- ● ● ● ●
428 CLIP; HARNESS
(C) L=140 		5-09707-031-1 05 1 9902-9904 ●
428 CLIP; HARNESS
(C) L=140 		5-09707-031-1 05 1 9905-9909 ● ●
428 CLIP; HARNESS
(C) L=140 		5-09707-031-1 05 1 9910-0003 ● ● ●
428 CLIP; HARNESS
(C) L=140 		5-09707-031-1 05 1 0004- ● ● ● ●
428 CLIP; HARNESS
(D) L=36 		8-94224-891-1 01 1 9902-9904 ●
428 CLIP; HARNESS
(D) L=36 		8-94224-891-1 01 1 9905-9909 ● ●
428 CLIP; HARNESS
(D) L=36 		8-94224-891-1 01 1 9910-0003 ● ● ●
428 CLIP; HARNESS
(D) L=36 		8-94224-891-1 01 1 0004- ● ● ● ●
428 CLIP; HARNESS
(F) ID=20 L=50 		9-09917-430-0 02 1 9902-9903 ●
428 CLIP; HARNESS
(E) ID=11 L=28 		9-09917-544-0 01 1 9902-9904 ●
428 CLIP; HARNESS
(E) ID=11 L=28 		9-09917-544-0 01 1 9905-9909 ● ●
428 CLIP; HARNESS
(E) ID=11 L=28 		9-09917-544-0 01 1 9910-0003 ● ● ●
428 CLIP; HARNESS
(E) ID=11 L=28 		9-09917-544-0 01 1 0004- ● ● ● ●
428 CLIP; HARNESS
(B) ID=20 L=50 		9-09917-430-0 01 1 9908-9909 ● ●
428 CLIP; HARNESS
(B) ID=20 L=50 		9-09917-430-0 01 1 9910- ● ● ●
428 CLIP; HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9902-9904 ● ● ●
428 CLIP; HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9905-9909 ● ● ●
428 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9905-9909 ● ●
428 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9910-0003 ● ● ●
428 CLIP; HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9910-0003 ● ● ●
428 CLIP; HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0004- ● ● ● ●
428 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0004- ● ● ●
428 CLIP; HARNESS
(B) ID=26 L=26 		1-09701-236-0 01 1 9902-0003 ● ● ●
428 CLIP; HARNESS
(B) ID=26 L=26 		1-09701-236-0 01 1 0004- ● ● ● ●
428 CLIP; HARNESS
(B) ID=32 L=35 		1-09701-244-0 01 1 9902-0003 ● ● ●
428 CLIP; HARNESS
(B) ID=32 L=35 		1-09701-244-0 01 1 0004- ● ● ● ●
430 NUT; RELAY FIX
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M6 FLANGE 		0-91150-106-0 01 1 9902- ● ● ●
441 BOLT; HARNESS TO FRAME
M8X20 FLANGE 		0-28080-820-0 01 1 9902-9904 ●
441 BOLT; HARNESS TO FRAME
M8X20 FLANGE 		0-28080-820-0 01 1 9902-9904 ●
441 BOLT; HARNESS TO FRAME
M8X20 FLANGE 		0-28080-820-0 01 1 9905-9909 ● ● ●
441 BOLT; HARNESS TO FRAME
M8X20 FLANGE 		0-28080-820-0 01 1 9905-9909 ● ●
441 BOLT; HARNESS TO FRAME
M8X20 FLANGE 		0-28080-820-0 01 1 9910-0003 ● ● ●
441 BOLT; HARNESS TO FRAME
M8X20 FLANGE 		0-28080-820-0 01 1 9910-0003 ● ● ●
441 BOLT; HARNESS TO FRAME
M8X20 FLANGE 		0-28080-820-0 01 1 0004- ● ● ● ●
441 BOLT; HARNESS TO FRAME
M8X20 FLANGE 		0-28080-820-0 01 1 0004- ● ● ●
441 BOLT; HARNESS TO FRAME
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9902-0003 ● ● ●
441 BOLT; HARNESS TO FRAME
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0004- ● ● ● ●
442 CLIP; GRAND
ID=11 L=41 		1-09700-403-0 01 1 9902-9903 ● ● ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM 1-82563-871-2 01 1 9902- ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM 1-82563-871-1 02 1 9905-9909 ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM 1-82563-871-1 02 1 9910-0003 ● ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM 1-82563-871-2 02 1 0004- ● ● ●
450 CONNECTOR; MAG VLV,INL PORT
M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9902-9904 ●
450 CONNECTOR; MAG VLV,INL PORT
M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9905-9909 ● ●
450 CONNECTOR; MAG VLV,INL PORT
M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9910-0003 ● ● ●
450 CONNECTOR; MAG VLV,INL PORT
M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0004- ● ● ● ●
608 SENSOR; AIR TEMP
ELECTRONIC GOV RED3(KG5) 		1-83544-031-0 01 1 9902-0003 ● ● ●
608 SENSOR; AIR TEMP
ELECTRONIC GOV RED3(KG5) 		1-83544-031-0 01 1 0004- ● ● ●
608 SENSOR; AIR TEMP 1-83544-031-0 01 1 0004- ●
690 CONNECTOR
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9902-9904 ●
690 CONNECTOR
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9905-9909 ● ●
690 CONNECTOR
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9910-0003 ● ● ●
690 CONNECTOR
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0004- ● ● ● ●
690 CONNECTOR
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9902- ●
690 CONNECTOR
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 9905-9909 ●
690 CONNECTOR
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 9910-0003 ● ●
690 CONNECTOR
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0004- ● ● ●
702 BOLT; RELAY
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0004- ●
764 NUT; MAG VLV
M6 FLANGE 		0-91150-106-0 01 1 9905-9909 ●
764 NUT; MAG VLV
M6 FLANGE 		0-91150-106-0 01 1 9910-0003 ● ●
764 NUT; MAG VLV
M6 FLANGE 		0-91150-106-0 01 1 0004- ● ● ●
765 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 9905-9909 ●
765 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 9910-0003 ● ●
765 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0004- ● ● ●
782 BOLT; SENSOR
ELECTRONIC GOV RED3(KG5) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9902-0003 ● ● ●
782 BOLT; SENSOR
ELECTRONIC GOV RED3(KG5) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0004- ● ● ●
782 BOLT; SENSOR
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0004- ●
çizim 45257
620 640 639 601 748 606
BalonParca AdiParca NoAdetTipApplied Date A B C D
601 NUT; UNIT
ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE 		0-91150-106-0 04 1 9905- ● ● ●
601 NUT; UNIT
CENTER SEAT DELETE(SP9) M6 FLANGE 		0-91150-106-0 06 1 0004- ●
606 BRACKET; CONT UNIT
(A) 		1-75558-534-7 01 1 9902-9904 ●
606 BRACKET; CONT UNIT
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-75558-534-7 01 1 9905-0003 ●
606 BRACKET; CONT UNIT
ELECTRONIC GOV RED3(KG5) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-75558-534-7 01 1 9905-0003 ● ●
606 BRACKET; CONT UNIT
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-75558-534-9 01 1 0004- ●
606 BRACKET; CONT UNIT
ELECTRONIC GOV RED3(KG5) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-75558-534-9 01 1 0004- ● ●
606 BRACKET; CONT UNIT
(A) 		1-75558-534-9 01 1 0004- ●
606 BRACKET; CONT UNIT
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-75558-568-4 01 1 9905- ● ● ●
606 BRACKET; CONT UNIT
ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-75558-570-0 01 1 9905- ● ● ●
606 BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (C) 		1-72537-195-2 01 1 0004- ●
606 BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (D) 		1-72537-205-2 01 1 0004- ●
620 BEZEL; CONT UNIT 1-72447-666-1 01 1 9902-0003 ● ● ●
620 BEZEL; CONT UNIT 1-72447-666-1 01 1 0004- ● ● ● ●
639 BRACKET; QOS GLOW TIMER
ANTILOCK BRAKE SYSTEM(BFA) 		1-73908-161-0 01 1 9905- ● ● ●
640 BOLT; BRKT,QOS GLOW TIMER
ANTILOCK BRAKE SYSTEM(BFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905- ● ● ●
748 BOLT; CONT UNIT
ANTILOCK BRAKE SYSTEM(BFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9905- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
