1 |

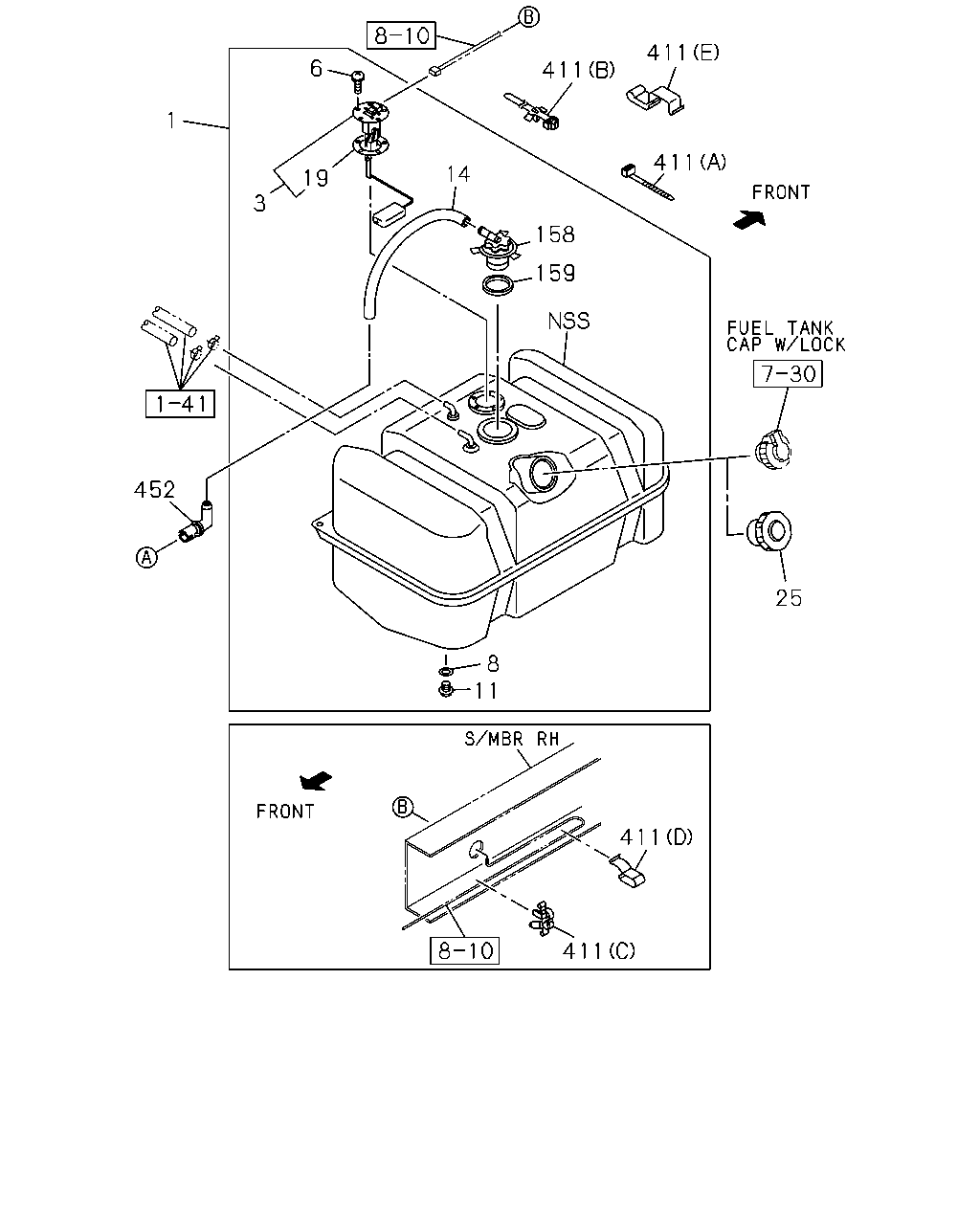

03.001 TANK; FUEL
756X482X376 100L
|
8-98062-738-4 |
01 |
1 |
0810- |
| |
3 |
03.107 UNIT; FUEL TANK,SUB
|
8-98056-705-0 |
01 |
1 |
0810- |
| |
6 |
03.115 SCREW; TANK UNIT TO SUB FUEL TAN
M5X12 W/LK WASHER
|
0-36220-512-0 |
05 |
1 |
0810- |
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
03.107
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
0810- |
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
01.453
M14X14
|
9-09862-156-0 |
01 |
1 |
0810- |
| |
14 |
03.163 HOSE; BREATHER,OUTLET
L=480
|
8-97135-581-0 |
01 |
1 |
0810-1003 |
| |
14 |
03.163 HOSE; BREATHER,OUTLET
L=420
|
8-98157-809-0 |
01 |
1 |
1004- |
| |
19 |
03.112 GASKET; FUEL TANK UNIT
|
8-98051-797-0 |
01 |
1 |
0810- |
| |
25 |
03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05>
|
8-97387-179-0 |
01 |
1 |
0810- |
| |
158 |
03.164 VALVE; ROLL OVER & FLOAT
|
8-97179-645-0 |
01 |
1 |
0810- |
| |
159 |
03.015 SEAL; ROLL OVER & FLOAT VALVE
|
8-97326-488-0 |
01 |
1 |
0810- |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
(D)
T=5.5
|
8-97371-951-0 |
05 |
1 |
1408-1408 |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
(D)
T=5.5
|
8-97371-951-0 |
06 |
1 |
1409- |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
IDENTIFICATION LABEL FOR KD<6UT>
(D)
T=5.5
|
8-97371-951-0 |
06 |
1 |
1409- |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
(D)
T=5.5
|
8-97371-951-0 |
06 |
1 |
1403-1407 |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
(D)
T=5.5
|
8-97371-951-0 |
06 |
1 |
1403-1407 |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
(E)
T=4.5 & 9
|
8-97371-947-0 |
01 |
1 |
1408-1408 |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
(E)
T=4.5 & 9
|
8-97371-947-0 |
01 |
1 |
1408-1408 |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
(E)
T=4.5 & 9
|
8-97371-947-0 |
01 |
1 |
1409- |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. IDENTIFICATION LABEL FOR KD<6UT>
(E)
T=4.5 & 9
|
8-97371-947-0 |
01 |
1 |
1409- |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
(D)
T=5.5
|
8-97371-951-0 |
06 |
1 |
0810-1402 |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
(E)
T=4.5 & 9
|
8-97371-947-0 |
01 |
1 |
1403-1407 |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
(D)
T=5.5
|
8-97371-951-0 |
06 |
1 |
1408-1408 |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. IDENTIFICATION LABEL FOR KD<6UT>
(D)
T=5.5
|
8-97371-951-0 |
05 |
1 |
1409- |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
06.525
(C)
ID=5-12 L=18
|
1-09709-287-0 |
01 |
1 |
0810- |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
(B)
L=170.3
|
1-09987-182-0 |
01 |
1 |
0810- |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
03.162
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
0810- |
| |
452 |
03.028 BREATHER; FUEL TANK
|
8-97357-261-0 |
01 |
1 |
0810- |
