Isuzu WW
▶
TRUCKS
▶
NPR
▶
51186 - NPR BUS(LHD)EURO1
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶

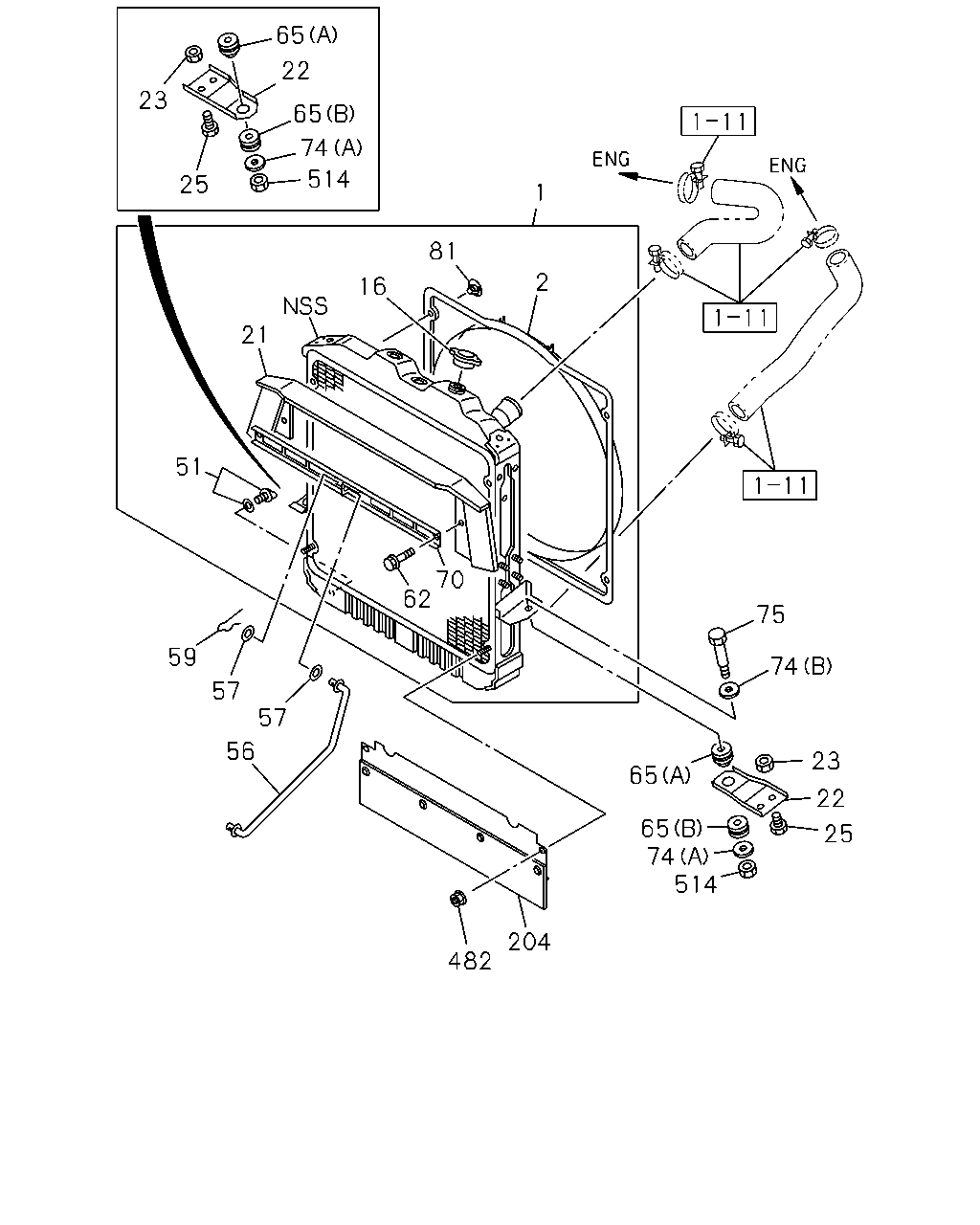

1-10 — RADIATOR
(#76255) — 24 parça
1
22
65
65
74
23
25
81
2
16
75
74
23
22
25
57
56
57
59
51
21
204
482
514
74
65
65
514
70
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
01.219 RADIATOR ASM
8-98095-588-2
01
1
0810-
2
01.277 GUIDE; FAN
8-98095-606-0
01
1
0810-
16
01.203 CAP; RAD
8-98096-226-0
01
1
0810-
21
01.276 SEAL; RAD
8-98097-689-0
01
1
0810-1201
22
01.270 BRACKET; RAD MTG
8-97074-093-0
01
1
0810-
23
01.271 NUT; RAD MTG
04.085 M10 FLANGE
0-91180-210-0
02
1
0810-0909
23
01.271 NUT; RAD MTG
03.162 M10 FLANGE
0-91180-110-0
02
1
0910-
25
01.271 BOLT; BRKT
00.029 M10X30 FLANGE
0-28651-030-0
02
1
0810-
51
08.951 PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
0810-
56
01.270 STAY; RAD
8-98058-497-0
01
1
0810-
57
01.271 WASHER; PL,STAY
17.198 ID=10.5
0-91610-510-0
02
1
0810-
59
01.271 PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
0810-
62
01.271 BOLT; STAY
02.343 M8X12 FLANGE
0-28050-812-0
02
1
0810-
65
01.271 INSULATOR; RAD
01.270 (A)
8-94249-346-0
02
1
0810-
65
01.271 INSULATOR; RAD
01.270 (B)
8-94249-347-0
02
1
0810-
70
01.271 STAY; RAD
8-98034-644-0
01
1
0810-
74
01.270 WASHER; PL,CUSHION RUBBER
(B) ID=10.5
0-91610-710-0
01
1
0810-
74
01.270 WASHER; PL,CUSHION RUBBER
(A) ID=8.5 OD=36
8-97359-049-1
02
1
0810-
75
01.271 BOLT; CUSHION RUBBER,RAD MTG
01.274 M8X63
8-94249-446-0
01
1
0810-
81
01.277 SCREW; FAN GUIDE,RAD
8-97088-810-0
04
1
0810-1201
81
01.277 SCREW; FAN GUIDE,RAD
8-97088-810-0
02
1
1202-
204
01.267 GUIDE ASM; AIR
8-97387-572-1
01
1
0810-1110
482
01.277 NUT; AIR GUIDE
01.062 M8 FLANGE
0-91180-108-0
02
1
0810-1110
514
01.276 NUT; RAD
01.062 M8 FLANGE
0-91180-108-0
02
1
0810-
