0-13 - OIL PAN AND LEVEL GAUGE
▶

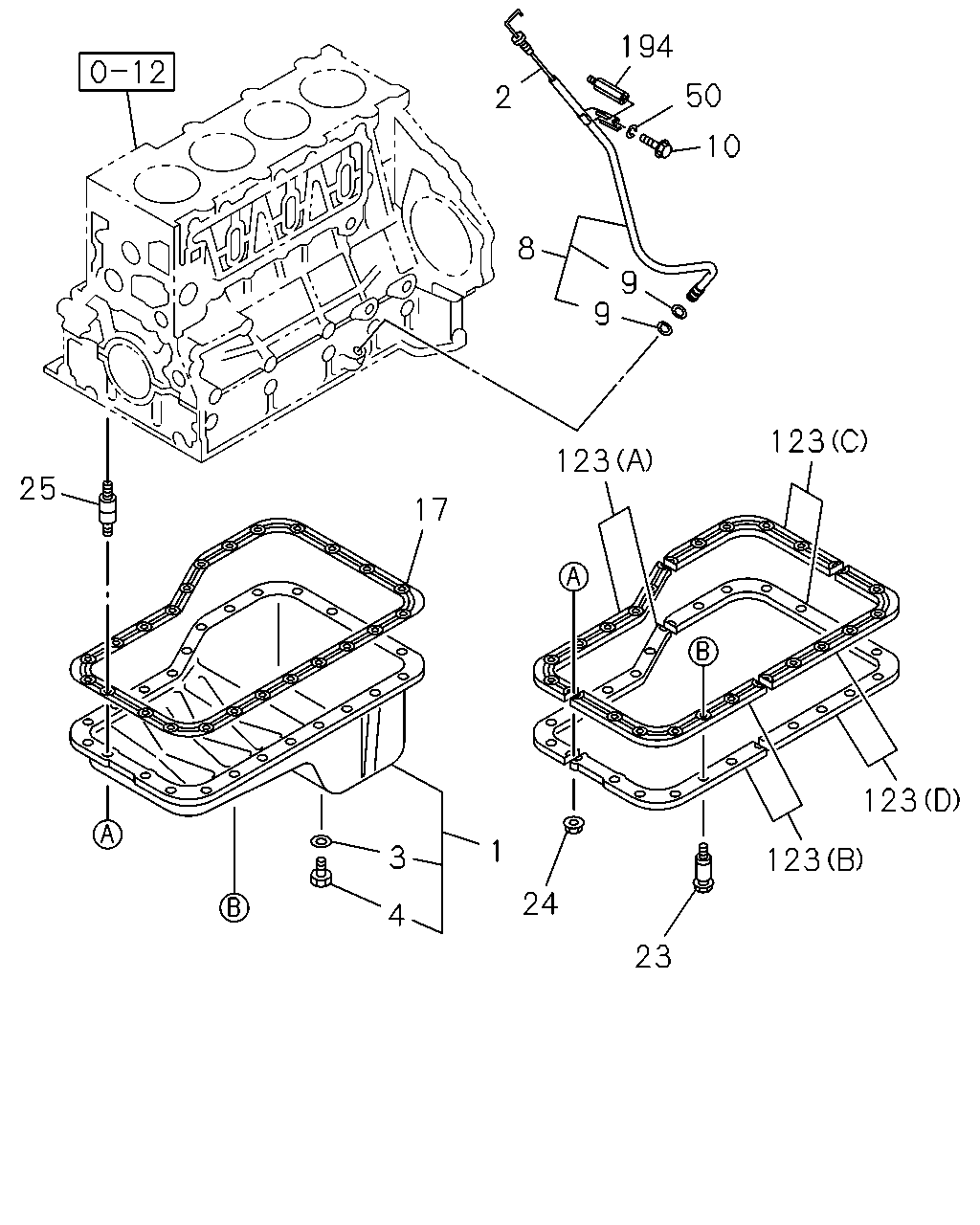

0-13 — OIL PAN AND LEVEL GAUGE
(#76224) — 19 parça
194
50
2
10
8
9
9
123
123
25
17
123
1
3
123
24
4
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
01.426 PAN ASM; OIL
8-97385-242-0
01
1
0810-1202
1
01.426 PAN ASM; OIL
8-98203-596-0
01
1
1203-
2
01.516 GAUGE; OIL LEVEL
8-97094-460-2
01
1
0810-
3
01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24
8-94158-328-0
01
1
0810-
4
01.453 PLUG; DRAIN,OIL
03.001 M14X14
8-94152-613-0
01
1
0810-
8
01.516 TUBE; GUIDE,OIL LEVEL GAUGE
8-97101-907-1
01
1
0810-
9
01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
5-09623-002-0
02
1
0810-
10
01.516 BOLT; GUIDE TUBE
01.531 M8X20 FLANGE
0-28650-820-0
01
1
0810-
17
01.429 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97364-386-0
01
1
0810-
23
01.428 BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE
8-97190-390-0
13
1
0810-
24
01.453 NUT; OIL PAN
01.062 M8 FLANGE
0-91180-108-0
13
1
0810-
25
01.453 STUD; OIL PAN
M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE
8-97190-391-0
01
1
0810-
25
01.453 STUD; OIL PAN
01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE
8-97190-392-0
09
1
0810-
50
01.516 WASHER; PL,GUIDE TUBE
00.002 ID=10.5 OD=22
0-91614-610-0
01
1
0810-
123
01.516 RUBBER; SEAL OIL
(A)
8-97186-988-0
01
1
0810-
123
01.516 RUBBER; SEAL OIL
(B)
8-97186-994-0
01
1
0810-
123
01.516 RUBBER; SEAL OIL
(C)
8-97186-998-0
01
1
0810-
123
01.516 RUBBER; SEAL OIL
(D)
8-97187-000-0
01
1
0810-
194
01.429 SPACER; GUIDE TUBE
8-97101-215-0
01
1
0810-
