Isuzu WW
▶
TRUCKS
▶
NPR
▶
51186 - NPR BUS(LHD)EURO1
▶
0 - Engine, Emission, Engine Electrical
▶
0-11 - CYLINDER HEAD
▶
0-11 — CYLINDER HEAD
(#76222) — 35 parça
◀

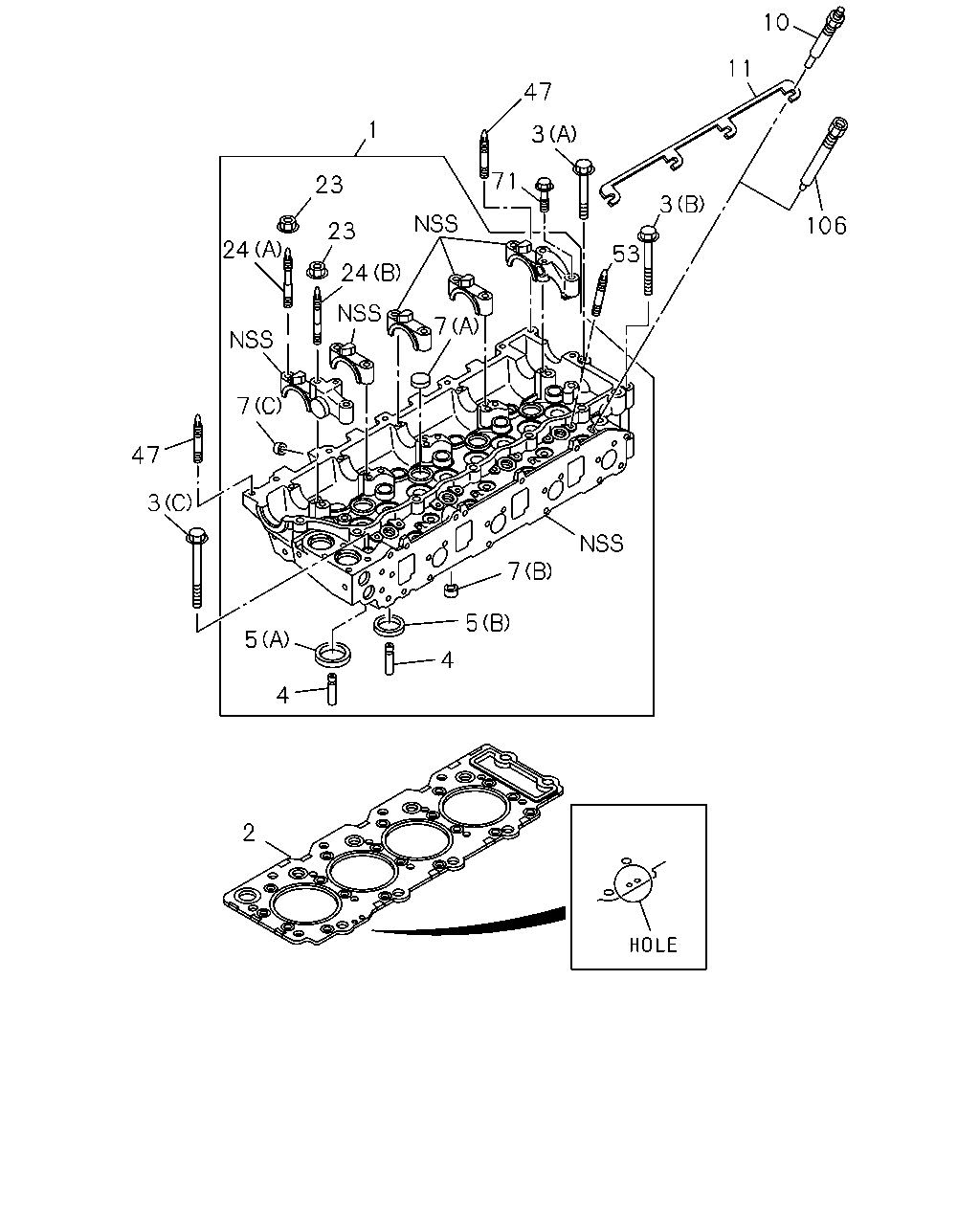

[011A] HEAD ASM (27 parça)

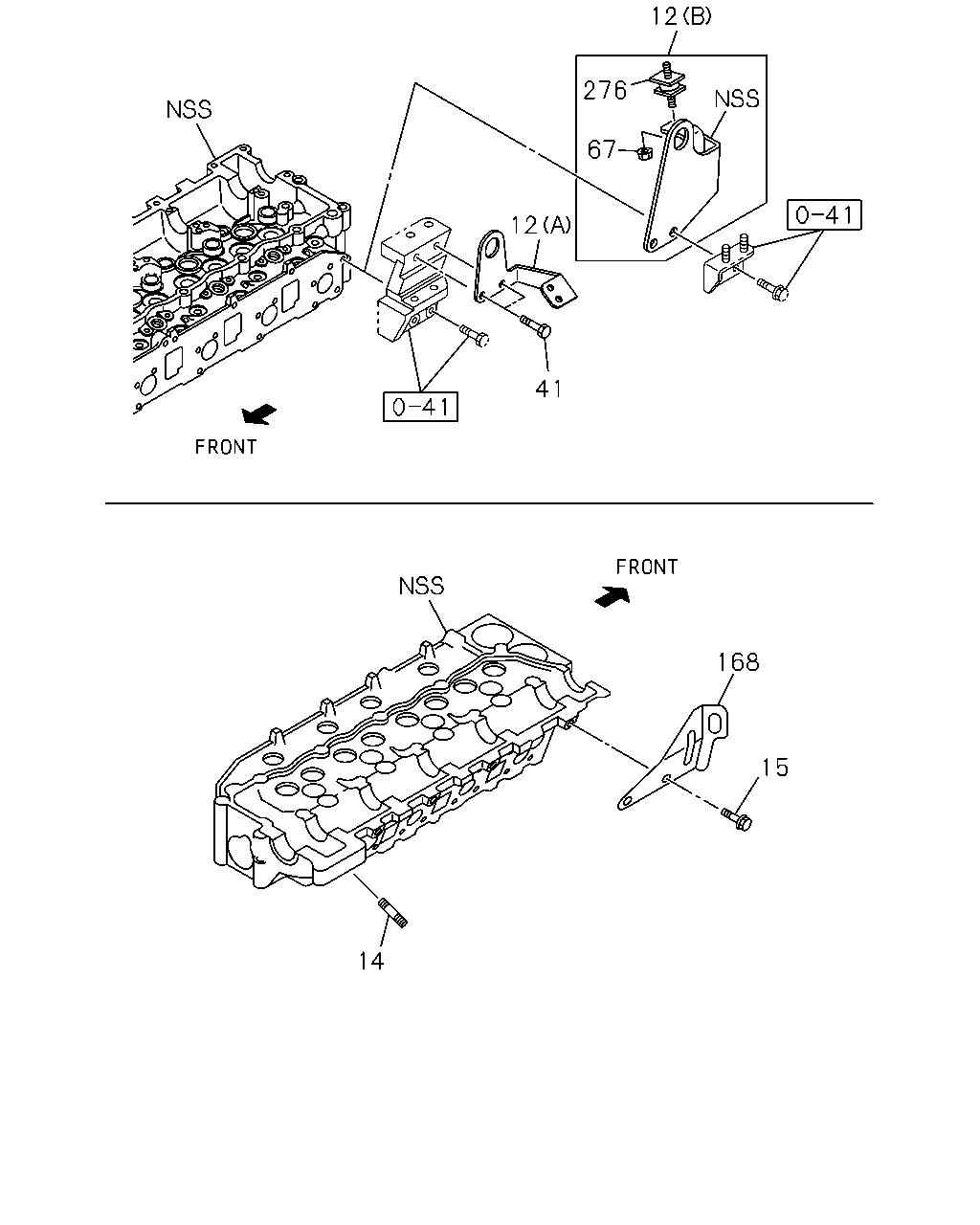

[011A] ENG HANGER (8 parça)
▶
10
11
47
1
3
71
23
3
106
23
24
53
24
7
7
47
3
7
5
5
4
4
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.269 HEAD ASM; CYL
8-97186-589-7
01
1
0810-
2
00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE
8-97349-489-0
01
1
0810-
2
00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE
8-97349-490-0
01
1
0810-
2
00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE
8-97349-491-0
01
1
0810-
3
00.293 BOLT; CYL HD TO BLOCK
(A) M10X73
8-94399-554-0
01
1
0810-
3
00.293 BOLT; CYL HD TO BLOCK
(B) M10X43
8-94399-555-0
01
1
0810-
3
00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE
8-97077-638-0
18
1
0810-1503
3
00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE
8-98260-005-0
18
1
1504-
4
00.283 GUIDE; VLV
8-94396-598-0
08
1
0810-
5
00.253 SEAT; VLV INSERT
(A) INLET OD=52
8-94394-127-0
04
1
0810-
5
00.253 SEAT; VLV INSERT
(B) EXHAUST OD=43
8-94396-172-0
04
1
0810-
7
00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25
1-09600-016-0
02
1
0810-
7
00.253 CUP; SEALING,CYL HEAD
(C) OD=12
8-97036-335-1
04
1
0810-
7
00.253 CUP; SEALING,CYL HEAD
(A) OD=32
8-97096-821-0
12
1
0810-
10
02.270 PLUG; GLOW
FAST GLOW SYSTEM<KM6> BOSCH
1-82513-044-3
04
1
0810-
10
02.270 PLUG; GLOW
FAST GLOW SYSTEM<KM6> NGK
8-97033-761-2
04
1
0810-
11
02.251 CONNECTOR; GLOW PLUG
FAST GLOW SYSTEM<KM6>
8-97136-565-0
01
1
0810-
23
00.349 NUT; CAM BRKT
01.540 M8 FLANGE
0-91180-208-0
10
1
0810-
24
00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79
8-94322-512-2
02
1
0810-
24
00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66
8-94322-513-2
08
1
0810-
47
00.413 STUD; CYL HD
03.275 M8X40 L=58
0-49140-840-0
02
1
0810-0910
47
00.413 STUD; CYL HD
M8X30 L=41
8-97016-313-0
02
1
0911-
47
00.413 STUD; CYL HD
M8X65 L=76 TORQUES
8-97167-299-1
02
1
0810-
53
03.332 STUD; INJ NOZZLE
M8X64 L=85
8-97178-608-0
08
1
0810-
71
00.413 BOLT; CAM BRKT
03.162 M8X35 FLANGE
0-28050-835-0
02
1
0810-
106
00.293 PLUG; GLOW PLUG HOLE
GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41) 02.270
1-11119-018-0
04
1
0810-0810
106
00.293 PLUG; GLOW PLUG HOLE
GLOW SYSTEM DELETE<7RK> 02.270
1-11119-018-0
04
1
0811-
168
15
14
41
12
67
276
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
00.004 HANGER; ENG,RR
(A)
8-97210-326-0
01
1
0810-1405
12
00.004 HANGER; ENG,RR
(B)
8-98219-797-0
01
1
1406-
14
03.275 STUD; EXH MANIF
M10X60 L=75
8-94397-286-0
02
1
0810-
15
00.004 BOLT; HANGER,FRT
02.343 M10X20 FLANGE
0-28751-020-0
02
1
0810-
41
09.181 BOLT; ENG HANGER
02.343 M10X20 FLANGE
0-28751-020-0
02
1
0810-1405
67
00.349 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
1406-
168
00.004 HANGER; ENG,FRT
8-97127-373-0
01
1
0810-
276
00.293 RUBBER; MTG
03.463
8-98219-799-0
01
1
1406-
