0-42 — FUEL PUMP AND PIPE (#7622) — 93 parça

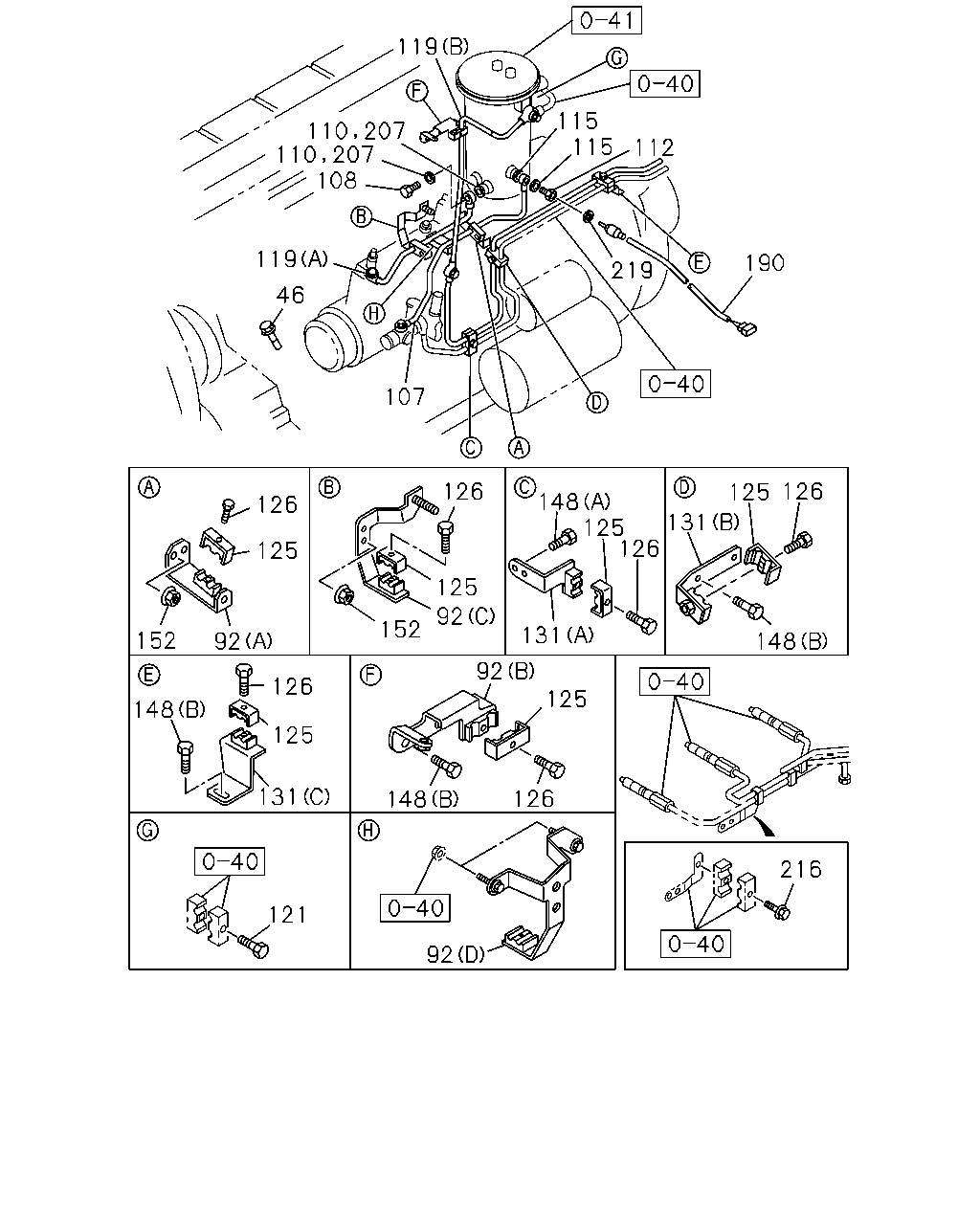

çizim 7993
119 115 115 108 112 119 190 219 46 107 126 126 125 148 131 125 126 126 125 125 92 152 131 152 92 148 92 126 125 148 125 131 126 148 216 121 92 110 110 207 207
BalonParca AdiParca NoAdetTipApplied Date A B C D
46 PLUG
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M14X9 		9-99202-314-0 01 1 9902- ●
92 BRACKET; FUEL PIPE
(A) 		1-15419-425-0 01 1 9902-9904 ●
92 BRACKET; FUEL PIPE
(A) 		1-15419-425-0 01 1 9905-9909 ● ●
92 BRACKET; FUEL PIPE
(A) 		1-15419-425-0 01 1 9910-0003 ● ● ●
92 BRACKET; FUEL PIPE
(A) 		1-15419-425-0 01 1 0004- ● ● ● ●
92 BRACKET; FUEL PIPE
(C) 		1-15419-427-0 01 1 9902-9909 ●
92 BRACKET; FUEL PIPE
(C) 		1-15419-427-0 01 1 9910-0003 ● ●
92 BRACKET; FUEL PIPE
(C) 		1-15419-427-0 01 1 0004- ● ● ●
92 BRACKET; FUEL PIPE
(B) 		1-15419-474-1 01 1 9902-9904 ●
92 BRACKET; FUEL PIPE
(B) 		1-15419-474-1 01 1 9905-9909 ● ●
92 BRACKET; FUEL PIPE
(B) 		1-15419-474-1 01 1 9910-0003 ● ● ●
92 BRACKET; FUEL PIPE
(B) 		1-15419-474-1 01 1 0004- ● ● ● ●
92 BRACKET; FUEL PIPE
(D) 		1-15419-592-0 01 1 9905- ●
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15415-731-0 01 1 9902-9904 ●
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15415-731-0 01 1 9905-9909 ● ●
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15415-731-0 01 1 9910-0003 ● ● ●
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15415-731-0 01 1 0004- ● ● ● ●
108 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 9902-9904 ●
108 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 9905-9909 ● ●
108 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 9910-0003 ● ● ●
108 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0004- ● ● ● ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9902-9904 ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9905-9909 ● ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9910-0003 ● ● ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0004- ● ● ● ●
112 BOLT; JOINT,FUEL FILTER 1-09675-156-1 01 1 9902-9904 ●
112 BOLT; JOINT,FUEL FILTER 1-09675-156-1 01 1 9905-9909 ● ●
112 BOLT; JOINT,FUEL FILTER 1-09675-156-1 01 1 9910-0003 ● ● ●
112 BOLT; JOINT,FUEL FILTER 1-09675-156-1 01 1 0004- ● ● ● ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9902-9904 ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9905-9909 ● ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9910-0003 ● ● ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0004- ● ● ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(A) 		1-15415-539-1 01 1 9902-9904 ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(A) 		1-15415-539-1 01 1 9905-9909 ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(A) 		1-15415-539-1 01 1 9910-0003 ● ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(A) 		1-15415-539-1 01 1 0004- ● ● ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(B) 		1-15416-090-0 01 1 9902-9909 ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(B) 		1-15416-090-0 01 1 9910-0003 ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(B) 		1-15416-090-0 01 1 0004- ● ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(B) 		1-15416-402-0 01 1 9905- ●
121 BOLT; CLIP
M6X30 FLANGE 		0-28080-630-0 01 1 9902-9904 ●
121 BOLT; CLIP
M6X30 FLANGE 		0-28080-630-0 01 1 9905-9909 ● ●
121 BOLT; CLIP
M6X30 FLANGE 		0-28080-630-0 01 1 9910-0003 ● ● ●
121 BOLT; CLIP
M6X30 FLANGE 		0-28080-630-0 01 1 0004- ● ● ● ●
125 CLIP; FUEL PIPE
ID=10 & 10 L=25 		8-94393-280-1 06 1 9902-9904 ●
125 CLIP; FUEL PIPE
ID=10 & 10 L=25 		8-94393-280-1 06 1 9905-9909 ● ●
125 CLIP; FUEL PIPE
ID=10 & 10 L=25 		8-94393-280-1 06 1 9910-0003 ● ● ●
125 CLIP; FUEL PIPE
ID=10 & 10 L=25 		8-94393-280-2 06 1 0004- ● ● ● ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28080-630-0 06 1 9902-9904 ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28080-630-0 06 1 9905-9909 ● ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28080-630-0 06 1 9910-0003 ● ● ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28080-630-0 06 1 0004- ● ● ● ●
131 BRACKET; FUEL PIPE CLIP
(A) 		1-15419-336-0 01 1 9902-9904 ●
131 BRACKET; FUEL PIPE CLIP
(A) 		1-15419-336-0 01 1 9905-9909 ● ●
131 BRACKET; FUEL PIPE CLIP
(A) 		1-15419-336-0 01 1 9910-0003 ● ● ●
131 BRACKET; FUEL PIPE CLIP
(A) 		1-15419-336-0 01 1 0004- ● ● ● ●
131 BRACKET; FUEL PIPE CLIP
(B) 		1-15419-372-0 01 1 9902-9904 ●
131 BRACKET; FUEL PIPE CLIP
(B) 		1-15419-372-0 01 1 9905-9909 ● ●
131 BRACKET; FUEL PIPE CLIP
(B) 		1-15419-372-0 01 1 9910-0003 ● ● ●
131 BRACKET; FUEL PIPE CLIP
(B) 		1-15419-372-0 01 1 0004- ● ● ● ●
131 BRACKET; FUEL PIPE CLIP
(C) 		1-15419-423-1 01 1 9902-9904 ●
131 BRACKET; FUEL PIPE CLIP
(C) 		1-15419-423-1 01 1 9905-9909 ● ●
131 BRACKET; FUEL PIPE CLIP
(C) 		1-15419-423-1 01 1 9910-0003 ● ● ●
131 BRACKET; FUEL PIPE CLIP
(C) 		1-15419-423-1 01 1 0004- ● ● ● ●
148 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9902-9904 ●
148 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9905-9909 ● ●
148 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9910-0003 ● ● ●
148 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 02 1 0004- ● ● ● ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28181-020-0 05 1 9902-9904 ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28181-020-0 05 1 9905-9909 ● ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28181-020-0 05 1 9910-0003 ● ● ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28181-020-0 05 1 0004- ● ● ● ●
152 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 9902-9904 ●
152 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 9905-9909 ● ●
152 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 9910-0003 ● ● ●
152 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0004- ● ● ● ●
190 SENSOR; FUEL TEMP 1-81535-036-5 01 1 9902-9904 ●
190 SENSOR; FUEL TEMP 1-81535-036-5 01 1 9905-9909 ● ●
190 SENSOR; FUEL TEMP 1-81535-036-6 01 1 9910-0003 ● ● ●
190 SENSOR; FUEL TEMP 1-81535-036-6 01 1 0004- ● ● ● ●
207 GASKET; EYE BOLT
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9902-9904 ●
207 GASKET; EYE BOLT
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9905-9909 ● ●
207 GASKET; EYE BOLT
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9910-0003 ● ● ●
207 GASKET; EYE BOLT
ID=14.2 OD=19.2 		1-09630-085-0 02 1 0004- ● ● ● ●
216 BOLT; CLIP,FUEL PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 9902-9909 ●
216 BOLT; CLIP,FUEL PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 9910-0003 ● ●
216 BOLT; CLIP,FUEL PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 0004- ● ● ●
216 BOLT; CLIP,FUEL PIPE
M6X40 FLANGE 		0-28080-640-0 02 1 9905- ●
219 GASKET; SENSOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 9902-9904 ●
219 GASKET; SENSOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 9905-9909 ● ●
219 GASKET; SENSOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 9910-0003 ● ● ●
219 GASKET; SENSOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 0004- ● ● ● ●
