Isuzu WW
▶
TRUCKS
▶
NLS
▶
51176 - NLS(EUROPE)RHD
▶
9 - Tools
▶
9-01 - TOOLS
▶

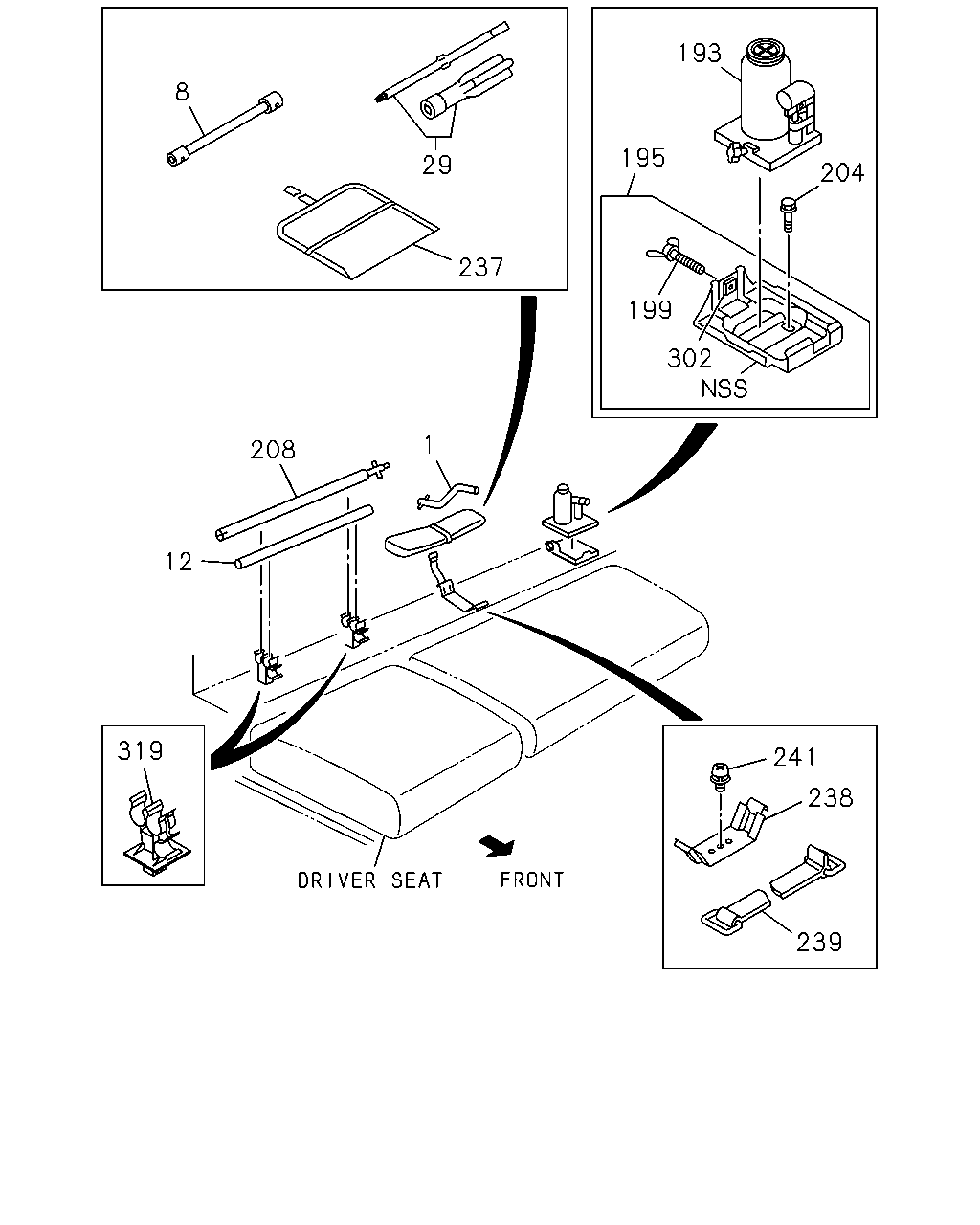

9-01 — TOOLS
(#76218) — 19 parça
193
8
195
29
204
237
199
302
1
208
12
319
241
238
239
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
07.629 HANDLE; SPARE TIRE CARRIER
8-97218-985-0
01
1
0806-
8
08.821 WRENCH; WHEEL
B=41X19 L=330
8-94386-490-1
01
1
0806-
12
08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590
8-97332-988-0
01
1
0806-1001
12
08.821 HANDLE; WRENCH,WHEEL PIN
08.820 OD=25 L=480
1-85116-011-0
01
1
1002-1407
12
08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480
8-98257-407-0
01
1
1408-
29
08.821 DRIVER; SCREW
<+>,<-> L=160
8-94242-798-1
01
1
0806-
193
08.820 JACK ASM
4TON
8-98090-823-0
01
1
0806-1311
193
08.820 JACK ASM
4TON
8-98239-828-0
01
1
1312-
195
08.820 BRACKET; JACK
8-97589-376-2
01
1
0806-
199
08.820 BOLT; JACK
M8X30 WING
8-98005-536-0
01
1
0806-
204
08.820 BOLT; BRKT,JACK
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0806-
208
08.820 HANDLE; JACK
L=642
8-97217-800-0
01
1
0806-1108
208
08.820 HANDLE; JACK
L=642
8-98181-477-0
01
1
1109-
237
08.821 BAG; TOOL
8-97130-903-1
01
1
0806-
238
08.820 SUPPORT; TOOL BAG
8-97994-977-0
01
1
0806-
239
08.820 BAND; TOOL BAG
L=100
5-73997-026-1
01
1
0806-
241
08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16
0-38050-616-0
01
1
0806-
302
08.820 NUT; JACK BRKT
8-98021-556-0
01
1
0806-
319
08.821 CLIP; TOOL BAR
8-97853-077-2
02
1
0806-
