8-75 — CONDENSER (#76215) — 72 parça

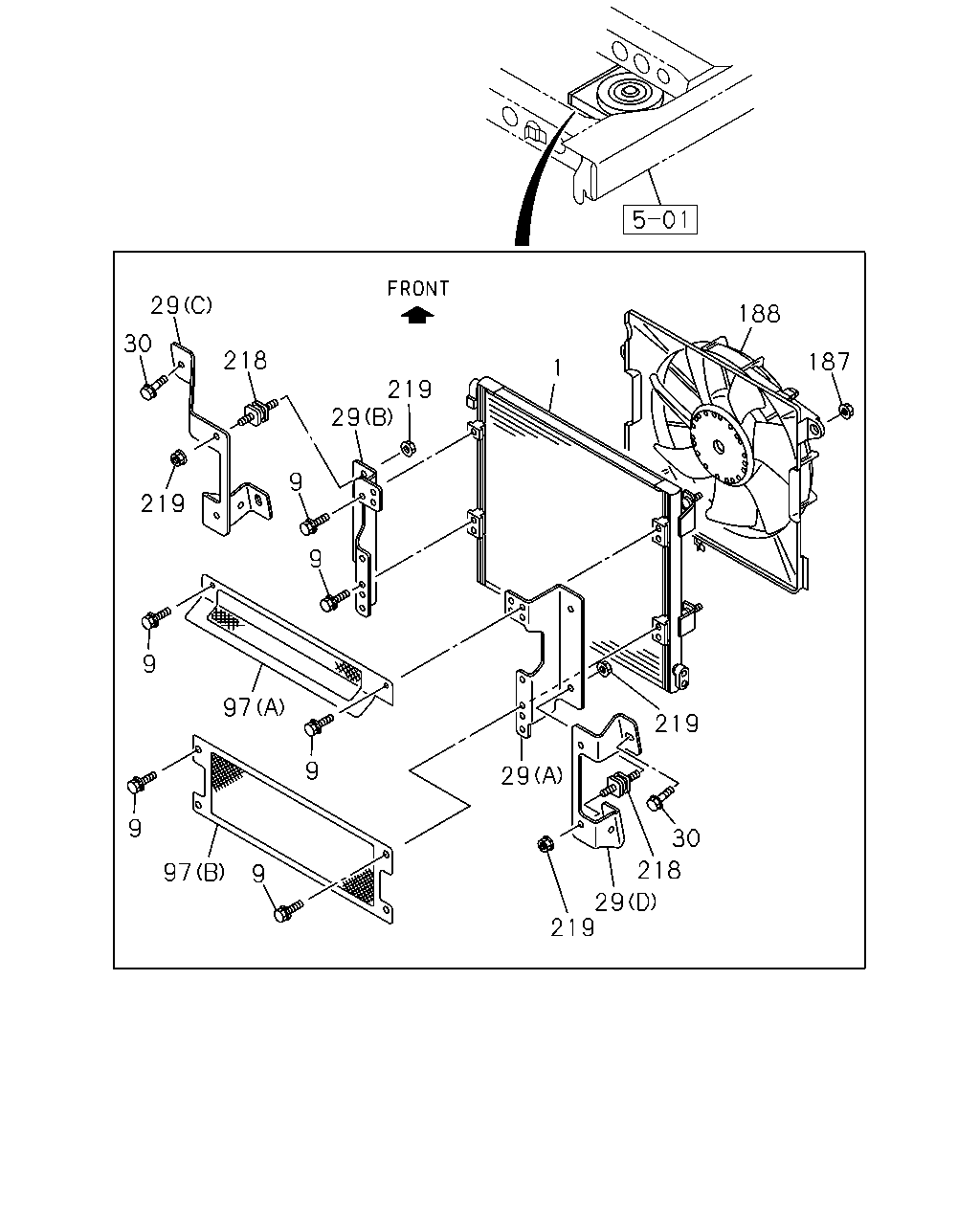

çizim 158264
29 188 30 218 187 1 219 29 9 219 9 9 97 219 9 29 9 30 218 97 9 29 219
BalonParca AdiParca NoAdetTipApplied Date
1 09.190 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) 		8-98041-884-0 01 1 0907-
1 09.190 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98041-884-0 01 1 0806-0906
1 09.190 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 		8-98133-042-1 01 1 0907-
9 09.190 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6X14 		1-83539-382-0 12 1 0806-0906
9 09.190 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) M6X14 		8-98041-899-0 08 1 0907-
9 09.190 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) M6X14 		1-83539-382-0 12 1 0907-
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (C) 		8-98041-896-1 01 1 0907-
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (D) 		8-98041-897-1 01 1 0907-
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98041-896-1 01 1 0806-0906
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E) 		8-98133-044-0 01 1 0907-
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98041-897-1 01 1 0806-0906
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (F) 		8-98133-045-0 01 1 0907-1001
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (G) 		8-98164-999-0 01 1 1002-
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98042-122-1 01 1 0806-0906
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (A) 		8-98042-122-1 01 1 0907-
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98042-123-1 01 1 0806-0906
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (B) 		8-98042-123-1 01 1 0907-
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1010-
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) 01.060 M8X35 FLANGE 		0-28650-835-0 04 1 0907-
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.060 M8X35 FLANGE 		0-28650-835-0 04 1 0806-0906
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0907-1009
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 1010-
97 09.190 NET; CONDENSER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98041-900-0 01 1 0806-0906
97 09.190 NET; CONDENSER UNIT
AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (A) 		8-98041-900-0 01 1 0907-
97 09.190 NET; CONDENSER UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98042-018-1 01 1 0806-0906
97 09.190 NET; CONDENSER UNIT
AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (B) 		8-98042-018-1 01 1 0907-
187 09.190 NUT; SHROUD
AIR CONDITIONER MANUAL CONT(C60) M6 		1-83539-354-0 04 1 0806-0906
187 09.190 NUT; SHROUD
AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) M6 		1-83539-354-0 04 1 0907-
188 09.215 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) 		8-98041-889-0 01 1 0907-
188 09.215 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60) 		8-98041-889-0 01 1 0806-0906
188 09.215 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 		8-98133-043-0 01 1 0907-
218 09.215 CUSHION; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) 		8-98041-898-0 04 1 0806-0906
218 09.215 CUSHION; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) 		8-98041-898-0 04 1 0907-
219 09.190 NUT; CUSHION
AIR CONDITIONER MANUAL CONT(C60) M8 		1-83539-319-0 08 1 0806-0906
219 09.190 NUT; CUSHION
AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) M8 		1-83539-319-0 08 1 0907-

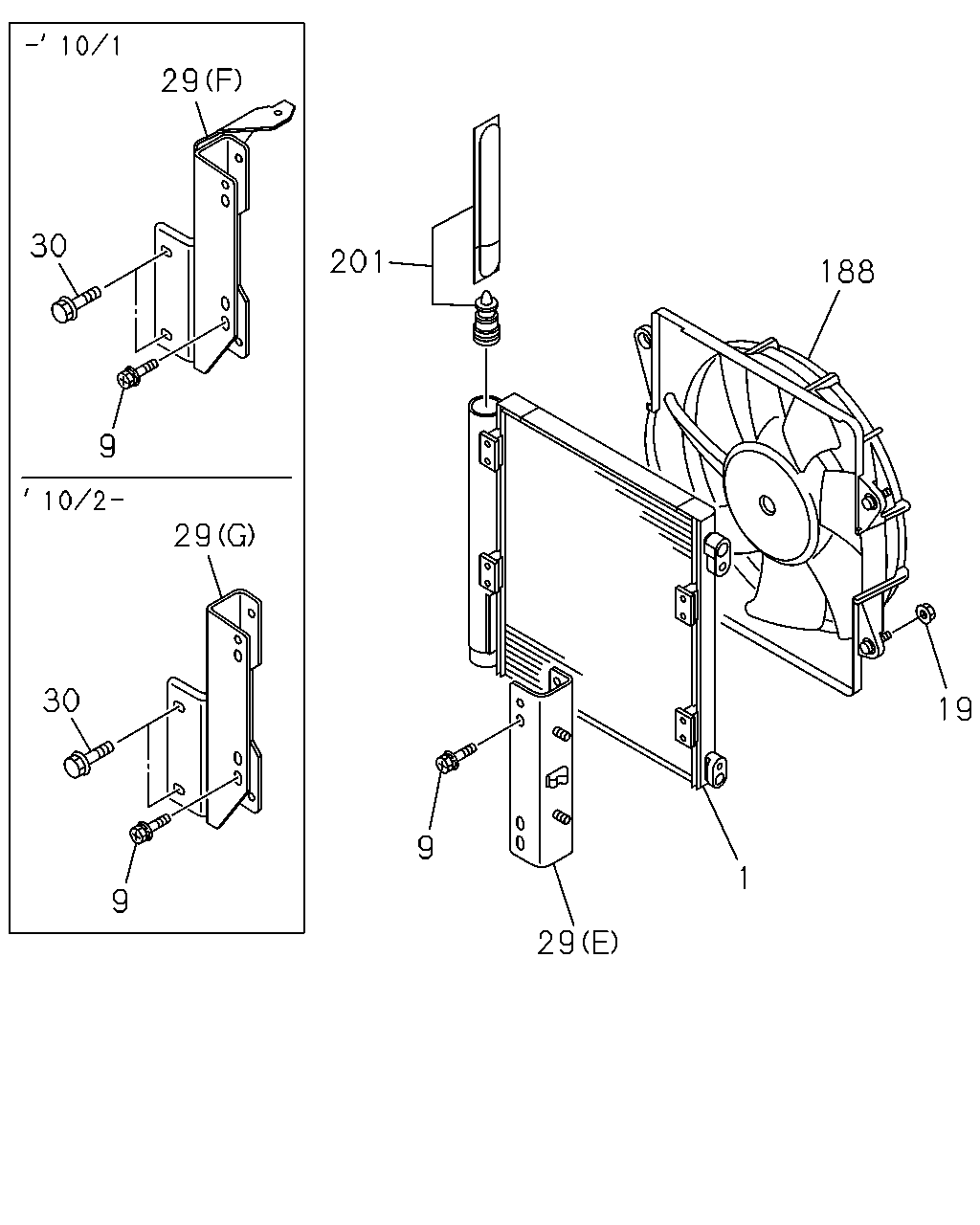

çizim 158384
29 30 29 30 9 9 201 188 19 1 29 9
BalonParca AdiParca NoAdetTipApplied Date
1 09.190 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) 		8-98041-884-0 01 1 0907-
1 09.190 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98041-884-0 01 1 0806-0906
1 09.190 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 		8-98133-042-1 01 1 0907-
9 09.190 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6X14 		1-83539-382-0 12 1 0806-0906
9 09.190 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) M6X14 		8-98041-899-0 08 1 0907-
9 09.190 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) M6X14 		1-83539-382-0 12 1 0907-
19 09.190 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) M6 		1-83539-354-0 04 1 0907-
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (C) 		8-98041-896-1 01 1 0907-
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (D) 		8-98041-897-1 01 1 0907-
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98041-896-1 01 1 0806-0906
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E) 		8-98133-044-0 01 1 0907-
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98041-897-1 01 1 0806-0906
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (F) 		8-98133-045-0 01 1 0907-1001
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (G) 		8-98164-999-0 01 1 1002-
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98042-122-1 01 1 0806-0906
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (A) 		8-98042-122-1 01 1 0907-
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98042-123-1 01 1 0806-0906
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (B) 		8-98042-123-1 01 1 0907-
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1010-
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) 01.060 M8X35 FLANGE 		0-28650-835-0 04 1 0907-
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.060 M8X35 FLANGE 		0-28650-835-0 04 1 0806-0906
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0907-1009
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 1010-
188 09.215 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) 		8-98041-889-0 01 1 0907-
188 09.215 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60) 		8-98041-889-0 01 1 0806-0906
188 09.215 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 		8-98133-043-0 01 1 0907-
201 09.195 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 		1-83535-097-0 01 1 0907-1409
201 09.195 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 		8-98282-482-0 01 1 1410-

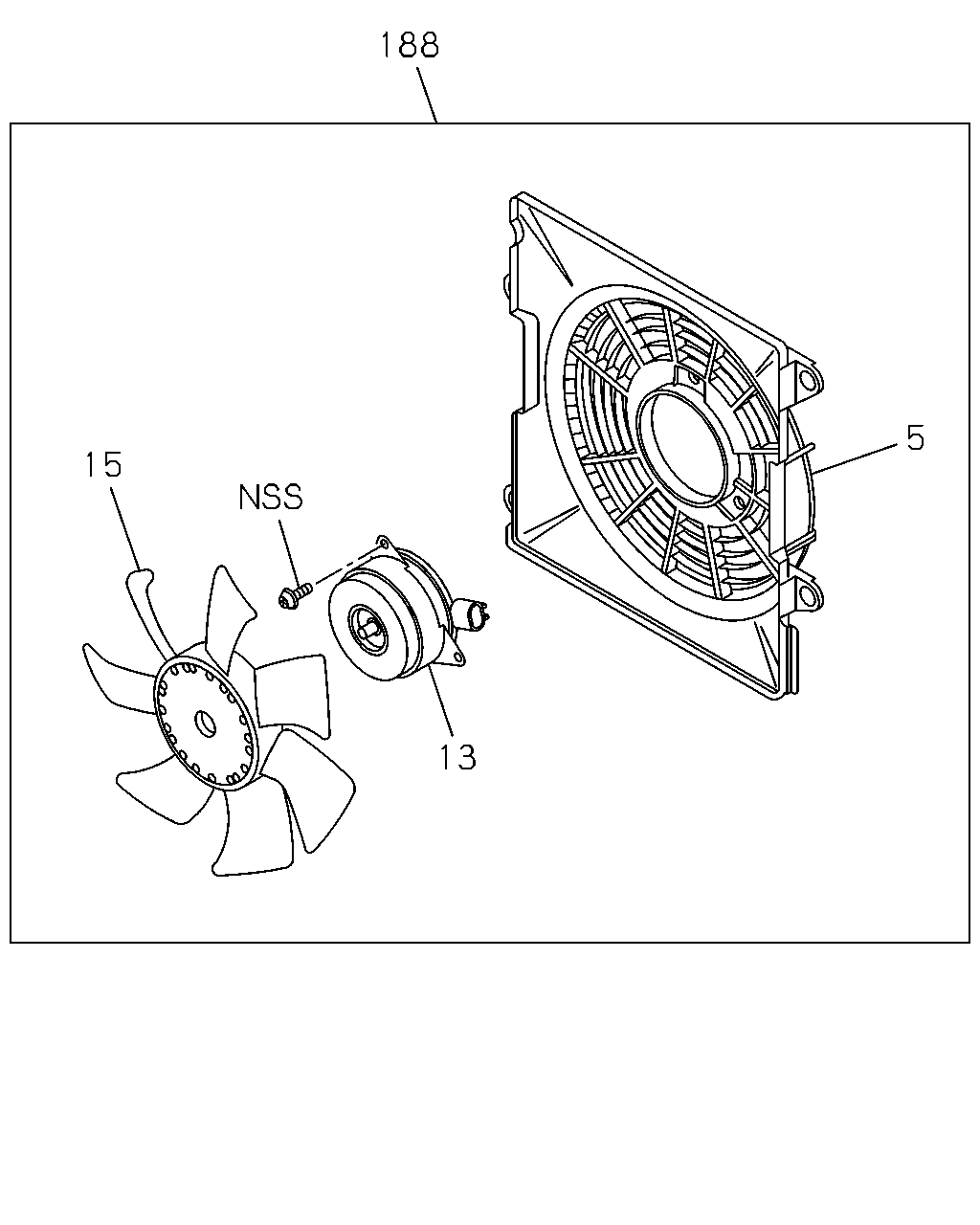

çizim 186082
188 5 15 13
BalonParca AdiParca NoAdetTipApplied Date
5 09.216 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98152-865-0 01 1 0806-0906
5 09.216 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) 		8-98152-865-0 01 1 0907-
13 09.215 MOTOR; FAN
AIR CONDITIONER MANUAL CONT(C60) 		8-98157-044-0 01 1 0806-0906
13 09.215 MOTOR; FAN
AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) 		8-98157-044-0 01 1 0907-
15 09.216 FAN; MOTOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98152-860-0 01 1 0806-0906
15 09.216 FAN; MOTOR
AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) 		8-98152-860-0 01 1 0907-
188 09.215 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) 		8-98041-889-0 01 1 0907-
188 09.215 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60) 		8-98041-889-0 01 1 0806-0906
188 09.215 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 		8-98133-043-0 01 1 0907-
