0-41 — FUEL FILTER AND BRACKET (#7621) — 80 parça

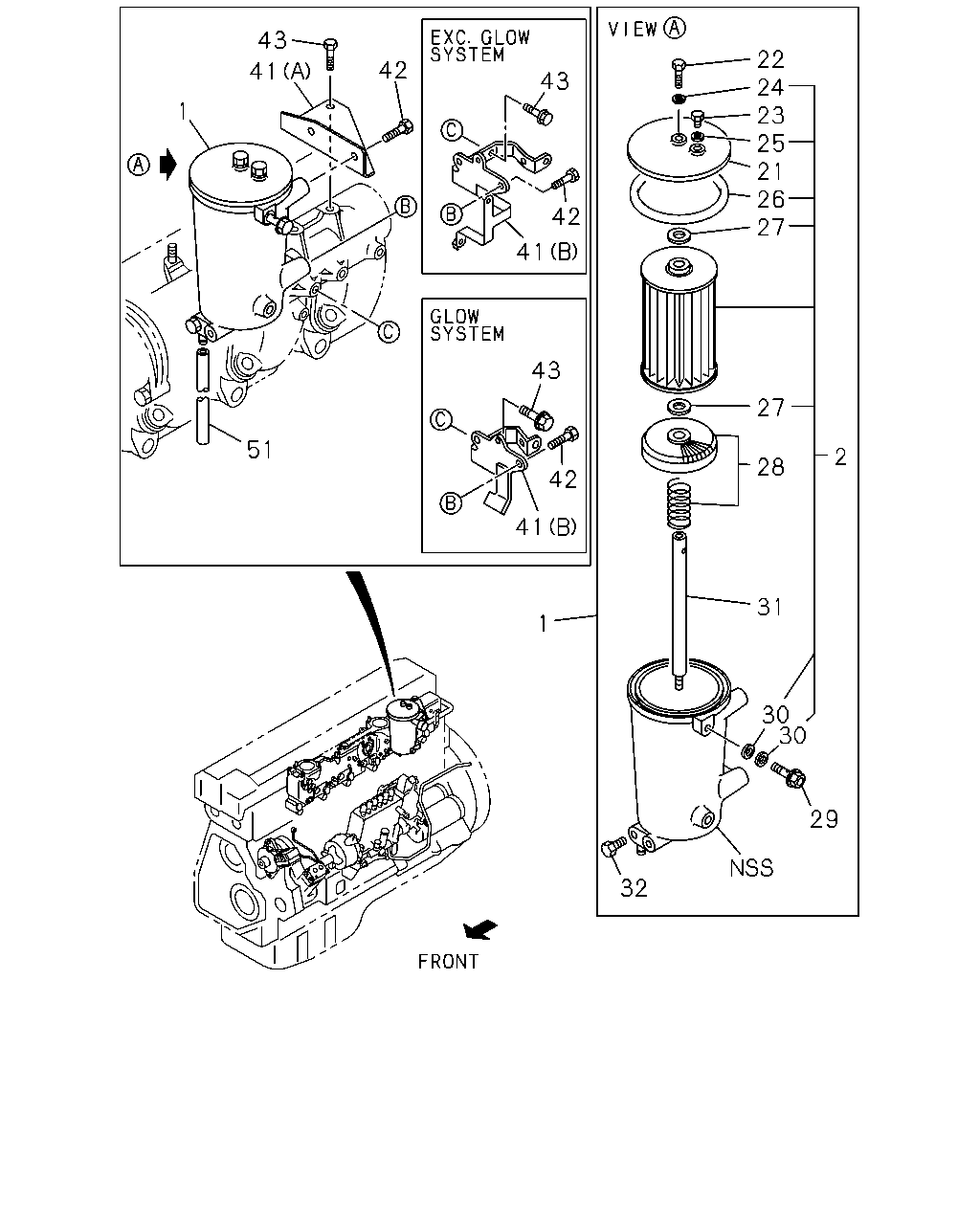

çizim 42676
43 22 24 23 25 21 26 27 42 41 43 1 42 41 43 27 51 2 28 42 41 31 1 30 30 29 32
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 FILTER ASM; FUEL 1-13200-871-2 01 1 9902-9904 ●
1 FILTER ASM; FUEL 1-13200-871-2 01 1 9905-9909 ● ●
1 FILTER ASM; FUEL 1-13200-871-2 01 1 9910-0003 ● ● ●
1 FILTER ASM; FUEL 1-13200-871-3 01 1 0004- ● ● ● ●
2 ELEMENT KIT; FUEL FILTER 1-87810-976-0 01 1 9902-9904 ●
2 ELEMENT KIT; FUEL FILTER 1-87810-976-0 01 1 9905-9909 ● ●
2 ELEMENT KIT; FUEL FILTER 1-87810-976-0 01 1 9910-0003 ● ● ●
2 ELEMENT KIT; FUEL FILTER 1-87810-976-0 01 1 0004- ● ● ● ●
21 COVER; UPR,FUEL FILTER 1-13212-049-1 01 1 9902-9904 ●
21 COVER; UPR,FUEL FILTER 1-13212-049-1 01 1 9905-9909 ● ●
21 COVER; UPR,FUEL FILTER 1-13212-049-1 01 1 9910-0003 ● ● ●
21 COVER; UPR,FUEL FILTER 1-13212-049-1 01 1 0004- ● ● ● ●
22 BOLT; CENTER TUBE,COVER 1-13219-045-0 01 1 9902-9904 ●
22 BOLT; CENTER TUBE,COVER 1-13219-045-0 01 1 9905-9909 ● ●
22 BOLT; CENTER TUBE,COVER 1-13219-045-0 01 1 9910-0003 ● ● ●
22 BOLT; CENTER TUBE,COVER 1-13219-045-0 01 1 0004- ● ● ● ●
23 PLUG; COVER 1-13219-074-0 01 1 9902-9904 ●
23 PLUG; COVER 1-13219-074-0 01 1 9905-9909 ● ●
23 PLUG; COVER 1-13219-074-0 01 1 9910-0003 ● ● ●
23 PLUG; COVER 1-13219-074-0 01 1 0004- ● ● ● ●
24 GASKET; CENTER TUBE BOLT
ID=10.2 OD=15.2 		1-09630-083-0 01 1 9902-9904 ●
24 GASKET; CENTER TUBE BOLT
ID=10.2 OD=15.2 		1-09630-083-0 01 1 9905-9909 ● ●
24 GASKET; CENTER TUBE BOLT
ID=10.2 OD=15.2 		1-09630-083-0 01 1 9910-0003 ● ● ●
24 GASKET; CENTER TUBE BOLT
ID=10.2 OD=15.2 		1-09630-083-0 01 1 0004- ● ● ● ●
25 GASKET; AIR DRAIN PLUG
ID=10.2 OD=15.2 		1-09630-083-0 01 1 9902-9904 ●
25 GASKET; AIR DRAIN PLUG
ID=10.2 OD=15.2 		1-09630-083-0 01 1 9905-9909 ● ●
25 GASKET; AIR DRAIN PLUG
ID=10.2 OD=15.2 		1-09630-083-0 01 1 9910-0003 ● ● ●
25 GASKET; AIR DRAIN PLUG
ID=10.2 OD=15.2 		1-09630-083-0 01 1 0004- ● ● ● ●
26 GASKET; COVER TO BODY 9-09720-797-0 01 1 9902-9904 ●
26 GASKET; COVER TO BODY 9-09720-797-0 01 1 9905-9909 ● ●
26 GASKET; COVER TO BODY 9-09720-797-0 01 1 9910-0003 ● ● ●
26 GASKET; COVER TO BODY 9-09720-797-0 01 1 0004- ● ● ● ●
27 GASKET; ELEMENT 1-09630-007-0 02 1 9902-9904 ●
27 GASKET; ELEMENT 1-09630-007-0 02 1 9905-9909 ● ●
27 GASKET; ELEMENT 1-09630-007-0 02 1 9910-0003 ● ● ●
27 GASKET; ELEMENT 1-09630-007-0 02 1 0004- ● ● ● ●
28 STRAINER; WATER,FUEL FILTER 1-13251-001-0 01 1 9902-9904 ●
28 STRAINER; WATER,FUEL FILTER 1-13251-001-0 01 1 9905-9909 ● ●
28 STRAINER; WATER,FUEL FILTER 1-13251-001-0 01 1 9910-0003 ● ● ●
28 STRAINER; WATER,FUEL FILTER 1-13251-001-0 01 1 0004- ● ● ● ●
29 VALVE; OVERFLOW 1-13260-074-0 01 1 9902-9904 ●
29 VALVE; OVERFLOW 1-13260-074-0 01 1 9905-9909 ● ●
29 VALVE; OVERFLOW 1-13260-074-0 01 1 9910-0003 ● ● ●
29 VALVE; OVERFLOW 1-13260-074-0 01 1 0004- ● ● ● ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9902-9904 ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9905-9909 ● ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9910-0003 ● ● ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0004- ● ● ● ●
31 TUBE; CENTER BOLT 1-13231-026-0 01 1 9902-9904 ●
31 TUBE; CENTER BOLT 1-13231-026-0 01 1 9905-9909 ● ●
31 TUBE; CENTER BOLT 1-13231-026-0 01 1 9910-0003 ● ● ●
31 TUBE; CENTER BOLT 1-13231-026-0 01 1 0004- ● ● ● ●
32 BOLT; DRAIN,FUEL FILTER 1-13219-030-0 01 1 9902-9904 ●
32 BOLT; DRAIN,FUEL FILTER 1-13219-030-0 01 1 9905-9909 ● ●
32 BOLT; DRAIN,FUEL FILTER 1-13219-030-0 01 1 9910-0003 ● ● ●
32 BOLT; DRAIN,FUEL FILTER 1-13219-030-0 01 1 0004- ● ● ● ●
41 BRACKET; FUEL FILTER
(A) 		1-13219-282-0 01 1 9902-9904 ●
41 BRACKET; FUEL FILTER
(A) 		1-13219-282-0 01 1 9905-9909 ● ●
41 BRACKET; FUEL FILTER
(A) 		1-13219-282-0 01 1 9910-0003 ● ● ●
41 BRACKET; FUEL FILTER
(A) 		1-13219-282-0 01 1 0004- ● ● ● ●
41 BRACKET; FUEL FILTER
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-13219-301-1 01 1 9902-9904 ●
41 BRACKET; FUEL FILTER
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-13219-301-1 01 1 9905-9909 ●
41 BRACKET; FUEL FILTER
(B) 		1-13219-301-1 01 1 9905-9909 ●
41 BRACKET; FUEL FILTER
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-13219-301-1 01 1 9910-0003 ●
41 BRACKET; FUEL FILTER
(B) 		1-13219-301-1 01 1 9910-0003 ● ●
41 BRACKET; FUEL FILTER
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-13219-301-2 01 1 0004- ●
41 BRACKET; FUEL FILTER
(B) 		1-13219-301-2 01 1 0004- ● ● ●
41 BRACKET; FUEL FILTER
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-13219-354-0 01 1 9902- ●
42 BOLT; FUEL FILTER
M10X20 FLANGE 		0-28081-020-0 04 1 9902-9904 ●
42 BOLT; FUEL FILTER
M10X20 FLANGE 		0-28081-020-0 04 1 9905-9909 ● ●
42 BOLT; FUEL FILTER
M10X20 FLANGE 		0-28081-020-0 04 1 9910-0003 ● ● ●
42 BOLT; FUEL FILTER
M10X20 FLANGE 		0-28081-020-0 04 1 0004- ● ● ● ●
43 BOLT; BRKT
M10X20 FLANGE 		0-28181-020-0 04 1 9902-9904 ●
43 BOLT; BRKT
M10X20 FLANGE 		0-28181-020-0 04 1 9905-9909 ● ●
43 BOLT; BRKT
M10X20 FLANGE 		0-28181-020-0 04 1 9910-0003 ● ● ●
43 BOLT; BRKT
M10X20 FLANGE 		0-28181-020-0 04 1 0004- ● ● ● ●
51 PIPE; VINYL
L=750 SERVICED BY L=10000 		9-09914-909-0 01 1 9902-9904 ●
51 PIPE; VINYL
L=750 SERVICED BY L=10000 		9-09914-909-0 01 1 9905-9909 ● ●
51 PIPE; VINYL
L=750 SERVICED BY L=10000 		9-09914-909-0 01 1 9910-0003 ● ● ●
51 PIPE; VINYL
L=750 SERVICED BY L=10000 		9-09914-909-0 01 1 0004- ● ● ● ●
