◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51176 - NLS(EUROPE)RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#76204) — 35 parça

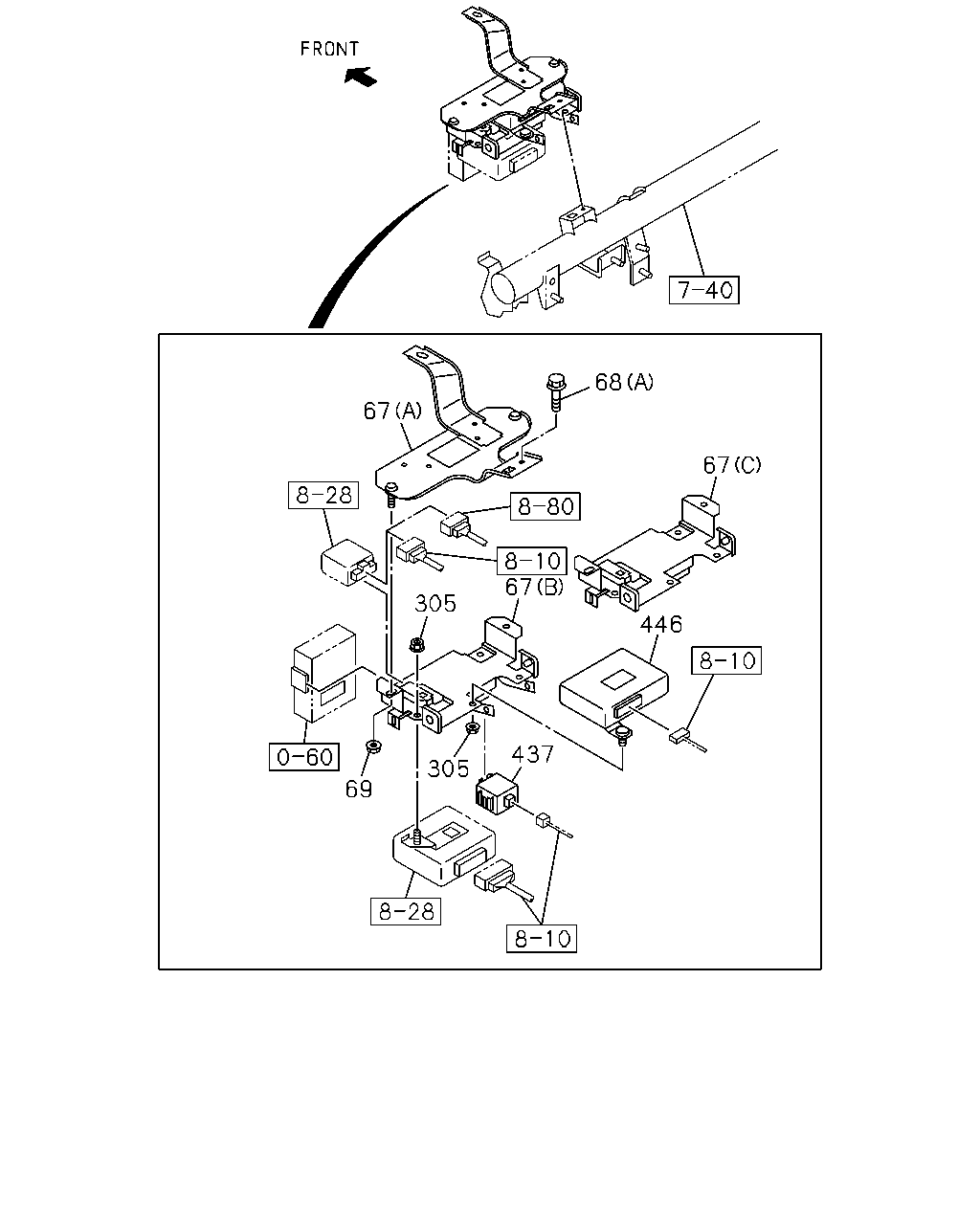

çizim 138413
67 68 67 305 446 61 437 305 69
BalonParca AdiParca NoAdetTipApplied Date
67 03.887 BRACKET; CONT UNIT
CAN INTERFACE FMS STD<8PG> (D) 		8-98203-991-0 01 1 1205-1208
67 03.887 BRACKET; CONT UNIT
CAN INTERFACE FMS STD<8PG> (E) 		8-98222-208-0 01 1 1209-
67 03.887 BRACKET; CONT UNIT
(A) 		8-98022-170-1 01 1 0806-
67 03.887 BRACKET; CONT UNIT
(B) 		8-98022-206-2 01 1 0806-1111
67 03.887 BRACKET; CONT UNIT
(C) 		8-98203-057-0 01 1 1112-1207
67 03.887 BRACKET; CONT UNIT
(C) 		8-98217-377-0 01 1 1208-1212
67 03.887 BRACKET; CONT UNIT
(C) 		8-98237-555-0 01 1 1301-1404
67 03.887 BRACKET; CONT UNIT
(C) 		8-98217-377-0 01 1 1405-
68 02.500 BOLT; BRKT
CAN INTERFACE FMS STD<8PG> 16.100 (B) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1205-1212
68 02.500 BOLT; BRKT
CAN INTERFACE FMS STD<8PG> 09.647 (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301-
68 02.500 BOLT; BRKT
00.206 (A) M6X12 FLANGE 		0-28450-612-0 01 1 1002-
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0806-
305 08.915 NUT; CONT UNIT
01.062 M6 FLANGE 		0-91180-106-0 01 1 0806-
305 08.915 NUT; CONT UNIT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0806-
437 10.485 CONVERTER; DC
KOITO 		8-97359-129-0 01 1 0806-
446 02.510 CONTROL UNIT; HSA 8-98046-563-1 01 1 0806-
çizim 138423
1 3 744 448 21
BalonParca AdiParca NoAdetTipApplied Date
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0806-0906
1 09.709 LIGHTER; CIGAR 8-98142-962-0 01 1 0907-
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0806-0906
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 02 1 0806-
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 M6X18 W/PL WASHER 		8-97105-796-1 02 1 0806-
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER<AK5> 		8-97386-841-2 01 1 0806-

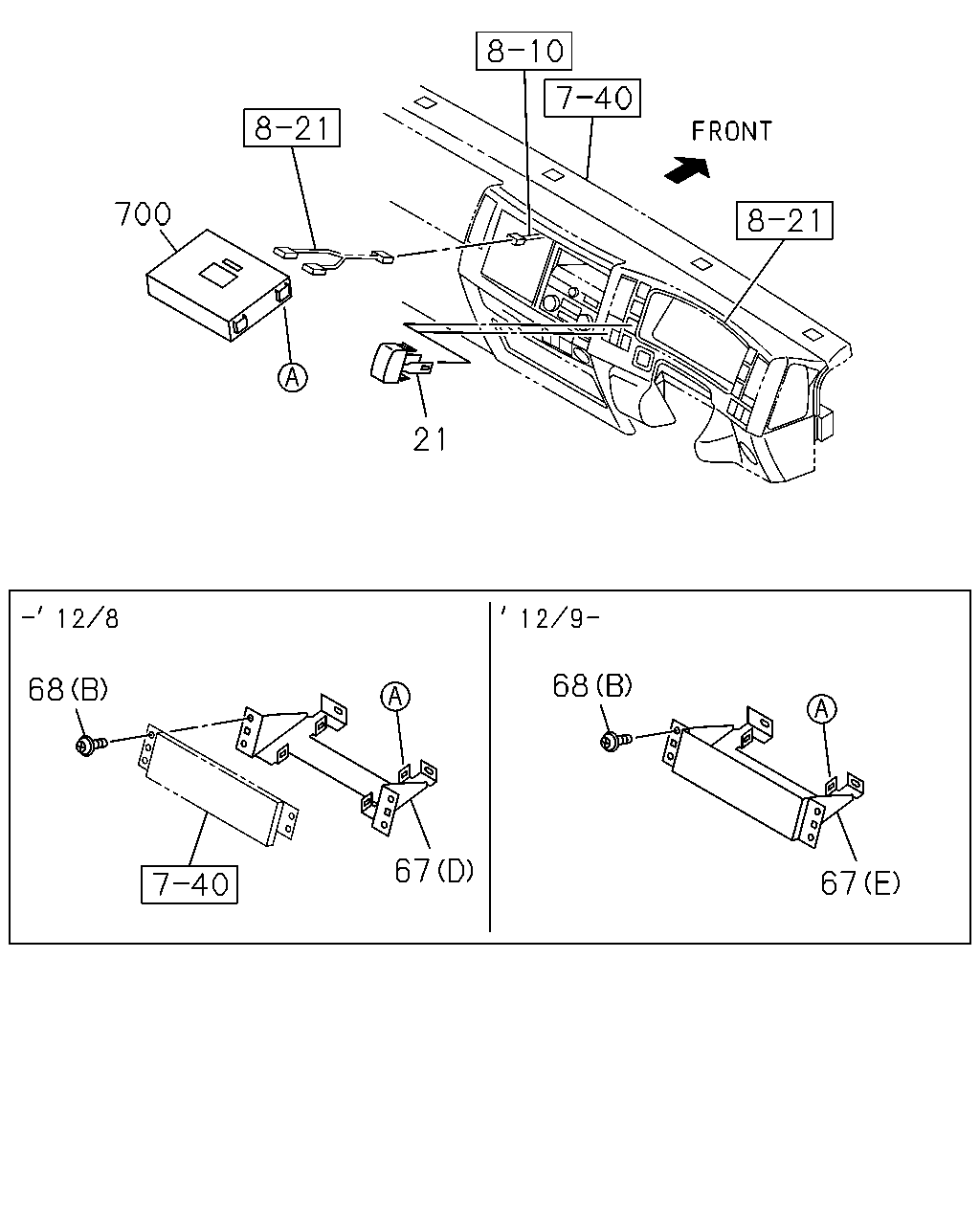

çizim 288820
68 67 68 67 21 700
BalonParca AdiParca NoAdetTipApplied Date
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 02 1 0806-
67 03.887 BRACKET; CONT UNIT
CAN INTERFACE FMS STD<8PG> (D) 		8-98203-991-0 01 1 1205-1208
67 03.887 BRACKET; CONT UNIT
CAN INTERFACE FMS STD<8PG> (E) 		8-98222-208-0 01 1 1209-
67 03.887 BRACKET; CONT UNIT
(A) 		8-98022-170-1 01 1 0806-
67 03.887 BRACKET; CONT UNIT
(B) 		8-98022-206-2 01 1 0806-1111
67 03.887 BRACKET; CONT UNIT
(C) 		8-98203-057-0 01 1 1112-1207
67 03.887 BRACKET; CONT UNIT
(C) 		8-98217-377-0 01 1 1208-1212
67 03.887 BRACKET; CONT UNIT
(C) 		8-98237-555-0 01 1 1301-1404
67 03.887 BRACKET; CONT UNIT
(C) 		8-98217-377-0 01 1 1405-
68 02.500 BOLT; BRKT
CAN INTERFACE FMS STD<8PG> 16.100 (B) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1205-1212
68 02.500 BOLT; BRKT
CAN INTERFACE FMS STD<8PG> 09.647 (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301-
68 02.500 BOLT; BRKT
00.206 (A) M6X12 FLANGE 		0-28450-612-0 01 1 1002-
700 02.510 CONTROL UNIT; CAN CONVERTER
CAN INTERFACE FMS STD<8PG> 		8-98219-812-1 01 1 1205-
