◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51176 - NLS(EUROPE)RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#76202) — 23 parça

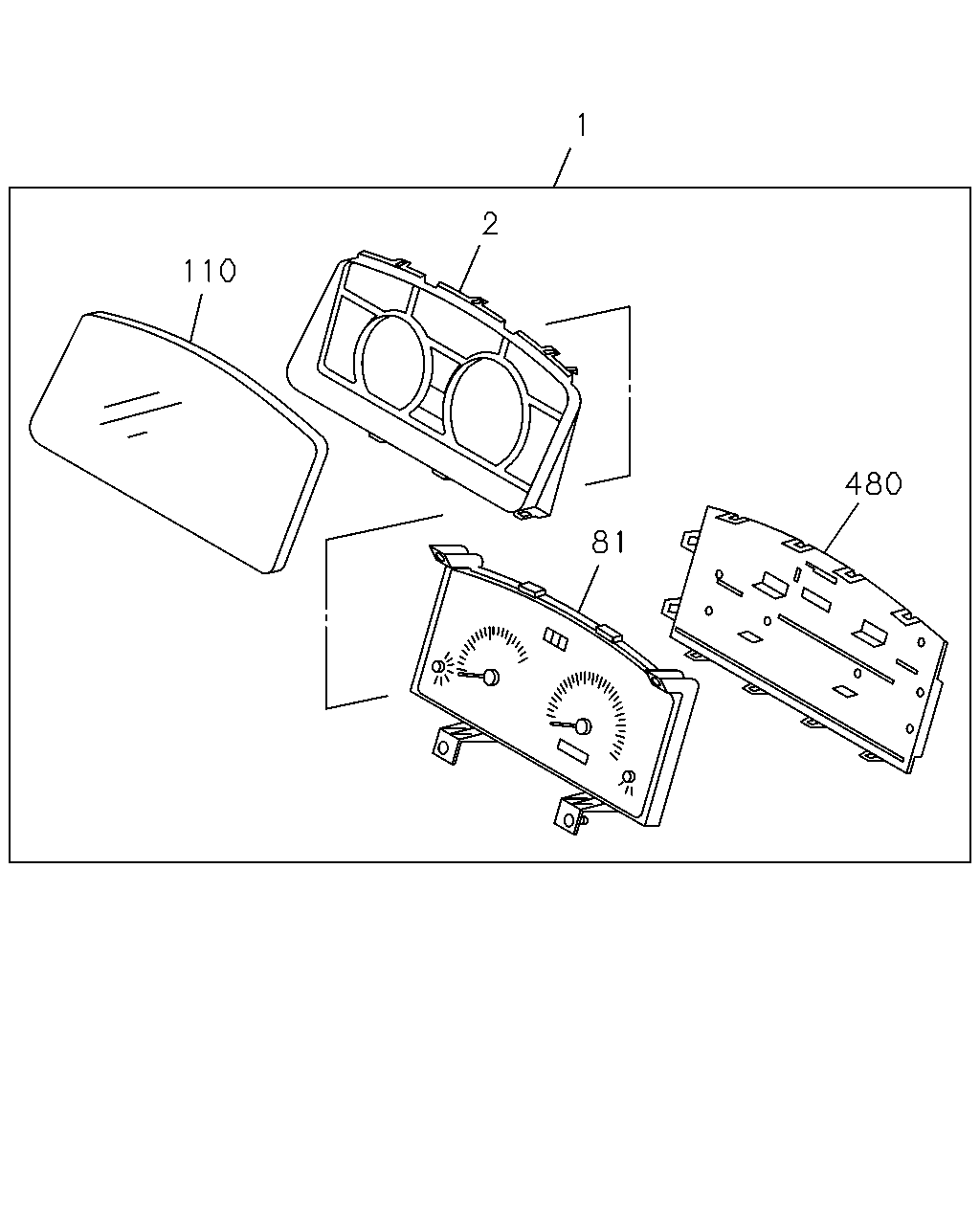

çizim 137762
1 2 110 480 81
BalonParca AdiParca NoAdetTipApplied Date
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> 		8-98096-962-2 01 1 0806-0809
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> 		8-98126-676-3 01 1 0810-
1 09.735 METER COMPL; CLUSTER
EXC. SPEEDOMETER MILE<UC1> 		8-98096-900-4 01 1 0806-
2 09.735 PANEL; CLUSTER 8-98054-432-0 01 1 0806-
81 09.735 METER SUB ASM
SPEEDOMETER MILE<UC1> 		8-98096-966-0 01 1 0806-0809
81 09.735 METER SUB ASM
SPEEDOMETER MILE<UC1> 		8-98126-833-0 01 1 0810-
81 09.735 METER SUB ASM
EXC. SPEEDOMETER MILE<UC1> 		8-98096-965-0 01 1 0806-
110 09.748 GLASS; CLUSTER METER 8-98054-431-0 01 1 0806-
480 09.748 COVER; METER
BLACK 		8-98054-433-0 01 1 0806-

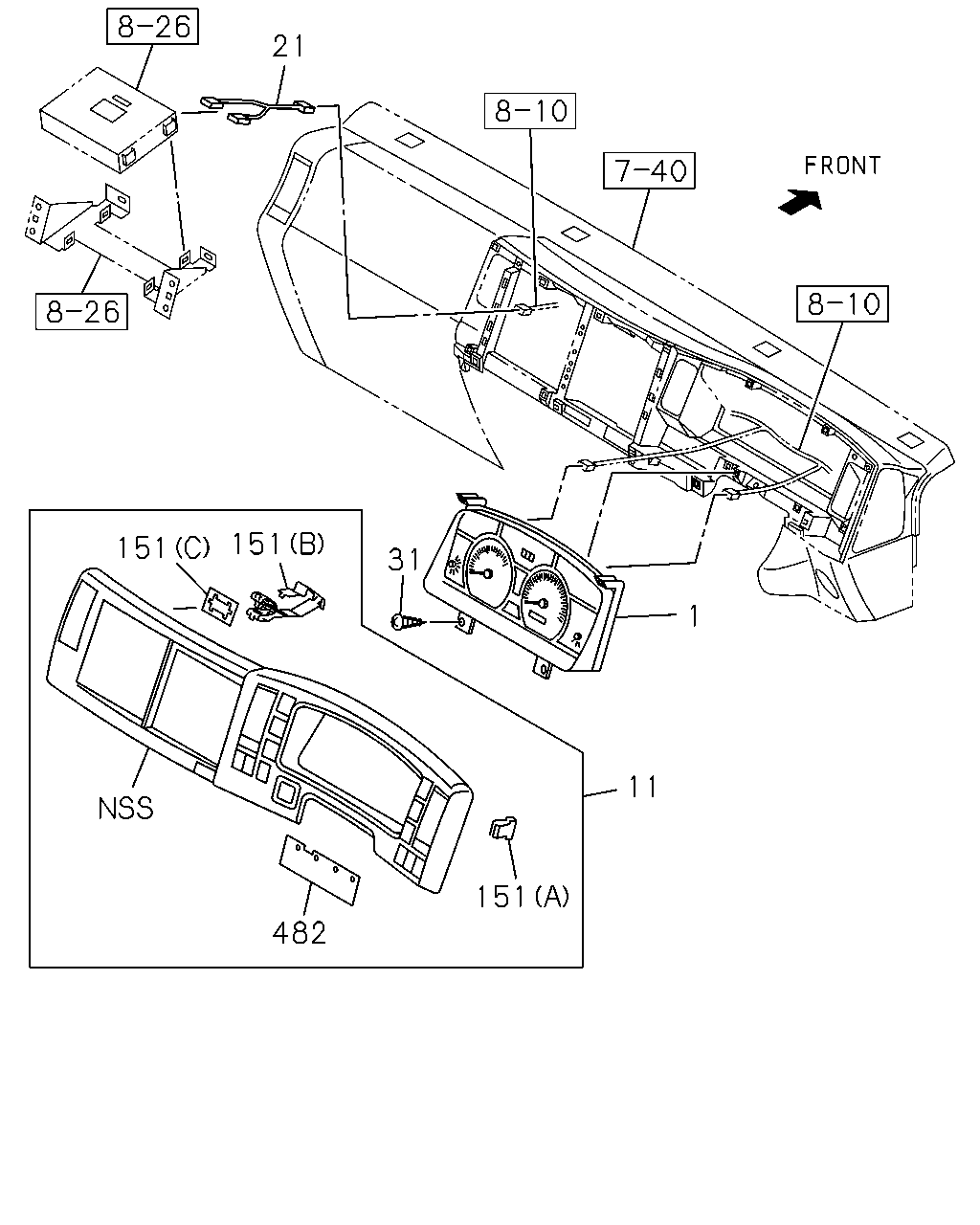

çizim 186065
482 151 11 1 31 151 151 21
BalonParca AdiParca NoAdetTipApplied Date
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> 		8-98096-962-2 01 1 0806-0809
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> 		8-98126-676-3 01 1 0810-
1 09.735 METER COMPL; CLUSTER
EXC. SPEEDOMETER MILE<UC1> 		8-98096-900-4 01 1 0806-
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-5 01 1 0806-1001
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97418-532-1 01 1 1002-
21 09.743 HARNESS; TACHOGRAPH
CAN INTERFACE FMS STD<8PG> 		8-98204-881-1 01 1 1205-
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0806-1101
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301-
151 09.747 CLIP; METER CLUSTER
16.090 (B) 		8-98152-030-0 01 1 1002-
151 09.747 CLIP; METER CLUSTER
16.090 (C) 		8-98152-031-0 01 1 1002-
151 09.747 CLIP; METER CLUSTER
16.085 (A) 		8-98021-271-0 13 1 0806-1001
151 09.747 CLIP; METER CLUSTER
16.085 (A) 		8-98021-271-0 12 1 1002-
482 09.772 SEAL; CLUSTER METER 8-98116-842-0 01 1 0806-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
