Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#76201) — 197 parça

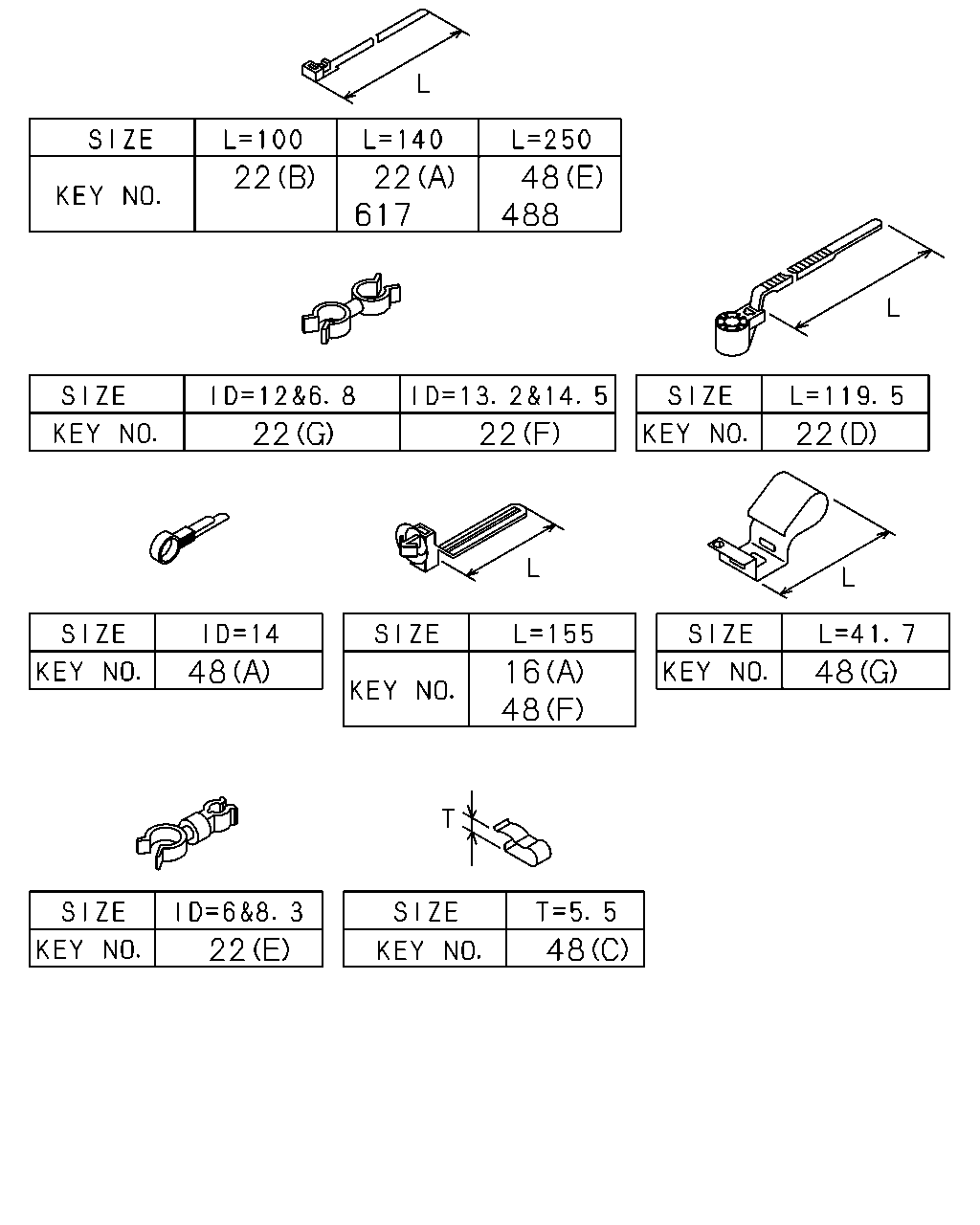

22 22 617 48 488 22 22 22 48 16 48 48 22 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0806-
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	0806-
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0806-
16	02.559 CLIP; HARNESS (F) L=40.6	8-97229-357-0	02	1	0806-
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	02	1	0806-
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	0806-
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (G) ID=6 & 10	8-94154-844-0	01	1	0806-
22	02.559 CLIP; ENG HARNESS 02.343 (D) L=119.5	1-09707-197-0	01	1	0806-
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0806-0905
22	02.559 CLIP; ENG HARNESS KD PREPARATORY PACK<6HF> 03.162 (A) L=140	5-09707-031-1	01	1	0806-0905
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0906-0906
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0907-0911
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> 03.162 (A) L=140	5-09707-031-1	01	1	0907-0911
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> 03.162 (A) L=140	5-09707-031-1	01	1	0907-0911
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0912-
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 03.162 (A) L=140	5-09707-031-1	01	1	0912-
22	02.559 CLIP; ENG HARNESS 04.594 (B) L=100	5-09707-036-1	01	1	0806-
22	02.559 CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	0806-
22	02.559 CLIP; ENG HARNESS KD PREPARATORY PACK<6HF> 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0806-0905
22	02.559 CLIP; ENG HARNESS 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0906-0906
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0907-0911
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0907-0911
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0912-
22	02.559 CLIP; ENG HARNESS KD PREPARATORY PACK<6HF> 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0806-0905
22	02.559 CLIP; ENG HARNESS 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0906-0906
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0907-0911
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0907-0911
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0912-
22	02.559 CLIP; ENG HARNESS KD PREPARATORY PACK<6HF> 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0806-0905
22	02.559 CLIP; ENG HARNESS 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0906-0906
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0907-0911
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0907-0911
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0912-
48	02.559 CLIP; FRAME HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) (F) L=155	8-97173-307-0	01	1	0806-0906
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) EXC. AIR CONDITIONER MANUAL CONT(C60) (F) L=155	8-97173-307-0	01	1	0907-
48	02.559 CLIP; FRAME HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) (G)	8-98003-923-0	01	1	0806-0807
48	02.559 CLIP; FRAME HARNESS (E) L=250	5-09707-030-1	02	1	0806-0906
48	02.559 CLIP; FRAME HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) (E) L=250	5-09707-030-1	02	1	0806-0906
48	02.559 CLIP; FRAME HARNESS (E) L=250	5-09707-030-1	02	1	0907-
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) EXC. AIR CONDITIONER MANUAL CONT(C60) (E) L=250	5-09707-030-1	02	1	0907-
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	09	1	0806-0904
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	08	1	0905-
48	02.559 CLIP; FRAME HARNESS 06.525 (D) ID=5-12 L=18	1-09709-287-0	01	1	0806-
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	02	1	0806-0906
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) 01.240 (A) ID=14 L=47	5-09700-319-0	02	1	0907-
48	02.559 CLIP; FRAME HARNESS (B) ID=20	8-94241-972-0	01	1	0806-
48	02.559 CLIP; FRAME HARNESS (C) T=5.5	8-97371-951-0	01	1	0806-
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	04	1	0806-
617	02.559 STRAP; BAND 03.162 L=140	5-09707-031-1	01	1	1012-1106

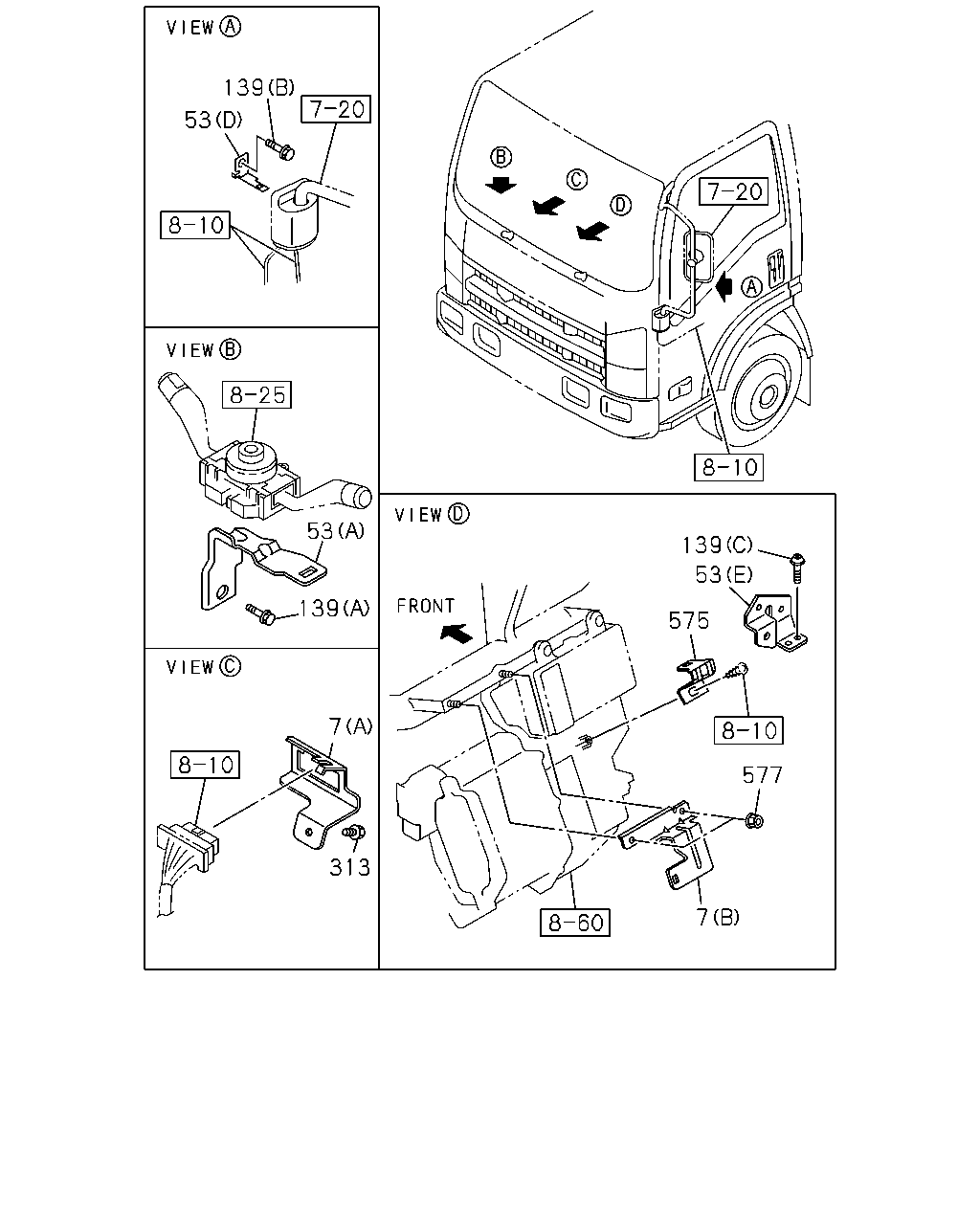

139 53 53 139 53 139 575 7 577 313 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	02.559 BRACKET; CONNECTOR (B)	8-98029-762-4	01	1	0806-
7	02.559 BRACKET; CONNECTOR (A)	8-98043-070-1	01	1	0806-
53	02.483 BRACKET; HARNESS EURO5 SPECIFICATION(NT5) (G)	8-98122-564-0	01	1	0907-
53	02.483 BRACKET; HARNESS (F)	8-98033-938-2	01	1	0806-
53	02.483 BRACKET; HARNESS (D)	8-98039-277-1	02	1	0806-0806
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (D)	8-98039-277-2	02	1	0806-
53	02.483 BRACKET; HARNESS (C)	8-98039-984-2	01	1	0806-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0806-
53	02.483 BRACKET; HARNESS (B)	8-98052-900-1	01	1	0806-
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98084-590-0	01	1	0806-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0806-
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0806-0806
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0806-
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0806-1101
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0806-
575	02.559 BRACKET; FUSE BOX	8-98042-656-2	01	1	0806-
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	0806-
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	0806-

460 480 313 481 38 139 516 139 481 480 529 377 377 377 386 377 386 386 386 139 24 219 469 515 577 219 294 524 552 519 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.559 NUT; HARNESS 01.062 M6 FLANGE	0-91180-106-0	01	1	0806-1409
24	02.559 NUT; HARNESS M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-
38	02.559 BOLT; CLIP,HARNESS KD PREPARATORY PACK<6HF> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0806-0905
38	02.559 BOLT; CLIP,HARNESS 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0906-0906
38	02.559 BOLT; CLIP,HARNESS EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0907-0911
38	02.559 BOLT; CLIP,HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0907-0911
38	02.559 BOLT; CLIP,HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0912-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0806-
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0806-0806
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0806-
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0806-1101
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
219	02.559 NUT AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0806-0906
219	02.559 NUT AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0907-
219	02.559 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0806-
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	0806-
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0806-
377	02.559 BOLT; CAB EARTH (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0806-1004
377	02.559 BOLT; CAB EARTH 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1005-
377	02.559 BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0806-1004
377	02.559 BOLT; CAB EARTH (D) M6X14 W/PL WASHER	8-98164-836-0	01	1	1005-
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0806-0904
386	02.559 BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0806-1004
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0806-0904
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0905-1004
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0905-1004
386	02.559 BOLT; GRAND HARNESS 02.343 (D) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-
386	02.559 BOLT; GRAND HARNESS 02.343 (D) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-
460	02.559 BOLT; HARNESS PROTECTOR AIR CONDITIONER MANUAL CONT(C60) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0806-0906
460	02.559 BOLT; HARNESS PROTECTOR AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0907-
469	02.559 NUT; PROTECTOR EURO5 SPECIFICATION(NT5) 01.062 M6 FLANGE	0-91180-106-0	01	1	0907-
480	02.483 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0806-0906
480	02.483 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0907-
480	02.483 BOLT; BRKT EURO5 SPECIFICATION(NT5) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0907-
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0806-
481	13.090 BOLT; CABLE HARNESS 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0806-0903
481	13.090 BOLT; CABLE HARNESS 04.665 (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	0806-
515	02.559 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	0806-
516	02.559 BOLT; HARNESS KD PREPARATORY PACK<6HF> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0806-0905
516	02.559 BOLT; HARNESS 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0906-0906
516	02.559 BOLT; HARNESS EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0907-0911
516	02.559 BOLT; HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0907-0911
516	02.559 BOLT; HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0912-
519	02.559 NUT; EARTH CABLE 03.162 M10 FLANGE	0-91180-110-0	01	1	0806-
524	02.559 NUT; HARNESS 01.062 M8 FLANGE	0-91180-108-0	01	1	0904-
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	0806-
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0806-
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0806-
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	0806-
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	0806-

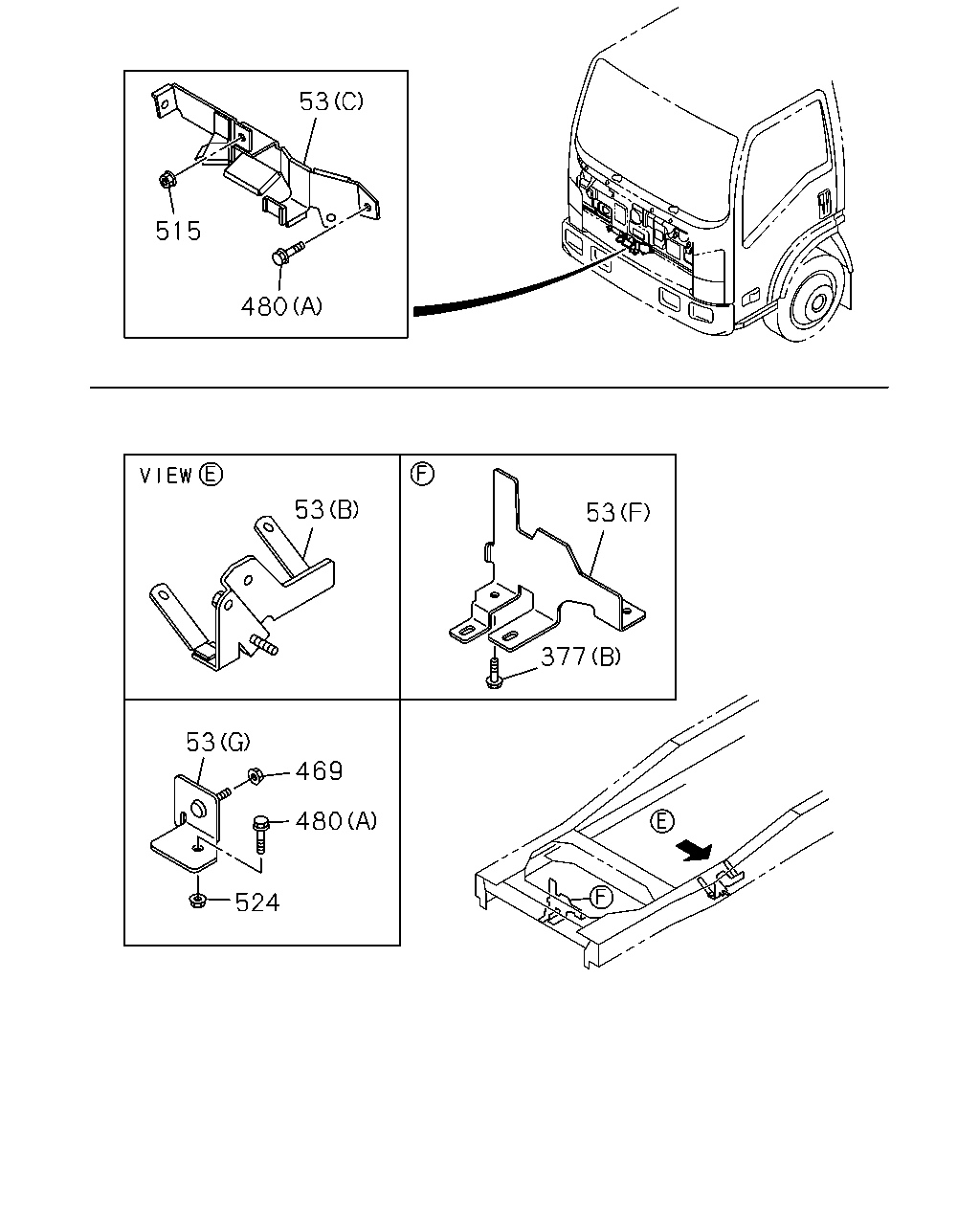

53 515 480 53 53 377 53 469 480 524

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	02.483 BRACKET; HARNESS EURO5 SPECIFICATION(NT5) (G)	8-98122-564-0	01	1	0907-
53	02.483 BRACKET; HARNESS (F)	8-98033-938-2	01	1	0806-
53	02.483 BRACKET; HARNESS (D)	8-98039-277-1	02	1	0806-0806
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (D)	8-98039-277-2	02	1	0806-
53	02.483 BRACKET; HARNESS (C)	8-98039-984-2	01	1	0806-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0806-
53	02.483 BRACKET; HARNESS (B)	8-98052-900-1	01	1	0806-
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98084-590-0	01	1	0806-
377	02.559 BOLT; CAB EARTH (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0806-1004
377	02.559 BOLT; CAB EARTH 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1005-
377	02.559 BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0806-1004
377	02.559 BOLT; CAB EARTH (D) M6X14 W/PL WASHER	8-98164-836-0	01	1	1005-
469	02.559 NUT; PROTECTOR EURO5 SPECIFICATION(NT5) 01.062 M6 FLANGE	0-91180-106-0	01	1	0907-
480	02.483 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0806-0906
480	02.483 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0907-
480	02.483 BOLT; BRKT EURO5 SPECIFICATION(NT5) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0907-
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0806-
515	02.559 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	0806-
524	02.559 NUT; HARNESS 01.062 M8 FLANGE	0-91180-108-0	01	1	0904-

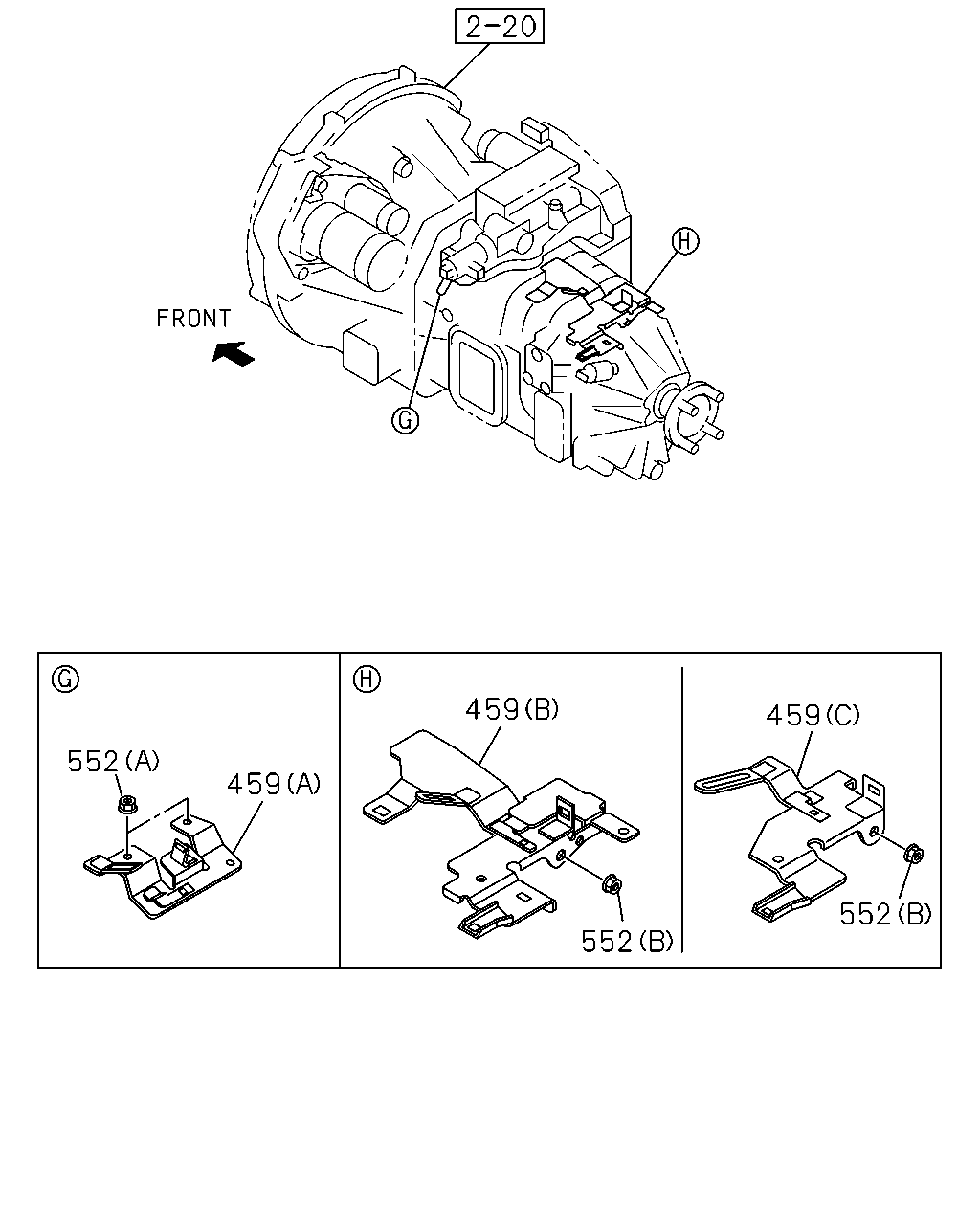

459 459 552 459 552 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
459	02.483 BRACKET; SUPPORT,HARNESS (A)	8-98020-227-3	01	1	0806-
459	02.483 BRACKET; SUPPORT,HARNESS (B)	8-98030-990-2	01	1	0806-1109
459	02.483 BRACKET; SUPPORT,HARNESS (C)	8-98196-974-0	01	1	1110-
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0806-
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0806-

16 48 16 16 16 16 22 504 513 513 16 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0806-
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	0806-
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0806-
16	02.559 CLIP; HARNESS (F) L=40.6	8-97229-357-0	02	1	0806-
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	02	1	0806-
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	0806-
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (G) ID=6 & 10	8-94154-844-0	01	1	0806-
22	02.559 CLIP; ENG HARNESS 02.343 (D) L=119.5	1-09707-197-0	01	1	0806-
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0806-0905
22	02.559 CLIP; ENG HARNESS KD PREPARATORY PACK<6HF> 03.162 (A) L=140	5-09707-031-1	01	1	0806-0905
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0906-0906
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0907-0911
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> 03.162 (A) L=140	5-09707-031-1	01	1	0907-0911
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> 03.162 (A) L=140	5-09707-031-1	01	1	0907-0911
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0912-
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 03.162 (A) L=140	5-09707-031-1	01	1	0912-
22	02.559 CLIP; ENG HARNESS 04.594 (B) L=100	5-09707-036-1	01	1	0806-
22	02.559 CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	0806-
22	02.559 CLIP; ENG HARNESS KD PREPARATORY PACK<6HF> 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0806-0905
22	02.559 CLIP; ENG HARNESS 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0906-0906
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0907-0911
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0907-0911
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0912-
22	02.559 CLIP; ENG HARNESS KD PREPARATORY PACK<6HF> 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0806-0905
22	02.559 CLIP; ENG HARNESS 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0906-0906
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0907-0911
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0907-0911
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0912-
22	02.559 CLIP; ENG HARNESS KD PREPARATORY PACK<6HF> 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0806-0905
22	02.559 CLIP; ENG HARNESS 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0906-0906
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0907-0911
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0907-0911
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0912-
48	02.559 CLIP; FRAME HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) (F) L=155	8-97173-307-0	01	1	0806-0906
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) EXC. AIR CONDITIONER MANUAL CONT(C60) (F) L=155	8-97173-307-0	01	1	0907-
48	02.559 CLIP; FRAME HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) (G)	8-98003-923-0	01	1	0806-0807
48	02.559 CLIP; FRAME HARNESS (E) L=250	5-09707-030-1	02	1	0806-0906
48	02.559 CLIP; FRAME HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) (E) L=250	5-09707-030-1	02	1	0806-0906
48	02.559 CLIP; FRAME HARNESS (E) L=250	5-09707-030-1	02	1	0907-
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) EXC. AIR CONDITIONER MANUAL CONT(C60) (E) L=250	5-09707-030-1	02	1	0907-
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	09	1	0806-0904
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	08	1	0905-
48	02.559 CLIP; FRAME HARNESS 06.525 (D) ID=5-12 L=18	1-09709-287-0	01	1	0806-
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	02	1	0806-0906
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) 01.240 (A) ID=14 L=47	5-09700-319-0	02	1	0907-
48	02.559 CLIP; FRAME HARNESS (B) ID=20	8-94241-972-0	01	1	0806-
48	02.559 CLIP; FRAME HARNESS (C) T=5.5	8-97371-951-0	01	1	0806-
504	02.559 PROTECTOR; HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98208-886-0	01	1	1201-
513	02.559 TAPE; SOFT,HARNESS (B) 70X45	8-97304-372-0	01	1	0907-1309
513	02.559 TAPE; SOFT,HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 130X80	8-97304-373-0	01	1	0808-1204
513	02.559 TAPE; SOFT,HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 130X80	8-97304-373-0	01	1	1205-
513	02.559 TAPE; SOFT,HARNESS (A) 130X80	8-97304-373-0	01	1	1205-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
