Isuzu WW
▶
TRUCKS
▶
NLS
▶
51176 - NLS(EUROPE)RHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-50 - FRONT SEAT
▶
7-50 — FRONT SEAT
(#76195) — 47 parça
◀

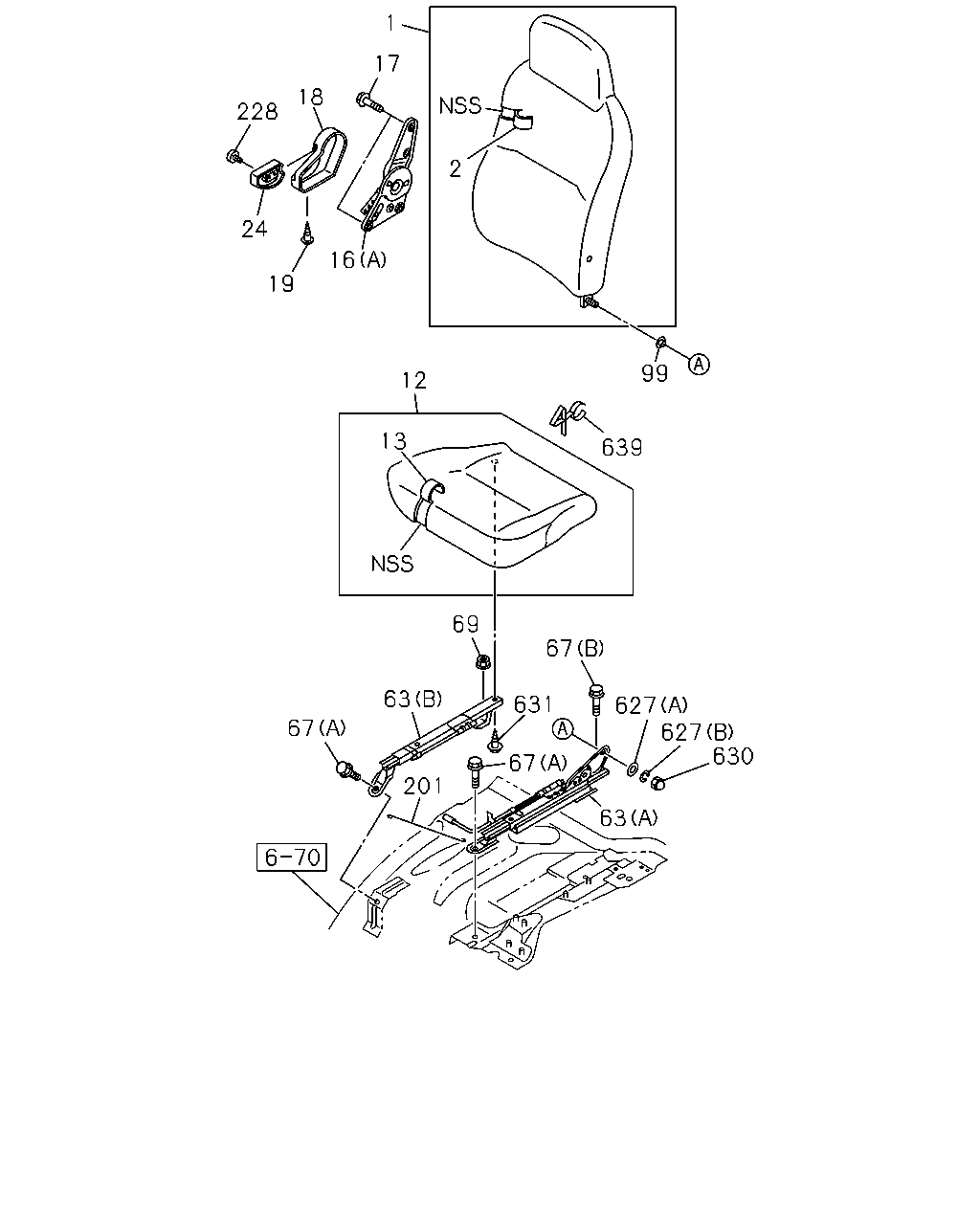

[750A] DRIVER SEAT (28 parça)
[750A] PASSENGER SEAT (19 parça)
▶
1
17
18
228
2
24
16
19
99
12
13
639
69
67
63
631
627
627
630
67
67
201
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.720 BACK ASM; SEAT
DARK GRAY
8-97414-145-5
01
1
0806-1009
1
16.720 BACK ASM; SEAT
DARK GRAY
8-97421-235-1
01
1
1010-
2
16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY
8-97414-146-1
01
1
0806-1009
2
16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY
8-97421-254-0
01
1
1010-
12
16.670 CUSHION; SEAT,FRT
DARK GRAY
8-97414-150-1
01
1
0806-1009
12
16.670 CUSHION; SEAT,FRT
DARK GRAY
8-97421-248-1
01
1
1010-
13
16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY
8-97414-151-1
01
1
0806-1009
13
16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY
8-97421-268-1
01
1
1010-
16
16.682 ADJUSTER ASM; RECLINING
(B) BLACK
8-97859-273-3
01
1
0806-
16
16.682 ADJUSTER ASM; RECLINING
(A)
8-98003-087-1
01
1
0806-
17
16.682 BOLT; RECLINING
M10X20
8-98062-661-0
04
1
0806-
18
16.682 COVER; RECLINING
GRAY
8-97409-332-0
01
1
0806-
19
16.686 SCREW; COVER
M5
8-98062-663-0
01
1
0806-
24
16.682 KNOB; RECLINING,FRT,SEAT
GRAY
8-97409-333-0
01
1
0806-
63
16.682 ADJUSTER; SEAT SLIDE
(A)INNER
8-97382-800-2
01
1
0806-
63
16.682 ADJUSTER; SEAT SLIDE
(B)OUTER
8-97382-801-1
01
1
0806-
67
16.682 BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE
8-98055-941-0
02
1
0806-
67
16.682 BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE
8-98055-942-0
01
1
0806-
69
16.682 NUT; FRT SEAT
M10 FLANGE
8-98055-961-0
01
1
0806-
99
16.716 BUSHING; SEAT BACK
8-98112-751-0
01
1
0806-
201
16.682 CABLE; ADJ
8-98003-086-1
01
1
0806-
228
16.714 SCREW; KNOB
M4
8-98062-662-0
01
1
0806-
627
16.682 WASHER; FRT SEAT
(A)
8-98063-223-0
01
1
0806-
627
16.682 WASHER; FRT SEAT
(B)
8-98063-224-0
01
1
0806-
630
16.682 NUT; CAP
M8
8-98063-225-0
01
1
0806-
631
16.682 BOLT; ADJ,SEAT
M8X25 W/LK WASHER
8-98062-658-0
02
1
0806-
631
16.682 BOLT; ADJ,SEAT
M8X32 W/LK WASHER
8-98062-659-0
02
1
0806-
639
16.679 CLIP; SEAT
8-98097-693-0
01
1
0806-
460
139
114
16
478
361
126
368
115
139
116
480
479
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
16.682 ADJUSTER ASM; RECLINING
(B) BLACK
8-97859-273-3
01
1
0806-
16
16.682 ADJUSTER ASM; RECLINING
(A)
8-98003-087-1
01
1
0806-
114
16.724 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY
8-97409-280-1
01
1
0806-1009
114
16.724 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY
8-97421-288-1
01
1
1010-
115
16.720 CUSHION ASM; PASSENGER SEAT
DARK GRAY
8-97406-360-4
01
1
0806-0902
115
16.720 CUSHION ASM; PASSENGER SEAT
DARK GRAY
8-97416-271-0
01
1
0903-1009
115
16.720 CUSHION ASM; PASSENGER SEAT
DARK GRAY
8-97421-317-2
01
1
1010-
116
16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
DARK GRAY
8-97409-309-2
01
1
0806-0902
116
16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
DARK GRAY
8-97416-286-0
01
1
0903-1009
116
16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
DARK GRAY
8-97421-337-1
01
1
1010-
126
16.686 BUSHING; HINGE,RECLINING
8-98069-558-0
01
1
0806-
139
16.679 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER
8-98031-841-0
03
1
0806-
361
16.682 BOLT; ADJ,RECLINING
M8X18
8-94279-109-1
02
1
0806-
368
16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER
8-94279-217-0
01
1
0806-
460
16.670 BACK ASM; PASSENGER SEAT
DARK GRAY
8-97406-335-5
01
1
0806-1009
460
16.670 BACK ASM; PASSENGER SEAT
DARK GRAY
8-97421-275-2
01
1
1010-
478
16.716 BRACKET ASM; HINGE,PASSENGER SEA
8-97868-186-0
01
1
0806-
479
16.716 PLUG; HINGE
16.165 OD=25 BLACK
1-76798-019-0
02
1
0806-
480
16.716 CLIP; CUSHION
8-94279-977-0
05
1
0806-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
