◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51176 - NLS(EUROPE)RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#76192) — 180 parça

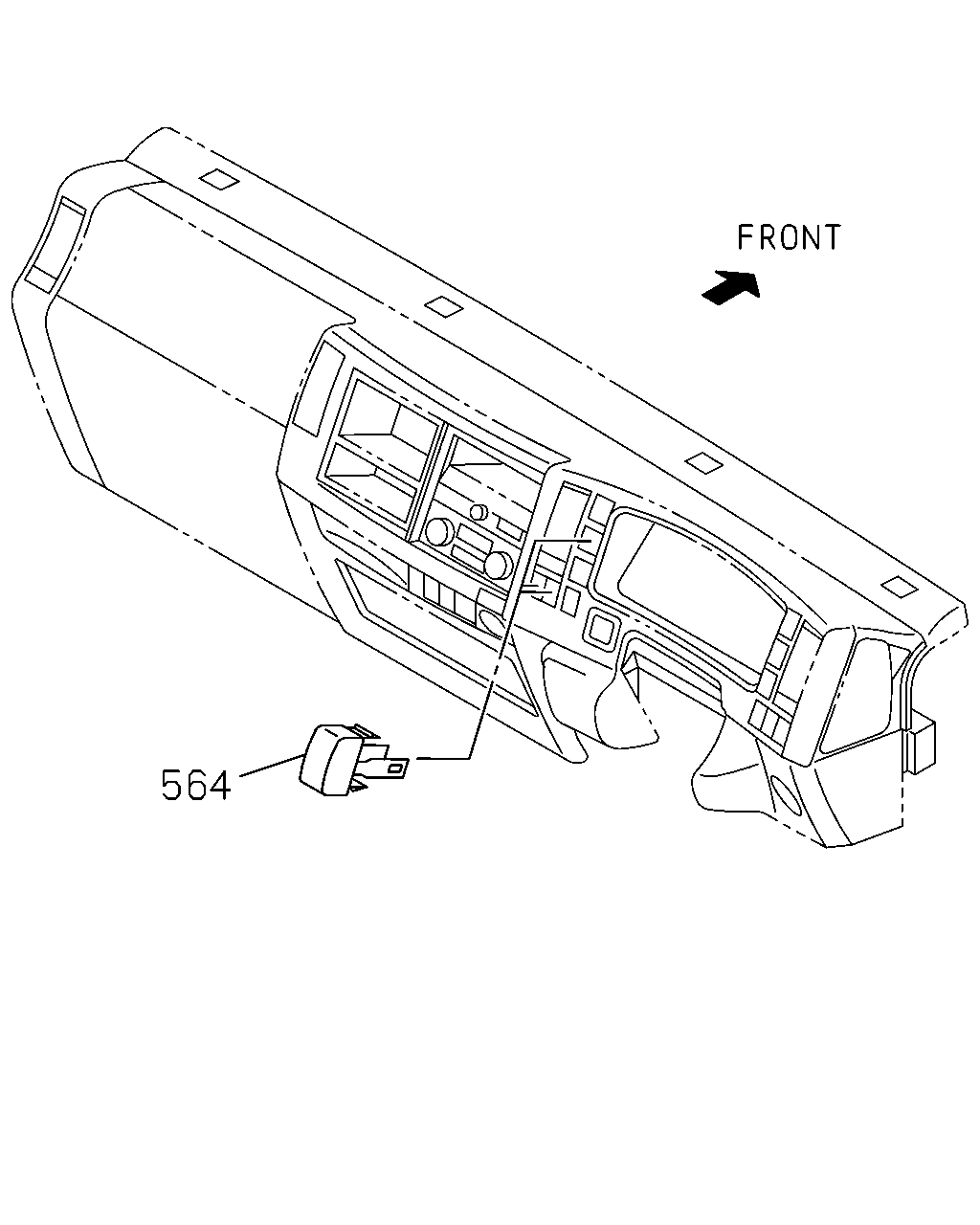

çizim 186057
564
BalonParca AdiParca NoAdetTipApplied Date
564 16.081 COVER; SW 8-98025-954-1 03 1 0806-

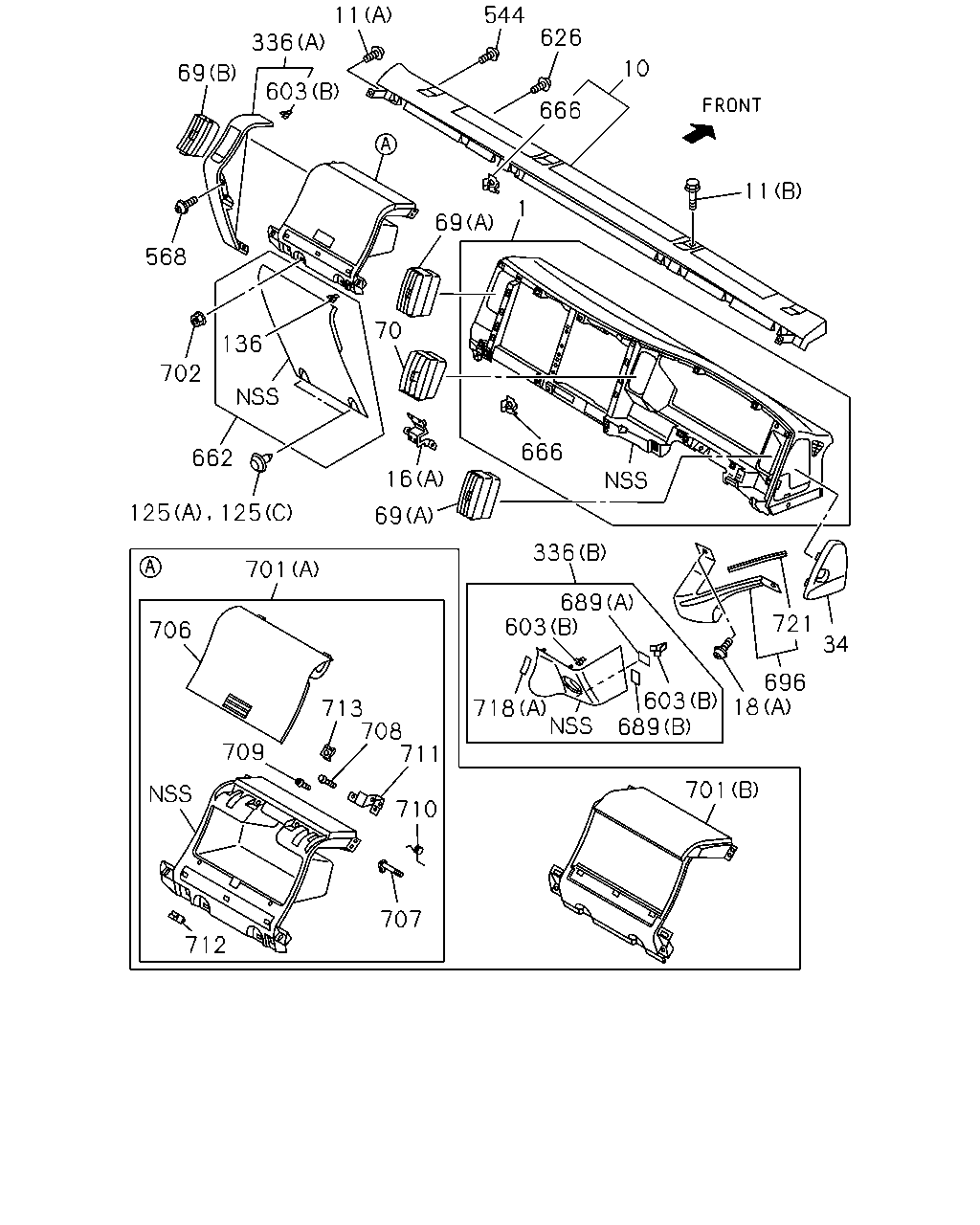

çizim 186059
707 710 712 709 713 708 711 718 603 336 689 603 689 701 18 696 721 34 666 16 69 701 706 125 125 662 136 702 70 11 69 666 10 626 544 11 336 69 603 568 1
BalonParca AdiParca NoAdetTipApplied Date
1 16.080 PANEL; INST
GRAY 		8-97405-253-8 01 1 0806-
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97406-272-4 01 1 0806-1003
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97419-684-5 01 1 1004-
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0806-1101
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 08 1 1102-1212
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1301-
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0806-
16 16.085 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0806-
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 0806-
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97585-612-2 01 1 0806-
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 0806-
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0806-1101
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301-
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 0806-
34 16.085 LID; OIL TANK
GRAY 		8-97405-260-1 01 1 0806-
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 0806-
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0806-
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 0806-
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1002-
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97418-529-0 02 1 0910-0911
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 04 1 0806-0909
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0910-0911
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 04 1 0912-1001
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1002-
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 01 1 0806-1003
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 01 1 0806-1003
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 02 1 1004-
136 16.085 CLIP; INST COVER 8-98021-271-0 05 1 0806-
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97405-259-4 01 1 0806-
336 16.081 COVER; INST PANEL SIDE
(B) GRAY 		8-97414-688-1 01 1 0806-
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0806-1101
544 16.085 SCREW; TRAY
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301-
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0806-1101
568 09.744 BOLT; COVER
16.090 SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 03 1 1005-
603 16.090 CLIP; COVER
16.165 (A) 		8-98004-025-0 01 1 0806-
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 02 1 0806-1003
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 1004-1004
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 02 1 1005-
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 03 1 0806-1003
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 0806-
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97406-260-1 01 1 0806-
666 16.085 INSERT; INST PANEL 8-98037-629-0 02 1 0806-0901
666 16.085 INSERT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> 		8-98037-629-0 02 1 0806-0901
666 16.085 INSERT; INST PANEL 8-98037-629-0 02 1 0902-1003
666 16.085 INSERT; INST PANEL 8-98037-629-0 15 1 0806-
689 09.743 SEAL; INST
(A) 7X31 		8-98061-777-0 01 1 0806-
689 09.743 SEAL; INST
(B) 18X170 		8-98061-778-1 01 1 0806-
696 16.085 BRACKET; KNEE 8-97589-189-4 01 1 0806-1211
696 16.085 BRACKET; KNEE 8-98199-366-0 01 1 1212-
701 16.100 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY 		8-97406-269-1 01 1 0806-0901
701 16.100 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY 		8-97416-907-0 01 1 0902-
701 16.100 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97406-268-4 01 1 0806-
702 16.069 NUT; TRAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 0806-
706 16.081 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97409-510-0 01 1 0806-
707 09.744 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98035-730-1 02 1 0806-1311
707 09.744 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-393-0 02 1 1312-
708 16.100 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 0806-
709 16.085 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 0806-
710 09.744 SPRING; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.110 		8-98034-987-0 01 1 0806-1311
710 09.744 SPRING; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-399-0 01 1 1312-
710 09.744 SPRING; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.110 		8-98034-986-0 01 1 0806-1311
710 09.744 SPRING; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-398-0 01 1 1312-
711 16.100 HOLDER ASM; LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.081 		8-98034-929-0 01 1 0806-1311
711 16.100 HOLDER ASM; LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.081 		8-97926-397-0 01 1 1312-
711 16.100 HOLDER ASM; LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.081 		8-98034-928-0 01 1 0806-1311
711 16.100 HOLDER ASM; LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.081 		8-97926-396-0 01 1 1312-
712 16.110 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 0806-
713 16.069 NUT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 08.845 M5 		1-09984-196-0 04 1 0806-1311
713 16.069 NUT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.085 M5 		8-97926-400-0 04 1 1312-
718 16.100 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1206-
718 16.100 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1110-
718 16.100 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1110-
718 16.100 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 0806-
721 16.650 FINISHER; BRKT,KNEE
L=95 		8-97995-992-0 01 1 0806-1211
721 16.650 FINISHER; BRKT,KNEE
L=75 		8-98176-240-0 01 1 1212-

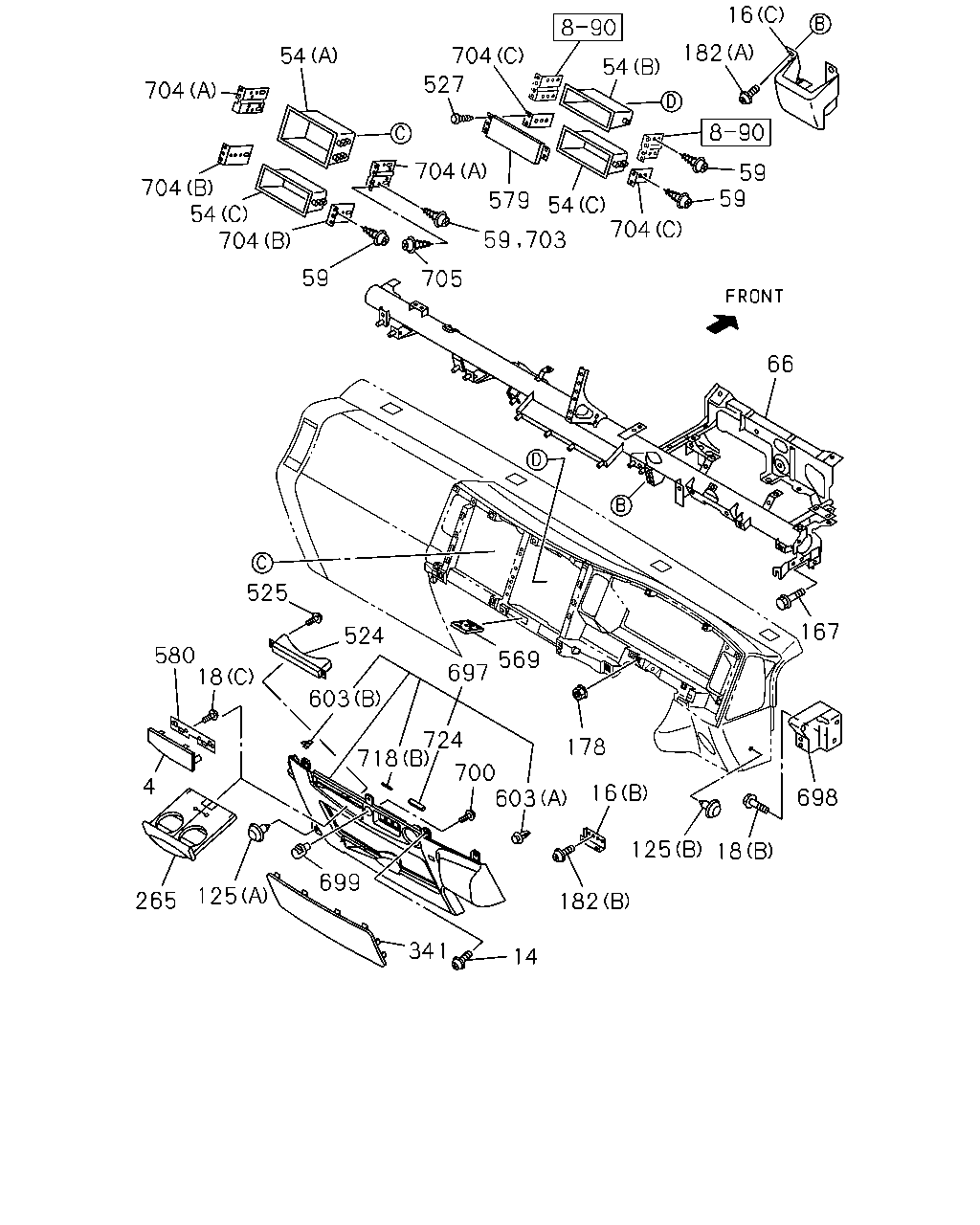

çizim 186063
14 341 182 125 18 698 16 603 700 724 178 718 699 125 265 4 18 580 525 603 524 697 569 167 66 705 59 704 54 704 704 54 704 59 579 703 54 704 59 59 54 527 704 182 16
BalonParca AdiParca NoAdetTipApplied Date
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 0806-
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0806-1101
14 16.085 SCREW; INST PNL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301-
16 16.085 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0806-
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 0806-
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97585-612-2 01 1 0806-
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 0806-
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0806-1101
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301-
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 0806-
54 16.100 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 0806-
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 0806-
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-2 01 1 0806-0808
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-2 01 1 0809-1204
54 16.100 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.8 BLACK 		8-97408-865-2 01 1 0809-1204
54 16.100 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1205-
54 16.100 POCKET; CENTER CLUSTER
EXC. CAN INTERFACE FMS STD<8PG> (C) H=69.8 BLACK 		8-97408-865-3 01 1 1205-
59 16.100 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0812-1008
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0806-1008
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1009-1204
59 16.100 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1009-1204
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1009-1204
59 16.100 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1205-
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1205-
59 16.100 SCREW; CLUSTER POCKET
EXC. CAN INTERFACE FMS STD<8PG> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1205-
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> 		8-98089-362-0 01 1 0806-0808
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> 		8-98124-677-3 01 1 0809-1204
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> 		8-98199-357-0 01 1 1205-1211
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> 		8-98199-365-1 01 1 1212-
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98089-361-0 01 1 0806-0808
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98105-263-4 01 1 0809-1204
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98199-356-0 01 1 1205-1211
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98199-364-1 01 1 1212-
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1002-
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97418-529-0 02 1 0910-0911
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 04 1 0806-0909
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0910-0911
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 04 1 0912-1001
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1002-
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 01 1 0806-1003
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 01 1 0806-1003
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 02 1 1004-
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 0806-
178 16.085 NUT; INST PANEL
01.062 M6 FLANGE 		0-91180-106-0 01 1 0806-
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0806-1101
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1102-1212
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301-
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0806-1101
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301-
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97407-897-2 01 1 0806-0909
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 0910-
341 16.110 LID; FUSE BOX
02.483 GRAY 		8-97406-265-3 01 1 0806-1205
341 16.110 LID; FUSE BOX
GRAY 		8-97423-658-0 01 1 1206-
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 0806-
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0806-1101
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1102-1212
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301-
527 16.100 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.742 DARK GRAY 		8-97098-326-0 01 1 0806-
569 16.100 HOLDER; CARD 8-97410-276-1 01 1 0806-
579 16.080 COVER; INST PNL
CAN INTERFACE FMS STD<8PG> BLACK 		8-97408-909-0 01 1 1205-1208
579 16.080 COVER; INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) BLACK 		8-97408-909-0 01 1 0806-0808
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 0806-
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 03 1 1005-
603 16.090 CLIP; COVER
16.165 (A) 		8-98004-025-0 01 1 0806-
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 02 1 0806-1003
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 1004-1004
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 02 1 1005-
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 03 1 0806-1003
697 16.080 PANEL; INST CENTER
GRAY 		8-97405-256-8 01 1 0806-1205
697 16.080 PANEL; INST CENTER
GRAY 		8-97423-656-1 01 1 1206-
698 16.085 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 0806-
698 16.085 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 0806-
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0806-
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0806-1101
700 16.090 BOLT; HOOK
SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-
703 16.085 SCREW; CENTER POCKET
16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0806-
704 16.085 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0806-
704 16.085 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0806-1204
704 16.085 BRACKET; CENTER POCKET
EXC. CAN INTERFACE FMS STD<8PG> (B) 		8-97585-616-2 02 1 1205-
704 16.085 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98073-822-0 02 1 0806-0808
704 16.085 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98107-549-0 02 1 0809-
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0811-0811
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 0806-1101
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 08 1 1102-1204
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1205-1212
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. CAN INTERFACE FMS STD<8PG> M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1205-1212
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301-
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. CAN INTERFACE FMS STD<8PG> 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301-
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0806-1101
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1102-1212
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301-
718 16.100 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1206-
718 16.100 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1110-
718 16.100 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1110-
718 16.100 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 0806-
724 16.085 INSULATOR; INST PANEL 8-98200-042-0 01 1 1110-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
