0-39 — AIR COMPRESSOR; BRAKE (#7619) — 124 parça

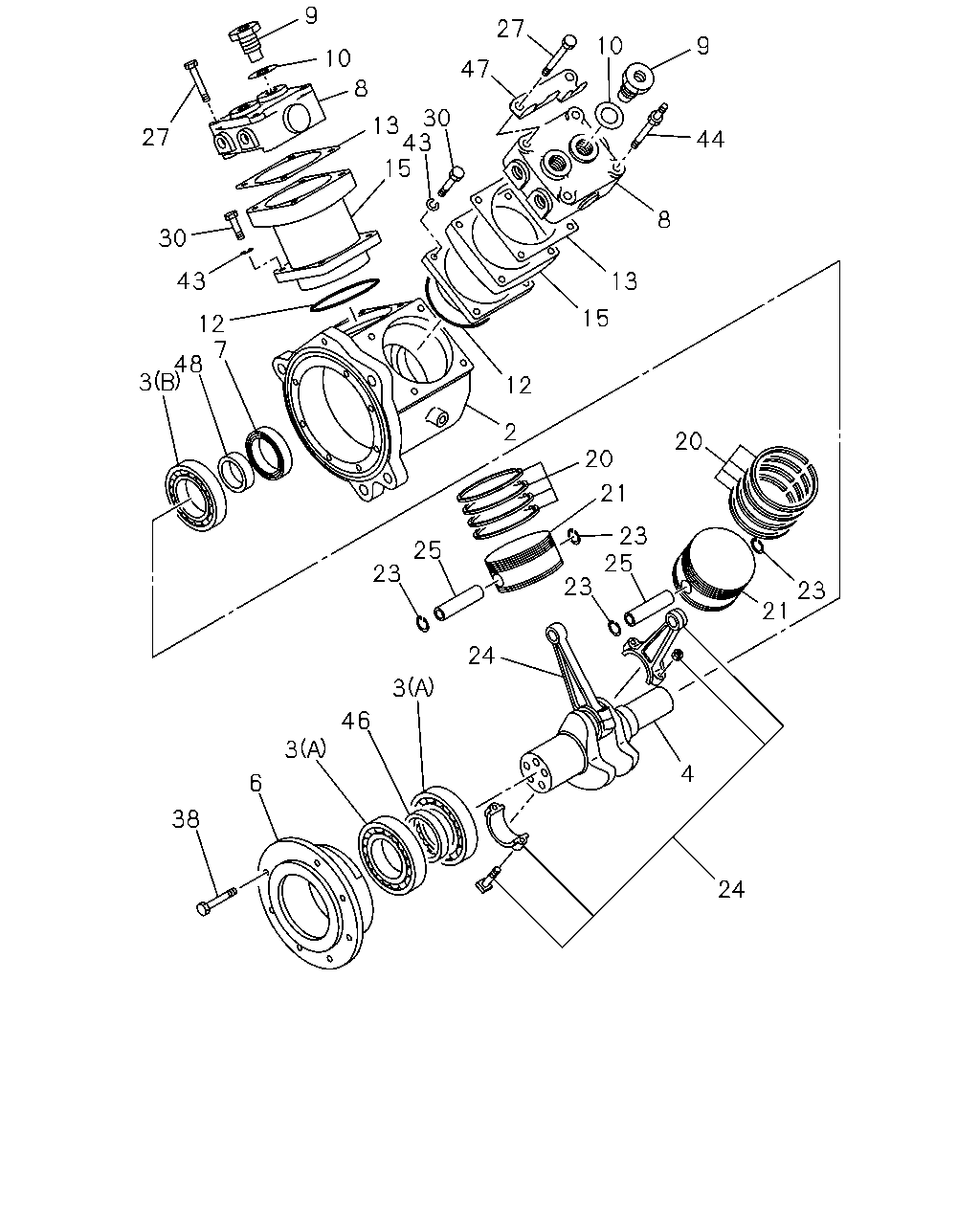

çizim 7992
9 27 10 9 10 47 8 30 13 43 15 27 44 8 30 43 13 15 12 7 48 3 12 2 20 20 21 23 25 25 23 23 23 21 24 3 46 3 4 6 38 24
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 CRANKCASE; AIR CMPR 1-19151-269-5 01 1 9902-9904 ●
2 CRANKCASE; AIR CMPR 1-19151-269-5 01 1 9905-9909 ● ●
2 CRANKCASE; AIR CMPR 1-19151-269-5 01 1 9910-0003 ● ● ●
2 CRANKCASE; AIR CMPR 1-19151-269-6 01 1 0004- ● ● ● ●
3 BEARING; AIR CMPR
(B) 		1-09800-232-0 01 1 9902-9904 ●
3 BEARING; AIR CMPR
(B) 		1-09800-232-0 01 1 9905-9909 ● ●
3 BEARING; AIR CMPR
(B) 		1-09800-232-0 01 1 9910-0003 ● ● ●
3 BEARING; AIR CMPR
(B) 		1-09800-232-0 01 1 0004- ● ● ● ●
3 BEARING; AIR CMPR
(A) 		1-09800-246-0 02 1 9902-9904 ●
3 BEARING; AIR CMPR
(A) 		1-09800-246-0 02 1 9905-9909 ● ●
3 BEARING; AIR CMPR
(A) 		1-09800-246-0 02 1 9910-0003 ● ● ●
3 BEARING; AIR CMPR
(A) 		1-09800-246-0 02 1 0004- ● ● ● ●
4 CRANKSHAFT; AIR CMPR 1-19171-068-0 01 1 9902-9904 ●
4 CRANKSHAFT; AIR CMPR 1-19171-068-0 01 1 9905-9909 ● ●
4 CRANKSHAFT; AIR CMPR 1-19171-068-0 01 1 9910-0003 ● ● ●
4 CRANKSHAFT; AIR CMPR 1-19171-068-0 01 1 0004- ● ● ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-068-1 01 1 9902-9904 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-068-1 01 1 9905-9909 ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-068-1 01 1 9910-0003 ● ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-068-1 01 1 0004- ● ● ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 9902-9904 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 9905-9909 ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 9910-0003 ● ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 0004- ● ● ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-016-0 02 1 9902-9904 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-016-0 02 1 9905-9909 ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-016-0 02 1 9910-0003 ● ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-016-0 02 1 0004- ● ● ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-021-1 02 1 9902-9904 ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-021-1 02 1 9905-9909 ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-021-1 02 1 9910-0003 ● ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-021-1 02 1 0004- ● ● ● ●
10 SHIM; AIR CMPR 9-19139-021-0 02 1 9902-9904 ●
10 SHIM; AIR CMPR 9-19139-021-0 02 1 9905-9909 ● ●
10 SHIM; AIR CMPR 9-19139-021-0 02 1 9910-0003 ● ● ●
10 SHIM; AIR CMPR 9-19139-021-0 02 1 0004- ● ● ● ●
12 GASKET; AIR CMPR 1-19623-539-0 02 1 9902-9904 ●
12 GASKET; AIR CMPR 1-19623-539-0 02 1 9905-9909 ● ●
12 GASKET; AIR CMPR 1-19623-539-0 02 1 9910-0003 ● ● ●
12 GASKET; AIR CMPR 1-19623-539-0 02 1 0004- ● ● ● ●
13 GASKET; AIR CMPR 1-19139-017-1 02 1 9902-9904 ●
13 GASKET; AIR CMPR 1-19139-017-1 02 1 9905-9909 ● ●
13 GASKET; AIR CMPR 1-19139-017-1 02 1 9910-0003 ● ● ●
13 GASKET; AIR CMPR 1-19139-017-1 02 1 0004- ● ● ● ●
15 CYLINDER; AIR CMPR 1-19151-251-0 02 1 9902-9904 ●
15 CYLINDER; AIR CMPR 1-19151-251-0 02 1 9905-9909 ● ●
15 CYLINDER; AIR CMPR 1-19151-251-0 02 1 9910-0003 ● ● ●
15 CYLINDER; AIR CMPR 1-19151-251-0 02 1 0004- ● ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 02 1 9902-9904 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 02 1 9905-9909 ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 02 1 9910-0003 ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 02 1 0004- ● ● ● ●
21 PISTON; AIR CMPR 1-19161-016-0 02 1 9902-9904 ●
21 PISTON; AIR CMPR 1-19161-016-0 02 1 9905-9909 ● ●
21 PISTON; AIR CMPR 1-19161-016-0 02 1 9910-0003 ● ● ●
21 PISTON; AIR CMPR 1-19161-016-0 02 1 0004- ● ● ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 04 1 9902-9904 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 04 1 9905-9909 ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 04 1 9910-0003 ● ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 04 1 0004- ● ● ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-006-0 02 1 9902-9904 ●
24 ROD ASM; CONN,AIR CMPR 1-19173-006-0 02 1 9905-9909 ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-006-0 02 1 9910-0003 ● ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-006-0 02 1 0004- ● ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 02 1 9902-9904 ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 02 1 9905-9909 ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 02 1 9910-0003 ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 02 1 0004- ● ● ● ●
27 BOLT; HD
M10X60 		9-01066-060-0 07 1 9902-9904 ●
27 BOLT; HD
M10X60 		9-01066-060-0 07 1 9905-9909 ● ●
27 BOLT; HD
M10X60 		9-01066-060-0 07 1 9910-0003 ● ● ●
27 BOLT; HD
M10X60 		9-01066-060-0 07 1 0004- ● ● ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 08 1 9902-9904 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 08 1 9905-9909 ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 08 1 9910-0003 ● ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 08 1 0004- ● ● ● ●
38 BOLT; COVER FIX 1-19159-016-0 07 1 9902-9904 ●
38 BOLT; COVER FIX 1-19159-016-0 07 1 9905-9909 ● ●
38 BOLT; COVER FIX 1-19159-016-0 07 1 9910-0003 ● ● ●
38 BOLT; COVER FIX 1-19159-016-0 07 1 0004- ● ● ● ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 08 1 9902-9904 ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 08 1 9905-9909 ● ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 08 1 9910-0003 ● ● ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 08 1 0004- ● ● ● ●
44 STUD; CYL HD,AIR CMPR 1-19119-019-1 01 1 9902-9904 ●
44 STUD; CYL HD,AIR CMPR 1-19119-019-1 01 1 9905-9909 ● ●
44 STUD; CYL HD,AIR CMPR 1-19119-019-1 01 1 9910-0003 ● ● ●
44 STUD; CYL HD,AIR CMPR 1-19119-019-1 01 1 0004- ● ● ● ●
46 SPACER; BRG 1-19179-016-0 01 1 9902-9904 ●
46 SPACER; BRG 1-19179-016-0 01 1 9905-9909 ● ●
46 SPACER; BRG 1-19179-016-0 01 1 9910-0003 ● ● ●
46 SPACER; BRG 1-19179-016-0 01 1 0004- ● ● ● ●
47 BRACKET; PIPE 1-19119-028-0 02 1 9902-9904 ●
47 BRACKET; PIPE 1-19119-028-0 02 1 9905-9909 ● ●
47 BRACKET; PIPE 1-19119-028-0 02 1 9910-0003 ● ● ●
47 BRACKET; PIPE 1-19119-028-0 02 1 0004- ● ● ● ●
48 SLEEVE; CR/SHF 1-19179-018-0 01 1 9902-9904 ●
48 SLEEVE; CR/SHF 1-19179-018-0 01 1 9905-9909 ● ●
48 SLEEVE; CR/SHF 1-19179-018-0 01 1 9910-0003 ● ● ●
48 SLEEVE; CR/SHF 1-19179-018-0 01 1 0004- ● ● ● ●

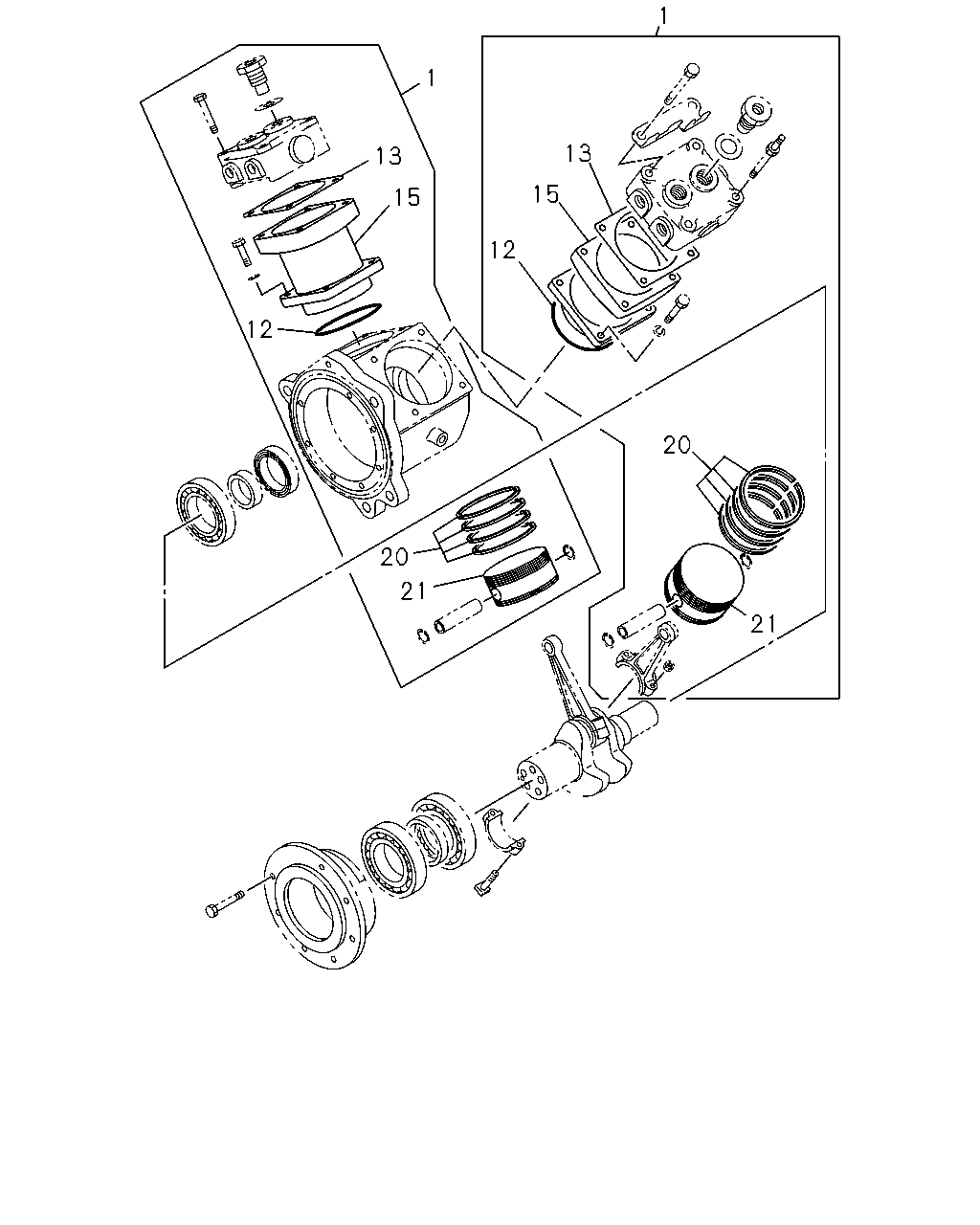

çizim 46034
1 1 13 13 15 15 12 12 20 20 21 21
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LINER KIT; CYL,AIR CMPR 1-19163-060-1 02 1 9902-9904 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-060-1 02 1 9905-9909 ● ●
1 LINER KIT; CYL,AIR CMPR 1-19163-060-1 02 1 9910-0003 ● ● ●
1 LINER KIT; CYL,AIR CMPR 1-19163-060-1 02 1 0004- ● ● ● ●
12 GASKET; AIR CMPR 1-19623-539-0 02 1 9902-9904 ●
12 GASKET; AIR CMPR 1-19623-539-0 02 1 9905-9909 ● ●
12 GASKET; AIR CMPR 1-19623-539-0 02 1 9910-0003 ● ● ●
12 GASKET; AIR CMPR 1-19623-539-0 02 1 0004- ● ● ● ●
13 GASKET; AIR CMPR 1-19139-017-1 02 1 9902-9904 ●
13 GASKET; AIR CMPR 1-19139-017-1 02 1 9905-9909 ● ●
13 GASKET; AIR CMPR 1-19139-017-1 02 1 9910-0003 ● ● ●
13 GASKET; AIR CMPR 1-19139-017-1 02 1 0004- ● ● ● ●
15 CYLINDER; AIR CMPR 1-19151-251-0 02 1 9902-9904 ●
15 CYLINDER; AIR CMPR 1-19151-251-0 02 1 9905-9909 ● ●
15 CYLINDER; AIR CMPR 1-19151-251-0 02 1 9910-0003 ● ● ●
15 CYLINDER; AIR CMPR 1-19151-251-0 02 1 0004- ● ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 02 1 9902-9904 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 02 1 9905-9909 ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 02 1 9910-0003 ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 02 1 0004- ● ● ● ●
21 PISTON; AIR CMPR 1-19161-016-0 02 1 9902-9904 ●
21 PISTON; AIR CMPR 1-19161-016-0 02 1 9905-9909 ● ●
21 PISTON; AIR CMPR 1-19161-016-0 02 1 9910-0003 ● ● ●
21 PISTON; AIR CMPR 1-19161-016-0 02 1 0004- ● ● ● ●
