Isuzu WW
▶
TRUCKS
▶
NLS
▶
51176 - NLS(EUROPE)RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-90 - REAR BUMPER
▶

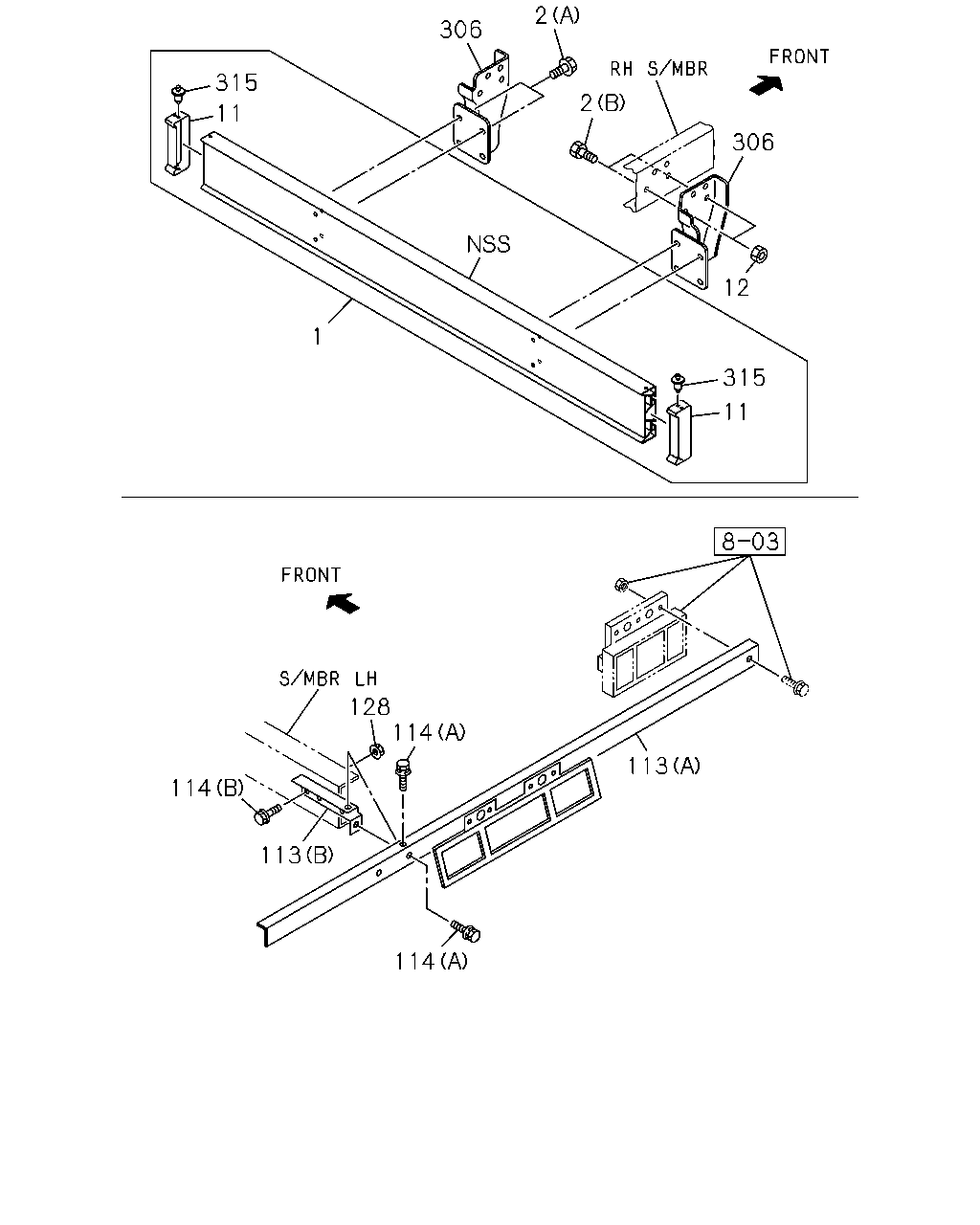

6-90 — REAR BUMPER
(#76187) — 21 parça
2
306
315
2
11
306
12
1
315
11
128
114
113
114
113
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
07.070 BUMPER; RR
STAMP IH2J
8-98088-673-0
01
1
0806-
2
07.874 BOLT; BACK BAR
(B) M14X30
0-20851-430-0
08
1
0806-0904
2
07.874 BOLT; BACK BAR
(B) M14X30
0-20851-430-0
04
1
0905-
2
07.874 BOLT; BACK BAR
07.395 (A) M12X30 FLANGE
0-28651-230-0
08
1
0806-
11
07.829 CAP; RR BUMPER
1-71290-064-0
02
1
0806-
12
07.833 NUT; BRKT
00.429 M14 FLANGE
0-91180-214-0
08
1
0806-0904
12
07.833 NUT; BRKT
00.429 M14 FLANGE
0-91180-214-0
04
1
0905-
113
07.800 BRACKET; LICENSE PLATE
(B)
8-98100-015-0
01
1
0806-
113
07.800 BRACKET; LICENSE PLATE
(B)
8-98100-014-0
01
1
0806-
113
07.800 BRACKET; LICENSE PLATE
DOOR MIRROR<6VE> (A)
8-98079-145-0
01
1
0806-0906
113
07.800 BRACKET; LICENSE PLATE
DOOR MIRROR<6VE> 02.664 (A)
8-98030-832-0
01
1
0907-
113
07.800 BRACKET; LICENSE PLATE
EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)
8-98079-147-0
01
1
0806-0906
113
07.800 BRACKET; LICENSE PLATE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 02.664 (A)
8-97206-017-0
01
1
0907-
113
07.800 BRACKET; LICENSE PLATE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)
8-98079-146-0
01
1
0806-0906
113
07.800 BRACKET; LICENSE PLATE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.664 (A)
8-97206-019-0
01
1
0907-
114
07.800 BOLT; BRKT,LICENSE PLATE
07.874 (B) M14X30
0-20851-430-0
04
1
0806-
114
07.800 BOLT; BRKT,LICENSE PLATE
06.216 (A) M8X25 FLANGE
0-28650-825-0
04
1
0806-
128
02.662 NUT; CROSS PLATE
00.429 M14 FLANGE
0-91180-214-0
04
1
0806-
306
07.836 BAR; BACK,RR
STAMP IA3
8-98039-408-0
01
1
0806-
306
07.836 BAR; BACK,RR
STAMP IA3
8-98039-409-0
01
1
0806-
315
07.829 RIVET; CAP
1-71290-062-0
04
1
0806-
