6-80 — BACK PANEL (#76184) — 15 parça

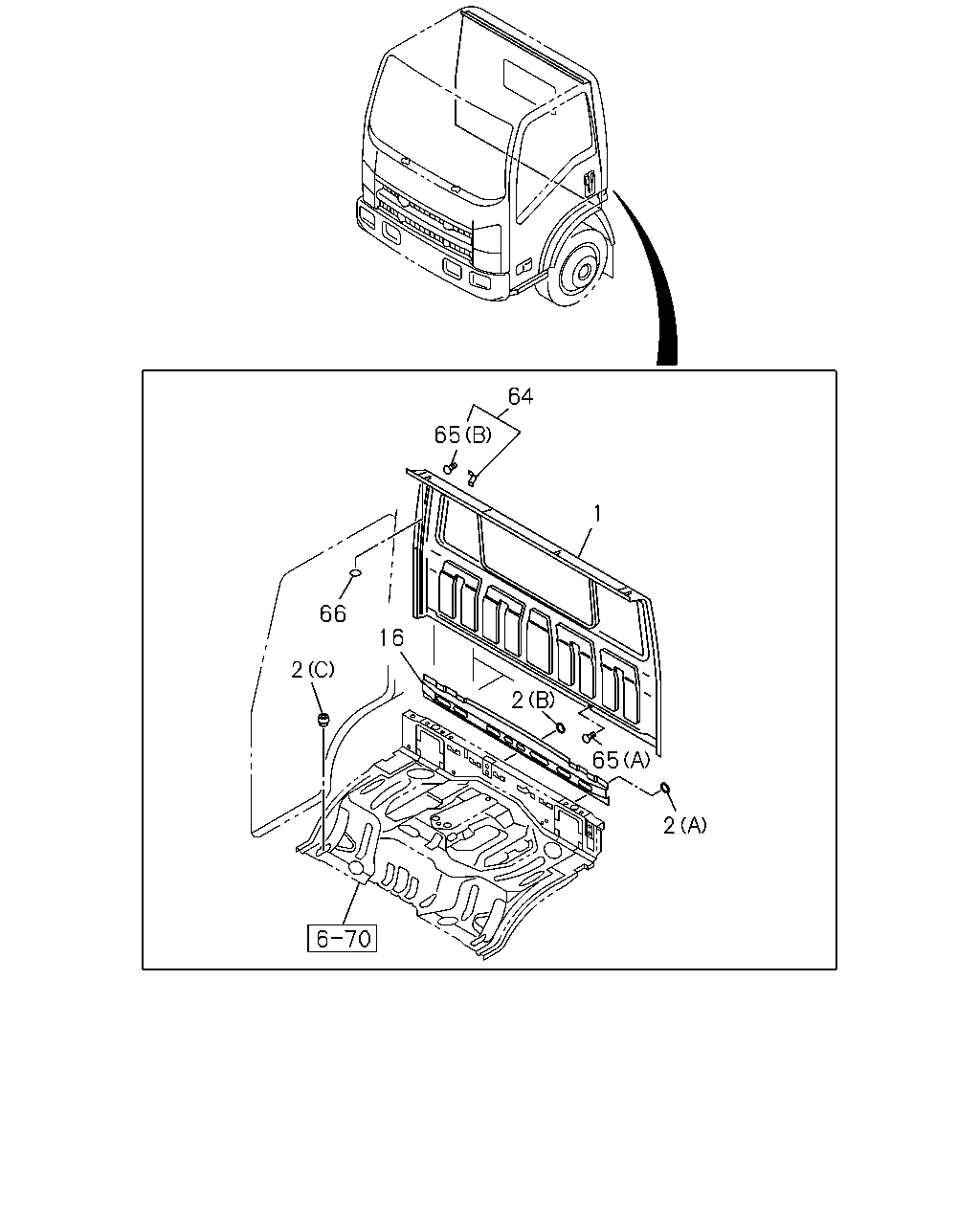

çizim 132142
64 65 1 66 16 2 2 65 2
BalonParca AdiParca NoAdetTipApplied Date
1 16.587 PANEL; BACK OUTER 8-97584-300-3 01 1 0806-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 0806-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (C) OD=12.1 		8-97898-423-0 04 1 0806-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (B) OD=32 BLACK 		8-98031-126-0 02 1 0806-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (B) OD=32 BLACK 		8-98031-126-0 09 1 0806-
16 16.575 REINFORCEMENT; BACK OUTER PNL 8-97584-607-3 01 1 0806-
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 		8-97584-611-1 01 1 0806-
65 17.198 STUD; BACK PANEL
(A) 		8-94389-701-0 01 1 0806-
65 17.198 STUD; BACK PANEL
16.588 (B) M6X12 		8-98013-112-0 04 1 0806-1001
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 03 1 0806-
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0806-
66 16.587 SEAL; BACK PANEL
BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 0806-0810
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 0811-
66 16.587 SEAL; BACK PANEL
BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0806-0810
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0811-
