◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51176 - NLS(EUROPE)RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP ▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#76170) — 14 parça

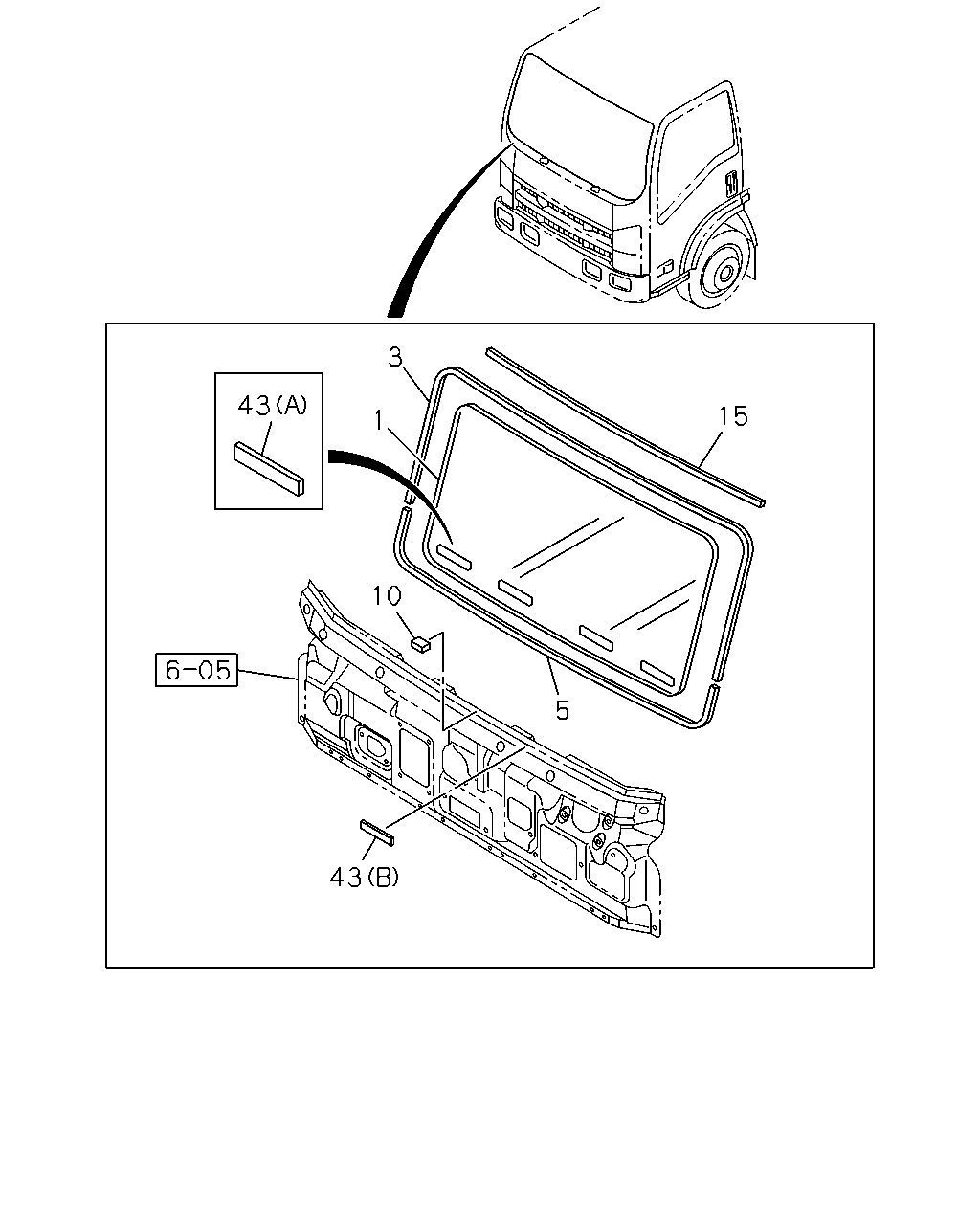

çizim 126385
3 43 15 1 10 5 43
BalonParca AdiParca NoAdetTipApplied Date
1 16.005 GLASS; WINDSHIELD 8-98029-062-1 01 1 0806-0905
1 16.005 GLASS; WINDSHIELD 8-98029-062-1 01 1 0906-
3 16.470 MOLDING; WINDSHIELD 8-98029-078-1 01 1 0806-
5 16.041 MOLDING; WINDSHIELD,LWR 8-98083-541-1 01 1 0806-
10 08.160 SPACER; WINDSHIELD GLASS
L=100 B=1.5 		8-98095-044-0 02 1 0806-
15 16.041 FINISHER; WINDSHIELD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97412-957-0 01 1 0806-
43 16.041 TAPE; WINDSHIELD
INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=100 B=8 		8-98029-086-1 09 1 1007-
43 16.041 TAPE; WINDSHIELD
INTERIOR TRIM-FULL TRIMMING<WM3> (B) L=100 B=10 		8-98083-198-1 09 1 1007-
43 16.041 TAPE; WINDSHIELD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=100 B=8 		8-98029-086-1 04 1 1007-
43 16.041 TAPE; WINDSHIELD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) L=100 B=10 		8-98083-198-1 04 1 1007-
43 16.041 TAPE; WINDSHIELD
INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=100 B=8 		8-98029-086-1 09 1 0806-1006
43 16.041 TAPE; WINDSHIELD
INTERIOR TRIM-FULL TRIMMING<WM3> (B) L=100 B=10 		8-98083-198-1 09 1 0806-1006
43 16.041 TAPE; WINDSHIELD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=100 B=8 		8-98029-086-1 04 1 0806-1006
43 16.041 TAPE; WINDSHIELD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) L=100 B=10 		8-98083-198-1 04 1 0806-1006
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
