◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51176 - NLS(EUROPE)RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#76169) — 56 parça

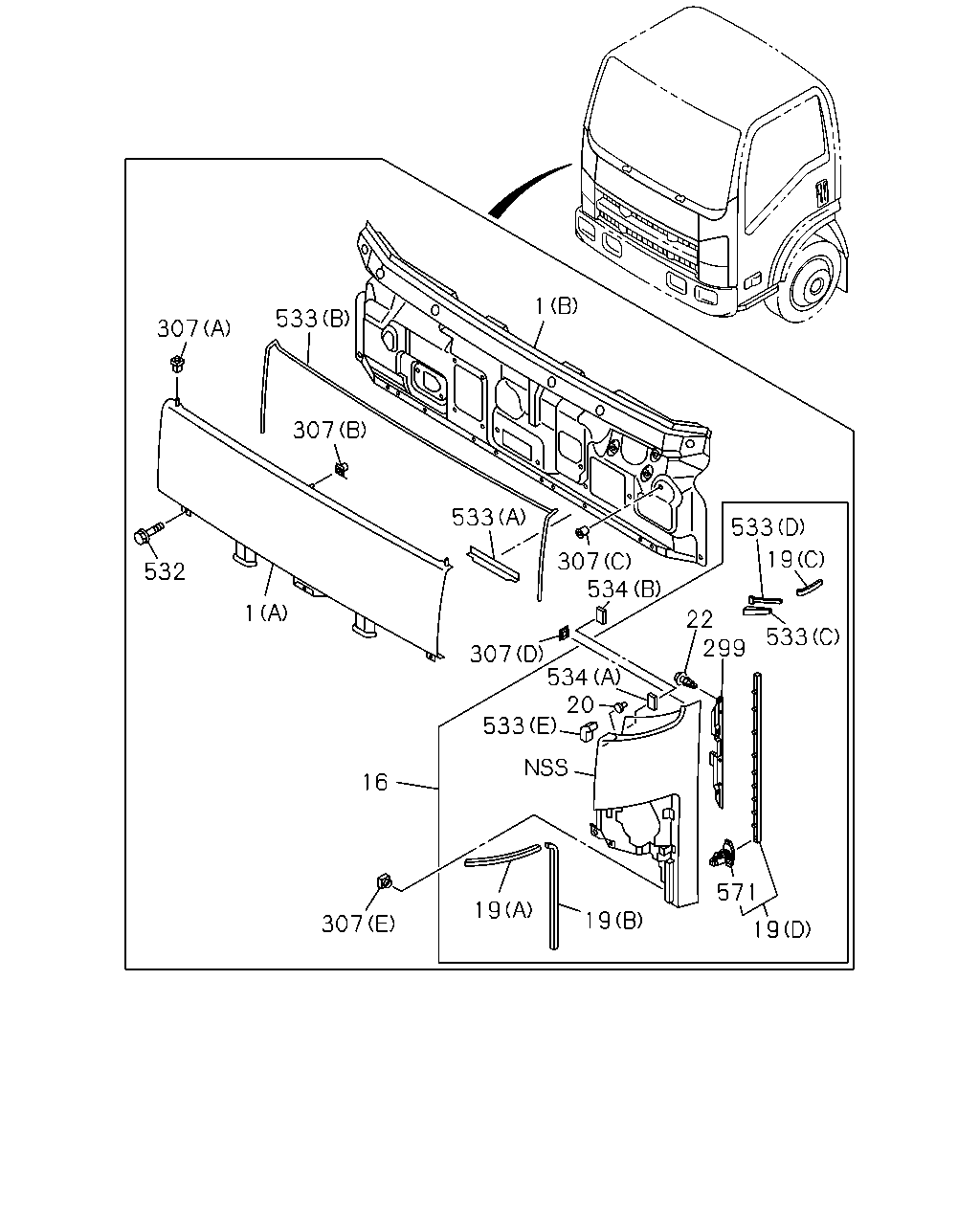

çizim 126405
1 533 307 307 533 533 307 534 19 532 1 22 299 533 307 534 20 533 16 571 19 19 307 19
BalonParca AdiParca NoAdetTipApplied Date
1 16.550 PANEL ASM; FRT
(A) 		8-98024-781-4 01 1 0806-0807
1 16.550 PANEL ASM; FRT
(A) 		8-98122-692-0 01 1 0808-
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98049-844-5 01 1 0806-1103
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98186-849-0 01 1 1104-
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98021-581-5 01 1 0806-1103
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98186-848-0 01 1 1104-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97415-715-9 01 1 0811-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97415-716-9 01 1 0811-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97406-040-9 01 1 0806-0906
16 16.588 PANEL; FRONT,SIDE
WHITE 		8-97406-040-9 01 1 0907-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97406-039-9 01 1 0806-0906
16 16.588 PANEL; FRONT,SIDE
WHITE 		8-97406-039-9 01 1 0907-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97414-636-9 01 1 0806-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97414-635-9 01 1 0806-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97409-872-9 01 1 0806-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97409-870-9 01 1 0806-
19 16.588 SEAL; FRT SIDE PANEL
(A) 		8-98035-268-0 02 1 0806-
19 16.588 SEAL; FRT SIDE PANEL
(B) 		8-98062-215-0 02 1 0806-
19 16.588 SEAL; FRT SIDE PANEL
(C) 		8-98038-608-0 02 1 0806-
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-750-3 01 1 0806-
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-749-3 01 1 0806-
20 16.588 CLIP; FRT PANEL SIDE 8-97410-739-1 04 1 0806-
22 16.588 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0806-
299 16.069 COVER; FRT PANEL SIDE 8-98028-145-1 01 1 0806-
299 16.069 COVER; FRT PANEL SIDE 8-98028-144-1 01 1 0806-
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-968-0 01 1 0806-
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-969-0 01 1 0806-
307 16.125 GROMMET; FRT PANEL
(B) 		8-98023-229-1 01 1 0806-
307 16.125 GROMMET; FRT PANEL
(C) OD=20 		8-98034-363-1 04 1 0806-
307 16.125 GROMMET; FRT PANEL
(D) 		8-97410-738-0 02 1 0806-
307 16.125 GROMMET; FRT PANEL
(E) 		8-98021-300-1 04 1 0806-
532 08.143 BOLT; FRT PANEL
M6X16 W/LK&PL WASHER 		0-52010-616-0 04 1 0806-
533 08.143 SEAL; FRT PANEL
(A) 		8-98021-003-1 01 1 0806-
533 08.143 SEAL; FRT PANEL
(B) 		8-98030-961-4 01 1 0806-
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-510-0 01 1 0806-
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-509-0 01 1 0806-
533 08.143 SEAL; FRT PANEL
(D) 		8-98043-511-1 02 1 0806-
533 08.143 SEAL; FRT PANEL
(E) 		8-98064-939-0 02 1 0806-
534 16.550 FASTENER
(A) 40X25 		8-98089-412-1 02 1 0806-
534 16.550 FASTENER
(B) 40X25 		8-98089-411-1 02 1 0806-
571 16.570 CLIP; SEAL
16.165 NATURAL 		8-98027-457-0 20 1 0806-

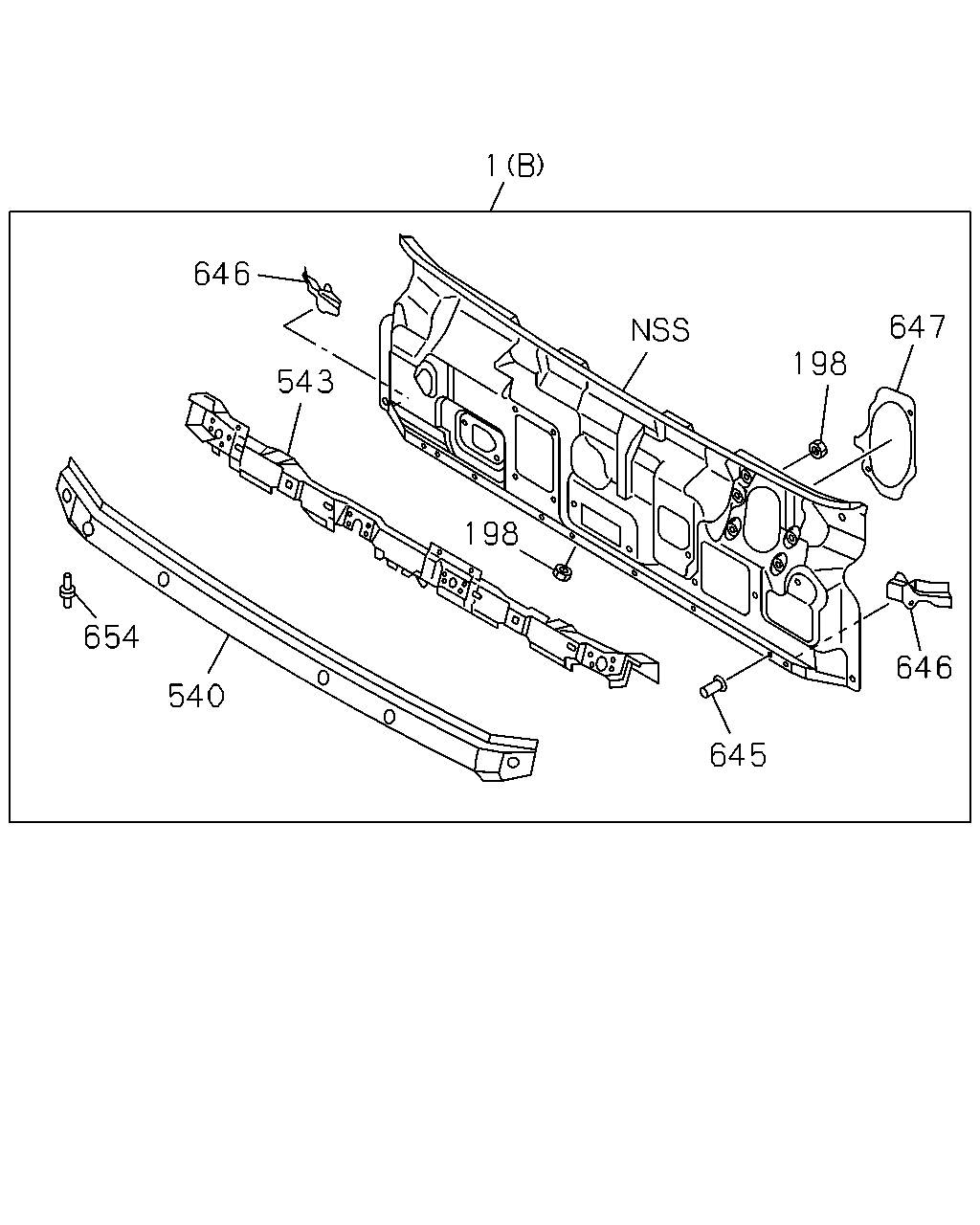

çizim 186048
1 646 647 198 543 198 654 646 540 645
BalonParca AdiParca NoAdetTipApplied Date
1 16.550 PANEL ASM; FRT
(A) 		8-98024-781-4 01 1 0806-0807
1 16.550 PANEL ASM; FRT
(A) 		8-98122-692-0 01 1 0808-
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98049-844-5 01 1 0806-1103
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98186-849-0 01 1 1104-
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98021-581-5 01 1 0806-1103
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98186-848-0 01 1 1104-
198 16.125 NUT; PANEL
PTO MANUAL CONTROL(6WC) 16.545 M6 		9-09114-086-0 08 1 0806-
198 16.125 NUT; PANEL
EXC. PTO MANUAL CONTROL(6WC) 16.545 M6 		9-09114-086-0 06 1 0806-
540 16.588 PANEL; FRONT,OUTER 8-97585-962-3 01 1 0806-
543 16.570 CLOSING; FRT MTG RAIL 8-97585-988-2 01 1 0806-
645 16.588 STUD; FRT PANEL
M6X12 		8-98013-112-0 06 1 0806-
646 08.155 REINFORCEMENT; DASH 8-98023-099-1 01 1 0806-
646 08.155 REINFORCEMENT; DASH 8-98023-098-1 01 1 0806-
647 08.155 REINFORCEMENT; WIPER MOTOR 8-98006-327-0 01 1 0806-
654 16.125 PIN; FRT PANEL 8-98021-967-2 02 1 0806-
