Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#76162) — 65 parça

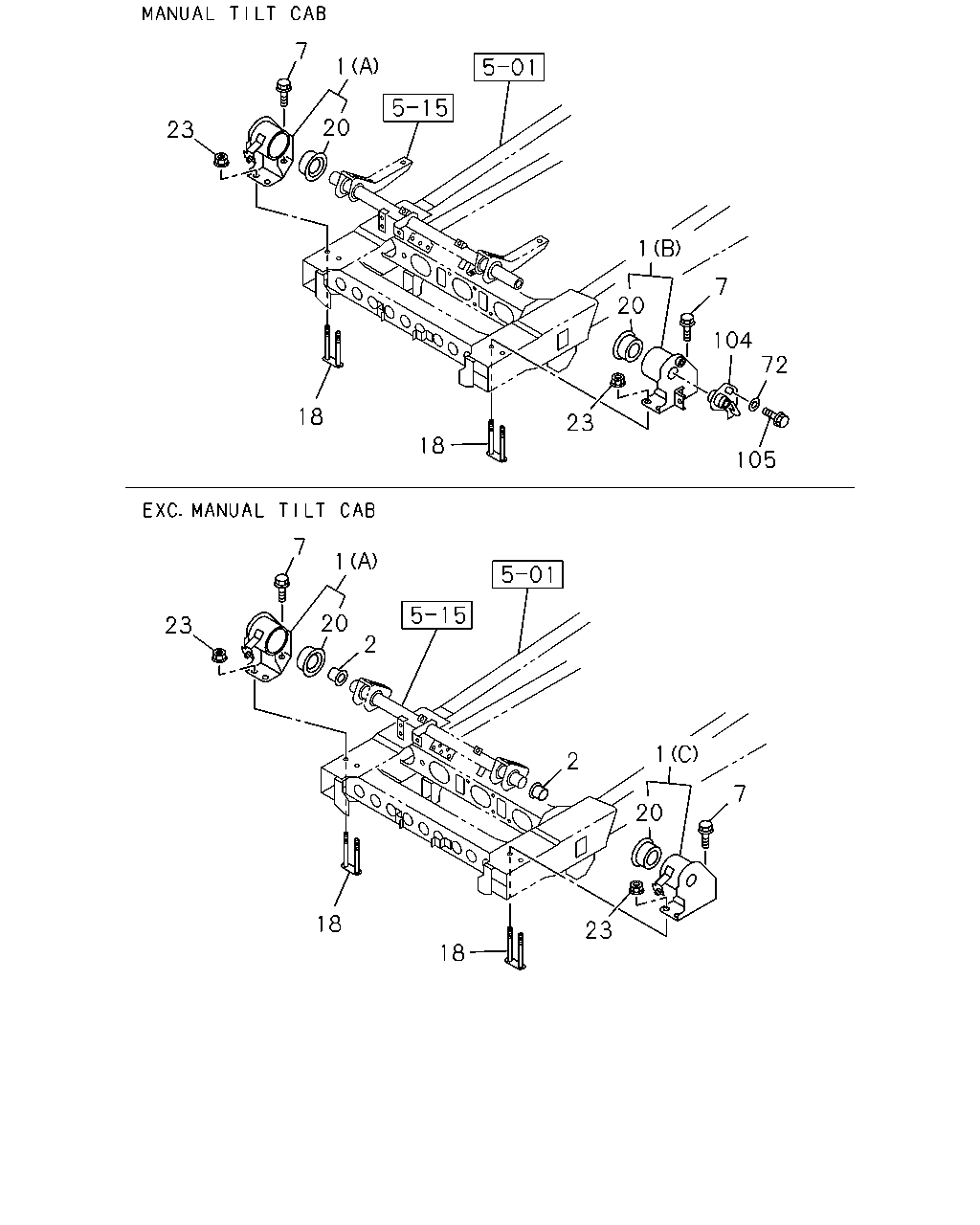

7 1 20 23 1 7 20 104 72 18 23 18 105 7 1 20 23 2 1 2 7 20 18 23 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	09.003 BRACKET; CAB MTG 16.545 (B)	8-98021-410-3	01	1	0806-0910
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> 16.545 (B)	8-98021-410-3	01	1	0911-
1	09.003 BRACKET; CAB MTG 16.545 (A)	8-98021-407-4	01	1	0806-
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ> (C)	8-98021-408-3	01	1	0911-
2	09.009 BUSHING; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97061-514-0	02	1	0911-
7	09.003 BOLT; BRKT,CAB TILT M14X40 FLANGE	0-28661-440-0	02	1	0806-
18	09.003 PLATE; MTG BRKT FIX	8-98030-768-1	02	1	0806-
20	09.003 RUBBER; MTG,CAB BRKT	8-98007-037-1	01	1	0806-0909
20	09.003 RUBBER; MTG,CAB BRKT	8-98007-037-1	01	1	0806-0909
20	09.003 RUBBER; MTG,CAB BRKT	8-98007-037-1	01	1	0910-0910
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-98007-037-1	01	1	0910-0910
20	09.003 RUBBER; MTG,CAB BRKT	8-98007-037-1	01	1	0911-
23	09.003 NUT; MTG BRKT M14	8-98039-989-0	04	1	0806-
72	09.003 WASHER; PL,BRKT TO FRAME ID=15 OD=36	0-91614-714-0	01	1	0806-0909
72	09.003 WASHER; PL,BRKT TO FRAME MANUAL TILT CAB<RWZ> ID=15 OD=36	0-91614-714-0	01	1	0910-
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG	8-97383-788-1	01	1	0806-0909
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-97383-788-1	01	1	0910-
105	09.023 BOLT; BRKT TO CAB FRAME M14X35 FLANGE	0-28661-435-0	01	1	0806-0909
105	09.023 BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M14X35 FLANGE	0-28661-435-0	01	1	0910-

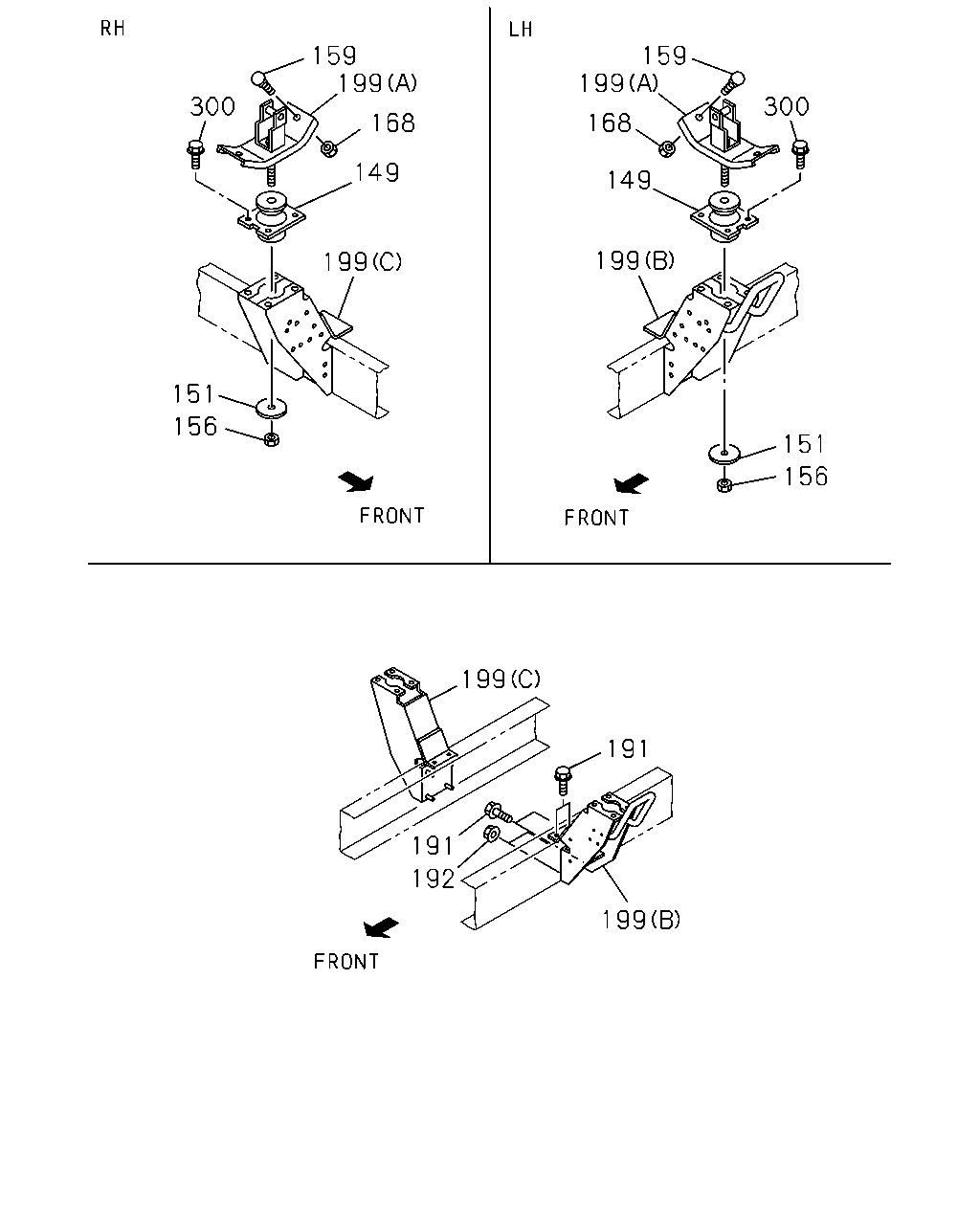

159 199 159 199 300 300 168 168 149 149 199 199 151 156 151 156 199 191 191 192 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ>	8-98038-868-0	02	1	0911-
149	09.023 RUBBER; MTG,CAB,UPR RR	8-98021-561-0	02	1	0806-0909
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ>	8-98021-561-1	02	1	0910-
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> ID=16.5 OD=58	8-97359-040-1	02	1	0911-
151	09.011 WASHER; CAB MTG,RR UPR ID=17 OD=62	8-97359-042-1	02	1	0806-0909
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> ID=17 OD=62	8-97359-042-1	02	1	0910-
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> M14 FLANGE	0-91180-114-0	02	1	0911-
156	07.529 NUT; CAB MTG RR 00.785 M16	0-91111-516-0	02	1	0806-0909
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 00.785 M16	0-91111-516-0	02	1	0910-
159	09.023 RUBBER; CUSHION,CAB MTG	8-97113-340-0	04	1	0806-0909
159	09.023 RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ>	8-97113-340-0	04	1	0910-
168	09.011 NUT; CUSHION RUBBER,BODY MTG 01.062 M8 FLANGE	0-91180-108-0	04	1	0806-0909
168	09.011 NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	0910-
191	09.003 BOLT; BRKT FIX M12X35 FLANGE	0-28651-235-0	08	1	0806-
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	04	1	0806-
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (D)	8-98001-443-4	02	1	0911-
199	09.003 BRACKET; CAB RR MTG (A)	8-98036-883-0	02	1	0806-0909
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-98036-883-0	02	1	0910-
199	09.003 BRACKET; CAB RR MTG (B)	8-98021-569-2	01	1	0806-0909
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98021-569-2	01	1	0910-
199	09.003 BRACKET; CAB RR MTG (C)	8-98021-568-2	01	1	0806-0909
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (C)	8-98021-568-2	01	1	0910-
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	0806-

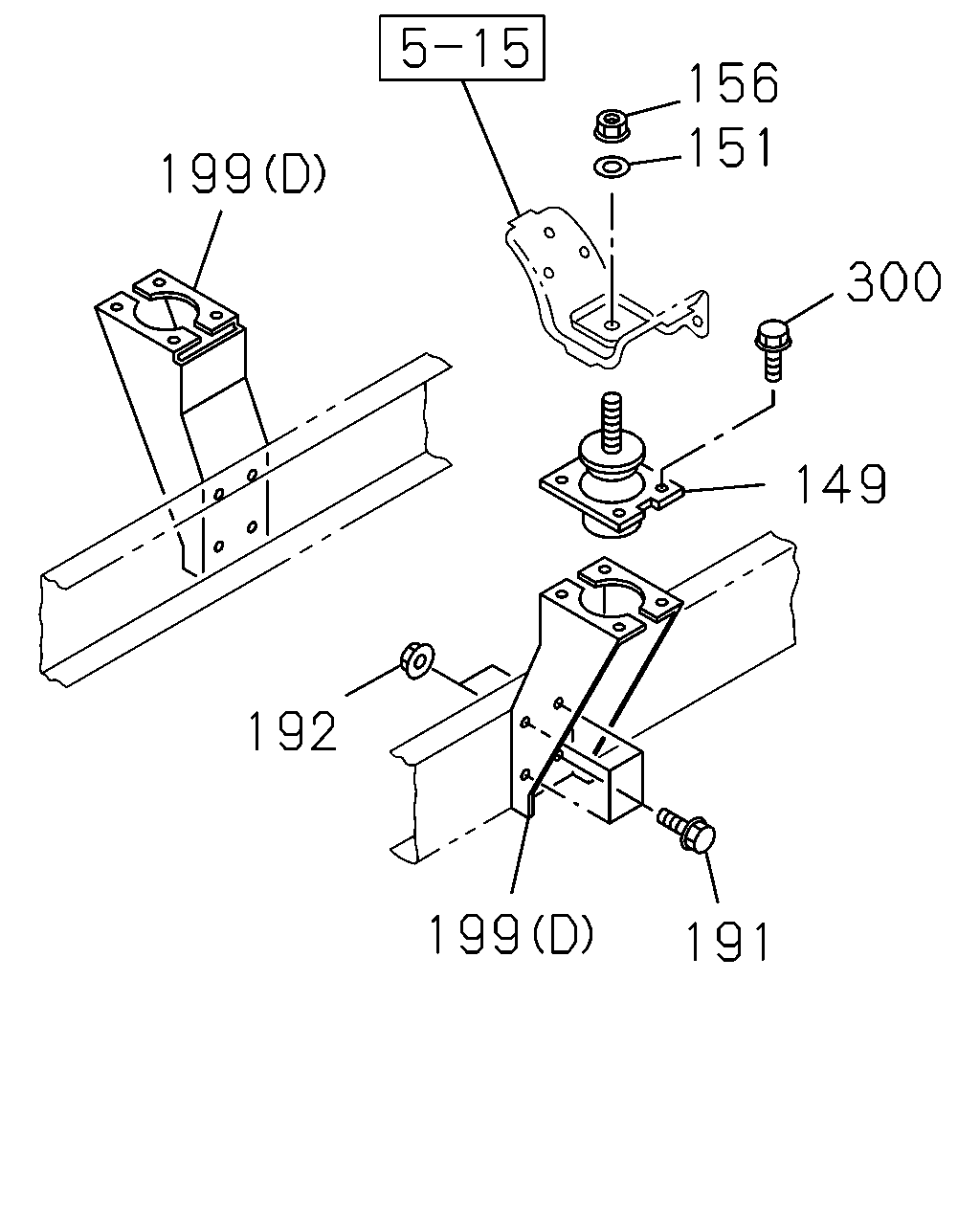

156 151 199 300 149 192 199 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ>	8-98038-868-0	02	1	0911-
149	09.023 RUBBER; MTG,CAB,UPR RR	8-98021-561-0	02	1	0806-0909
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ>	8-98021-561-1	02	1	0910-
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> ID=16.5 OD=58	8-97359-040-1	02	1	0911-
151	09.011 WASHER; CAB MTG,RR UPR ID=17 OD=62	8-97359-042-1	02	1	0806-0909
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> ID=17 OD=62	8-97359-042-1	02	1	0910-
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> M14 FLANGE	0-91180-114-0	02	1	0911-
156	07.529 NUT; CAB MTG RR 00.785 M16	0-91111-516-0	02	1	0806-0909
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 00.785 M16	0-91111-516-0	02	1	0910-
191	09.003 BOLT; BRKT FIX M12X35 FLANGE	0-28651-235-0	08	1	0806-
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	04	1	0806-
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (D)	8-98001-443-4	02	1	0911-
199	09.003 BRACKET; CAB RR MTG (A)	8-98036-883-0	02	1	0806-0909
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-98036-883-0	02	1	0910-
199	09.003 BRACKET; CAB RR MTG (B)	8-98021-569-2	01	1	0806-0909
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98021-569-2	01	1	0910-
199	09.003 BRACKET; CAB RR MTG (C)	8-98021-568-2	01	1	0806-0909
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (C)	8-98021-568-2	01	1	0910-
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	0806-

141 140 419

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
140	09.003 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	04	1	0810-
141	09.003 BOLT; BRKT 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0810-
419	09.003 BRACKET; HOOK,SEAT BELT ANCHOR	8-97857-422-4	01	1	0810-
419	09.003 BRACKET; HOOK,SEAT BELT ANCHOR	8-97857-423-4	01	1	0810-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
