Isuzu WW
▶
TRUCKS
▶
NLS
▶
51176 - NLS(EUROPE)RHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶
4-50 — FRONT SUSPENSION
(#76156) — 55 parça
◀

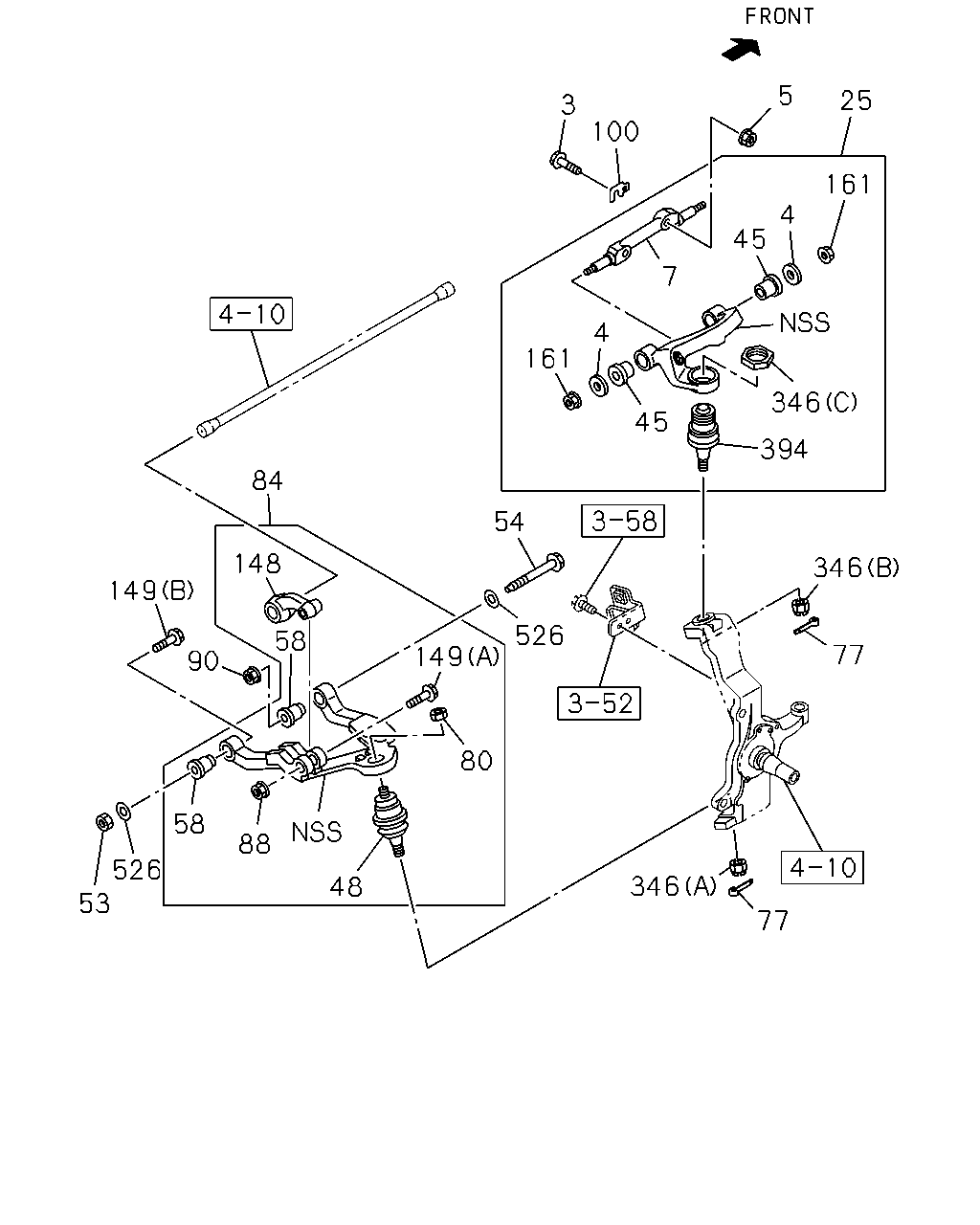

[450A] NO.1 (33 parça)
[450A] NO.2 (22 parça)
▶
5
25
3
100
161
4
45
7
4
161
346
45
394
84
54
148
346
149
58
526
77
149
90
80
58
88
526
53
346
48
77
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
06.164 BOLT; UPR LINK TO FRAME
06.178 M16X70 FLANGE
0-28861-670-0
04
1
0806-
4
06.164 WASHER; UPR LINK TO FRAME
8-98021-786-0
04
1
0806-
5
06.164 NUT; UPR LINK TO FRAME
M16 FLANGE
0-91180-216-0
04
1
0806-
7
06.174 PIN; FULCRUM,UPR LINK
8-98021-654-0
02
1
0806-
25
06.168 ARM; UPR CONT
8-98033-253-0
01
1
0806-
25
06.168 ARM; UPR CONT
8-98033-252-0
01
1
0806-
45
06.164 BUSHING; UPR LINK,FRT
8-97188-369-0
04
1
0806-
48
06.174 JOINT ASM; BALL,LWR CONT ARM
8-97087-653-0
02
1
0806-
53
06.174 NUT; LWR LINK
07.529 M18
0-91110-518-0
02
1
0806-
54
06.174 PIN; FULCRUM,LWR LINK
8-98033-251-0
02
1
0806-
58
06.170 BUSHING; LWR LINK
8-97240-314-0
04
1
0806-
77
06.174 PIN; SPLIT,LINK END TO KNUCKLE
05.812 OD=3.7 L=30
0-81124-030-0
04
1
0806-
80
06.174 NUT; LWR LINK END TO KNUCKLE
8-98029-422-0
02
1
0806-
84
06.168 ARM; LWR CONT
8-98001-293-2
01
1
0806-
84
06.168 ARM; LWR CONT
8-98001-292-2
01
1
0806-
88
06.174 NUT; LWR LINK
05.816 M12 FLANGE
0-91180-212-0
02
1
0806-
90
06.170 NUT; LWR LINK
07.529 M18
0-91110-518-0
02
1
0806-
100
06.164 SHIM; UPR LINK TO FRAME
T=1.2
8-98029-250-0
AR
1
0806-
100
06.164 SHIM; UPR LINK TO FRAME
T=2.3
8-98029-251-0
AR
1
0806-
100
06.164 SHIM; UPR LINK TO FRAME
T=4.5
8-98029-252-0
AR
1
0806-
148
06.170 ARM; LWR LINK
8-97087-652-1
01
1
0806-0911
148
06.170 ARM; LWR LINK
8-98134-780-0
01
1
0912-
148
06.170 ARM; LWR LINK
8-97087-651-1
01
1
0806-0911
148
06.170 ARM; LWR LINK
8-98134-779-0
01
1
0912-
149
06.172 BOLT; ARM TO LWR CONT ARM
(A) M12X80 FLANGE
0-28061-280-0
02
1
0806-
149
06.172 BOLT; ARM TO LWR CONT ARM
06.174 (B)
8-98033-251-0
02
1
0806-
161
06.178 NUT ASM; UPR LINK TO FRAME
06.164 M16 FLANGE
0-91180-216-0
04
1
0806-
346
06.174 NUT; LINK END
06.861 (A) M22
0-91111-522-0
02
1
0806-
346
06.174 NUT; LINK END
(B) M18 SLOTTED
8-97245-632-0
02
1
0806-
346
06.174 NUT; LINK END
(C) M52
8-98021-784-0
02
1
0806-0909
346
06.174 NUT; LINK END
(C) M52
8-98158-133-0
02
1
0910-
394
06.714 END ASM; FRT AXLE
8-97327-369-5
02
1
0806-
526
06.172 WASHER; LWR LINK
ID=18.2
0-91510-818-0
04
1
0806-
532
19
1
530
528
19
532
19
19
19
188
532
530
528
355
532
19
19
19
528
19
528
19
1
14
65
17
62
19
18
17
65
60
65
65
103

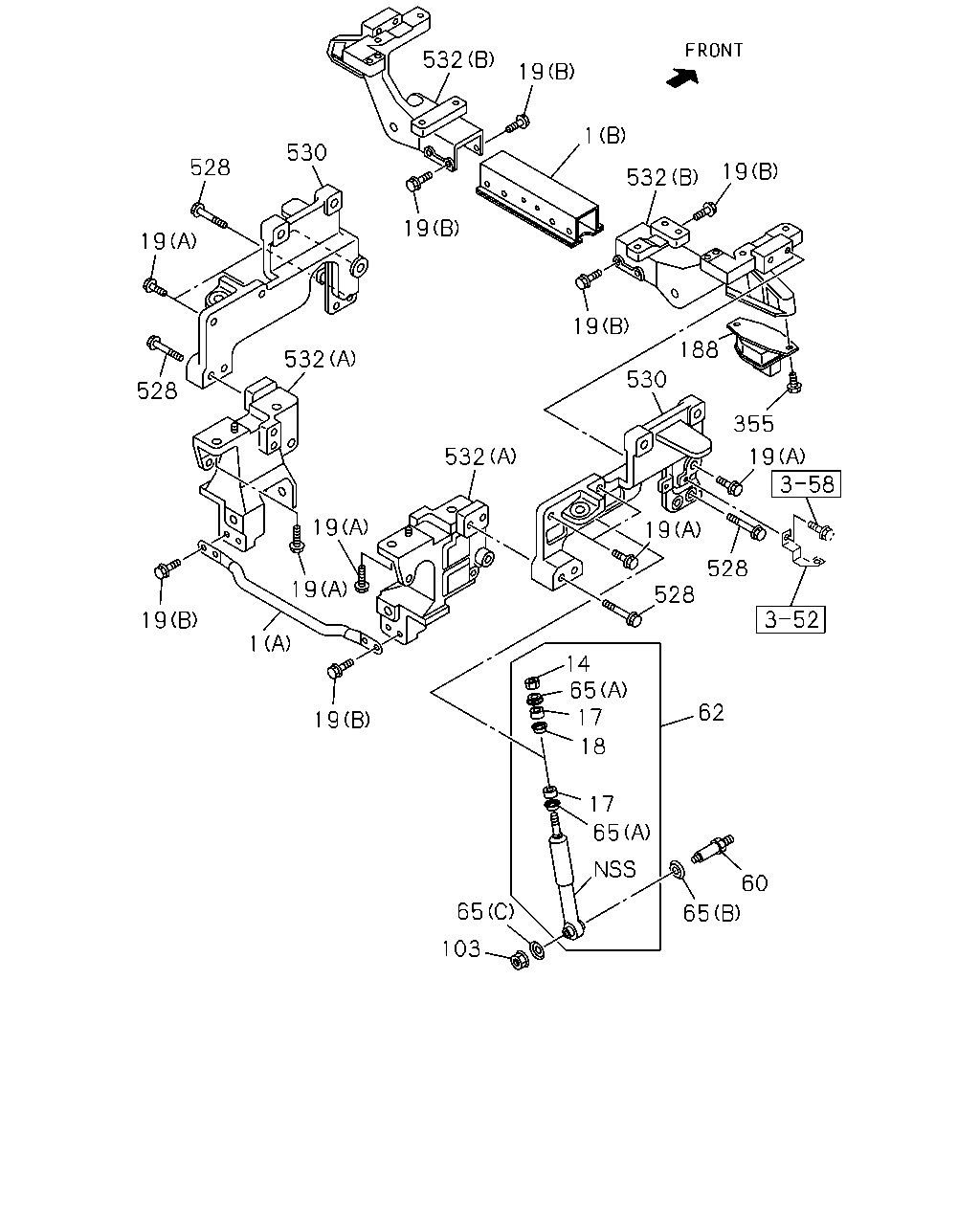

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
07.010 MEMBER; CROSS,FRT SUSP
(A)
8-98001-299-2
01
1
0806-
1
07.010 MEMBER; CROSS,FRT SUSP
(B)
8-98009-501-1
01
1
0806-
14
07.389 NUT; S/ABS,UPR
M10 T=8
9-09640-020-0
02
1
0806-
17
07.388 BUSHING; RUBBER,S/ABS
TOKICO
9-51631-603-0
04
1
0806-
18
07.347 WASHER; CENTERING,S/ABS
TOKICO
8-94412-791-0
02
1
0806-
19
07.425 BOLT; FRT SUSP TO C/MBR
00.724 (A) M12X45 FLANGE
0-28061-245-0
14
1
0806-
19
07.425 BOLT; FRT SUSP TO C/MBR
00.004 (B) M12X35 FLANGE
0-28661-235-0
12
1
0806-
60
07.347 BOLT; S/ABS TO LWR LINK
8-98003-210-0
02
1
0806-
62
07.345 ABSORBER ASM; SHOCK,FRT
8-98001-526-1
02
1
0806-
65
07.347 WASHER; S/ABS
(B) ID=21 OD=40
0-91614-620-0
02
1
0806-
65
07.347 WASHER; S/ABS
(C) ID=15
8-97360-056-0
02
1
0806-
65
07.347 WASHER; S/ABS
(A) OD=40
9-51631-614-0
04
1
0806-
103
07.347 NUT; S/ABS TO LWR LINK
07.833 M14
0-91110-514-0
02
1
0806-
188
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
8-97230-008-0
02
1
0806-
355
07.436 BOLT; CUSHION RUBBER
02.343 M8X16 FLANGE
0-28050-816-0
04
1
0806-
528
06.172 BOLT; UPR CONT ARM
00.004 M12X35 FLANGE
0-28661-235-0
08
1
0806-
530
06.172 BRACKET; UPR CONT ARM
8-98010-557-1
01
1
0806-
530
06.172 BRACKET; UPR CONT ARM
8-98010-558-1
01
1
0806-
532
06.172 BRACKET; FRT SUSP
(A)
8-98001-307-1
01
1
0806-
532
06.172 BRACKET; FRT SUSP
(B)
8-98009-502-2
01
1
0806-
532
06.172 BRACKET; FRT SUSP
(A)
8-98001-308-1
01
1
0806-
532
06.172 BRACKET; FRT SUSP
(B)
8-98009-503-2
01
1
0806-
