◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10780 - FVM(THAI) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-35 - POWER STEERING CONTROL; CHASSIS SIDE ▶
4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#7615) — 34 parça

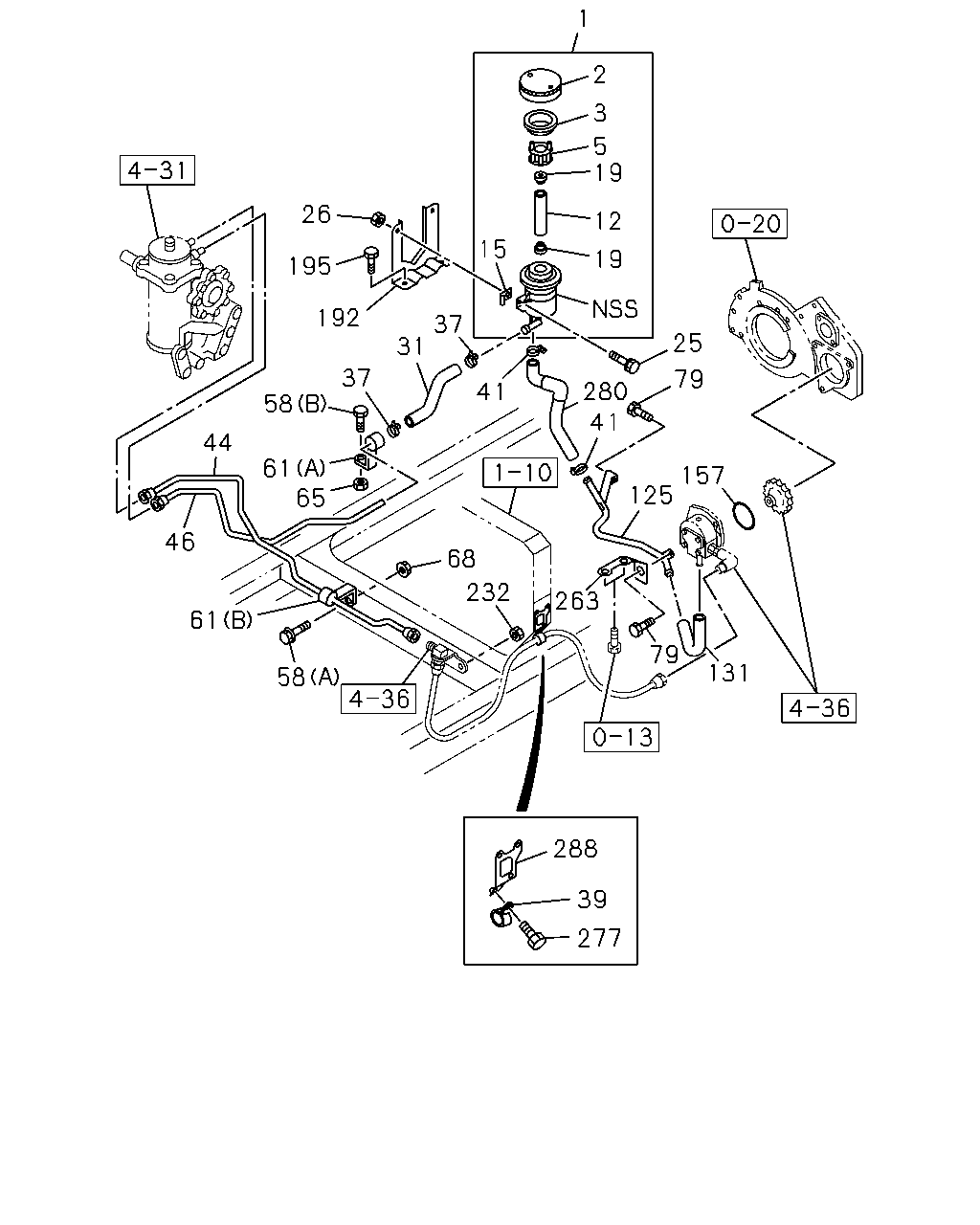

çizim 5762
1 2 3 5 19 26 12 15 19 195 192 37 31 25 79 37 58 280 41 41 44 61 65 157 125 46 68 232 263 79 61 131 58 288 39 277
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 1-21210-205-0 01 1 0101-
2 CAP; OIL TANK,P/S 1-21241-004-3 01 1 0101-
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 0101-
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 0101-
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-011-0 01 1 0101-
15 PLATE; FILTER,OIL TANK 1-21249-007-1 02 1 0101-
19 SEAT; OIL TANK 1-21249-004-0 02 1 0101-
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0101-
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91150-108-0 02 1 0101-
31 HOSE; P/S OIL TANK,INL 1-21113-590-0 01 1 0101-
37 CLIP; HOSE,P/S
ID=26 THA 		1-09704-082-0 02 1 0101-
39 CLIP; FLEX HOSE
ID=40 THA 		8-94226-553-0 01 1 0101-
41 CLIP; HOSE,P/S
ID=32 THA 		1-09704-085-0 02 1 0101-
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21115-902-0 01 1 0101-
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=786 		1-21115-336-0 01 1 0101-
58 BOLT; CLIP
(A) M8X20 FLANGE 		0-28080-820-0 01 1 0101-
58 BOLT; CLIP
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0101-
61 CLIP; OIL PIPE
(B) ID=12 H=24 L=20 		1-09700-605-0 01 1 0101-
61 CLIP; OIL PIPE
(A) ID=15 H=24 L=20 THA 		1-09700-606-0 01 1 0101-
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0101-
68 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 01 1 0101-
79 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 0101-
125 CONNECTOR; P/S PUMP 8-97600-113-0 01 1 0101-
131 HOSE; RUBBER,P/S 8-94396-331-1 01 1 0101-
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4 		1-09623-178-0 01 1 0101-
192 BRACKET; P/S OIL TANK
THA 		1-21119-142-1 01 1 0101-
195 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0101-
232 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0101-
263 BRACKET; P/S PIPE 8-97600-117-0 01 1 0101-
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0101-
280 HOSE; P/S OIL PUMP,INL 1-21115-491-0 01 1 0101-0206
280 HOSE; P/S OIL PUMP,INL 1-21116-721-0 01 1 0207-
288 BRACKET; CLIP,P/S
6HE1 TC ENG<57L> 		1-47478-354-0 01 1 0101-
288 BRACKET; CLIP,P/S
6HH1 STD ENG<65L> THA 		1-82659-149-0 01 1 0101-
