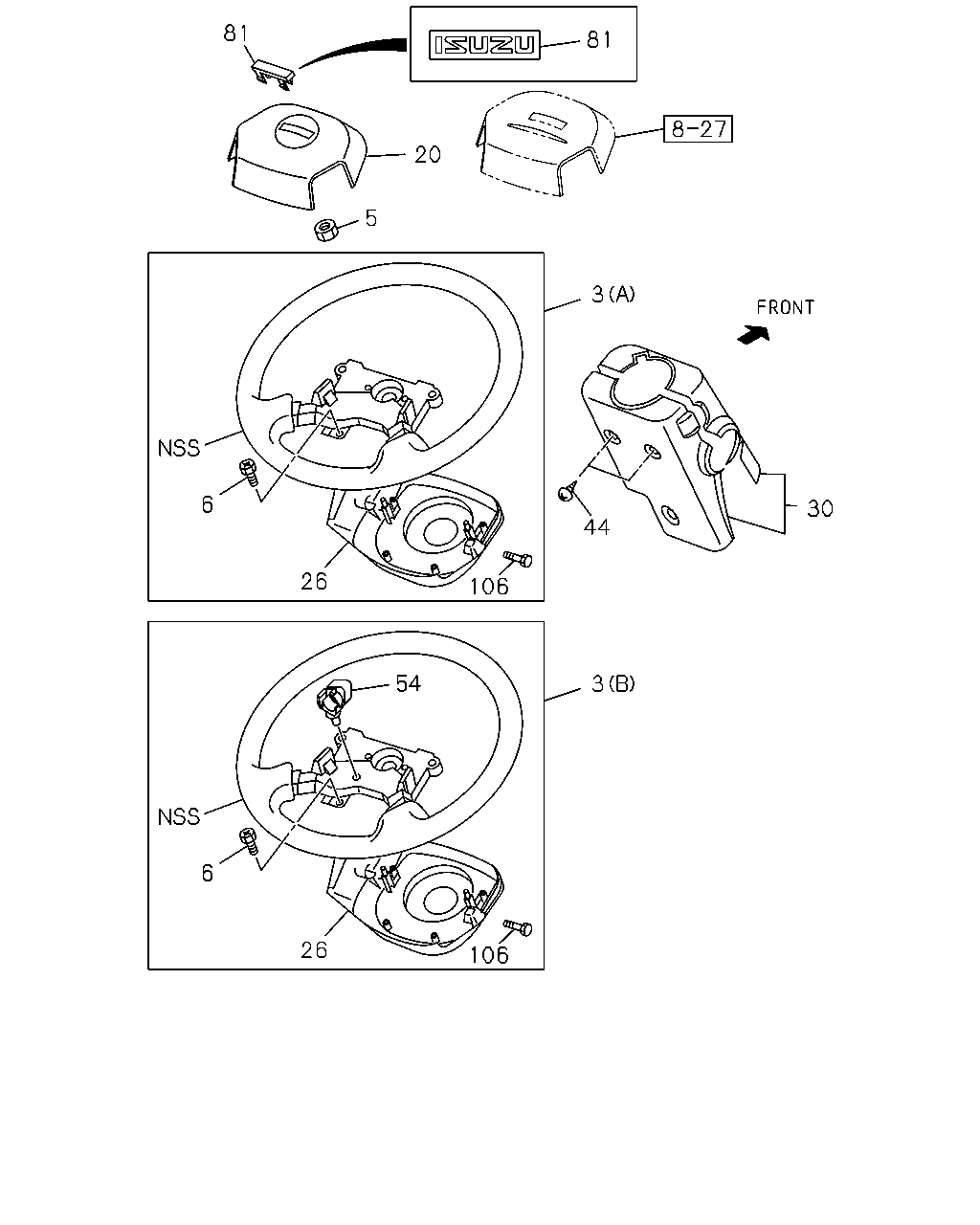

4-30 — STEERING WHEEL AND COWL (#76148) — 16 parça

81 81 20 5 3 30 44 3 106 26 6 6 54 106 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97405-726-1	01	1	0806-1006
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97421-977-0	01	1	1007-1210
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY	8-97423-997-0	01	1	1211-
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97412-556-1	01	1	0806-
5	06.515 NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	0806-
6	02.820 SCREW; HORN SPR CONTACT M4X12	8-97167-588-0	04	1	0806-
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97405-985-1	01	1	0806-
26	06.514 COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97405-841-0	01	1	0806-1006
26	06.514 COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97421-978-0	01	1	1007-
26	06.514 COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97409-275-2	01	1	0806-
30	06.518 COWL; STEERING DARK GRAY	8-97405-356-5	01	1	0806-1110
30	06.518 COWL; STEERING DARK GRAY	8-97418-761-1	01	1	1111-
44	06.514 SCREW; STRG COWL M5X12	0-38050-512-0	03	1	0806-
54	02.559 CLIP; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98165-703-0	01	1	1211-
81	02.820 EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97405-986-0	01	1	0806-
106	05.453 BOLT; TORX	8-98231-397-0	02	1	0806-
