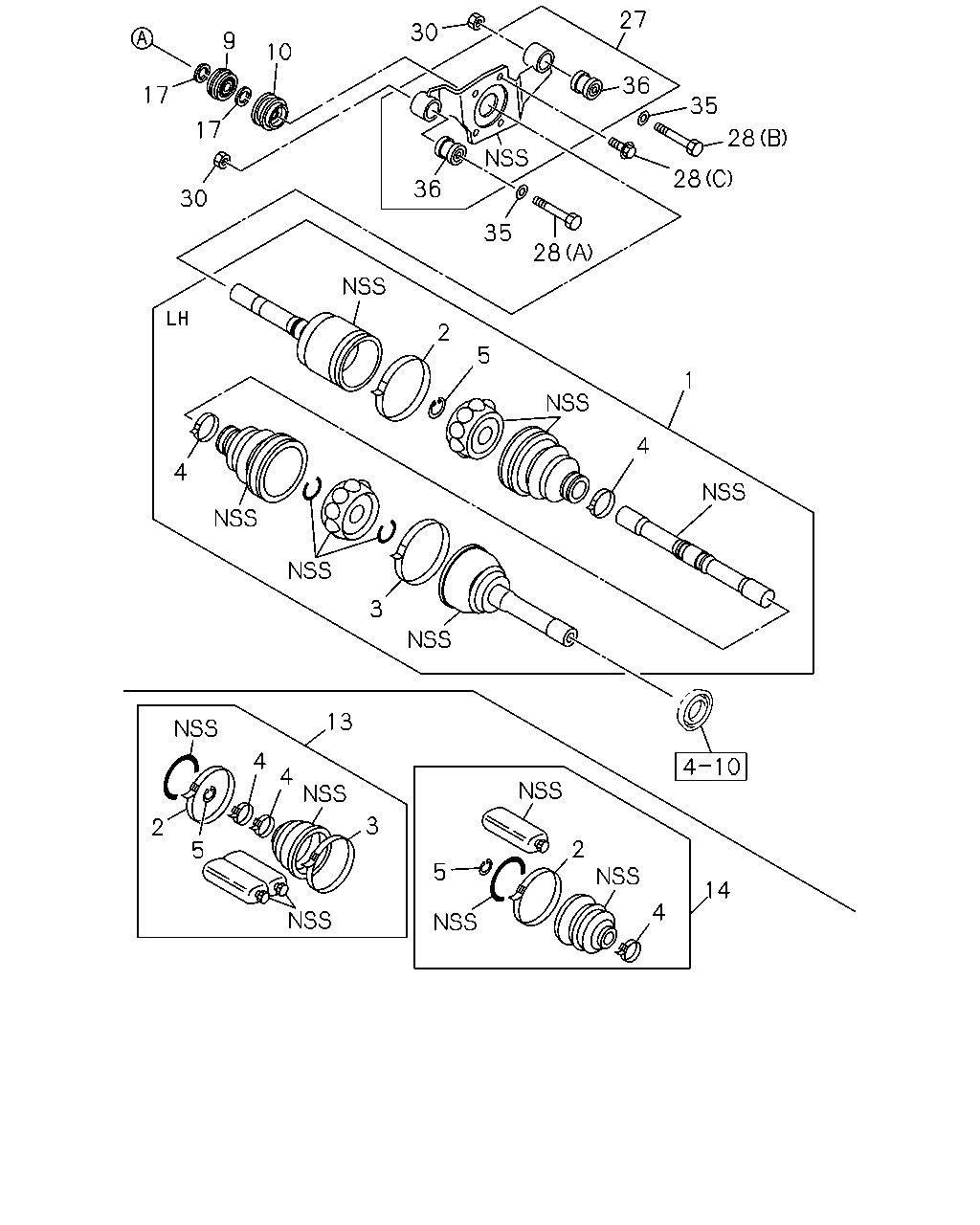

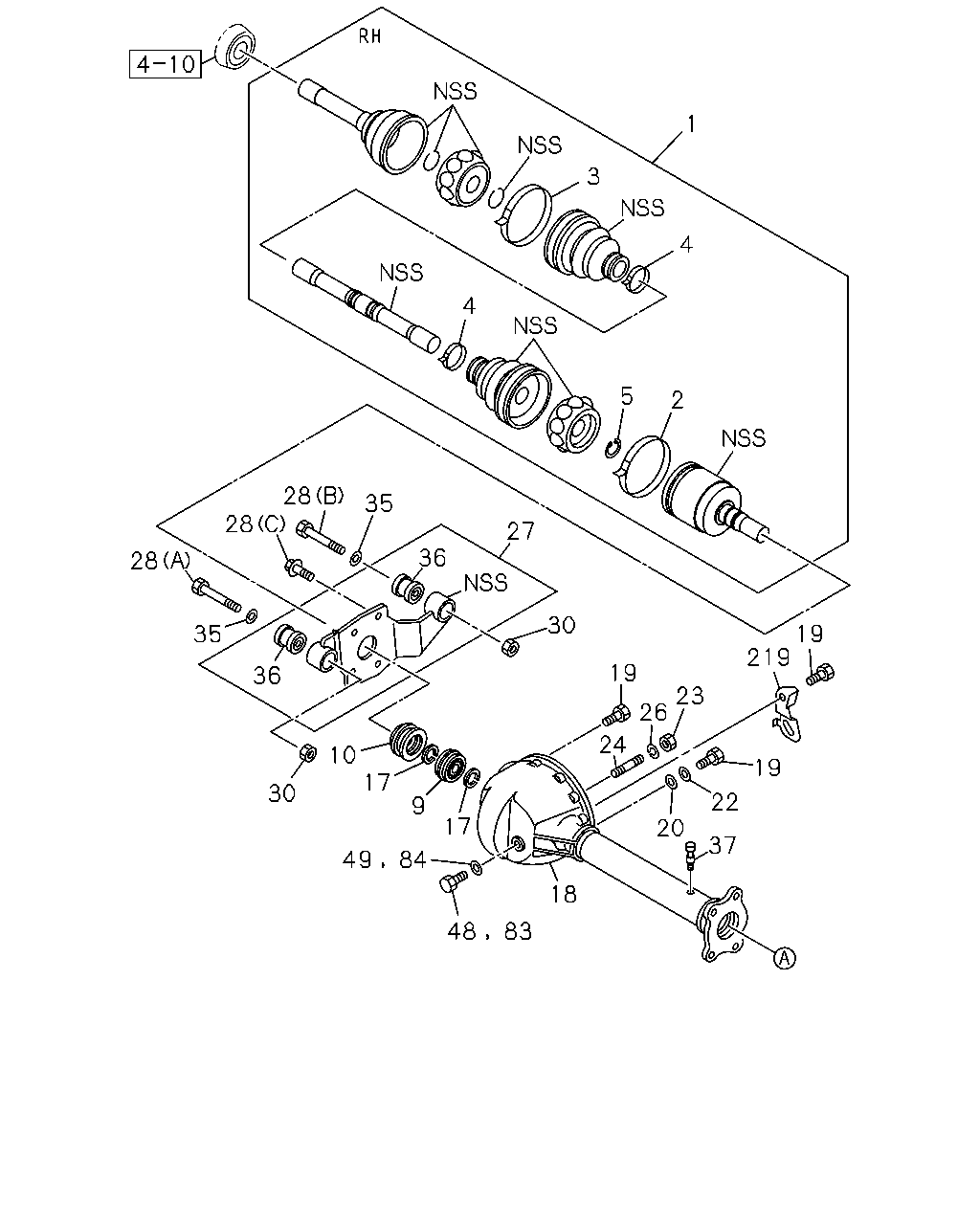

4-12 — FRONT DRIVE SHAFT (#76143) — 61 parça

1 3 4 4 5 2 19 219 19 23 26 24 19 22 20 37 18 83 48 84 49 9 17 17 10 30 36 35 27 36 30 28 28 28 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.055 SHAFT ASM; FRT DRIVE	8-97218-682-2	01	1	0806-
1	06.055 SHAFT ASM; FRT DRIVE	8-97218-681-2	01	1	0806-
2	06.061 BAND; "A",FRT DRIVE SHAFT	8-94313-084-0	02	1	0806-
3	06.061 BAND; "B",FRT DRIVE SHAFT	8-94313-082-0	02	1	0806-
4	06.061 BAND; "C",FRT DRIVE SHAFT	8-94313-094-0	04	1	0806-
5	06.061 RING; RET,FRT DRIVE SHAFT ID=26.9	9-09180-029-0	02	1	0806-
9	06.056 BEARING; AXLE SHAFT,INNER	8-94407-724-0	02	1	0806-
10	06.061 SEAL; OIL,AXLE SHAFT,INNER	8-97373-555-0	02	1	0806-
17	06.061 RING; SNAP,DRIVE SHAFT TO TRANS 04.416 ID=27.9	9-09180-030-0	04	1	0806-
18	06.008 CASE; FRT AXLE	8-97218-708-1	01	1	0806-
19	06.156 BOLT; FRT AXLE M8X25 W/LK WASHER	8-98022-410-0	05	1	0806-
19	06.156 BOLT; FRT AXLE M8X30 W/LK WASHER	8-98022-411-0	02	1	0806-
19	06.156 BOLT; FRT AXLE M8X90 W/LK WASHER	8-98022-412-0	02	1	0806-
19	06.156 BOLT; FRT AXLE M8X40 W/LK WASHER	8-98030-089-0	02	1	0806-
20	06.156 GASKET; AXLE CASE 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	0806-
22	06.056 WASHER; PL,AXLE CASE ID=8.4 OD=16	0-91614-508-0	01	1	0806-
23	06.056 NUT; FRT AXLE 02.334 M8	0-91110-508-0	02	1	0806-
24	06.056 STUD; CASE,FRT AXLE 03.275 M8X25 L=37	0-41010-825-0	02	1	0806-
26	06.056 WASHER; LK,CASE,FRT AXLE 02.559 ID=8.2	0-91510-808-0	02	1	0806-
27	06.056 BRACKET; AXLE CASE	8-98002-128-0	01	1	0806-
27	06.056 BRACKET; AXLE CASE	8-98002-129-0	01	1	0806-
28	06.056 BOLT; BRKT TO AXLE CASE (A)	0-29261-400-0	02	1	0806-
28	06.056 BOLT; BRKT TO AXLE CASE (B)	8-98032-667-0	02	1	0806-
28	06.056 BOLT; BRKT TO AXLE CASE (C) M12X25 FLANGE	8-98033-645-0	08	1	0806-
30	06.008 NUT; FRT AXLE MTG 06.174 M14 FLANGE	8-97360-124-0	04	1	0806-
35	06.008 WASHER; FRT AXLE MTG	8-98029-949-0	04	1	0806-
36	06.008 BUSHING; RUBBER,FRT AXLE MTG	8-94368-734-0	04	1	0806-
37	06.008 BREATHER; FRT AXLE CASE	8-94311-349-0	01	1	0806-
48	05.400 PLUG; DRAIN,AXLE CASE M20X10.5	8-98009-333-0	01	1	0806-0807
48	05.400 PLUG; DRAIN,AXLE CASE EXC. KD PREPARATORY PACK<6HF> M20X10.5	8-98009-333-0	01	1	0808-
49	05.400 GASKET; DRAIN PLUG ID=20 OD=30	8-94462-734-0	01	1	0806-0807
49	05.400 GASKET; DRAIN PLUG EXC. KD PREPARATORY PACK<6HF> ID=20 OD=30	8-94462-734-0	01	1	0808-
83	06.330 PLUG; OIL FILLER KD PREPARATORY PACK<6HF> 05.400 M20X10.5	8-98009-333-0	01	1	0808-
84	06.326 GASKET; PLUG,OIL FILLER KD PREPARATORY PACK<6HF> 05.400 ID=20 OD=30	8-94462-734-0	01	1	0808-
219	06.008 BRACKET; HARNESS	8-98041-200-0	01	1	0806-

14 2 4 3 4 4 13 3 2 5 4 2 4 1 5 28 35 36 30 27 36 28 28 35 10 9 17 30 17 5

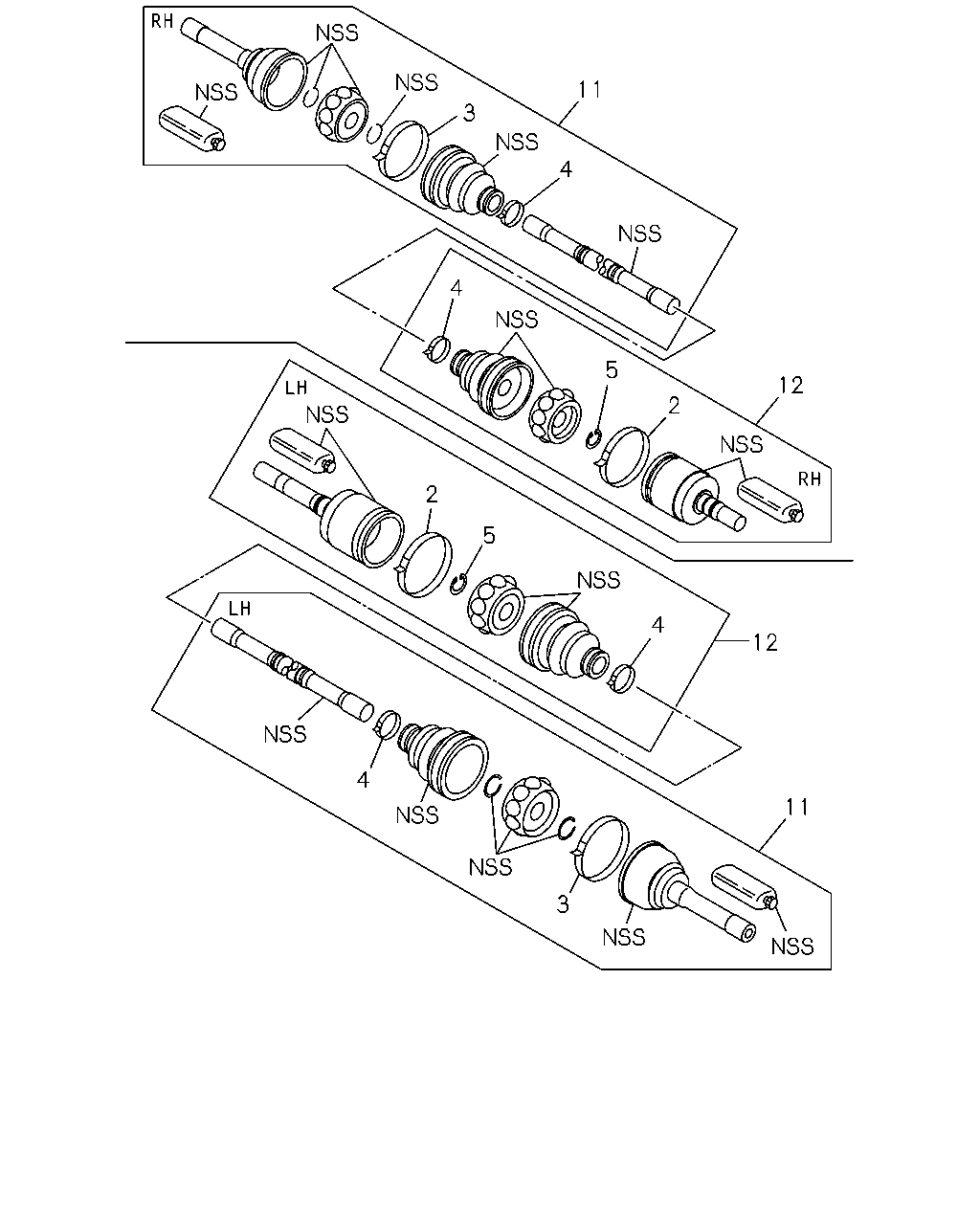

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.055 SHAFT ASM; FRT DRIVE	8-97218-682-2	01	1	0806-
1	06.055 SHAFT ASM; FRT DRIVE	8-97218-681-2	01	1	0806-
2	06.061 BAND; "A",FRT DRIVE SHAFT	8-94313-084-0	02	1	0806-
3	06.061 BAND; "B",FRT DRIVE SHAFT	8-94313-082-0	02	1	0806-
4	06.061 BAND; "C",FRT DRIVE SHAFT	8-94313-094-0	04	1	0806-
5	06.061 RING; RET,FRT DRIVE SHAFT ID=26.9	9-09180-029-0	02	1	0806-
9	06.056 BEARING; AXLE SHAFT,INNER	8-94407-724-0	02	1	0806-
10	06.061 SEAL; OIL,AXLE SHAFT,INNER	8-97373-555-0	02	1	0806-
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF	8-98271-589-0	02	1	0806-
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF	8-98271-588-0	02	1	0806-
17	06.061 RING; SNAP,DRIVE SHAFT TO TRANS 04.416 ID=27.9	9-09180-030-0	04	1	0806-
27	06.056 BRACKET; AXLE CASE	8-98002-128-0	01	1	0806-
27	06.056 BRACKET; AXLE CASE	8-98002-129-0	01	1	0806-
28	06.056 BOLT; BRKT TO AXLE CASE (A)	0-29261-400-0	02	1	0806-
28	06.056 BOLT; BRKT TO AXLE CASE (B)	8-98032-667-0	02	1	0806-
28	06.056 BOLT; BRKT TO AXLE CASE (C) M12X25 FLANGE	8-98033-645-0	08	1	0806-
30	06.008 NUT; FRT AXLE MTG 06.174 M14 FLANGE	8-97360-124-0	04	1	0806-
35	06.008 WASHER; FRT AXLE MTG	8-98029-949-0	04	1	0806-
36	06.008 BUSHING; RUBBER,FRT AXLE MTG	8-94368-734-0	04	1	0806-

4 12 11 3 4 2 5 5 2 12 4 4 11 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	06.061 BAND; "A",FRT DRIVE SHAFT	8-94313-084-0	02	1	0806-
3	06.061 BAND; "B",FRT DRIVE SHAFT	8-94313-082-0	02	1	0806-
4	06.061 BAND; "C",FRT DRIVE SHAFT	8-94313-094-0	04	1	0806-
5	06.061 RING; RET,FRT DRIVE SHAFT ID=26.9	9-09180-029-0	02	1	0806-
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA	8-98271-592-0	02	1	0806-
12	06.060 JOINT ASM	8-98271-590-0	01	1	0806-
12	06.060 JOINT ASM	8-98271-591-0	01	1	0806-
