Isuzu WW
▶
TRUCKS
▶
NLS
▶
51176 - NLS(EUROPE)RHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-01 - PROPELLER SHAFT
▶
4-01 — PROPELLER SHAFT
(#76140) — 34 parça
◀

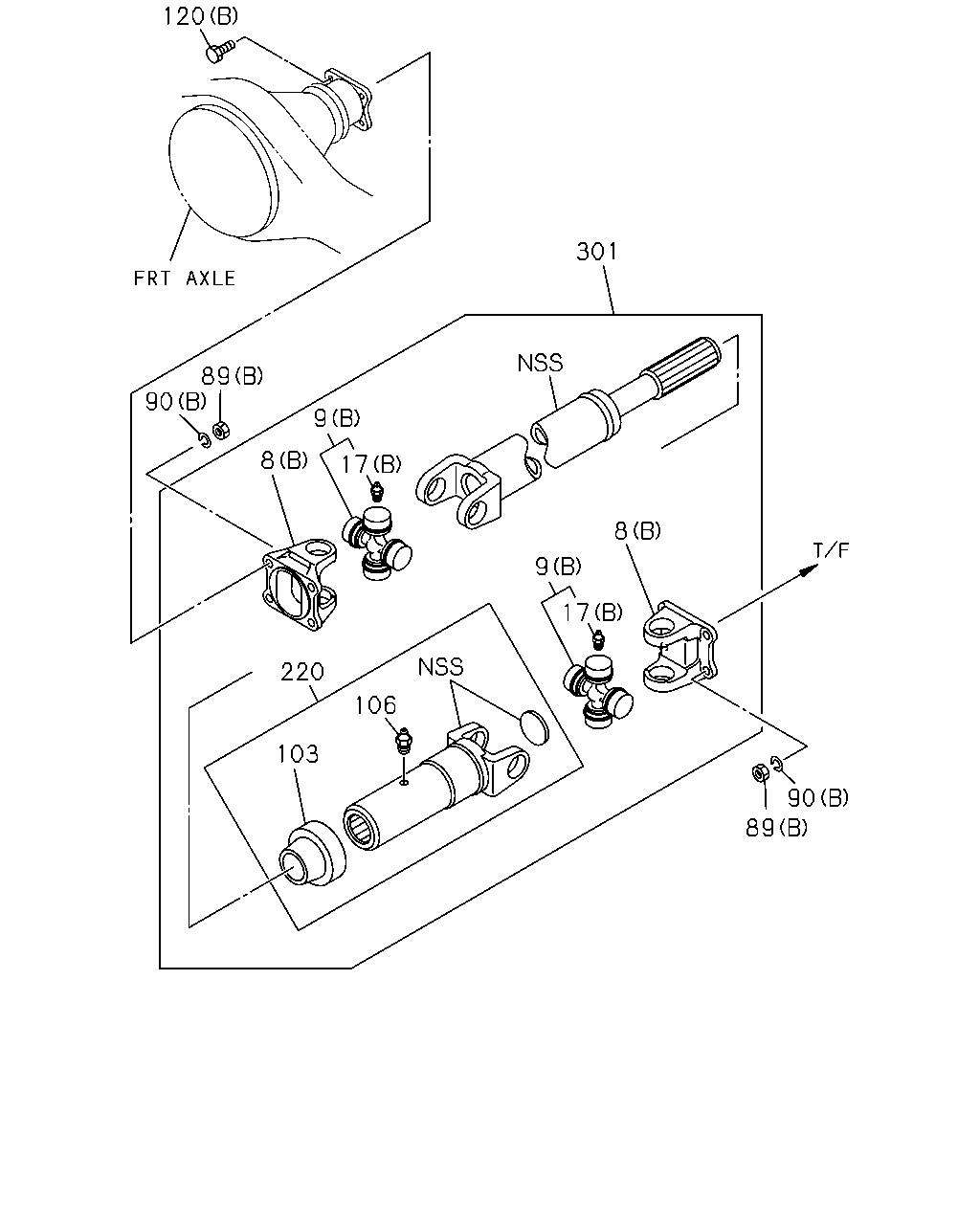

[401A] FRONT (16 parça)

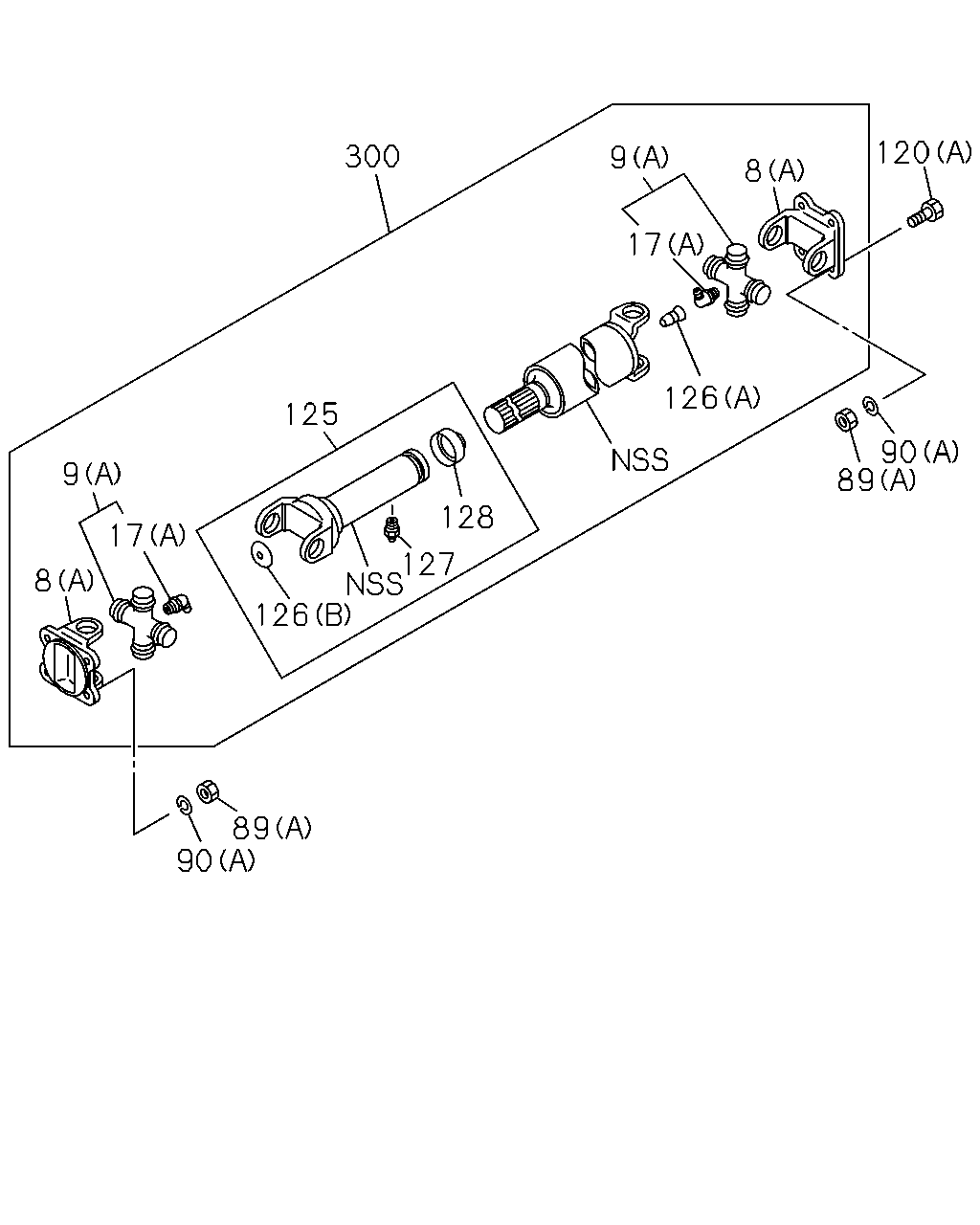

[401A] REAR (18 parça)
▶
120
301
89
90
9
8
17
8
9
17
220
106
103
90
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
05.544 YOKE; FLANGE,PROP SHAFT
(B)
8-97211-116-0
02
1
0806-
8
05.544 YOKE; FLANGE,PROP SHAFT
(A)
8-97322-663-0
02
1
0806-
9
05.548 JOURNAL ASM; PROP SHAFT
(B)
8-97211-133-0
02
1
0806-
9
05.548 JOURNAL ASM; PROP SHAFT
(A)
8-98033-605-1
02
1
0806-
17
05.601 NIPPLE; GREASE,PROP SHAFT
(B) M6 STRAIGHT
0-90301-406-0
02
1
0806-
17
05.601 NIPPLE; GREASE,PROP SHAFT
08.984 (A) PT1/8 ELBOW
0-90301-610-0
02
1
0806-
89
05.586 NUT; YOKE TO RR AXLE
(A) M12
8-97365-450-1
08
1
0806-
89
05.586 NUT; YOKE TO RR AXLE
(B) M10
8-98056-949-0
08
1
0806-
90
05.586 WASHER; LK,YOKE TO RR AXLE
00.002 (B) ID=10.2
0-91510-610-0
08
1
0806-
90
05.586 WASHER; LK,YOKE TO RR AXLE
07.347 (A) ID=12.2
0-91510-812-0
08
1
0806-
103
05.544 BOOT; PROP SHAFT
05.545
8-97020-597-1
01
1
0806-
106
05.586 NIPPLE; GREASE,YOKE,PROP SHAFT
05.601 M6 STRAIGHT
0-90301-406-0
01
1
0806-
120
05.586 BOLT; YOKE TO RR AXLE
(A) M12X35
8-97365-451-1
04
1
0806-
120
05.586 BOLT; YOKE TO RR AXLE
(B) M10X29
8-98056-948-0
04
1
0806-
220
05.544 YOKE; SPLINED
05.545 L=177
8-97211-131-0
01
1
0806-
301
05.544 SHAFT ASM; PROP,FRT
L=753
8-97303-009-1
01
1
0806-
120
300
9
8
17
126
125
90
89
9
128
17
127
126
8
89
90
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
05.544 YOKE; FLANGE,PROP SHAFT
(B)
8-97211-116-0
02
1
0806-
8
05.544 YOKE; FLANGE,PROP SHAFT
(A)
8-97322-663-0
02
1
0806-
9
05.548 JOURNAL ASM; PROP SHAFT
(B)
8-97211-133-0
02
1
0806-
9
05.548 JOURNAL ASM; PROP SHAFT
(A)
8-98033-605-1
02
1
0806-
17
05.601 NIPPLE; GREASE,PROP SHAFT
(B) M6 STRAIGHT
0-90301-406-0
02
1
0806-
17
05.601 NIPPLE; GREASE,PROP SHAFT
08.984 (A) PT1/8 ELBOW
0-90301-610-0
02
1
0806-
89
05.586 NUT; YOKE TO RR AXLE
(A) M12
8-97365-450-1
08
1
0806-
89
05.586 NUT; YOKE TO RR AXLE
(B) M10
8-98056-949-0
08
1
0806-
90
05.586 WASHER; LK,YOKE TO RR AXLE
00.002 (B) ID=10.2
0-91510-610-0
08
1
0806-
90
05.586 WASHER; LK,YOKE TO RR AXLE
07.347 (A) ID=12.2
0-91510-812-0
08
1
0806-
120
05.586 BOLT; YOKE TO RR AXLE
(A) M12X35
8-97365-451-1
04
1
0806-
120
05.586 BOLT; YOKE TO RR AXLE
(B) M10X29
8-98056-948-0
04
1
0806-
125
05.545 YOKE ASM; SPLINED,PROP SHAFT
L=246
8-98034-338-1
01
1
0806-
126
05.556 PLUG; SPLINED YOKE
(A)
1-09600-023-0
01
1
0806-
126
05.556 PLUG; SPLINED YOKE
(B)
8-94366-900-0
01
1
0806-
127
05.586 NIPPLE; GREASE,SPLINED YOKE
05.601 M6 STRAIGHT
0-90301-406-0
01
1
0806-
128
05.586 SEAL; SLEEVE
8-97145-746-0
01
1
0806-
300
05.544 SHAFT ASM; PROP,RR
L=1079
8-98105-690-1
01
1
0806-
