◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10780 - FVM(THAI) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#7614) — 15 parça

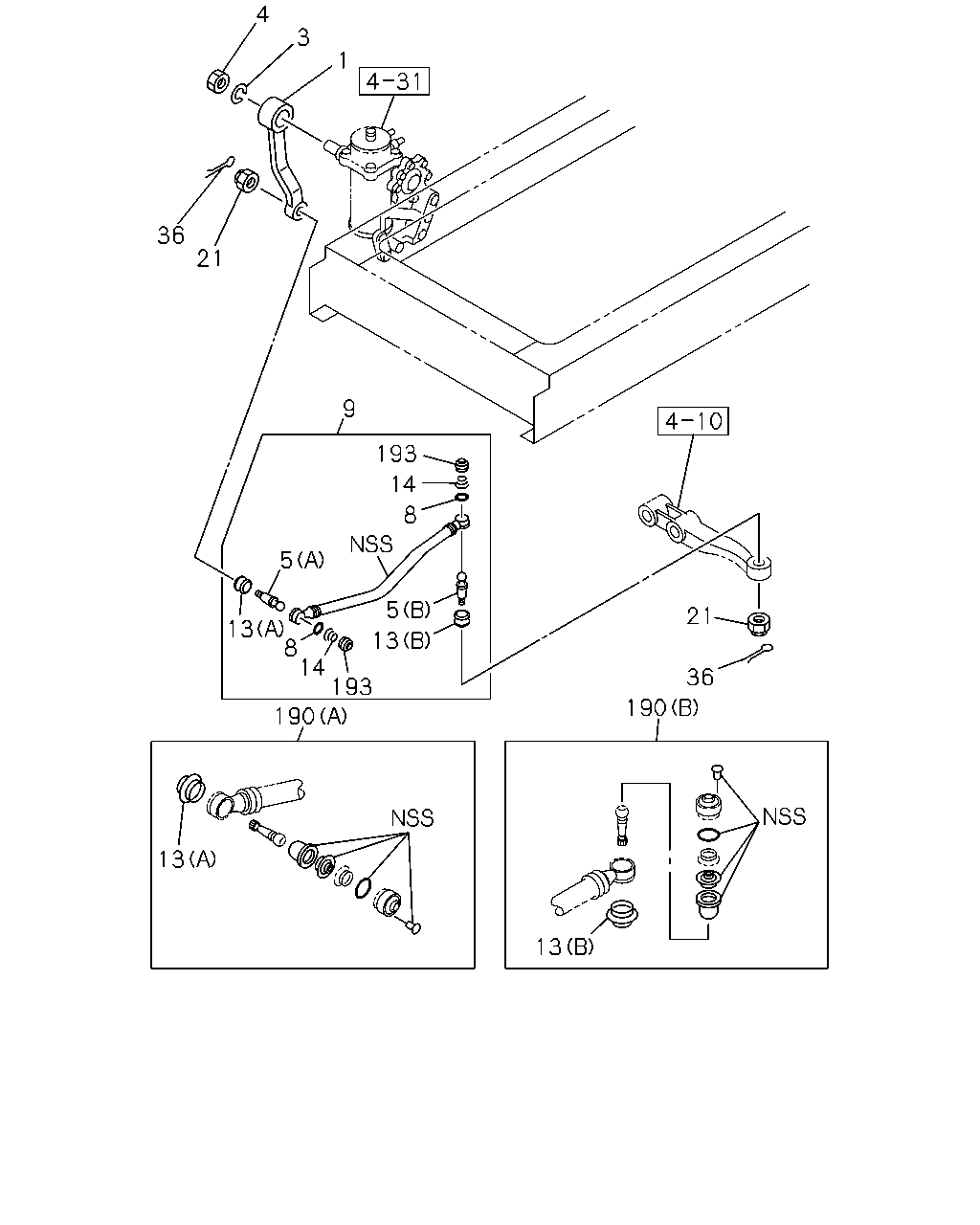

çizim 42733
4 3 1 36 21 9 193 14 8 5 5 21 13 8 14 193 13 36 190 190 13 13
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; PITMAN,STRG 1-44341-389-0 01 1 0101-
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 0101-
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-013-0 01 1 0101-
5 BALL; JOINT,DRAG LINK
(A) 		1-44361-098-0 01 1 0101-
5 BALL; JOINT,DRAG LINK
(B) 		1-44361-105-1 01 1 0101-
8 SEAT; SPR,ROD END 1-43159-075-0 02 1 0101-
9 LINK; DRAG 1-44380-073-1 01 1 0101-
13 BOOT; DRAG LINK
(A) THA 		1-43159-078-0 01 1 0101-
13 BOOT; DRAG LINK
(B) 		1-43159-081-0 01 1 0101-
14 SPRING; COIL,DRAG LINK 1-43159-074-0 02 1 0101-
21 NUT; LK,JOINT BALL
M24 SLOTTED THA 		1-09442-020-0 02 1 0101-
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		9-08115-035-0 02 1 0101-
190 REPAIR KIT; DRAG LINK
(B) 		1-85574-040-0 01 1 0101-
190 REPAIR KIT; DRAG LINK
(A) 		1-85574-041-0 01 1 0101-
193 PLUG; END,DRAG LINK 1-43159-093-0 02 1 0101-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
