3-58 — FIXING PARTS; OIL PIPING (#76138) — 49 parça

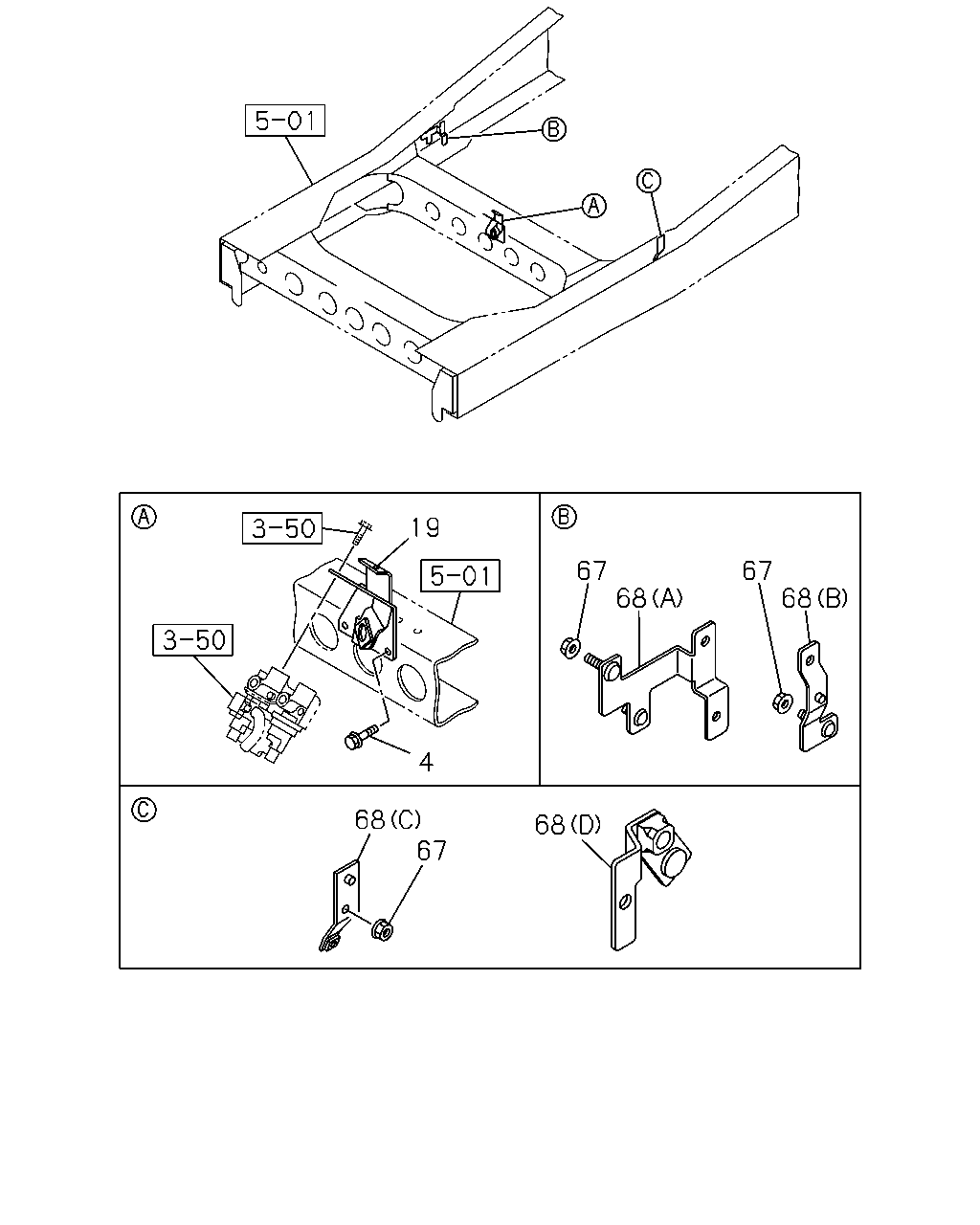

19 67 68 67 68 4 68 67 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	04.686 BOLT; BRKT EURO5 SPECIFICATION(NT5) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0907-
4	04.686 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0806-
19	04.686 BRACKET; OIL PIPE	8-98009-117-2	01	1	0806-1006
19	04.686 BRACKET; OIL PIPE	8-98162-759-0	01	1	1007-
67	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	0806-
67	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	0806-
67	04.686 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0806-
68	04.686 BRACKET; CLIP EURO5 SPECIFICATION(NT5) (D)	8-98136-287-0	02	1	0907-0911
68	04.686 BRACKET; CLIP EURO5 SPECIFICATION(NT5) (D)	8-98136-287-1	01	1	0912-
68	04.686 BRACKET; CLIP EURO5 SPECIFICATION(NT5) (D)	8-98136-287-1	01	1	0912-
68	04.686 BRACKET; CLIP (C)	8-98054-308-1	01	1	0806-
68	04.686 BRACKET; CLIP (A)	8-98039-558-2	01	1	0806-
68	04.686 BRACKET; CLIP (B)	8-98042-700-0	01	1	0806-

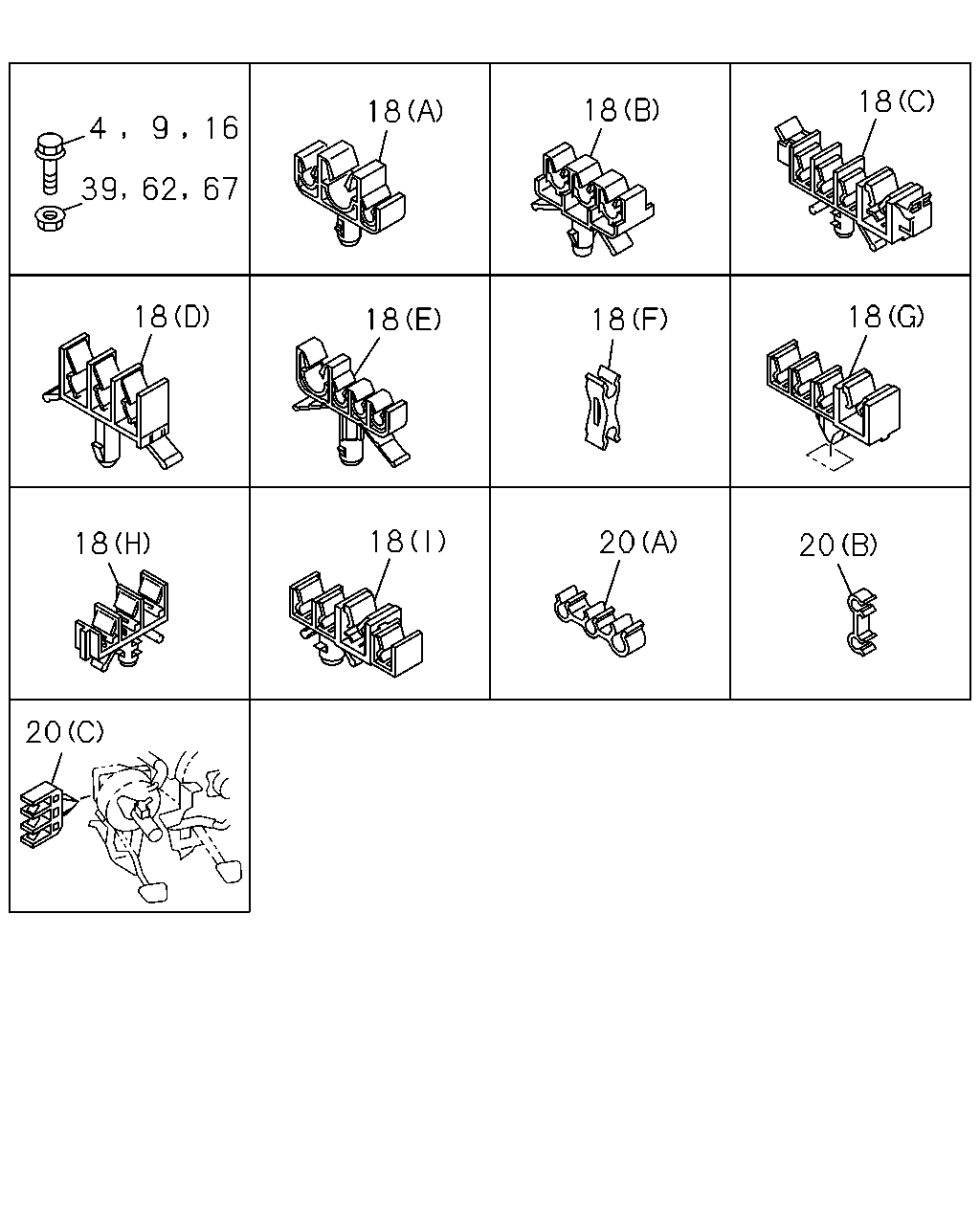

18 18 18 9 16 4 62 67 39 18 18 18 18 18 20 18 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	04.686 BOLT; BRKT EURO5 SPECIFICATION(NT5) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0907-
4	04.686 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0806-
9	04.686 BOLT; BRKT 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0806-
9	04.686 BOLT; BRKT 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0806-
16	04.686 BOLT; BRKT TO FRAME 02.343 M8X12 FLANGE	0-28050-812-0	04	1	0806-
18	04.686 CLIP; BRK PIPE EURO5 SPECIFICATION(NT5) 03.162 (I) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0907-
18	04.686 CLIP; BRK PIPE (D) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0806-
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97168-819-0	02	1	0806-
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97168-819-0	06	1	0806-
18	04.686 CLIP; BRK PIPE (E) ID=10 & 4.76X3	8-97168-820-0	01	1	0806-
18	04.686 CLIP; BRK PIPE (E) ID=10 & 4.76X3	8-97168-820-0	01	1	0806-
18	04.686 CLIP; BRK PIPE (E) ID=10 & 4.76X3	8-97168-820-0	01	1	0806-
18	04.686 CLIP; BRK PIPE 03.162 (H) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0806-
18	04.686 CLIP; BRK PIPE (A) ID=12 & 6.35 & 4.76	8-97305-169-1	01	1	0806-0905
18	04.686 CLIP; BRK PIPE (A) ID=12 & 6.35 & 4.76	8-97305-169-1	04	1	0906-
18	04.686 CLIP; BRK PIPE (A) ID=12 & 6.35 & 4.76	8-97305-169-1	05	1	0806-0905
18	04.686 CLIP; BRK PIPE (A) ID=12 & 6.35 & 4.76	8-97305-169-1	01	1	0906-0906
18	04.686 CLIP; BRK PIPE (A) ID=12 & 6.35 & 4.76	8-97305-169-1	01	1	0906-0906
18	04.686 CLIP; BRK PIPE (A) ID=12 & 6.35 & 4.76	8-97305-169-1	01	1	0907-1005
18	04.686 CLIP; BRK PIPE EURO4 SPECIFICATION(NT4) (A) ID=12 & 6.35 & 4.76	8-97305-169-1	01	1	0907-1005
18	04.686 CLIP; BRK PIPE (A) ID=12 & 6.35 & 4.76	8-97305-169-1	01	1	1006-
18	04.686 CLIP; BRK PIPE 04.868 (F) ID=4.6X2	8-94241-454-0	01	1	0806-
18	04.686 CLIP; BRK PIPE 03.162 (H) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0806-
18	04.686 CLIP; BRK PIPE (B) ID=4.76X3	8-97314-976-0	01	1	0806-
18	04.686 CLIP; BRK PIPE (C) ID=10 & 4.76X3	8-97326-158-1	02	1	0806-
18	04.686 CLIP; BRK PIPE (C) ID=10 & 4.76X3	8-97326-158-1	01	1	0806-
18	04.686 CLIP; BRK PIPE (C) ID=10 & 4.76X3	8-97326-158-1	01	1	0806-
20	04.686 CLIP; BRK PIPE (A) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0806-
20	04.686 CLIP; BRK PIPE (C) ID=6.35 & 4.76X2	8-94250-923-2	01	1	0806-
20	04.686 CLIP; BRK PIPE (B)	8-94338-104-0	01	1	0806-
39	04.686 NUT; BRKT FIX 03.162 M10 FLANGE	0-91180-110-0	01	1	0806-
39	04.686 NUT; BRKT FIX 03.162 M10 FLANGE	0-91180-110-0	01	1	0806-
62	04.686 NUT 03.162 M10 FLANGE	0-91180-110-0	01	1	0806-
67	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	0806-
67	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	0806-
67	04.686 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0806-
