3-11 — PARKING BRAKE CONTROL
(#76130) — 29 parça
◀
[311A] STEM AND CABLE (12 parça)

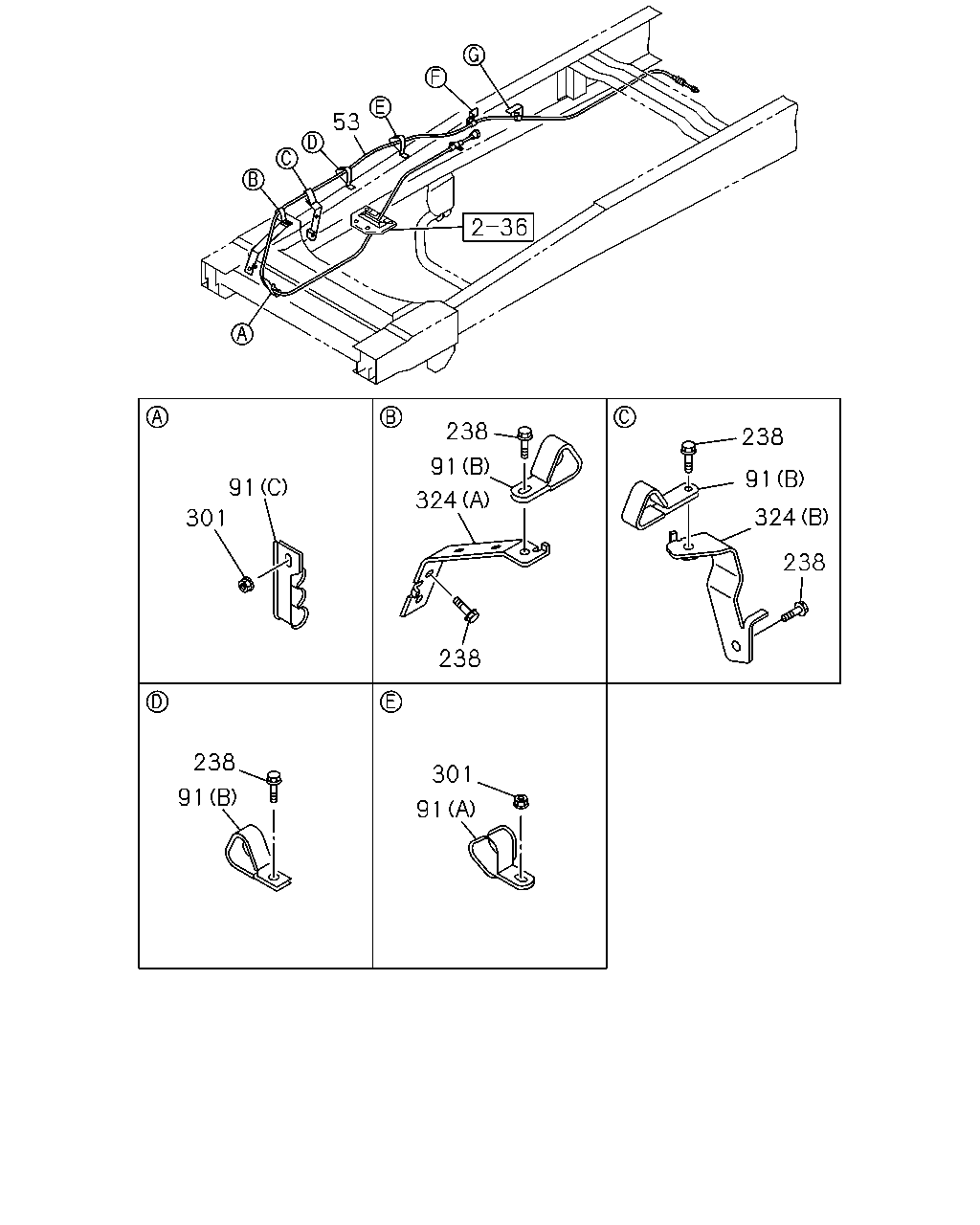

[311A] FIXING PARTS(NO.1) (8 parça)
[311A] FIXING PARTS(NO.2) (9 parça)
▶
64
25
332
24
1
170
87
87
75
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.592 STEM ASM; PARKING BRK
GRAY
8-97405-353-0
01
1
0806-1303
1
04.592 STEM ASM; PARKING BRK
GRAY
8-97426-513-0
01
1
1304-
24
04.589 SWITCH ASM; PARK BRK
8-97995-828-1
01
1
0806-1303
24
04.589 SWITCH ASM; PARK BRK
8-98238-611-0
01
1
1304-
25
04.589 SCREW; SW,PARKING BRK
8-98152-463-0
01
1
0806-
53
04.779 CABLE; PARK BRK,FRT LWR
8-98081-697-0
01
1
0806-
64
04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE
0-91380-008-0
02
1
0806-
75
04.790 RING; SNAP,HAND BRK CABLE
ID=12
0-91805-512-0
01
1
0806-
87
04.785 NUT
01.062 (A) M8 FLANGE
0-91180-108-0
02
1
0806-
87
04.785 NUT
(B) M6
8-98034-313-1
01
1
0806-
170
04.595 COVER; PARKING BRK LEVER
GRAY
8-97406-170-1
01
1
0806-
332
04.785 CLIP; COVER
04.012 GRAY
8-97406-179-0
01
1
0806-
53
238
238
91
91
91
324
324
301
238
238
238
301
91
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
53
04.779 CABLE; PARK BRK,FRT LWR
8-98081-697-0
01
1
0806-
91
04.785 CLIP; PARKING BRK CABLE
04.047 (A)
8-97036-332-1
01
1
0806-
91
04.785 CLIP; PARKING BRK CABLE
04.047 (B)
8-97036-333-1
03
1
0806-
91
04.785 CLIP; PARKING BRK CABLE
(C)
8-98023-622-0
01
1
0806-
238
04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE
0-28650-825-0
03
1
0806-
301
04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE
0-91180-108-0
01
1
0806-
324
04.785 BRACKET
(A)
8-98032-783-1
01
1
0806-
324
04.785 BRACKET
04.010 (B)
8-98036-882-1
01
1
0806-
235
198
237
181
85
198
225
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
85
04.785 CLIP; BRKT
ID=14.5 L=20
1-09701-012-0
01
1
0806-
181
04.785 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
02
1
0808-
181
04.785 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0806-
198
04.785 BRACKET; CABLE
(B)
8-98034-361-0
01
1
0806-
198
04.785 BRACKET; CABLE
(A)
8-98034-362-0
01
1
0806-
225
04.785 NUT; CABLE CLIP
01.062 M8 FLANGE
0-91180-108-0
02
1
0808-
225
04.785 NUT; CABLE CLIP
01.062 M8 FLANGE
0-91180-108-0
01
1
0806-
235
04.785 BRACKET; CONT CABLE TO FRAME
8-98034-352-0
01
1
0806-
237
04.785 NUT; BRKT TO FRAME
01.062 M8 FLANGE
0-91180-108-0
01
1
0806-
