Isuzu WW
▶
TRUCKS
▶
NLS
▶
51176 - NLS(EUROPE)RHD
▶
3 - Brakes, Brake System
▶
3-08 - PARKING BRAKE
▶

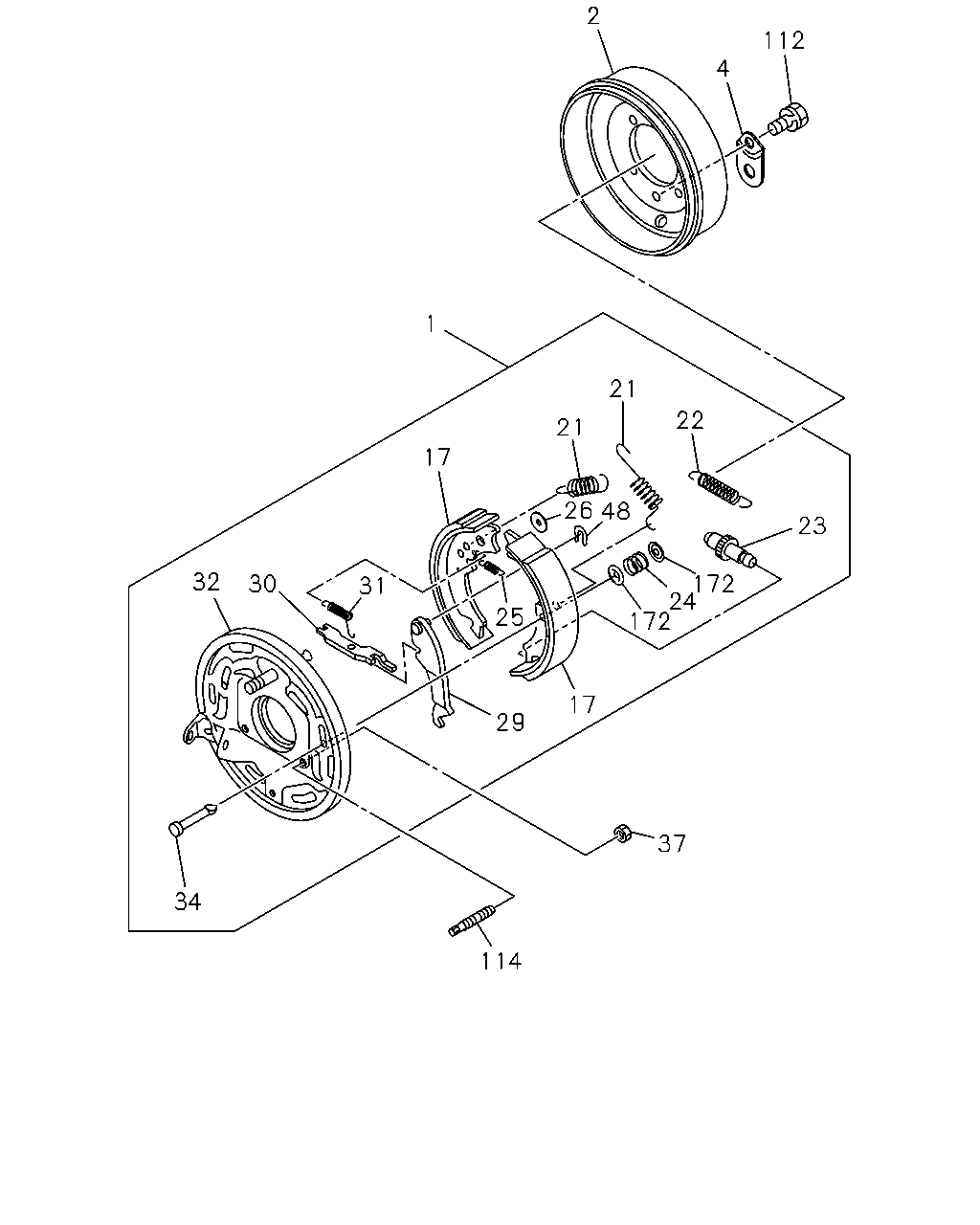

3-08 — PARKING BRAKE
(#76128) — 20 parça
2
112
4
1
21
22
21
17
23
32
31
30
172
24
172
25
17
29
37
34
114
26
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
05.610 BRAKE ASM; CENTER,PARKING
8-98029-922-0
01
1
0806-
2
05.605 DRUM; PARKING BRK
8-97033-989-1
01
1
0806-
4
05.606 COVER; ADJ HOLE
8-98029-820-0
01
1
0806-
17
05.606 SHOE; PARKING BRK
8-97020-250-2
02
1
0806-
21
05.606 SPRING; RETURN,PARKING BRK SHOE
05.605
8-94132-157-0
02
1
0806-
22
05.606 SPRING; ADJ SCREW,PARKING BRK
05.605
8-94107-618-0
01
1
0806-
23
05.615 SCREW; ADJ,PARKING BRK SHOE
8-98043-954-0
01
1
0806-
24
05.605 SPRING; BRK SHOE
8-94132-155-1
02
1
0806-
25
05.605 SPRING; SHOE ALIGNMENT
8-94132-156-0
01
1
0806-
26
05.605 PLATE; SHOE GUIDE
8-98043-959-0
01
1
0806-
29
04.591 LEVER; PARKING BRK
8-98043-949-0
01
1
0806-
30
05.605 STRUT; PARKING BRK
8-98043-953-0
01
1
0806-
31
05.605 SPRING; SHOE TO STRUT
8-94132-158-0
01
1
0806-
32
05.610 PLATE; SUPPORT,PARKING BRK
8-97308-176-0
01
1
0806-
34
05.605 PIN; BRK SHOE
8-98043-955-0
02
1
0806-
37
05.610 NUT; SUPPORT PLATE
M12 LOCK NUT
8-98029-927-0
04
1
0806-
48
05.605 RETAINER; PIN,PARKING BRK
8-98043-958-0
01
1
0806-
112
05.606 BOLT; COVER TO BRK DRUM
00.662 M6X16 W/LK WASHER
0-50540-616-0
01
1
0806-
114
05.605 STUD; SUPPORT PLATE
8-98029-929-0
04
1
0806-
172
05.605 CUP; SHOE HOLD
8-98043-956-0
04
1
0806-
