4-25 — REAR FINAL DRIVE (#7611) — 71 parça

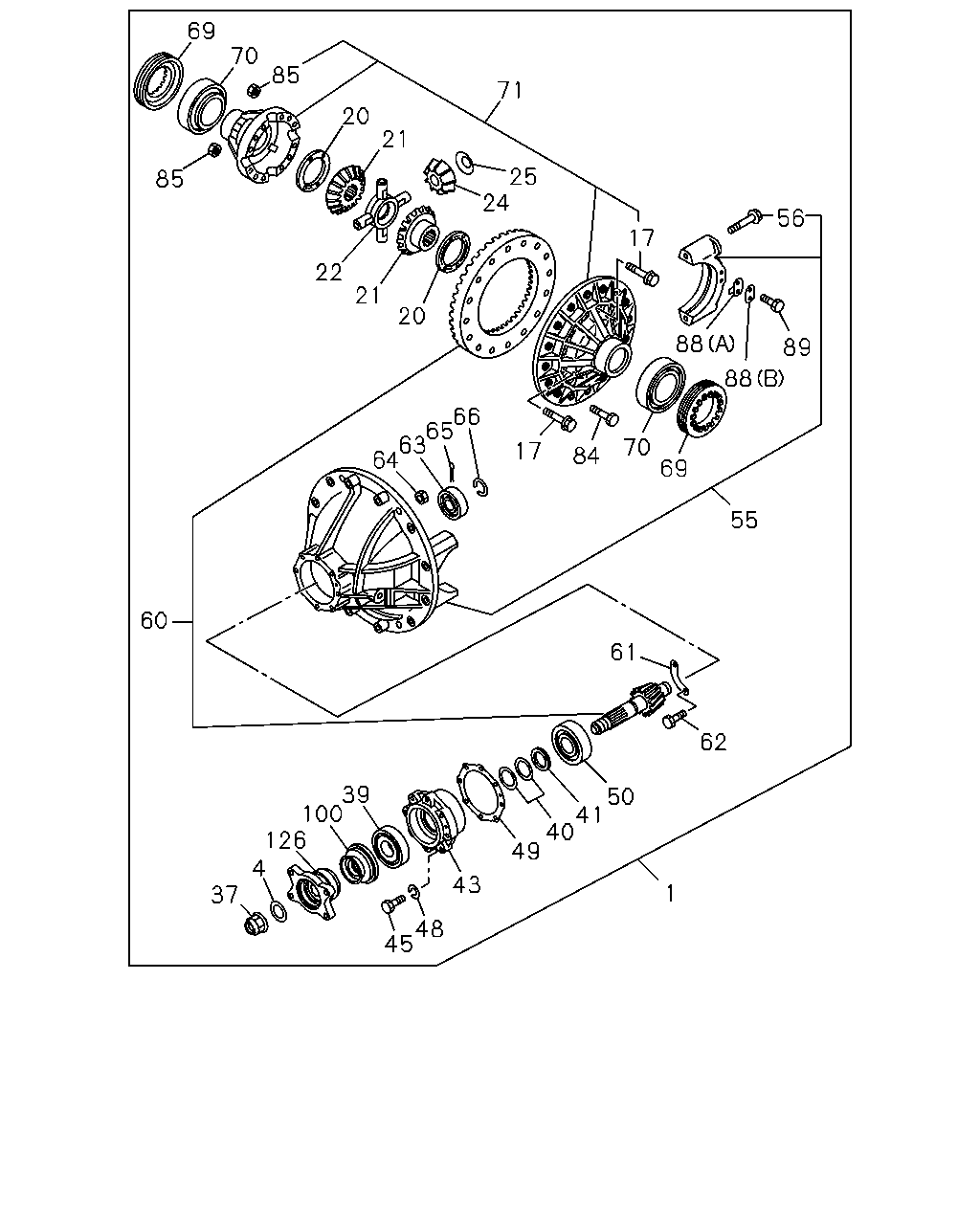

çizim 7604
69 70 85 71 20 21 25 24 85 56 17 22 21 20 88 89 88 66 65 63 64 70 69 17 84 55 60 61 62 39 100 126 4 37 50 41 40 49 43 1 48 45
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRIVE ASM; FINAL,RR
39/6 		1-41000-380-0 01 1 0101- ●
1 DRIVE ASM; FINAL,RR
39/7 		1-41000-378-0 01 1 0101- ●
4 GASKET; FLANGE,FINAL PINION
ID=42 		1-09623-475-0 01 1 0101-0208 ● ●
4 GASKET; FLANGE,FINAL PINION
ID=42 		9-09921-116-0 01 1 0209- ● ●
17 BOLT; DIFF CAGE SETTING
M14X121 FLANGE 		1-09044-006-0 08 1 0101- ● ●
17 BOLT; DIFF CAGE SETTING
M14X95 FLANGE 		1-09044-007-0 04 1 0101- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-169-0 AR 1 0101- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-170-0 AR 1 0101- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-171-0 AR 1 0101- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-172-0 AR 1 0101- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-173-0 AR 1 0101- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-174-0 AR 1 0101- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-175-0 AR 1 0101- ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-076-0 02 1 0101-0405 ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-123-0 02 1 0406- ● ●
22 PIN; CROSS,DIFF PINION
OD=32 		1-41521-002-1 01 1 0101- ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-022-0 04 1 0101-0405 ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-040-0 04 1 0406- ● ●
25 WASHER; THRUST,PINION
T=1.6 		1-41552-001-0 04 1 0101- ● ●
37 NUT; DRIVING PINION
M39 FLANGE 		1-09449-056-2 01 1 0101- ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-086-0 01 1 0101- ● ●
39 BEARING; FINAL PINION
NTN 		9-00093-072-1 01 1 0101- ● ●
39 BEARING; FINAL PINION
KOYO 		9-00093-206-2 01 1 0101- ● ●
40 SHIM; FINAL PINION
T=3.50 		1-41229-106-0 AR 1 0101- ● ●
40 SHIM; FINAL PINION
T=3.51 		1-41229-107-0 AR 1 0101- ● ●
40 SHIM; FINAL PINION
T=3.52 		1-41229-108-0 AR 1 0101- ● ●
40 SHIM; FINAL PINION
T=3.53 		1-41229-109-0 AR 1 0101- ● ●
40 SHIM; FINAL PINION
T=3.54 		1-41229-110-0 AR 1 0101- ● ●
40 SHIM; FINAL PINION
T=3.55 		1-41229-111-0 AR 1 0101- ● ●
40 SHIM; FINAL PINION
T=3.56 		1-41229-112-0 AR 1 0101- ● ●
40 SHIM; FINAL PINION
T=3.57 		1-41229-113-0 AR 1 0101- ● ●
40 SHIM; FINAL PINION
T=3.58 		1-41229-114-0 AR 1 0101- ● ●
40 SHIM; FINAL PINION
T=3.59 		1-41229-115-0 AR 1 0101- ● ●
40 SHIM; FINAL PINION
T=3.60 		1-41229-116-0 AR 1 0101- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.600 		1-41229-101-0 AR 1 0101- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.800 		1-41229-102-0 AR 1 0101- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.000 		1-41229-103-0 AR 1 0101- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.200 		1-41229-104-0 AR 1 0101- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.400 		1-41229-105-0 AR 1 0101- ● ●
43 CAGE; FINAL PINION
T=75 		1-41151-005-0 01 1 0101- ● ●
45 BOLT; FINAL PINION CAGE
M14X50 		0-16806-450-0 08 1 0101- ● ●
48 WASHER; LK,FINAL PINION
ID=14.2 		9-09150-514-0 08 1 0101- ● ●
49 SHIM; FINAL PINION CAGE
T=1.000 		1-41154-009-0 AR 1 0101- ● ●
49 SHIM; FINAL PINION CAGE
T=0.500 		1-41154-010-0 AR 1 0101- ● ●
49 SHIM; FINAL PINION CAGE
T=0.300 		1-41154-104-0 AR 1 0101- ● ●
49 SHIM; FINAL PINION CAGE
T=0.400 		1-41154-105-0 AR 1 0101- ● ●
50 BEARING; FINAL PINION
NTN 		1-09812-013-0 01 1 0101- ● ●
50 BEARING; FINAL PINION
KOYO 		1-09812-070-1 01 1 0101- ● ●
55 CARRIER; DIFF 1-41110-120-1 01 1 0101- ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 0101- ● ●
60 GEAR SET; FINAL DRIVE,RR
39/6 		1-41210-371-2 01 1 0101- ●
60 GEAR SET; FINAL DRIVE,RR
39/7 		1-41210-517-0 01 1 0101- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-015-0 02 1 0101- ● ●
62 BOLT; RET
M8X38 W/PIN HOLE 		1-09042-036-0 02 1 0101- ● ●
63 BEARING; PINION PILOT
KOYO 		1-09810-229-2 01 1 0101- ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-230-1 01 1 0101- ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 0101- ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 0101- ● ●
66 RING; SNAP,PILOT BRG
OD=42 		9-09950-179-0 01 1 0101- ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-002-0 01 1 0101- ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-001-0 01 1 0101- ● ●
70 BEARING; DIFF CAGE
KOYO ID=92 OD=152 T=40 		1-09812-225-0 02 1 0101- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-270-0 01 1 0101- ● ●
84 BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE 		1-09020-167-0 16 1 0101- ● ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 12 1 0101- ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 0101- ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 0101- ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 0101- ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-017-0 01 1 0101- ● ●
126 COUPLING; DRIVING PINION 1-37245-023-4 01 1 0101-0208 ● ●
126 COUPLING; DRIVING PINION 1-37245-403-0 01 1 0209- ● ●
