Isuzu WW
▶
TRUCKS
▶
NLS
▶
51176 - NLS(EUROPE)RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

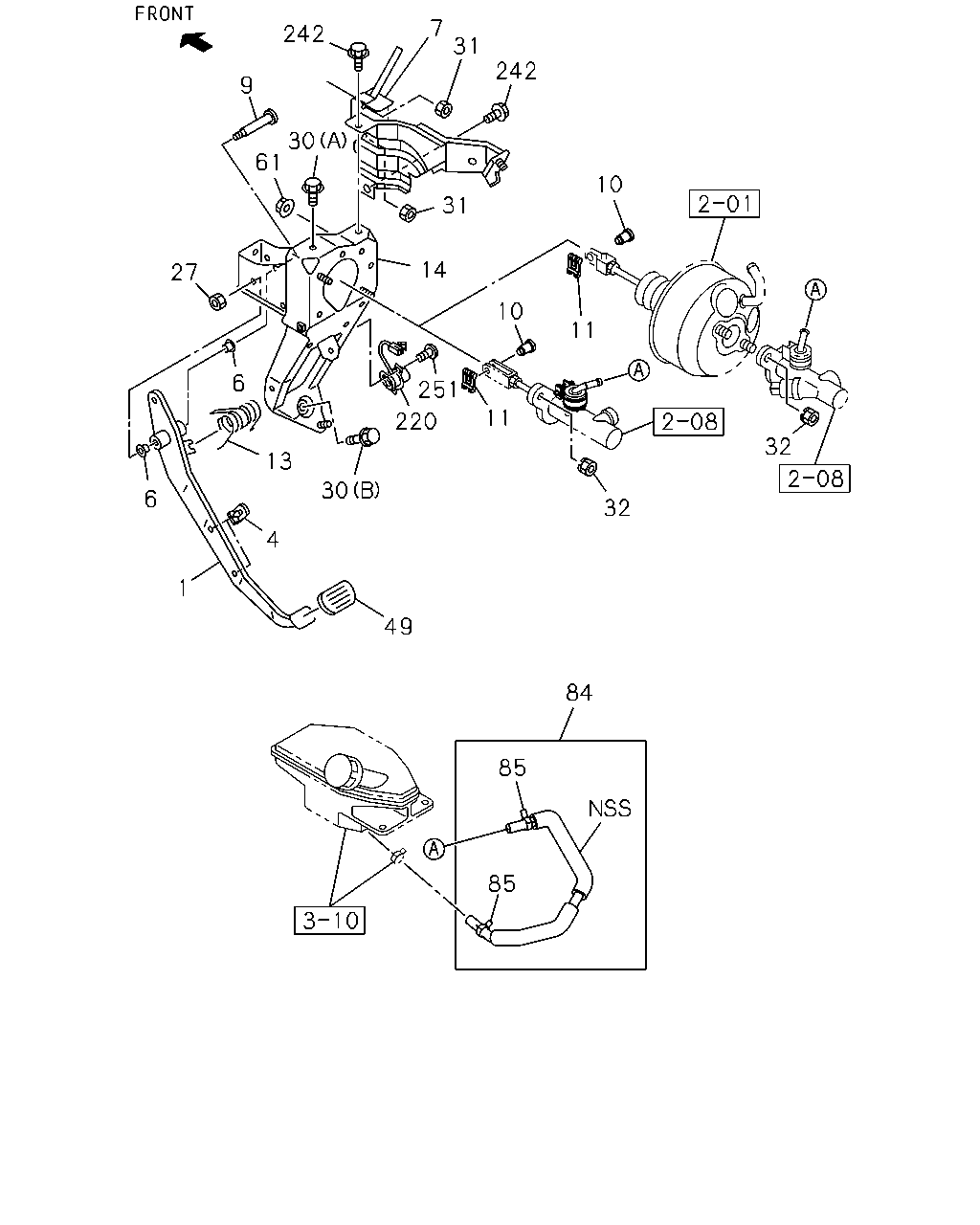

2-03 — CLUTCH PEDAL AND CONTROL
(#76107) — 25 parça
7
242
31
242
9
30
61
10
31
14
27
10
11
6
251
11
220
32
13
30
6
32
4
1
49
84
85
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.830 PEDAL; CLU
8-98002-485-0
01
1
0806-
4
00.829 STOPPER; CLU PEDAL
8-97853-534-1
02
1
0806-
6
00.831 BUSHING; CLU PEDAL
04.792
8-94238-596-0
02
1
0806-
7
00.829 BRACKET; CLU PEDAL
8-98029-186-4
01
1
0806-
9
00.833 PIN; CLU PEDAL
04.634
8-97866-667-0
01
1
0806-
10
00.833 PIN; CLU PEDAL
04.634
8-97387-230-0
01
1
0806-1007
10
00.833 PIN; CLU PEDAL
04.634
8-98147-657-0
01
1
1008-
11
00.833 PIN; SNAP,PUSH ROD TO PEDAL
8-98007-161-0
01
1
0806-
13
00.844 SPRING; ASSIST,CLU PEDAL
8-98023-621-1
01
1
0806-
14
00.829 BRACKET ASM; CLU PEDAL MTG
8-98002-483-4
01
1
0806-
27
00.833 NUT; FULCRUM PIN
04.634 M10 LOCK NUT FLANGE
0-91380-010-0
01
1
0806-
30
00.829 BOLT; CLU MTG BRKT
07.833 (A) M10X25 FLANGE
0-28661-025-0
01
1
0806-
30
00.829 BOLT; CLU MTG BRKT
04.634 (B) M10X22 W/PL WASHER
8-98033-926-0
01
1
0806-0903
30
00.829 BOLT; CLU MTG BRKT
00.833 (B) M10X22 W/PL WASHER
8-97313-188-0
01
1
0904-
31
01.153 NUT; MTG BRKT TO BODY
00.777 M8 W/LK WASHER
8-94279-050-0
02
1
0806-
32
00.777 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER
8-94279-050-0
02
1
0806-
49
00.829 RUBBER; PAD,CLU PEDAL
8-97853-413-2
01
1
0806-
61
00.777 NUT; BOOSTER TO BRKT
M8 W/LK WASHER
8-94279-050-0
04
1
0806-
84
00.785 HOSE; RUBBER,CLU LINE
8-98023-510-4
01
1
0806-1208
84
00.785 HOSE; RUBBER,CLU LINE
8-98218-205-1
01
1
1209-
85
00.785 CLIP; HOSE TO M/CYL
04.681
8-98031-178-0
02
1
0806-1208
85
00.785 CLIP; HOSE TO M/CYL
8-98168-080-0
02
1
1209-
220
04.329 SENSOR; CLUTCH
1-80250-014-0
01
1
0806-
242
00.785 BOLT; BRKT,CLUTCH
03.604 M8X16 FLANGE
0-28450-816-0
02
1
0806-
251
04.054 BOLT; SENSOR
02.500 M6X16
0-52000-616-0
02
1
0806-
