1-50 — EXHAUST PIPE AND SILENCER (#76103) — 115 parça

2 36 1 84 319 25 1 421 568 44 8 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.609 PIPE; EXH (A)	8-98001-827-2	01	1	0806-
1	03.609 PIPE; EXH (B)	8-98084-410-1	01	1	0806-
2	03.611 GASKET; PIPE TO MANIF	8-97384-590-0	01	1	0806-
8	03.704 BRACKET; EXH PIPE 03.613	8-98026-063-0	01	1	0806-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-98084-409-1	01	1	0806-1406
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-98282-479-0	01	1	1407-
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	0806-
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	0806-
44	03.613 BOLT; BRKT 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	0806-
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0806-
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0806-
84	03.611 GASKET; EXH PIPE	8-97384-590-0	01	1	0806-
319	03.602 NUT; PROTECTOR 03.162 M10 FLANGE	0-91180-110-0	02	1	0806-
421	03.706 BOLT; PIPE BRKT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	0806-
568	03.704 NUT; DPD 01.062 M8 FLANGE	0-91180-108-0	04	1	0806-

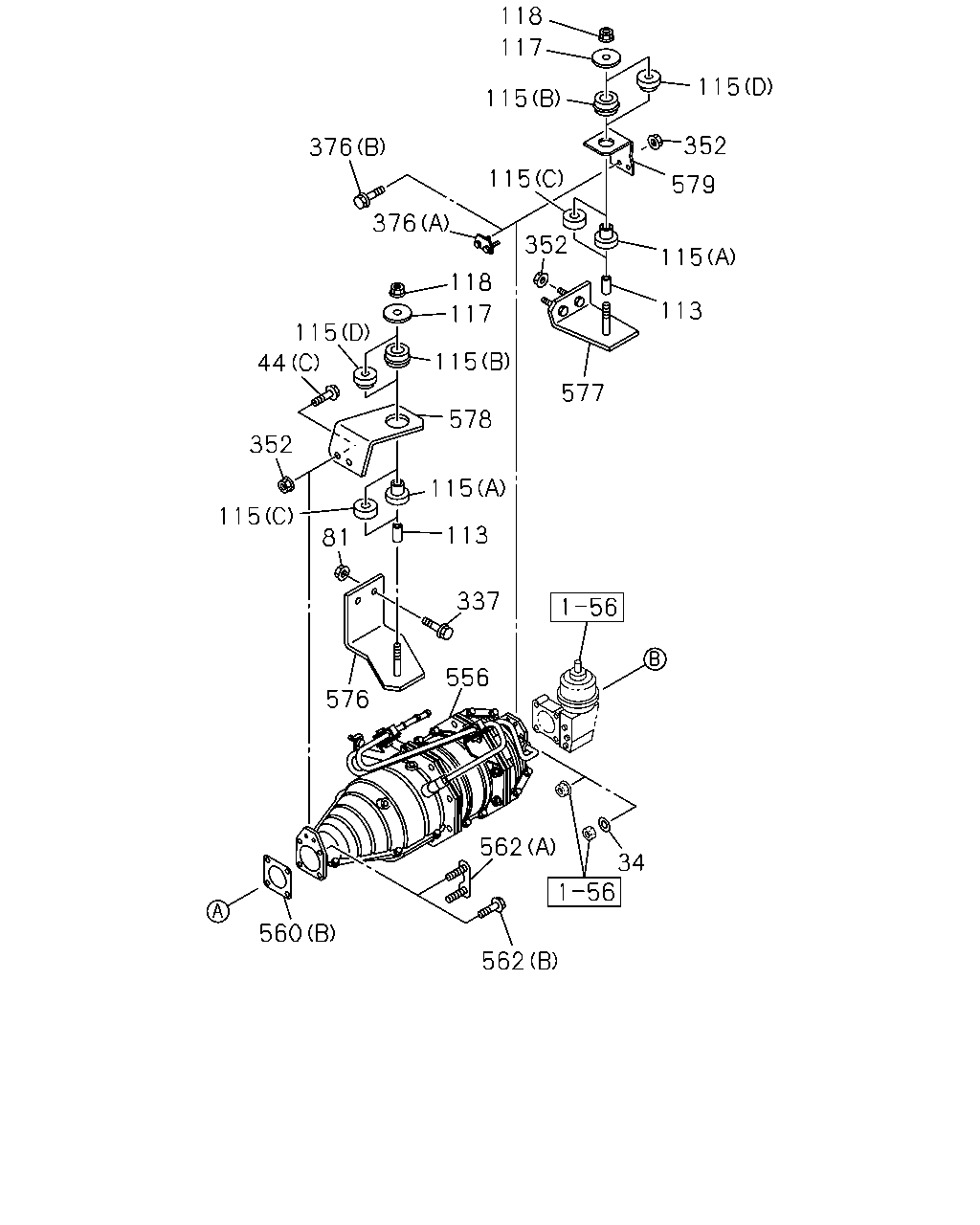

118 117 115 115 352 376 115 579 376 352 115 118 113 117 115 115 44 577 578 352 115 115 113 81 337 556 576 562 34 560 562

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	03.613 WASHER; EXH PIPE IDENTIFICATION LABEL FOR KD<6UT> 03.632 T=1.9	5-09500-012-0	04	1	1204-
44	03.613 BOLT; BRKT 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	0806-
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0806-
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0806-
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0806-
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0806-
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	0806-
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	0806-0806
115	03.704 RUBBER; MTG,SILENCER (C)	8-97379-882-0	02	1	0806-0907
115	03.704 RUBBER; MTG,SILENCER (C)	8-94457-277-1	02	1	0908-
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	0806-0806
115	03.704 RUBBER; MTG,SILENCER (D)	8-97379-927-0	02	1	0806-0907
115	03.704 RUBBER; MTG,SILENCER (D)	8-94457-278-1	02	1	0908-
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	0806-
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	0806-
337	03.706 BOLT; RUBBER,SUPPORT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0806-
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	1001-
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0806-0912
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0806-0912
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0806-0912
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1001-
376	03.708 BOLT; BRKT IDENTIFICATION LABEL FOR KD<6UT> 03.890 (B) M10X30 FLANGE	0-28051-030-0	02	1	1206-
376	03.708 BOLT; BRKT 03.690 (A) W/PLATE	8-98005-985-0	01	1	0806-1205
376	03.708 BOLT; BRKT EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.690 (A) W/PLATE	8-98005-985-0	01	1	1206-
556	03.701 DPD ASM	8-98036-810-7	01	1	0806-1011
556	03.701 DPD ASM	8-98084-595-4	01	1	1012-
560	03.611 GASKET; DPD (A)	8-97331-947-0	02	1	0806-
560	03.611 GASKET; DPD (B) ID=64	8-97373-108-0	01	1	0806-
562	03.690 PLATE; STUD,BOLT IDENTIFICATION LABEL FOR KD<6UT> 03.162 (B) M8X35 FLANGE	0-28050-835-0	04	1	1206-
562	03.690 PLATE; STUD,BOLT (A)	8-97373-966-0	02	1	0806-1205
562	03.690 PLATE; STUD,BOLT EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97373-966-0	02	1	1206-
576	03.706 BRACKET; DPD FRT TO FRAME	8-98090-391-0	01	1	0806-
577	03.706 BRACKET; DPD RR TO FRAME	8-98084-413-0	01	1	0806-
578	03.706 BRACKET; DPD FRT	8-98084-412-0	01	1	0806-
579	03.704 BRACKET; DPD RR	8-98084-414-0	01	1	0806-

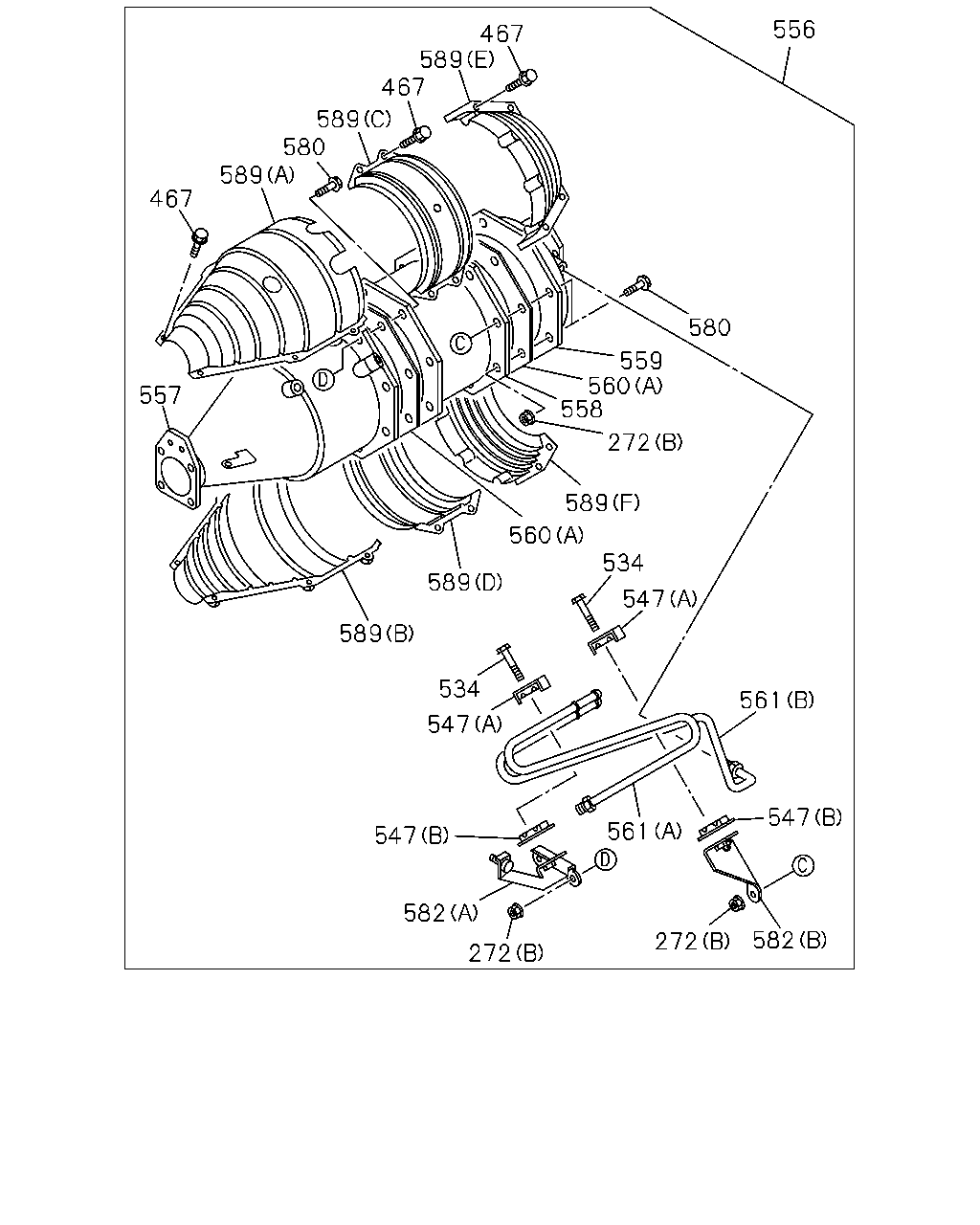

556 467 589 467 589 580 589 467 580 559 560 558 557 272 589 560 534 589 547 589 534 561 547 547 561 547 582 582 272 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
272	03.685 NUT; FLANGE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0806-
272	03.685 NUT; FLANGE 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	0806-
467	03.685 BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	0806-
534	03.704 BOLT; CLIP 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0806-
547	03.682 CLIP; PIPE (A)	8-97381-635-0	02	1	0806-
547	03.682 CLIP; PIPE (B)	8-97381-636-0	02	1	0806-
556	03.701 DPD ASM	8-98036-810-7	01	1	0806-1011
556	03.701 DPD ASM	8-98084-595-4	01	1	1012-
557	03.701 CATALYST ASM	8-98036-815-7	01	1	0806-
558	03.634 FILTER ASM	8-98032-908-2	01	1	0806-
559	03.602 COVER; RR	8-98084-599-0	01	1	0806-1011
559	03.602 COVER; RR	8-98093-507-0	01	1	1012-
560	03.611 GASKET; DPD (A)	8-97331-947-0	02	1	0806-
560	03.611 GASKET; DPD (B) ID=64	8-97373-108-0	01	1	0806-
561	03.609 PIPE; DPD (A)	8-98032-910-0	01	1	0806-1011
561	03.609 PIPE; DPD (A)	8-98084-600-0	01	1	1012-
561	03.609 PIPE; DPD (B)	8-98032-911-1	01	1	0806-1011
561	03.609 PIPE; DPD (B)	8-98084-601-0	01	1	1012-
580	03.704 BOLT; FLANGE 01.060 M8X35 FLANGE	0-28650-835-0	16	1	0806-
582	03.706 BRACKET; PIPE (A)	8-98032-919-0	01	1	0806-
582	03.706 BRACKET; PIPE (B)	8-98032-920-0	01	1	0806-
589	03.609 PROTECTOR; HEAT,DPD (C)	8-97383-660-0	01	1	0806-
589	03.609 PROTECTOR; HEAT,DPD (F)	8-97383-663-0	01	1	0806-
589	03.609 PROTECTOR; HEAT,DPD (A)	8-98032-921-0	01	1	0806-
589	03.609 PROTECTOR; HEAT,DPD (B)	8-98032-923-0	01	1	0806-
589	03.609 PROTECTOR; HEAT,DPD (D)	8-98032-924-0	01	1	0806-
589	03.609 PROTECTOR; HEAT,DPD (E)	8-98032-926-0	01	1	0806-

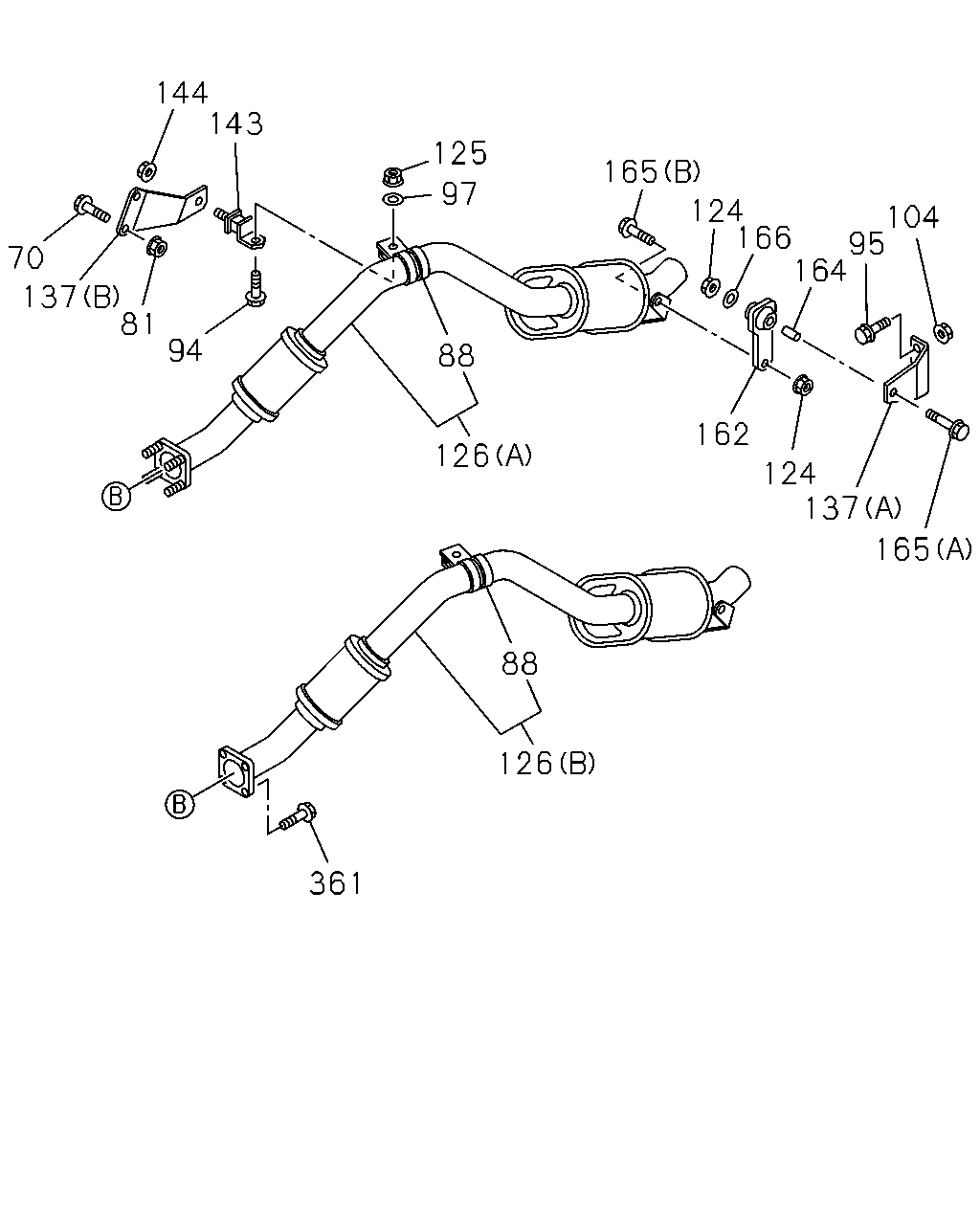

144 143 125 165 97 124 104 166 95 164 70 137 81 94 88 162 126 124 137 165 88 126 361

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
70	03.706 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0806-
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0806-
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0806-
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	0806-
94	03.704 BOLT; CLAMP 03.023 M10X50 FLANGE	8-97301-165-0	01	1	0806-
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0806-
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0806-
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0806-
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	0806-
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	0806-
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0806-
126	03.705 PIPE; EXH,RR IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98214-655-0	01	1	1204-1308
126	03.705 PIPE; EXH,RR IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98254-822-0	01	1	1309-
126	03.705 PIPE; EXH,RR (A)	8-98084-411-1	01	1	0806-1203
126	03.705 PIPE; EXH,RR EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98084-411-1	01	1	1204-1308
126	03.705 PIPE; EXH,RR EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98254-813-0	01	1	1309-
137	03.706 BRACKET; TAIL PIPE (B)	8-98001-897-1	01	1	0806-
137	03.706 BRACKET; TAIL PIPE (A)	8-98001-908-1	01	1	0806-
143	03.704 RUBBER; SUPPORT	8-98034-767-0	01	1	0806-
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0806-
162	03.706 RUBBER; SUPPORT,TAIL PIPE	8-98032-150-0	01	1	0806-
164	03.706 COLLAR; DIST,TAIL PIPE L=23	8-98006-011-0	01	1	0806-
165	03.706 BOLT; SUPPORT RUBBER 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	0806-
165	03.706 BOLT; SUPPORT RUBBER 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0806-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0806-
361	03.704 BOLT; EXH PIPE TO PIPE IDENTIFICATION LABEL FOR KD<6UT> M8X60 FLANGE	8-98213-301-0	04	1	1204-

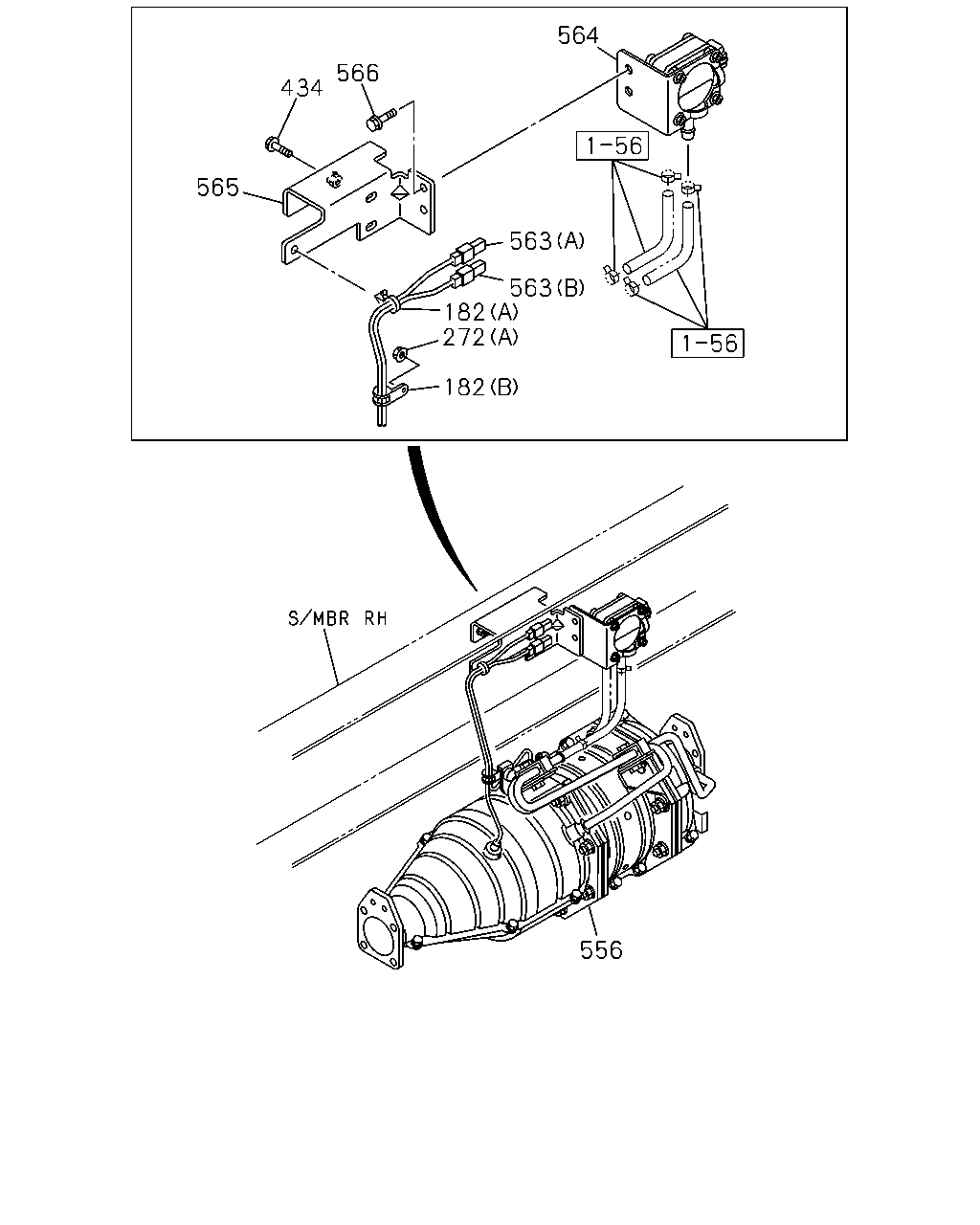

564 566 434 565 563 563 182 272 182 556

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
182	03.682 CLIP; HARNESS 02.587 (A) L=112	8-94232-618-0	01	1	0806-
182	03.682 CLIP; HARNESS (B) ID=7	8-98002-767-0	01	1	0806-
272	03.685 NUT; FLANGE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0806-
272	03.685 NUT; FLANGE 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	0806-
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0806-
556	03.701 DPD ASM	8-98036-810-7	01	1	0806-1011
556	03.701 DPD ASM	8-98084-595-4	01	1	1012-
563	01.150 SENSOR; TEMPERATURE,DPD (A) FRONT	8-98004-329-0	01	1	0806-
563	01.150 SENSOR; TEMPERATURE,DPD (B) CENTER	8-98004-330-0	01	1	0806-
564	01.150 SENSOR; PRESSURE,DPD	8-97360-368-2	01	1	0806-
565	03.706 BRACKET; SENSOR,PRESSURE	8-98063-129-0	01	1	0806-
566	03.706 BOLT; SENSOR 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0806-
