◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51176 - NLS(EUROPE)RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#76099) — 98 parça

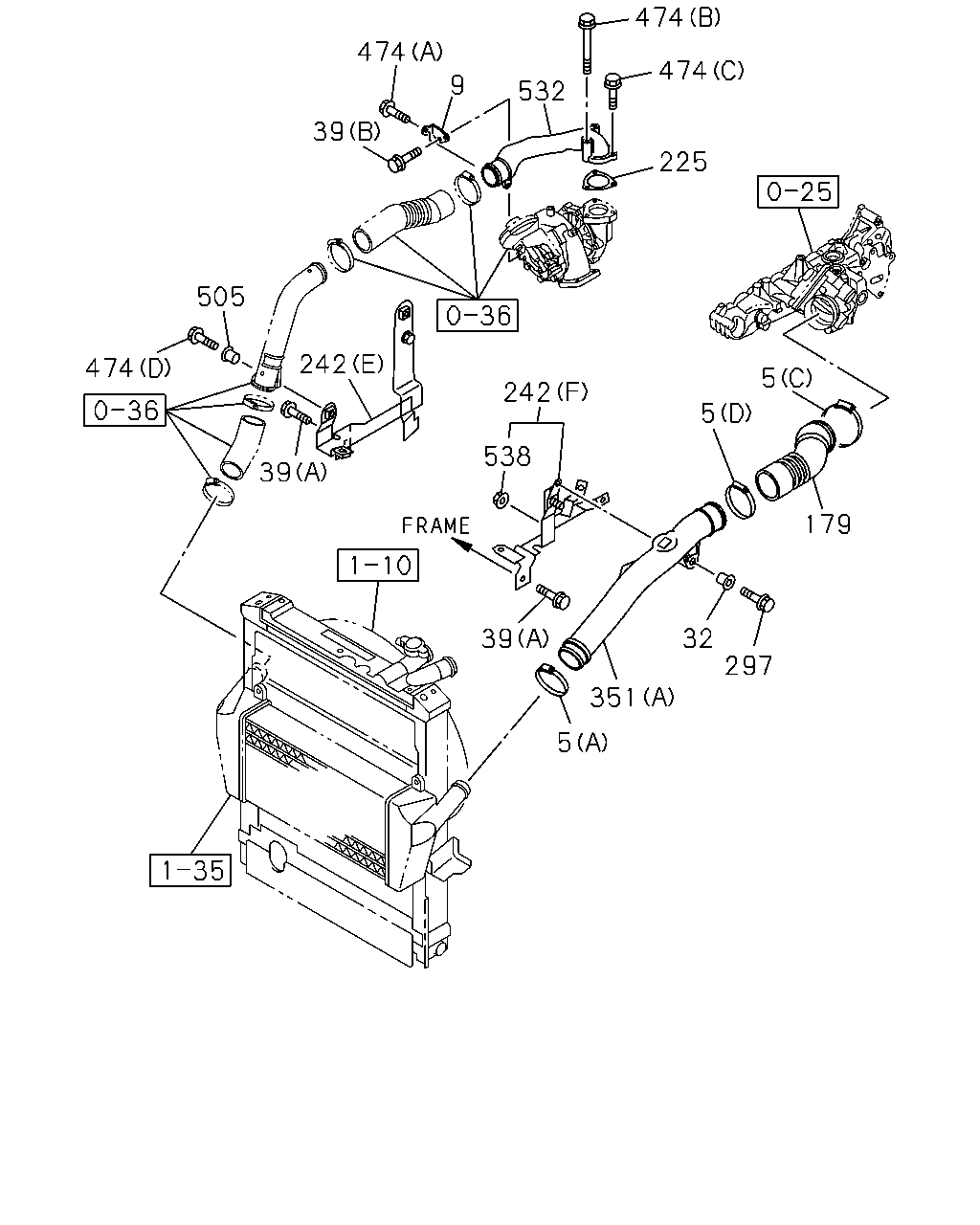

çizim 92094
474 474 225 5 5 242 538 39 505 474 39 474 532 32 297 351 5 39 242 179 9
BalonParca AdiParca NoAdetTipApplied Date
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 01 1 1002-
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65 		8-98096-418-0 01 1 1002-
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90 		8-98122-372-0 01 1 1002-
5 03.407 CLIP; AIR DUCT
(C) ID=68-85 		1-09707-202-0 01 1 0806-0810
5 03.407 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 01 1 0811-1001
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85 		8-98133-350-0 01 1 1002-
5 03.407 CLIP; AIR DUCT
01.159 (D) ID=58-76 		1-09707-203-0 01 1 0806-0811
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 0812-1001
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 1002-
5 03.407 CLIP; AIR DUCT
(A) ID=50-65 		1-09707-204-0 01 1 0806-0810
5 03.407 CLIP; AIR DUCT
(A) ID=45-65 		8-98133-348-0 01 1 0811-1001
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65 		8-98133-348-0 01 1 1002-
5 03.407 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 0806-
9 03.417 BRACKET; INT PIPE 8-98009-086-0 01 1 0806-
32 03.417 RUBBER; AIR DUCT MTG
03.265 OD=23 		8-97105-689-6 01 1 0806-
39 03.417 BOLT; BRKT
03.403 (A) M8X30 FLANGE 		0-28650-830-0 02 1 0806-
39 03.417 BOLT; BRKT
03.613 (B) M8X14 FLANGE 		8-97378-075-0 01 1 0806-
179 03.417 HOSE; AIR INT 8-98050-917-2 01 1 0806-
225 03.417 GASKET; AIR PIPE
03.270 ID=47 		8-97202-328-1 01 1 0806-
242 03.417 BRACKET; AIR DUCT
(E) 		8-97384-140-2 01 1 0806-
242 03.417 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 0806-
242 03.417 BRACKET; AIR DUCT
(A) 		8-98067-767-4 01 1 0806-
242 03.417 BRACKET; AIR DUCT
(F) 		8-98108-313-1 01 1 0806-
242 03.417 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 0806-
242 03.417 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 0806-
297 03.417 BOLT; DUCT
01.060 M8X35 FLANGE 		0-28650-835-0 01 1 0806-
351 03.407 DUCT; AIR
(A) 		8-98067-268-0 01 1 0806-
351 03.407 DUCT; AIR
(B) 		8-98115-594-0 01 1 0806-
474 03.417 BOLT; PIPE
(B) M6X70 FLANGE 		0-28050-670-0 02 1 0806-
474 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 0806-
474 03.417 BOLT; PIPE
03.680 (C) M6X30 FLANGE 		0-28650-630-0 01 1 0806-
474 03.417 BOLT; PIPE
01.060 (D) M8X35 FLANGE 		0-28650-835-0 01 1 0806-
505 03.406 RUBBER; MTG
03.265 OD=23 		8-97105-689-6 01 1 0806-
532 03.417 PIPE; INTAKE 8-97385-203-1 01 1 0806-1303
532 03.417 PIPE; INTAKE 8-98237-771-1 01 1 1304-
538 03.417 NUT; PLATE,AIR DUCT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0806-

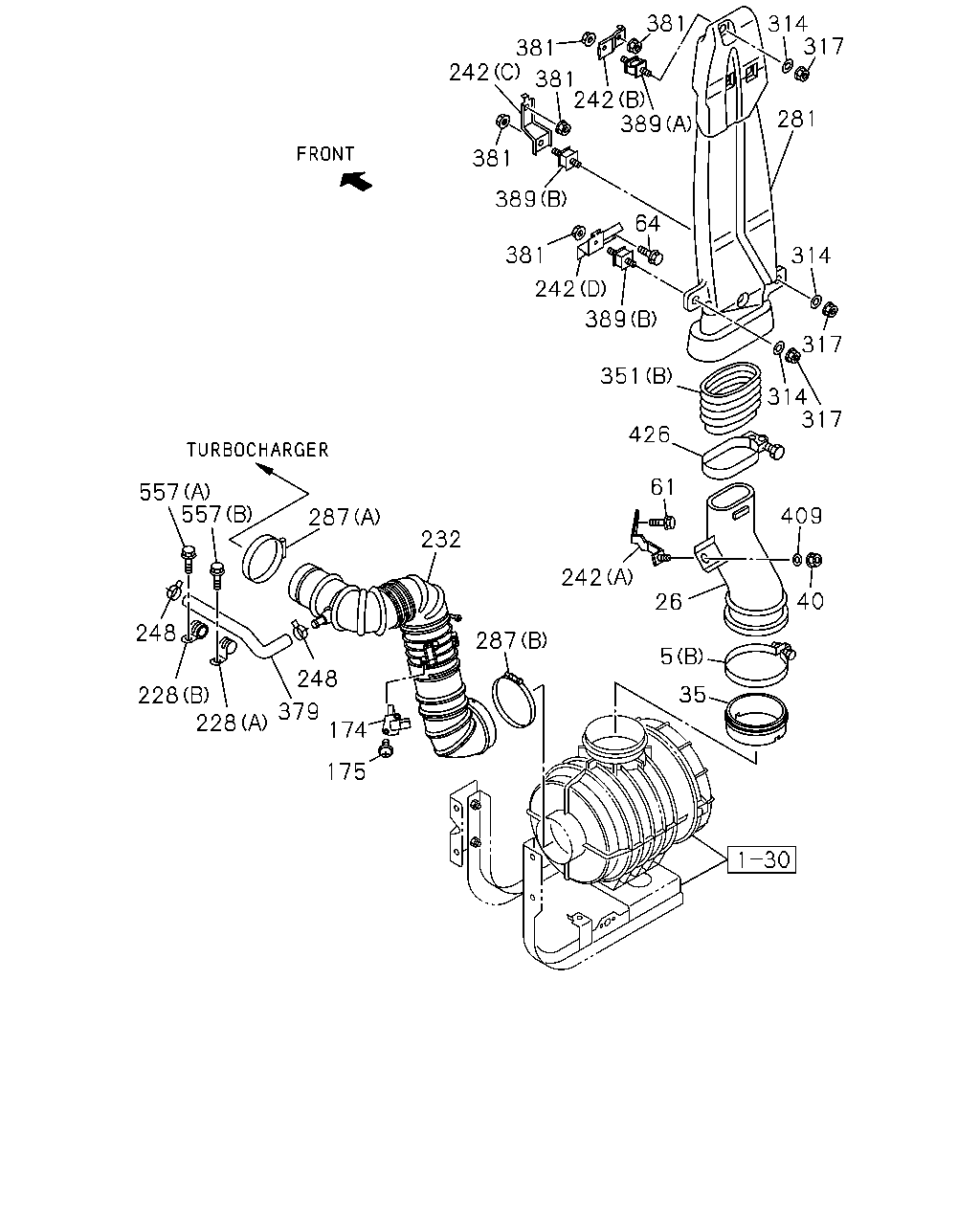

çizim 186103
381 314 317 381 242 381 242 389 281 381 389 64 381 314 242 389 317 351 314 317 426 61 557 557 409 287 232 242 40 26 248 287 5 248 35 228 228 379 174 175
BalonParca AdiParca NoAdetTipApplied Date
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 01 1 1002-
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65 		8-98096-418-0 01 1 1002-
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90 		8-98122-372-0 01 1 1002-
5 03.407 CLIP; AIR DUCT
(C) ID=68-85 		1-09707-202-0 01 1 0806-0810
5 03.407 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 01 1 0811-1001
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85 		8-98133-350-0 01 1 1002-
5 03.407 CLIP; AIR DUCT
01.159 (D) ID=58-76 		1-09707-203-0 01 1 0806-0811
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 0812-1001
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 1002-
5 03.407 CLIP; AIR DUCT
(A) ID=50-65 		1-09707-204-0 01 1 0806-0810
5 03.407 CLIP; AIR DUCT
(A) ID=45-65 		8-98133-348-0 01 1 0811-1001
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65 		8-98133-348-0 01 1 1002-
5 03.407 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 0806-
26 03.417 DUCT; AIR INT 8-98023-339-0 01 1 0806-
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 0806-
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0806-
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0806-
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 0806-
174 03.682 SENSOR; AIR FLOW CONT
EURO4 SPECIFICATION(NT4) 		8-97601-967-0 01 1 0907-
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0806-0906
174 03.682 SENSOR; AIR FLOW CONT
EURO5 SPECIFICATION(NT5) 		8-98113-202-1 01 1 0907-
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0806-
228 03.278 CLIP; PCV HOSE
EURO4 SPECIFICATION(NT4) 04.866 (A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0907-1001
228 03.278 CLIP; PCV HOSE
EURO4 SPECIFICATION(NT4) (B) ID=22 L=22 		8-98120-916-0 01 1 1002-
228 03.278 CLIP; PCV HOSE
04.866 (A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0806-0906
228 03.278 CLIP; PCV HOSE
EURO5 SPECIFICATION(NT5) (A) ID=24.5 H=29 L=25 		8-98120-913-0 01 1 0907-
228 03.278 CLIP; PCV HOSE
09.242 (B) ID=22 L=22 		5-83574-045-0 01 1 0806-0906
228 03.278 CLIP; PCV HOSE
EURO4 SPECIFICATION(NT4) 09.242 (B) ID=22 L=22 		5-83574-045-0 01 1 0907-1001
228 03.278 CLIP; PCV HOSE
EURO4 SPECIFICATION(NT4) (A) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1002-
232 03.417 HOSE; CONN 8-98077-531-1 01 1 0806-
242 03.417 BRACKET; AIR DUCT
(E) 		8-97384-140-2 01 1 0806-
242 03.417 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 0806-
242 03.417 BRACKET; AIR DUCT
(A) 		8-98067-767-4 01 1 0806-
242 03.417 BRACKET; AIR DUCT
(F) 		8-98108-313-1 01 1 0806-
242 03.417 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 0806-
242 03.417 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 0806-
248 03.417 CLIP; RUBBER HOSE
08.846 ID=21.7 		8-97203-074-0 02 1 0806-
281 03.417 DUCT; AIR,VERTICAL INT 8-97369-706-0 01 1 0806-
287 03.417 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=70-90 		8-98122-372-0 01 1 1002-
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=68-85 		1-09707-202-0 01 1 0806-0810
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=65-85 		8-98133-350-0 01 1 0811-1001
287 03.417 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85 		8-98133-350-0 01 1 1002-
287 03.417 CLIP; AIR DUCT
03.407 (B) ID=117 		9-09915-075-1 01 1 0806-
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 0806-
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 0806-
351 03.407 DUCT; AIR
(A) 		8-98067-268-0 01 1 0806-
351 03.407 DUCT; AIR
(B) 		8-98115-594-0 01 1 0806-
379 03.675 HOSE; RUBBER
EURO4 SPECIFICATION(NT4) 03.278 		8-98045-343-0 01 1 0907-
379 03.675 HOSE; RUBBER
03.278 		8-98045-343-0 01 1 0806-0906
379 03.675 HOSE; RUBBER
EURO5 SPECIFICATION(NT5) 		8-98117-929-2 01 1 0907-0910
379 03.675 HOSE; RUBBER
EURO5 SPECIFICATION(NT5) 		8-98156-950-0 01 1 0911-
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 0912-
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 05 1 0806-0911
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 02 1 0912-
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 0806-
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 0806-
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0806-
426 03.417 CLIP; DUCT
03.407 D=101.6 		9-09915-502-1 01 1 0806-
557 03.403 BOLT; HOSE CLIP
03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 0806-0906
557 03.403 BOLT; HOSE CLIP
03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 0907-
557 03.403 BOLT; HOSE CLIP
03.330 (B) M8X12 HEX SOCKET 		0-58330-812-0 01 1 0806-0906
557 03.403 BOLT; HOSE CLIP
EURO4 SPECIFICATION(NT4) 03.330 (B) M8X12 HEX SOCKET 		0-58330-812-0 01 1 0907-
